IP Cameras › Uho-S3E-M5TD-A

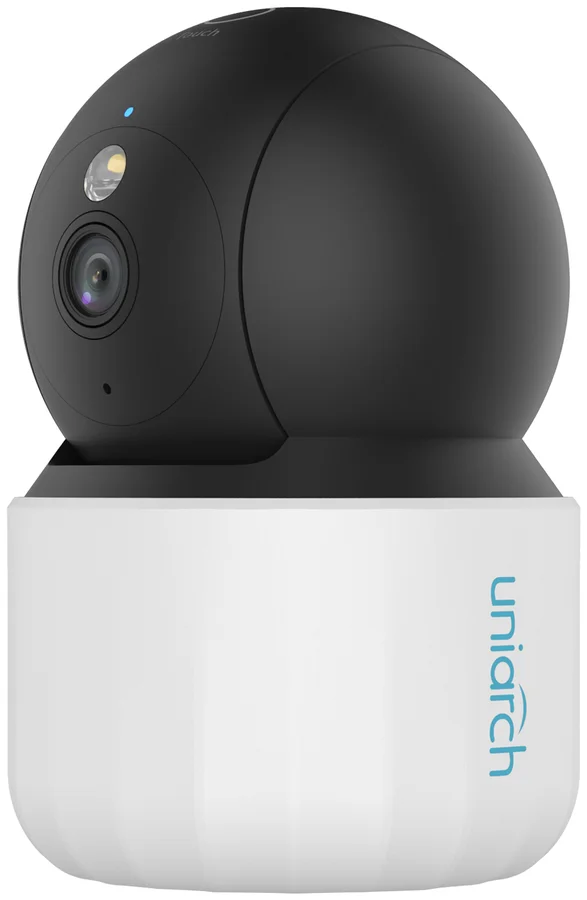

5MP Indoor Pan & Tilt Wi-Fi Camera, Dual Light Uho-S3E-M5TD-A — view 1

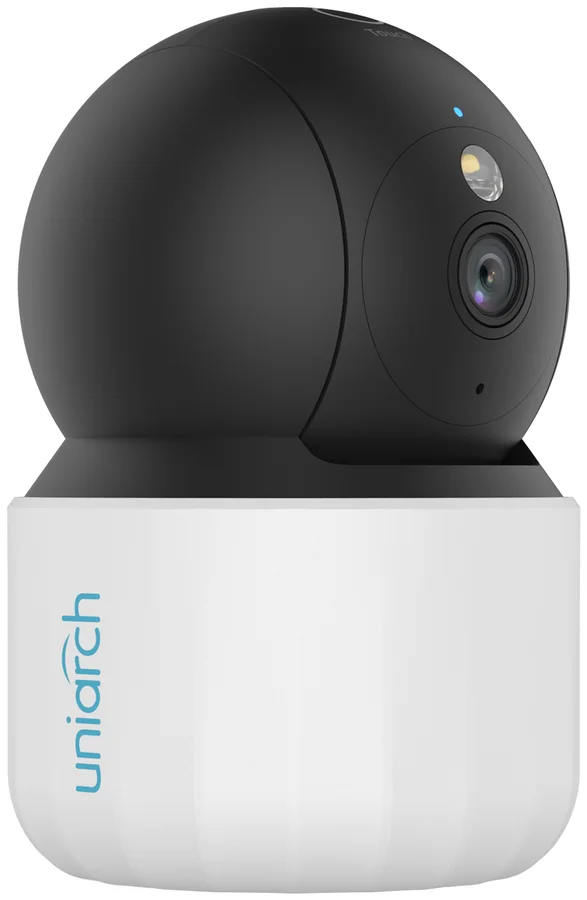

5MP Indoor Pan & Tilt Wi-Fi Camera, Dual Light Uho-S3E-M5TD-A — view 2

UniarchWi-Fi Pan & Tilt

5MP Indoor Pan & Tilt Wi-Fi

Uho-S3E-M5TD-A

Name: Uniarch Uho-S3E-M5TD-A
Brand: Uniarch
SKU: Uho-S3E-M5TD-A

5MP indoor Wi-Fi pan & tilt camera — motorized 355° pan and full tilt sweep, auto tracking follows what moves, dual light (IR + warm light) and an Action Touch button for one-tap calling or privacy mode. Powers from any USB-C 5V outlet, no NVR required.

5 MP · 2880×1620@25fpsWi-Fi 6 · 802.11ax, 2.4GHzPTZ · 355° pan / -15°~90° tiltAuto Tracking · follows moving subjectsDual Light · IR + warm light, preset-triggeredAction Touch · physical button: call / privacyTwo-way Audio · mic + speaker

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCRoHSWEEE

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

355°Motorized pan

Wi-Fi 6802.11ax, 2.4GHz

10 mDual Light range

20Preset positions

The Uniarch Uho-S3E-M5TD-A is a 5MP indoor Wi-Fi camera on a motorized pan-tilt base, panning 355° and tilting from -15° to 90° across 20 saved presets. It follows moving subjects with auto tracking, switches between IR and warm-light illumination when a preset is triggered, and has a physical Action Touch button on top for one-tap calling or privacy mode. It runs off any USB-C 5V/1.5A power source and connects over 2.4GHz Wi-Fi 6 (802.11ax), with MicroSD storage up to 512GB for local recording.

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

One camera, whole-room coverage355° motorized pan and a wide tilt range mean one ceiling or shelf-mounted unit can cover most of a living room, office or shop floor — no blind corner left to a fixed lens.

Nursery & elderly check-insAuto tracking follows a moving baby or family member around the room, and the built-in mic + speaker let you talk to them directly from the app — no separate baby monitor needed.

Pet check-ins while you're outPet detection is a separate category from human/vehicle detection, so alerts on cat or dog movement don't get lost among general motion notifications.

Apartments & rentals without cablingNo PoE switch or NVR cable run needed — plug the included USB-C cable into any 5V outlet and join the Wi-Fi. Take it with you when you move out.

Checking in from your phonePair it with the Uniarch APP for live view, push alerts, remote pan/tilt control and playback from anywhere.

Local backup you controlMicroSD edge storage up to 512GB keeps footage on the camera itself — no monthly cloud subscription required to have a recording.

One-tap privacy when you're homeThe Action Touch button on top of the unit lets anyone in the room switch the camera into privacy mode or place a call without opening the app first.

Not the right pick if you need…

Outdoor / weatherproof use — this is an indoor-only body, no IP dust/water rating at all
PoE power — this camera has no PoE port, it needs a USB-C 5V/1.5A power source nearby
Full-time color night vision — the warm light only turns on when a preset is triggered, for scene illumination; by default night video is IR-lit black & white
A fixed non-moving mount — the whole point of this model is the motorized pan-tilt base; if you just need a static wide-angle view, a fixed-lens camera may be simpler

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 5MP, 1/3" CMOS sensor

5MP (2880×1620)@25/20fps; 4MP (2560×1440)@25/20fps; 3MP (2304×1296)@30/25fps; 2MP (1920×1080)@30/25fps; 720P (1280×720)@30/25fps

Ultra 265, H.265, H.264

Built in Mic & Speaker, support two way audio, offer better interaction

Action touch, a physical button located on the top of the camera, support calling and privacy mode

IR night vision, up to 10m (33ft) IR distance

Warm Light, up to 10m (33ft) warm light distance

Support Dual Light mode, switch between IR and warm lights when the preset is triggered

Support 512 G Micro SD card

Wi-Fi connection and easy installation

Night vision: switchable IR / warm light

Dual Light mode switches between IR and warm light automatically when a preset is triggered.

IR MODE

Invisible infrared — discreet black & white night vision

IR night vision up to 10 m (32.8 ft.) at 850 nm — the default at night, discreet and unlit.

WARM LIGHT MODE

Visible warm light — turns on when a preset is triggered

Warm-light illumination up to 10 m (32.8 ft.), switched on together with the Dual Light mode when a saved preset position is triggered — useful for scenes where a lit, visible response is preferred over silent IR.

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	84.0°
5 m16 ft	9.0 m29.5 ft
10 m33 ft	18.0 m59.1 ft
15 m49 ft	27.0 m88.6 ft
20 m66 ft	36.0 m118 ft
30 m98 ft	54.0 m177 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Camera

Max Resolution	5 MP
Sensor	1/3.0" CMOS
Min. Illumination	Colour: 0.02 lux (F2.0, AGC ON), 0 lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
S/N	> 52 dB
WDR	DWDR

Lens

Focal Length	4.0 mm
Iris Type	Fixed
Iris	F2.0
Field of View (H)	84.0°
Field of View (V)	47.0°
Field of View (D)	90.0°
Lens Type	Fixed

Illuminator

Illumination Distance (IR)	10 m (32.8 ft.)
Wavelength	850 nm
IR On/Off Control	Auto/Manual
Supplemental Light	Dual light
Illumination Distance (Warm Light)	10 m (32.8 ft.)

Video

Video Compression	Ultra 265, H.265, H.264
Frame Rate	Main Stream: 5MP (2880×1620), Max 25fps; 4MP (2560×1440), Max 25fps; 3MP (2304×1296), Max 30fps; 2MP (1920×1080), Max 30fps; 720P (1280×720), Max 30fps · Sub Stream: 640×360, Max 30fps; 2CIF (704×288), Max 30fps; CIF (352×288), Max 30fps
Video Bit Rate	128 Kbps to 6144 Kbps
U-code	Support
OSD	Up to 4 OSDs
Privacy Mask	Support (only NVR)
ROI	Support
Video Stream	Dual streams


Smart IR	Support
White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Flip	Normal, Flip vertical, Flip horizontal, 180°
Dewarping	N/A
HLC	N/A
BLC	Support
Defog	Digital defog

Events

Basic Detection	Motion detection, Ultra motion detection (human/vehicle/pet), Crying detection, High-Decibel detection
General Function	IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Intelligent

Auto Tracking

Support

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	8 kHz

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR

Network

Wi-Fi	2.4G Wi-Fi (IEEE802.11b/g/n/ax), built-in antenna
Protocols	IPv4, TCP, UDP, DHCP, RTSP, DNS, DDNS, NTP, HTTP, ICMP, ARP, UPnP, RTP, RTCP
Compatible Integration	API, SDK
Client	APP, Uniarch client
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+

Wi-Fi

Wireless Standards	IEEE802.11b/g/n/ax
Frequency Range	2.4 GHz to 2.4835 GHz
Channel Bandwidth	20/40 MHz Support
Modulation Mode	802.11b: CCK · 802.11g/n: OFDM · 802.11ax: OFDMA
Wi-Fi Security	64/128-bit WEP, WPA-PSK/WPA2-PSK
Transmit Power	802.11b: 17±1.5 dBm@11 Mbps · 802.11g: 16±1.5 dBm@54 Mbps · 802.11n: 16±1.5 dBm@MCS7 · 802.11ax: 16±1.5 dBm@MCS9
Receive Sensitivity	802.11b: -76 dBm@11 Mbps (Typical) · 802.11g: -65 dBm@54 Mbps (Typical) · 802.11n: -61 dBm@MCS7, HT40 (Typical) · 802.11ax: -54 dBm@MCS9, HE40 (Typical)
Transmission Rate	802.11b: 11 Mbps · 802.11g: 54 Mbps · 802.11n: up to 150 Mbps · 802.11ax: up to 270 Mbps

PTZ

Pan Range	0° ~ 355°
Pan Speed	17°/s ~ 50°/s · Preset speed: 50°/s
Tilt Range	-15° ~ 90°
Tilt Speed	17°/s ~ 50°/s · Preset speed: 50°/s
Number of Presets	20

Interface

Audio I/O	N/A
Alarm I/O	N/A
Built-in Mic	Support
Built-in Speaker	Support
WIFI	Support
Network	1 × RJ45 10 M/100 M Base-TX Ethernet

Certification

EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
RF	FCC ID (FCC CFR 47 part15 C); CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN 62311)
Safety	CE LVD (EN 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)

General

Power	DC 5V/1.5A, USB type-C interface
Power Consumption	Max 5.5 W
Dimensions	Ø80 × 126 mm (Ø3.1" × 5.0")
Weight	0.21 kg (0.46 lb.)
Working Environment	-10 °C to 50 °C (14 °F to 122 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-10 °C to 50 °C (14 °F to 122 °F), Humidity: ≤ 95% RH (non-condensing)
Reset Button	Support
LED Indicator	1, red/blue

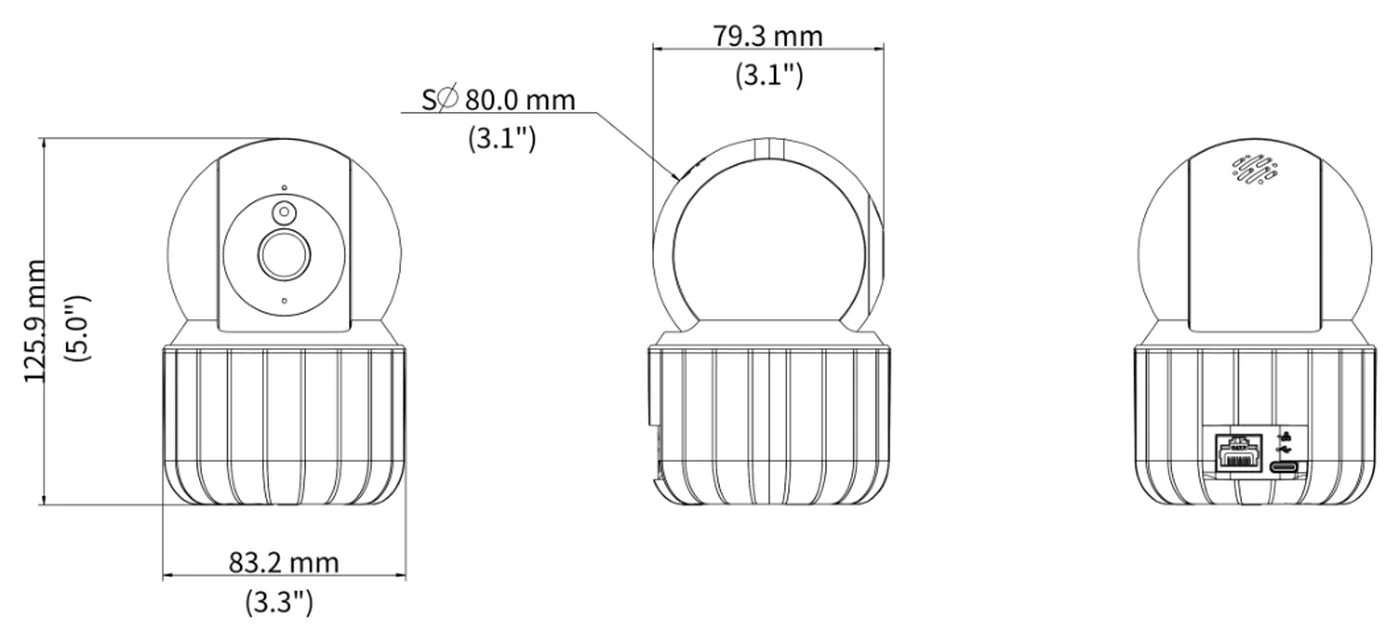

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	Ø80 × 126 mm (Ø3.1" × 5.0")
Weight	0.21 kg (0.46 lb.)
Pan / Tilt range	0°~355° / -15°~90°

5MP Wi-Fi Pan-Tilt Camera FAQ — Uho-S3E-M5TD-A

How far can the Uho-S3E-M5TD-A see at night?

IR night vision reaches 10 m (32.8 ft) at 850 nm — invisible black-and-white coverage by default. The warm light also covers 10 m and switches on in Dual Light mode when a saved preset position is triggered. Minimum illumination is 0.02 lux in colour and 0 lux with IR on.

Can this camera follow a person moving around the room?

Yes. Auto tracking is supported: the motorized head pans 355° to keep the subject in frame. Detection includes motion, human/vehicle/pet classification (Ultra motion detection), crying detection and high-decibel sound detection, so it reacts to both movement and unusual noise indoors.

What resolution and frame rate does it record?

Main stream records 5MP (2880×1620) at up to 25 fps; at 3MP or 2MP it reaches 30 fps. Compression is Ultra 265 / H.265 / H.264 with a bit rate of 128–6144 Kbps and dual streams, so remote viewing on a slow connection stays practical.

Does it support two-way audio for talking to people on site?

Yes. It has a built-in mic and speaker with two-way audio, G.711U/G.711A compression at 64 Kbps and 8 kHz sampling, plus noise suppression. You can hear the room and answer back, and crying or high-decibel detection can flag audio events automatically.

Where does it store recordings — do I need an NVR?

Edge storage is a MicroSD card up to 512 GB inside the camera, so it records on its own. ANR (automatic network replenishment) is supported for network storage: if the connection drops, footage saved on the card fills the gap once the link returns.

Is the night vision visible to people in the room?

By default no: the 850 nm infrared LEDs are invisible, giving discreet black-and-white video up to 10 m. The warm light is visible — it turns on together with Dual Light mode when a preset position is triggered, useful when you want the light to be noticed.
