Uniarch NVR-104E2-P4 / NVR-108E2-P8
4/8-Channel 1-HDD PoE Network Video Recorder NVR-104E2-P4 / NVR-108E2-P8 — view 1
4/8-Channel 1-HDD PoE Network Video Recorder NVR-104E2-P4 / NVR-108E2-P8 — view 2

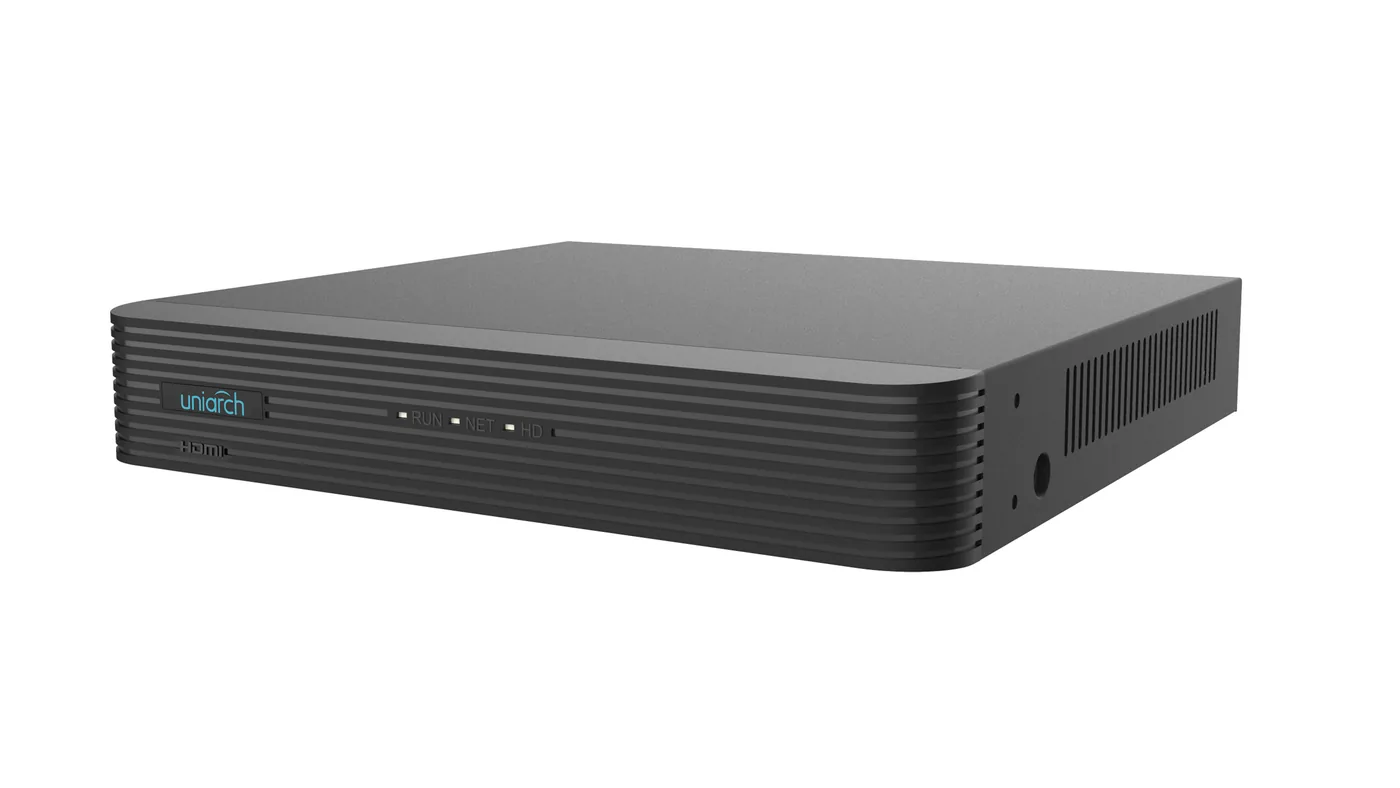

4/8-Channel 1-HDD PoE Network Video Recorder NVR-104E2-P4 / NVR-108E2-P8 — view 3
4/8-Channel 1-HDD PoE Network Video Recorder NVR-104E2-P4 / NVR-108E2-P8 — view 4
UniarchE2-P Series · 1× SATA HDD · Built-in PoE
1-HDD PoE Network Video Recorder · E2-P Series

NVR-104/108E2-P

4 / 8-channel PoE network video recorder — 4/8 built-in PoE ports power the cameras directly, Ultra 265 compression, 4K HDMI output, records cameras up to 8MP.

8MP · max recordingUltra 265 · low storage4/8× PoE · built-in, no switch needed4K HDMI · + VGA simultaneous1× SATA · up to 8 TBONVIF · S / G / T profiles
CHOOSE YOUR SIZE — TWO MODELS ON THIS PAGE
Rule of thumb: count your cameras, then leave room to grow — the 104E2-P4's 4 built-in PoE ports suit a small shop; pick the 108E2-P8 if you have (or may add) more cameras. Every PoE port supplies both power and video over one Ethernet cable, up to 30 W per port. Highlighted rows in the spec table below show every difference between the two.
Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

How many terabytes for your channels and days? Use the storage calculator →

Need the PDF datasheet? Get it on WhatsApp →
In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCRoHSWEEEONVIF
Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.
4/8Channels · built-in PoE ports
40/50 MbpsIncoming bandwidth
8 TBMax HDD capacity
4KHDMI output

The Uniarch E2-P Series is a 1-HDD PoE network video recorder offered in two sizes: NVR-104E2-P4 (4-ch) and NVR-108E2-P8 (8-ch), both recording cameras up to 8MP with Ultra 265 / H.265 / H.264 compression and 4K HDMI + VGA simultaneous output. The built-in PoE ports — 4 on the 104E2-P4, 8 on the 108E2-P8, IEEE 802.3af/at, max 30 W per port — power ONVIF-compliant cameras through the same cable that carries video, so no separate PoE switch is needed. One SATA bay takes a hard disk up to 8 TB.

Is this the right recorder for you?

Plain-language guide for buyers and installers — based only on what this recorder actually does.

Small shops & homesThe 4-ch 104E2-P4 has 4 built-in PoE ports — plug 4 ONVIF cameras straight into the recorder with one cable each, no separate PoE switch or power adapters to buy.
Growing businessesThe 108E2-P8 gives you 8 built-in PoE ports — buy the size you'll need next year, not just today, without adding a separate switch later.
Remote viewing on phoneP2P protocol built in — the owner checks the shop from a phone app without a fixed IP or network skills.
One cable per cameraEach PoE port (IEEE 802.3af/at, up to 30 W) carries power and video together — the installer runs one Ethernet cable instead of a separate power line.
Longer video retentionUltra 265 roughly halves file size versus H.264 — the same 8 TB disk keeps weeks more footage.
Mixed-brand projectsONVIF Profile S/G/T means existing third-party IP cameras keep working on the built-in PoE ports — no need to replace the whole site.
Not the right pick if you need…
  • Full-channel smart alerts — VCA alarms via connected IP cameras (intrusion, cross line, area) cover channels 1–4 only, and trigger an alert with no snapshot image
  • A second hard disk or RAID — this series has a single SATA bay
  • Gigabit network — both the uplink and the built-in PoE ports are 10/100M (fine for 4/8 cameras at 40/50 Mbps total)
  • Alarm in/out wiring for sirens or sensors
  • Audio input — it has an RCA audio output only (camera-side mics still record via ONVIF)

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order
Note: manufacturer order registration (left) is available via the corporate purchase channel.
How to get a better price
Volume Discount50+ units of a single model
CONTACT US
Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit
BETTER
Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you
BEST
All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

Support Ultra 265/H.265/H.264 video formats
4/8-channel input
Plug & Play with 4/8 independent PoE network interfaces
Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T
Support 1-ch HDMI, 1-ch VGA
HDMI and VGA simultaneous output
Up to 8MP resolution recording
1 SATA HDD, up to 8TB
Support cloud upgrade

Powers your cameras. Saves your disk.

The two capabilities that decide whether an entry PoE NVR feels cheap or smart.

PoE BUILT-IN

Power and video over one cable

4 ports on the 104E2-P4, 8 on the 108E2-P8 (IEEE 802.3af/at, max 30 W per port, 54 W / 75 W total budget) — plug an ONVIF camera straight into the recorder, no separate PoE switch or power adapter.

ULTRA 265

Half the storage, same image

Ultra 265 compression cuts recording size dramatically versus H.264 — on the same 8 TB disk you keep footage for weeks longer, or record more cameras at higher resolution.

Which size fits your project?

Bars show camera capacity per model. Click the model buttons above to switch — the spec table highlights every other difference.

NVR-104E2-P4live view split 1/4 · sync playback 4-ch · 4 PoE ports
4cameras
NVR-108E2-P8live view split 1/4/6/8/9 · sync playback 8-ch · 8 PoE ports
8cameras

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the two models:NVR-104E2-P4 · 4-chNVR-108E2-P8 · 8-ch

Decoding

Decoding FormatUltra 265, H.265, H.264
Decoding Capability104E2-P4 · 1×4K@30, 2×6MP@30, 4×5MP@25, 4×4MP@25, 4×3MP@25, 4×1080P@30108E2-P8 · 1×4K@30, 2×6MP@30, 4×5MP@25, 4×4MP@25, 4×3MP@25, 6×1080P@30, 8×720P@30
Decoding Capability DescriptionThe resolution of each channel cannot exceed 4000 pixels in length and 3000 pixels in width
Audio CompressionG.711A, G.711U

Network

Incoming Bandwidth104E2-P4 · 40 Mbps108E2-P8 · 50 Mbps
Outgoing Bandwidth40 Mbps
Remote Users128
ProtocolsTCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP, IPv4
Browser (Plugin)IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+

Video/Audio Input

IP Video Input104E2-P4 · 4-ch108E2-P8 · 8-ch

Video/Audio Output

HDMI Output4K (3840×2160)/30 Hz, 1920×1080/60 Hz, 1920×1080/50 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz
VGA Output1920×1080/60 Hz, 1920×1080/50 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz
RCA Audio Output1-ch
Liveview Display104E2-P4 · 1/4108E2-P8 · 1/4/6/8/9
Corridor Mode Screen104E2-P4 · 3/4108E2-P8 · 3/4/5/7/9

Recording

Recording Resolution8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF
Synchronous Playback in Local104E2-P4 · 4-ch108E2-P8 · 8-ch

Smart Features

VCA Detection by IPCSIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD)
VCA SearchBehavior Search
Smart by IPCTotal 4-ch (SIP supports channel 1-4, Alarm only, no image)

Local Interface

GUI Language21 languages: Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian

Hard Disk

SATA1 SATA Interface
CapacityUp to 8 TB for each HDD (the maximum HDD capacity varies with environment temperature)

External Interface

Network Interface1 RJ45 10 M/100 M self-adaptive Ethernet Interface
USBRear panel: 2 × USB2.0
Power Supply104E2-P4 · DC 48 V/1.35 A108E2-P8 · DC 52 V/1.8 A

PoE

PoE Interface104E2-P4 · 4 RJ45 10 M/100 M self-adaptive Ethernet Interface108E2-P8 · 8 RJ45 10 M/100 M self-adaptive Ethernet Interface
Max Power104E2-P4 · Max 30 W for single port, Max 54 W in total108E2-P8 · Max 30 W for single port, Max 75 W in total
Supported StandardIEEE 802.3at, IEEE 802.3af

Working Environment

Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity≤ 90% RH (non-condensing)
Power Consumption (without HDD)≤ 9 W

Dimensions

Weight (without HDD)≤ 1.2 kg (2.65 lb)
Dimensions260 mm × 243 mm × 46 mm (10.2" × 9.6" × 1.8")

Certification

CertificationCE; FCC; RoHS; WEEE
CEEN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCCPart15 Subpart B

Dimensions

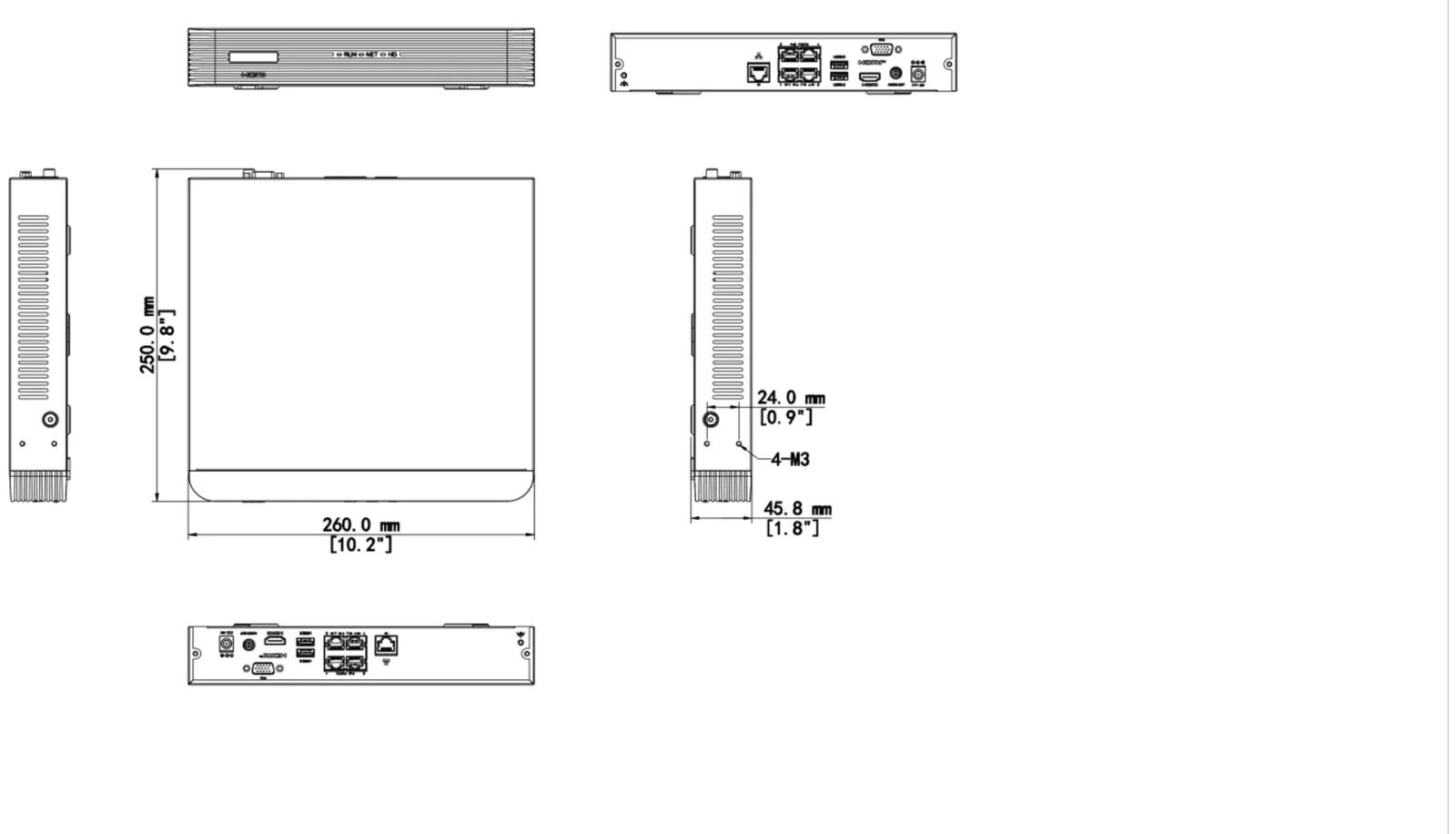

Engineering drawing reproduced 1:1 from the official datasheet.

NVR-104E2-P4 / NVR-108E2-P8 dimensions drawing in mm
unit: mm (in.)
Dimensions260 × 243 × 46 mm (10.2" × 9.6" × 1.8")
Weight (without HDD)≤ 1.2 kg (2.65 lb)
Power supplyDC 48 V/1.35 A (104E2-P4) · DC 52 V/1.8 A (108E2-P8)
Consumption (without HDD)≤ 9 W
PoE power budgetMax 30 W/port · 54 W total (104E2-P4) / 75 W total (108E2-P8)

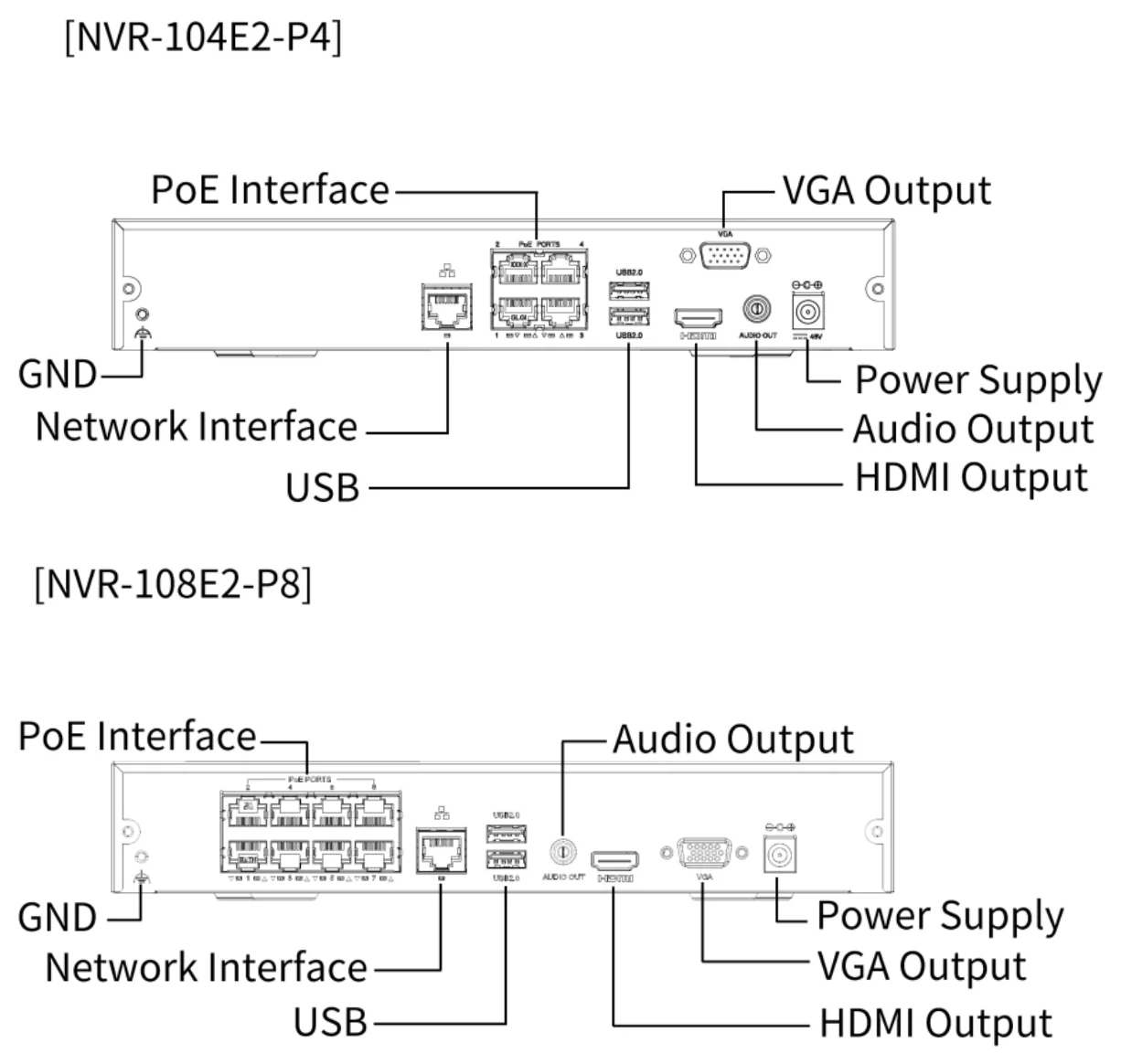

NVR-104E2-P4 / NVR-108E2-P8 rear panel
Rear panel — both models (104E2-P4 top, 108E2-P8 bottom)

Optional Mounting Accessories

Order together with the camera to save shipping.

4/8 Channel PoE NVR FAQ — NVR-104E2-P4/108E2-P8

How many cameras can the PoE ports power?
The NVR-104E2-P4 has 4 PoE ports with a 54W total budget; the NVR-108E2-P8 has 8 ports with 75W total. Each port delivers up to 30W (IEEE 802.3af/at). Typical IP cameras draw well under these averages, so both models can power a full set of cameras directly.
Do I still need a separate PoE switch?
Not for a basic installation — plug ONVIF cameras straight into the recorder's PoE ports and they get power and video over one network cable. The uplink to your router is a separate 10/100M RJ45 port. The unit is powered by DC 48V/1.35A (P4) or DC 52V/1.8A (P8).
How many hard disks fit and what is the maximum size?
One SATA bay, up to 8 TB per surveillance hard drive (maximum capacity varies with ambient temperature). With Ultra 265 compression the same 8 TB disk keeps footage for weeks longer than H.264, or records more cameras at higher resolution on the same budget.
Can it record and display 4K cameras?
Yes. Recording resolution goes up to 8MP (4K), and the decoder handles 1×4K@30 or 4×5MP@25 for local display. The HDMI output reaches 4K (3840×2160) at 30 Hz, with VGA up to 1920×1080 also available for a second screen.
What is the difference between the 104E2-P4 and 108E2-P8?
Channel and PoE count: 4 channels with 4 PoE ports and 54W budget versus 8 channels with 8 ports and 75W. Incoming bandwidth is 40 Mbps on the P4 and 50 Mbps on the P8. Recording up to 8MP, one 8 TB HDD bay and the 260×243×46 mm case are the same.
Can I check the cameras remotely?
Yes. P2P, DDNS, HTTP/HTTPS and RTSP are supported, with up to 128 remote users and 40 Mbps of outgoing bandwidth for remote viewing. Browsers supported: Chrome 45+, Edge 79+, Firefox 52+ and IE10/11 via plugin.
