NVR / Recorders › NVR-104S3-P4 / 108S3-P8

4/8-Channel PoE 1-HDD Network Video Recorder NVR-104S3-P4 / NVR-108S3-P8 — view 1

4/8-Channel PoE 1-HDD Network Video Recorder NVR-104S3-P4 / NVR-108S3-P8 — view 2

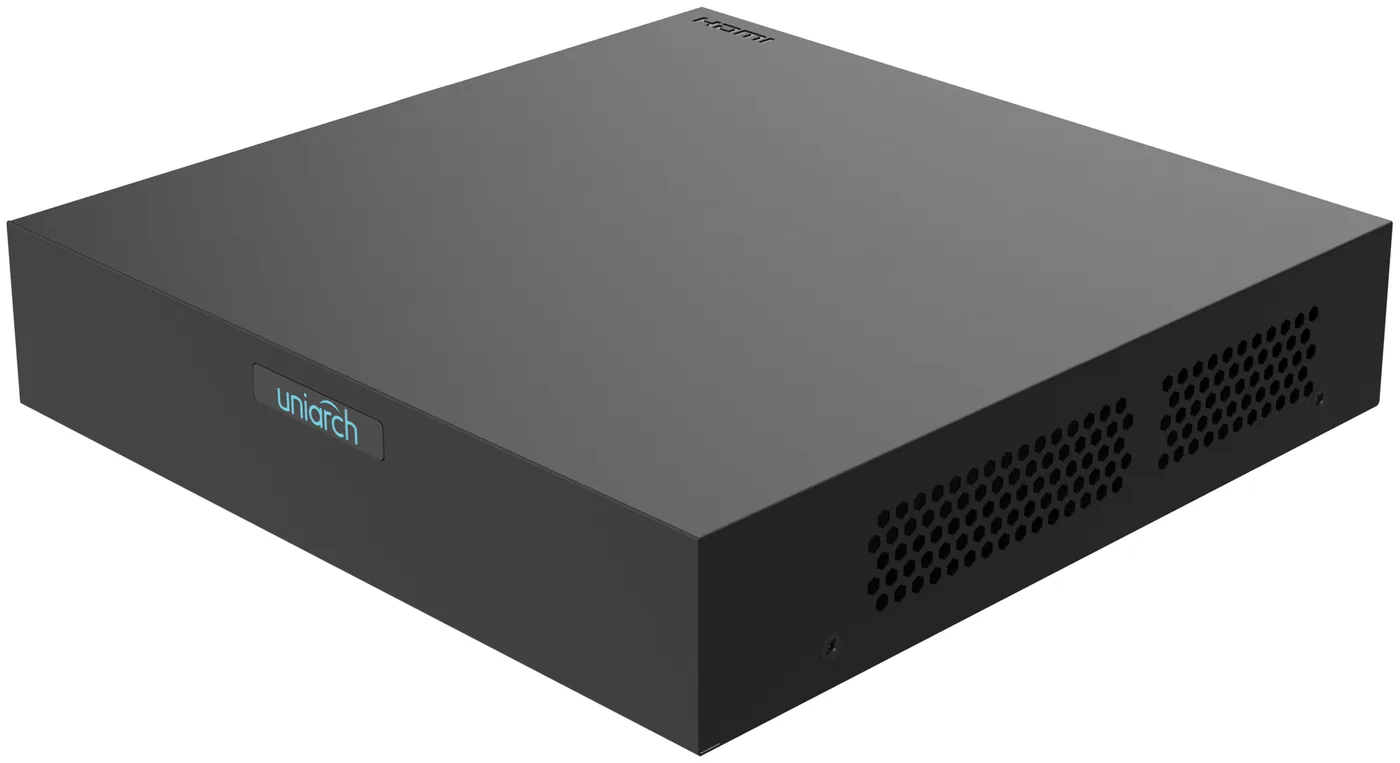

4/8-Channel PoE 1-HDD Network Video Recorder NVR-104S3-P4 / NVR-108S3-P8 — view 3

4/8-Channel PoE 1-HDD Network Video Recorder NVR-104S3-P4 / NVR-108S3-P8 — view 4

UniarchS3-P Series · Built-in PoE

1-HDD PoE Network Video Recorder · S3-P Series

NVR-104 / 108S3-P

Name: Uniarch NVR-104 / 108S3-P
Brand: Uniarch
SKU: NVR-104 / 108S3-P

4 / 8-channel PoE network video recorder — built-in PoE ports power your cameras directly, Ultra 265 compression, records cameras up to 6MP, works with third-party ONVIF cameras.

6MP · max recordingUltra 265 · low storage4/8 PoE ports · built-in, powers camerasHDMI + VGA · simultaneous, up to 1080p1× SATA · up to 6 TBONVIF · S / G / T profiles

CHOOSE YOUR SIZE — TWO MODELS ON THIS PAGE

Rule of thumb: count your cameras, then leave room to grow — a shop with 3 cameras runs happily on the 104S3-P4; pick the 108S3-P8 if you may add cameras later. Both models power compliant PoE cameras directly from the built-in ports. Highlighted rows in the spec table below show every difference between the two.

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

How many terabytes for your channels and days? Use the storage calculator →

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCRoHSWEEEONVIF

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

4/8Channel options

64 MbpsIncoming bandwidth

6 TBMax HDD capacity

1080PHDMI output

The Uniarch S3-P Series is a 1-HDD PoE network video recorder offered in two sizes: NVR-104S3-P4 (4-ch) and NVR-108S3-P8 (8-ch). Both models have built-in PoE network interfaces (IEEE 802.3af/at) that power compliant IP cameras directly over the same cable, record cameras up to 6MP with Ultra 265 / H.265 / H.264 compression, and output simultaneously over HDMI and VGA at up to 1920×1080. Third-party cameras are supported via ONVIF (Profile S, G, T); one SATA bay takes a hard disk up to 6 TB, and the local interface is available in 21 languages including Spanish (Latin America), Portuguese (Brazil) and French.

Is this the right recorder for you?

Plain-language guide for buyers and installers — based only on what this recorder actually does.

Small shops & homesThe 4-ch 104S3-P4 plus four PoE cameras is a complete starter kit — one cable per camera, one disk, one screen, done.

Growing businessesBuy channels you don't use yet: the 108S3-P8 doubles the PoE ports so you can add cameras later without buying a separate switch.

No extra PoE switch to buyBuilt-in 4 or 8-port PoE (IEEE 802.3af/at, up to 30 W per port) powers compliant cameras directly over the same network cable — plug and play.

Remote viewing on phoneP2P protocol built in — the owner checks the shop from a phone app without a fixed IP or network skills.

Local-language interface21 GUI languages including Spanish (Latin America), Portuguese (Brazil) and French — your customer operates it in their own language.

Mixed-brand projectsONVIF Profile S/G/T means existing third-party IP cameras keep working — note that the built-in PoE ports only power 802.3af/at-compliant cameras; other cameras still need their own power.

Not the right pick if you need…

4K/UHD monitor output — HDMI and VGA top out at 1920×1080 on this series
A second hard disk or RAID — this series has a single SATA bay
Gigabit uplink — the network and PoE ports are 10/100M (fine for up to 8 cameras at 64 Mbps total)
Alarm in/out wiring for sirens or sensors
Audio input — it has a 3.5mm audio output only (camera-side mics still record)

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

Support Ultra 265/H.265/H.264 video formats

4/8-channel input

Plug & Play with 4/8 independent PoE network interfaces

Third-party IP cameras supported with ONVIF conformance: Profile S, Profile G, Profile T

Support 1-ch HDMI, 1-ch VGA

HDMI and VGA simultaneous output

Up to 6MP resolution recording

1 SATA HDD up to 6TB

Support cloud upgrade

Powers your cameras. Plays with any camera.

The two capabilities that decide whether a PoE NVR feels cheap or smart.

BUILT-IN POE

No separate PoE switch to buy

4 or 8 built-in PoE ports (IEEE 802.3af/at, up to 30 W per port) power compliant cameras directly over the same network cable — one cable per camera, no injector, no switch.

ONVIF S · G · T

Third-party cameras welcome

Full ONVIF conformance (Profile S, G, T) means existing IP cameras on site keep working — upgrade the recorder today, replace cameras on your own schedule.

Which size fits your project?

Bars show camera capacity per model — both power cameras directly over their built-in PoE ports. Click the model buttons above to switch — the spec table highlights every other difference.

NVR-104S3-P4live view split 1/4 · sync playback 4-ch · 4 PoE ports

4cameras

NVR-108S3-P8live view split up to 1/4/6/8/9 · sync playback 8-ch · 8 PoE ports

8cameras

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the two models:NVR-104S3-P4 · 4-chNVR-108S3-P8 · 8-ch

Decoding

Decoding Format	Ultra 265, H.265, H.264
Decoding Capability	104S3-P4 · 2 x 6MP@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 4 x 1080P@30108S3-P8 · 2 x 6MP@30, 4 x 5MP@25, 4 x 4MP@25, 4 x 3MP@25, 6 x 1080P@30, 8 x 720P@30
Decoding Capability Description	The resolution of each channel cannot exceed 4000 pixels in length and 3000 pixels in width
Audio Compression	G.711A, G.711U

Network

Incoming Bandwidth	64 Mbps
Outgoing Bandwidth	48 Mbps
Remote Users	128
Protocols	TCP/IP, P2P, UPnP, DHCP, HTTP, HTTPS, DNS, DDNS, SMTP, RTSP, IPv4
Browser (Plugin)	IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+

Video / Audio I/O

IP Video Input	104S3-P4 · 4-ch108S3-P8 · 8-ch
HDMI Output	1920×1080/60 Hz, 1920×1080/50 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz
VGA Output	1920×1080/60 Hz, 1920×1080/50 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz
3.5mm Audio Output	1-ch
Liveview Display	104S3-P4 · 1/4108S3-P8 · 1/4/6/8/9
Corridor Mode Screen	104S3-P4 · 3/4108S3-P8 · 3/4/5/7/9

Recording

Recording Resolution	6 MP / 5 MP / 4 MP / 3 MP / 1080P / 960P / 720P / D1 / 2CIF / CIF
Synchronous Playback (Local)	104S3-P4 · 4-ch108S3-P8 · 8-ch

Smart Features

VCA Detection by IPC	SIP (Intrusion Detection, Cross Line Detection, Enter Area, Leave Area), Ultra Motion Detection (UMD)
VCA Search	Behavior Search
Smart by IPC	Total 4-ch (SIP supports channel 1-4, Alarm only, no image)

Local Interface

GUI Language

21 languages: Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian

Hard Disk

SATA	1 SATA Interface
Capacity	Up to 6 TB for each HDD

External Interface

Network Interface	1 × RJ45 10 M/100 M self-adaptive Ethernet
USB	Rear panel: 2 × USB 2.0
Power Supply	104S3-P4 · DC 48 V / 1.35 A108S3-P8 · DC 52 V / 1.8 A

PoE

PoE Interface	104S3-P4 · 4 × RJ45 10 M/100 M self-adaptive Ethernet108S3-P8 · 8 × RJ45 10 M/100 M self-adaptive Ethernet
Max Power	104S3-P4 · Max 30 W for single port, Max 50 W in total108S3-P8 · Max 30 W for single port, Max 75 W in total
Supported Standard	IEEE 802.3at, IEEE 802.3af

General

Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity	≤ 90% RH (non-condensing)
Power Consumption (without HDD)	≤ 9 W
Weight (without HDD)	≤ 1.0 kg (2.20 lb)
Dimensions	190 mm × 195 mm × 42 mm (7.5" × 7.7" × 1.6")

Certification

Certification	CE; FCC; RoHS; WEEE
CE	EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC	Part15 Subpart B

Dimensions

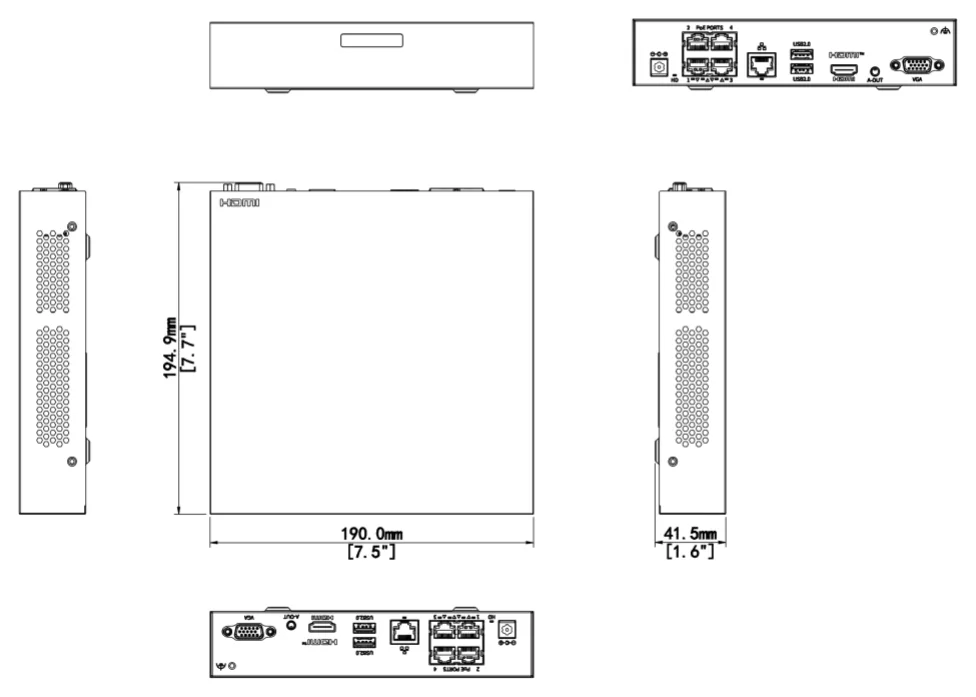

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	190 × 195 × 42 mm (7.5" × 7.7" × 1.6")
Weight (without HDD)	≤ 1.0 kg (2.20 lb)
Power supply	104S3-P4: DC 48 V / 1.35 A · 108S3-P8: DC 52 V / 1.8 A
Consumption (without HDD)	≤ 9 W

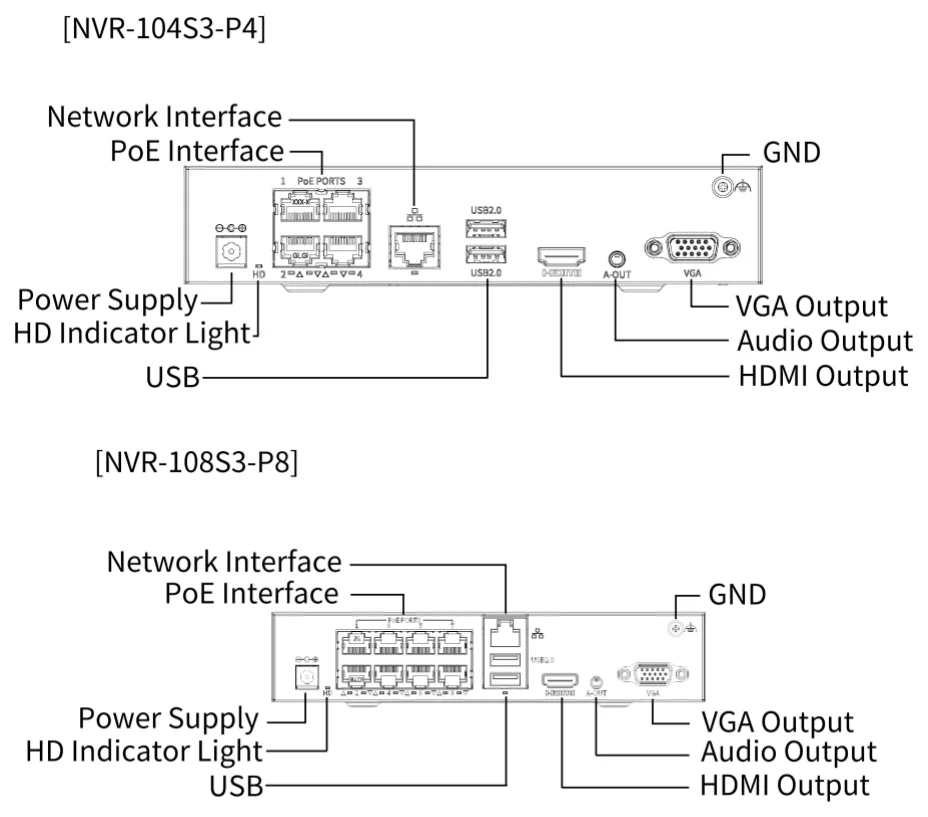

Rear panel — all interfaces (top: NVR-104S3-P4 · bottom: NVR-108S3-P8)

4/8 Channel PoE NVR FAQ — NVR-104S3-P4/108S3-P8

How many cameras can I run on the built-in PoE?

The NVR-104S3-P4 powers 4 cameras from 4 PoE ports with a 50W total budget; the NVR-108S3-P8 powers 8 cameras with 75W total. Each port supplies up to 30W (IEEE 802.3af/at), so standard fixed IP cameras run comfortably and one higher-draw camera per site is still fine.

What resolution can it record?

Recording resolution goes up to 6MP per channel (6MP/5MP/4MP/3MP/1080P and below). Decoding capability covers 2×6MP@30 or 4×5MP@25 for local display, and the HDMI and VGA outputs both reach 1920×1080 at 60 Hz. Incoming bandwidth is 64 Mbps across all channels.

How many hard drives and what maximum capacity?

One SATA bay taking a surveillance hard drive up to 6 TB. Ultra 265 compression cuts recording size dramatically versus H.264, so that 6 TB disk keeps footage for weeks longer — useful where retention requirements are long but the budget only covers one disk.

Will my existing third-party cameras work with it?

Yes — full ONVIF conformance (Profile S, G and T) means existing IP cameras on site keep working. You can upgrade the recorder today and replace cameras on your own schedule. The 21-language GUI includes Latin American Spanish and Brazilian Portuguese for local operators.

How is the recorder itself powered and how much space does it need?

The 104S3-P4 uses a DC 48V/1.35A supply and the 108S3-P8 a DC 52V/1.8A supply, which also feeds the PoE ports. The unit draws under 9W without HDD, measures a compact 190×195×42 mm, weighs under 1 kg and works from -10 to 55 °C.

Can I view it remotely?

Yes. P2P, DDNS, HTTP/HTTPS and RTSP are supported, up to 128 remote users can connect, and outgoing bandwidth is 48 Mbps for remote streams. Browser access works with Chrome 45+, Edge 79+, Firefox 52+ and IE10/11 via plugin.
