NVR504-16 / 32B
16 / 32-channel network video recorder — four SATA bays with RAID 1/5, Ultra 265 compression, independent VGA and HDMI output, records cameras up to 16MP, with 320 Mbps incoming bandwidth and 16 alarm-in / 4 alarm-out terminals.
Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port
Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
How many terabytes for your channels and days? Use the storage calculator →
Need the PDF datasheet? Get it on WhatsApp →Sample quantities are welcome — testing one or two units first is the normal way to start.

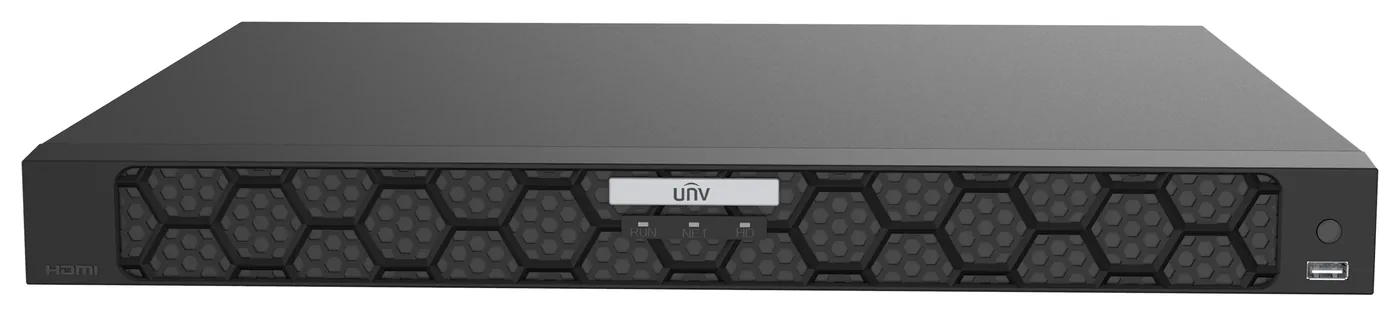

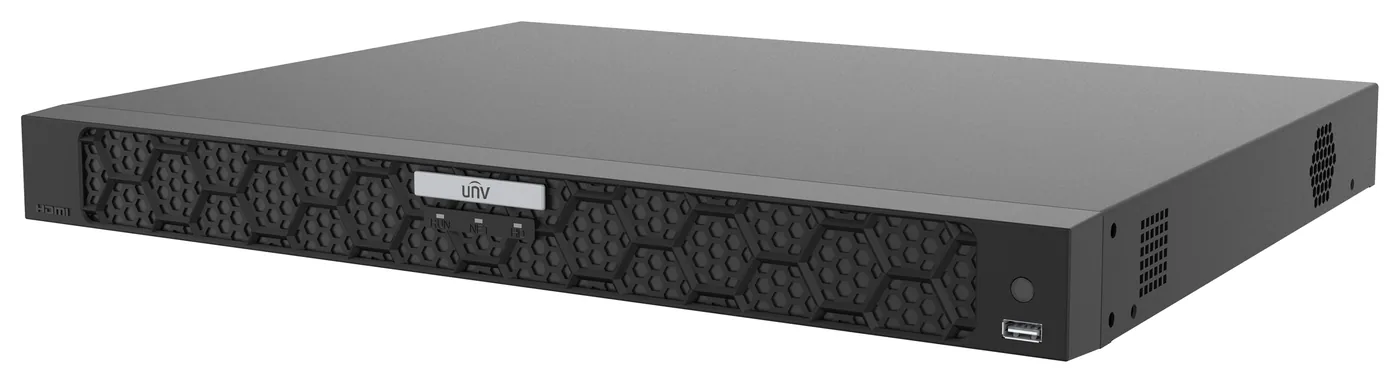

The Uniview NVR504-B Series is a 4-HDD network video recorder offered in two sizes: NVR504-16B (16-ch) and NVR504-32B (32-ch). Both record cameras up to 16MP with Ultra 265 / H.265 / H.264 compression, output independently over HDMI (up to 4K) and VGA, and support RAID 1/5 disk redundancy across four SATA bays each up to 24 TB. The rear panel includes 16 alarm inputs, 4 alarm outputs, an RS485 port, and the local interface is available in 38 languages including Spanish (Latin America), Portuguese (Brazil) and French.
Is this the right recorder for you?
Plain-language guide for buyers and installers — based only on what this recorder actually does.
- PoE ports — cameras need a separate PoE switch (this recorder has no built-in PoE ports)
- Recorder-side AI on ordinary or third-party cameras — this series has no "Smart by NVR" processing; face/vehicle detection runs on Uniview smart IPC cameras upstream, the recorder only indexes and searches the results
- RS232 serial control — only RS485 is present on this series, RS232 is listed N/A
- A fifth hard disk or more — this series tops out at 4 SATA bays (up to 96 TB total with four 24 TB drives)
- Redundant/dual power input — it runs on a single DC 12 V/5 A power supply, no built-in PSU redundancy
Worried about counterfeits? Order under your own company name.
For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.
Using your own freight forwarder? No problem.
For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.
Key Features
Complete list from the official datasheet.
RAID-protected storage. Smart search built in.
Two real capabilities that define this series: RAID-protected 4-bay storage and VCA search working with smart cameras.
Four bays, and a disk can fail safely
Four independent SATA bays each take a disk up to 24 TB (up to 96 TB total) and support Disk Group plus RAID 1/5 — mirroring or parity protection so a single drive failure doesn't take your recordings with it.
Built-in search, powered by smart cameras
Face Detection, Face Comparison and Vehicle Detection (LPR) on Uniview smart cameras feed the recorder's VCA Search — Face Snapshot Search, Motor/Non-Motor Vehicle Search, Human Body Search, People Counting Report and Heat Map — to narrow hours of 16- or 32-channel footage to the exact clip.
Which size fits your project?
Bars show camera capacity per model. Click the model buttons above to switch — the spec table highlights every other difference.
Full Specifications
Complete official specifications from the manufacturer's datasheet (technical values in English).
Decoding
| Decoding Format | Ultra 265, H.265, H.264 |
| Decoding Capability | 16B · Ultra 265/H.265: 2×16MP@30, 2×12MP@30, 4×4K@30, 6×5MP@30, 8×4MP@30, 10×3MP@30, 16×1080P@30 | H.264: 2×16MP(4800×2688)@30, 2×12MP@30, 2×4K@30, 4×5MP@30, 6×4MP@30, 8×3MP@30, 14×1080P@30, 16×720P@3032B · Ultra 265/H.265: 2×16MP@30, 2×12MP@30, 4×4K@30, 6×5MP@30, 8×4MP@30, 10×3MP@30, 16×1080P@30, 32×960P@25 | H.264: 2×16MP(4800×2688)@30, 2×12MP@30, 2×4K@30, 4×5MP@30, 6×4MP@30, 8×3MP@30, 14×1080P@30, 30×720P@30, 32×D1 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width. For VGA/HDMI independent output, the VGA live video is output by default; to output the highest resolution video from the HDMI port, clear the VGA video on the preview page. |
| Audio Compression | G.711A, G.711U |
Network
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, 802.1x, IPv6, IPv4 |
| Browser (Plugin) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
Video/Audio Input
| IP Video Input | 16B · 16-ch32B · 32-ch |
| RCA Audio Input | 1-ch |
Video/Audio Output
| HDMI Output | 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| VGA Output | 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| RCA Audio Output | 1-ch |
| Liveview Display | 16B · 1/4/6/8/9/1632B · 1/4/6/8/9/16/25/32 |
| Corridor Mode Screen | 16B · 3/4/5/7/9/10/12/1632B · 3/4/5/7/9/10/12/16/32 |
| Two-way Audio | 1-ch, RCA (Using the audio input and output) |
| Snapshot | FTP/Schedule/Event Snapshot; 4-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution) |
Recording
| Recording Resolution | 16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Synchronous Playback in Local | 16-ch |
Smart Function
| Smart by IPC | All channels (up to 8 images/s in total) Face Detection, Face Comparison, Vehicle Detection (LPR), Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring |
| VCA Search | Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map |
Alarm
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
GUI Language
| GUI Language | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
Hard Disk
| SATA | 4 SATA Interfaces |
| Capacity | Up to 24 TB for each HDD (the maximum HDD capacity varies with environment temperature and hard disk size; the environment temperature for use should not exceed 40°C) |
| Disk Group | Support |
| Redundant Storage | Support |
| Disk Array Type | RAID 1, 5 |

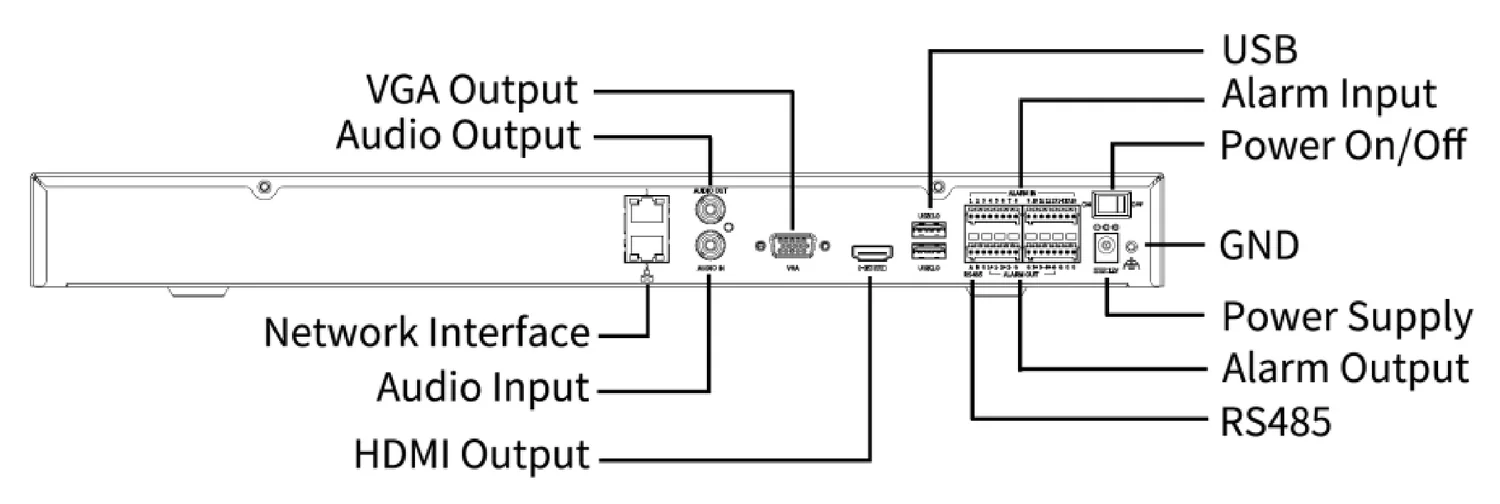

External Interface
| Network Interface | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front: 1 × USB2.0, Rear panel: 1 × USB2.0, 1 × USB3.0 |
| RS485 | 1 |
| RS232 | N/A |
| Alarm In | 16-ch |
| Alarm Out | 4-ch |
| Power Supply | DC 12 V/5 A |
| Power Switch | Support |
Working Environment
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Power Consumption (without HDD) | ≤ 20 W |
Dimensions
| Weight (without HDD) | ≤ 3.4 kg (7.50 lb) |
| Dimensions | 440 mm × 344 mm × 48 mm (17.3" × 13.5" × 1.9") |
Certification
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC | Part15 Subpart B |

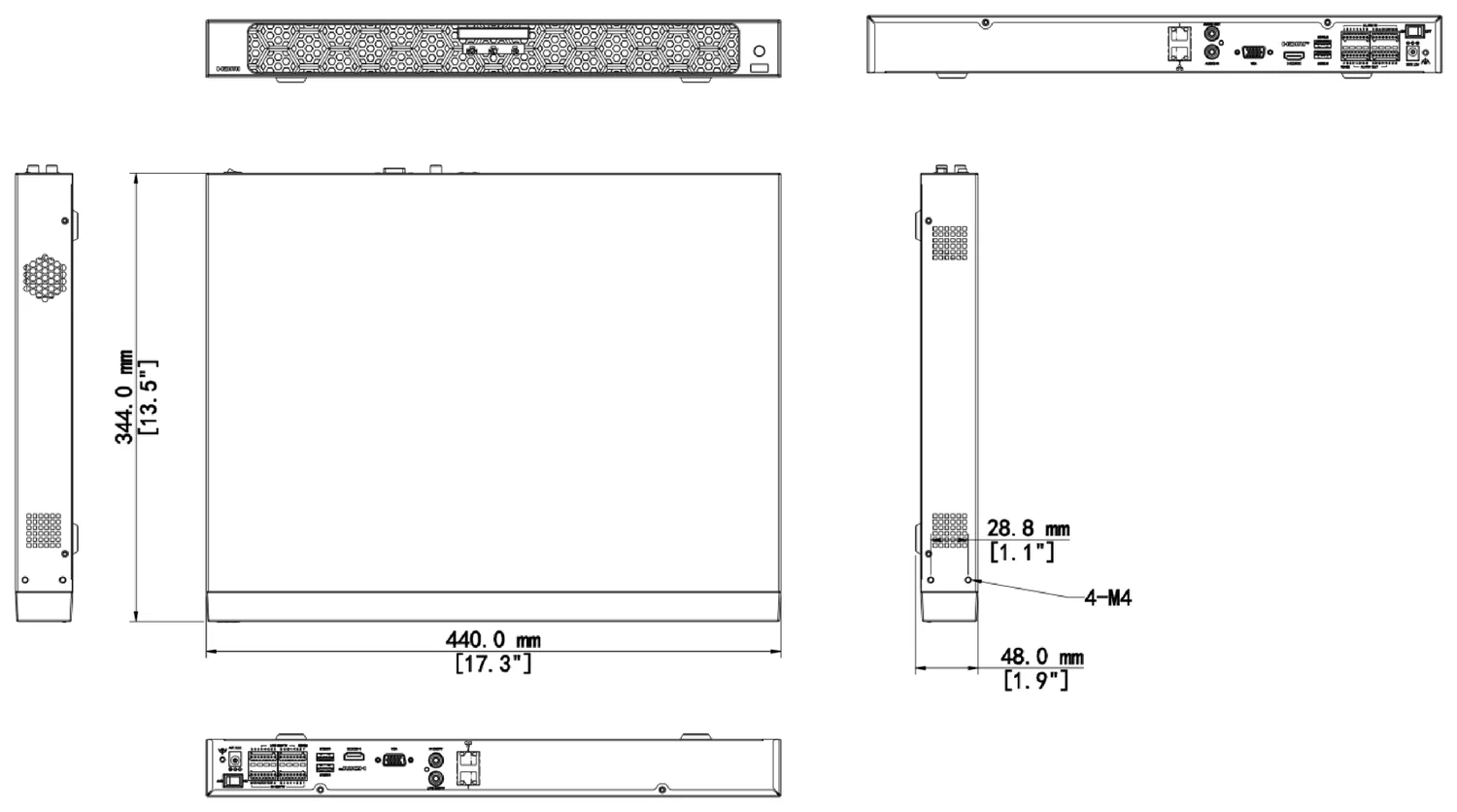

Dimensions
Engineering drawing reproduced 1:1 from the official datasheet.
| Dimensions | 440 mm × 344 mm × 48 mm (17.3" × 13.5" × 1.9") |
| Weight (without HDD) | ≤ 3.4 kg (7.5 lb) |
| Power supply | DC 12 V / 5 A |
| Consumption (without HDD) | ≤ 20 W |
Optional Mounting Accessories
Order together with the camera to save shipping.
16/32-Channel 4-Bay NVR FAQ — NVR504-B Series
How many IP cameras can I connect?
What happens if a hard drive fails?
Can I connect alarm sensors and sirens?
Does it support face detection and smart search?
Can I view live video remotely?
Will it run reliably in hot climates?
