Manufacturer product photo · E1 protection channel switching device (1U rack-mount)
CPD-100
E1 Protection Channel Switching Device
E1 Protection Channel Switching Device · 2×E1 Primary/Backup · ≤ 1ms Switching · 19″ 1U Rack-Mount
Project-Based Pricing
Volume & combo discounts — get your quote
In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port
✓ Project-level customization & OEM supported
Get Best Price on WhatsAppTerms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
Need the PDF datasheet? Get it on WhatsApp →HOW TO GET A BETTER PRICE
Volume DiscountOrder 50+ pcs of this model
CONTACT US
Project Combo DiscountMix any categories & models storewide in one order — no quantity limit
BIGGER
Verified Project DiscountDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you
BIGGEST
All discounts are quoted personally — message me on WhatsApp ↑
◆≤ 1ms Chip-Level Switching
◆2×E1 Primary/Backup Channels
◆E1 Bypass Protection
◆19″ 1U Rack-Mount
◆Dual Power "1+1" Hot Backup
◆5-Year Warranty
Overview
The CPD-100 is an E1 protection channel switching device that provides E1 1+1 transmission line protection over a standard 2M transmission channel (G.703), designed to power-utility protection channel standards. It automatically selects the E1 channel with the best signal quality between the primary and backup lines based on on-site line conditions, safeguarding the reliability and security of critical E1 link data transmission. Supporting lossy, lossless, automatic, and manual switching modes, it also provides comprehensive network management that monitors E1 channel signal quality and device status in real time, reporting to the ZJPManager network management platform.
Is This the Right Fit?
Six real deployment scenarios matched to this model's actual datasheet specifications.
E1 Protection Channel Switching for Power Grid Relay Protection2 standard E1 primary/backup channel interfaces plus 1 E1 important-link interface let the device automatically select the E1 channel with the best signal quality — the primary/backup switching foundation that power-grid relay-protection communication channels depend on.
Chip-Level Sub-Millisecond E1 Protection Switching (≤ 1ms)E1 signal-quality monitoring and circuit switching are integrated into a single chip-level design, delivering a switching time ≤ 1ms — the shortest circuit-switching time the device supports, critical where every millisecond of channel interruption matters.
Railway, Pipeline & Mine Dedicated E1 Network ProtectionLOS, LOF, AIS and bit-error-threshold alarms cover the full E1 communication chain, giving the link-integrity monitoring that railway, pipeline and mine dedicated E1 networks need for their safety-critical communication links.
Power-Loss E1 Bypass PassthroughBuilt-in E1 bypass keeps the protected E1 link passing through and working normally even if the device itself loses power — a fault-tolerant design that protects communication continuity.
Lossy / Lossless Switching Mode SelectableLossy and lossless switching, together with manual and automatic protection modes, are all selectable — so switchover behavior can be matched to how much transient interruption a given E1 service can tolerate.
Dual-Power "1+1" Hot Backup for Continuous E1 ProtectionBuilt-in dual power supplies run in online "1+1" hot-backup mode, DC48V or AC220V selectable, so a single power-input failure does not interrupt the protected E1 channel.
Not a good fit if:
- Only 2 standard E1 primary/backup channels plus 1 E1 important-link interface per chassis — not intended as a high-density multi-circuit E1 aggregation device.
- IP40 metal enclosure only — needs a rack cabinet or additional protection for direct outdoor rain/dust exposure.
- Rated operating temperature is -10°C to 60°C only — no extended/wide-temperature variant is listed for this series, so it is not suited to unheated sub-zero outdoor sites.
Key Features
- Standard 19-inch 1U rack-mount design — easy installation, minimal rack space
- 2 × standard E1 primary/backup channel interfaces + 1 × E1 important-link interface
- Lossy/lossless switching · manual/automatic protection modes selectable
- Chip-level E1 link switching · switching time ≤ 1ms
- LOS/LOF/AIS/bit-error-threshold multi-dimensional alarms covering the full E1 communication chain
- Designed to power-utility protection channel standards
- E1 bypass — link stays active even when the device loses power
- E1 data loopback for line-fault diagnosis and maintenance
- Dual-power "1+1" online hot backup — DC48V or AC220V selectable
- ZJPManager platform integration · in-band/out-of-band management channels
Specifications
Standards & Compliance
| ITU-T G.823-93 | Jitter and wander control based on the 2048kbit/s hierarchy |
| ITU-T G.703-91 | Physical/electrical characteristics of hierarchical digital interfaces |
| ITU-T G.704 | 2048kbit/s synchronous frame structure |
| Power-Utility Protection Standard | Designed to power-utility protection channel standards |
Technical Specifications
| Interface | Complies with ITU-T G.703, G.704, G.823 recommendations |
| Bit Rate | 2048kbit/s ± 50ppm |
| Line Code | HDB3 |
| Impedance | 75Ω unbalanced (120Ω balanced) |
| System Delay | ≤ 30ms |
| Frame Structure | Framed, unframed |
| Switching Mode | Lossy, lossless |
| Switching Decision Metrics | LOS, LOF, AIS, RAI and other alarms, bit errors |
| Two-Path Delay Difference | ≤ 30ms |
| Power-Loss Protection | E1 bypass |
| Network Management Mode | In-band (E1), out-of-band (TCP/IP) |
Power
| Power Input | -48V DC (-36V ~ -72V) or AC220V |
| Power Consumption | ≤ 10 W |
Environment
| Operating Humidity | ≤ 95% (at 25°C) |
| Operating Temperature | -10°C ~ 60°C |
Physical
| Housing | IP40 metal enclosure |
| Mounting | 19-inch 1U standard rack-mount |
| Dimensions | 440 (W) × 44 (H) × 311 (D) mm |
Reliability
| MTBF | 320,000 hours |
| Warranty | 5 years |
Models & Ordering
| Model | Product Description | Price |
|---|---|---|
| CPD-100 | 2M protection channel switching device — 2 channels of intelligently switched standard E1, 1 channel of user standard E1; 1×RJ45 out-of-band management port; lossy/lossless and manual/automatic switching modes; E1 bypass for power-loss link protection; 19-inch 1U rack-mount with built-in dual redundant power supplies, DC48V or AC220V selectable. |
This page covers the single CPD-100 model. Power input is field-selectable between -48V DC (-36~-72V) and AC220V; no wide-temperature variant is listed for this series. The requested model is CPD-100.

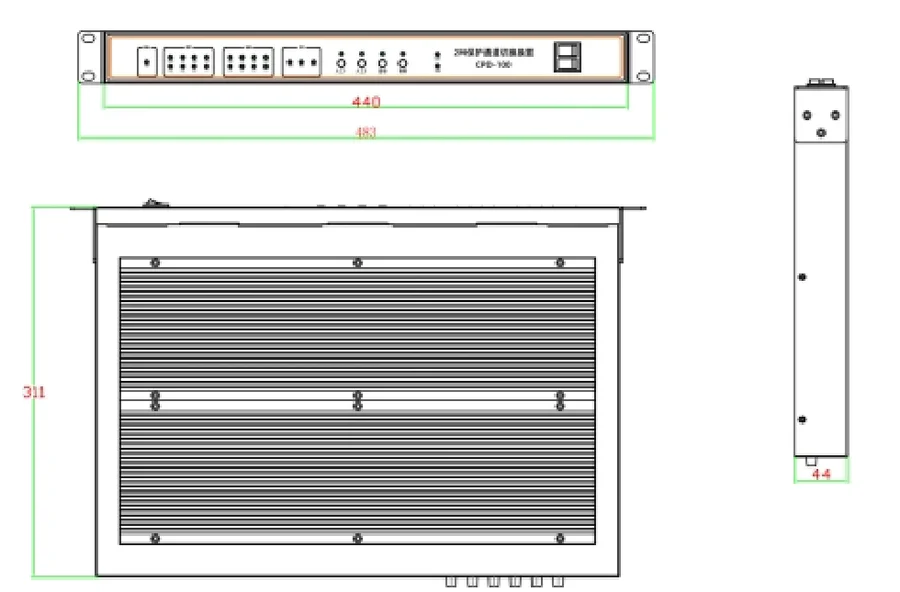

Dimensions
unit: mm
Your Brand. Our Factory.Neutral casing, ready for your logo · Custom port/power options · Small batches welcome.
Custom & OEM →E1 Protection Switching FAQ — CPD-100
What does the CPD-100 do in a power-utility protection channel?
It gives one 2048 kbit/s E1 link (G.703) 1+1 protection: the unit monitors primary and backup lines and keeps traffic on the channel with better signal quality, deciding on LOS, LOF, AIS and RAI alarms plus bit errors. It is designed to power-utility protection channel standards for critical relay-protection links.
Which switching modes does the CPD-100 support?
Four modes: lossy, lossless, automatic and manual. Lossless switching works when the delay difference between the two paths is within 30 ms, and overall system delay is 30 ms or less. The E1 stream can be framed or unframed, HDB3 line code, 2048 kbit/s ±50 ppm.
What happens if the CPD-100 loses power?
A built-in E1 bypass takes over on power loss, so the E1 line keeps carrying traffic even with the unit unpowered. Power input is -48 V DC (accepting -36 to -72 V) or AC 220 V, and consumption stays at 10 W or less.
How do I monitor the device and E1 line quality remotely?
Network management runs in-band over the E1 channel or out-of-band over TCP/IP. The management system monitors E1 signal quality on both paths and device status, so an operations center sees LOS, LOF, AIS, RAI alarms and bit-error events before deciding on a manual switchover.
Which E1 interfaces and installation options are available?
Interfaces follow ITU-T G.703, G.704 and G.823, with 75-ohm unbalanced or 120-ohm balanced impedance. The IP40 metal chassis is a standard 19-inch 1U unit (440 × 44 × 311 mm), operates from -10 to 60 °C, and is rated 320,000 hours MTBF with a 5-year warranty.
