Uniview NSW3000-16T1GT1GC-POE-IN cloud managed 19-inch rack PoE switch, 16 ports with PoE

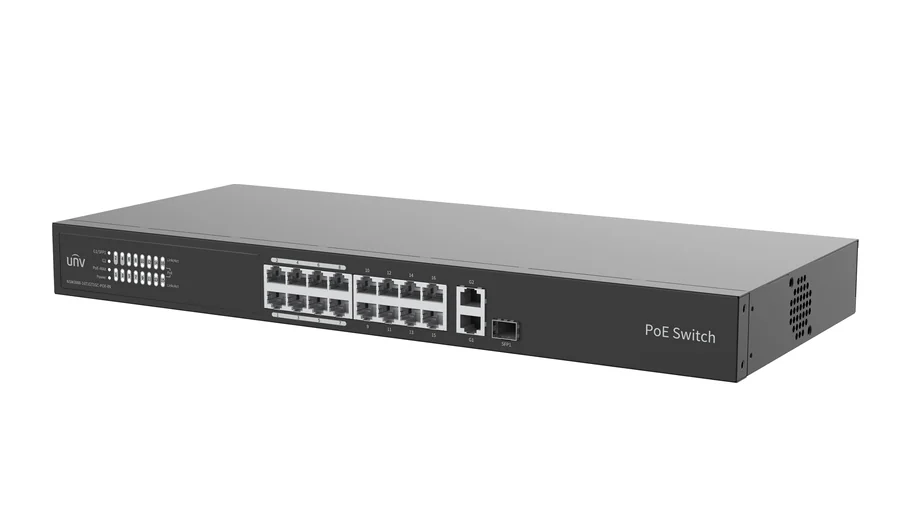

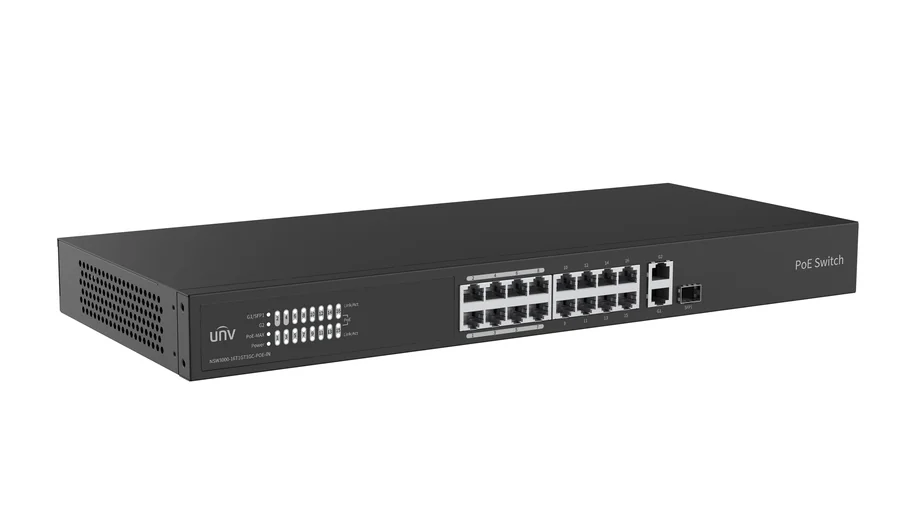

Manufacturer product photo · 16-port cloud managed PoE switch

NSW3000-16T1GT1GC-POE-IN

Name: NSW3000-16T1GT1GC-POE-IN
Brand: Uniview

Uniview · Cloud Managed PoE Switch

Cloud Managed 19″ Rack PoE Switch · 16×100M PoE + 1000M + Combo Uplink

Project-Based Pricing

Volume & combo discounts — get your quote

In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →

HOW TO GET A BETTER PRICE

Volume DiscountOrder 50+ pcs of this model

Project Combo DiscountMix any categories & models storewide in one order — no quantity limit

BIGGER

Verified End-User DiscountEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice

BIGGEST

All discounts are quoted personally — message me on WhatsApp ↑

Overview

The NSW3000-16T1GT1GC-POE-IN is a cloud managed 19-inch rack-mount Fast Ethernet PoE switch with 16 × 10/100Mbps RJ45 PoE ports (priority ports 1-8) plus a 1000Mbps RJ45 uplink (G2) and a 1000Mbps Combo RJ45/SFP uplink (G1/SFP1), self-developed by Uniview for lightweight Layer-2 management of camera networks in stores, supermarkets, enterprises and campuses. It delivers a 250 W total PoE budget (30 W max per port, IEEE 802.3af/at, Mode A/Mode B pinout) over a 7.2 Gbps switching fabric with 5.36 Mpps forwarding, a 4M bit packet buffer and a 16K MAC address table, cooled by a single internal fan and powered from a built-in AC 100–240V supply (265 W max). Through Uniview's cloud software and app, the switch auto-discovers connected video devices, builds a network topology, segments traffic across up to 32 VLANs, reports port abnormal alarms in real time, and lets an administrator check PoE status and remotely restart a hung camera's power without a site visit. The all-metal 440×195×44 mm 1U chassis (2.1 kg) runs from 0°C to 45°C and is NDAA compliant.

Is This the Right Fit?

Six real deployment scenarios matched to this model's actual datasheet specifications.

Cloud Dashboard for Multi-Site Camera FleetsConfigure, monitor and search every switch from one software dashboard — auto-discovered video devices and an auto-generated network topology mean a technician doesn't have to log into each store's switch individually.

VLAN Segmentation Keeps Camera Traffic Off the Office LANUp to 32 Access/Trunk VLANs isolate surveillance traffic from POS, Wi-Fi or office data, and port isolation restricts downlink ports so cameras can only talk to the uplink — not to each other.

Remote PoE Restart Cuts Truck Rolls for Hung CamerasWhen a camera freezes, an admin can check its PoE status and power-cycle just that port from the Web or app — no need to send someone to the store to unplug and replug a cable.

Loop Detection Catches Miswired Cables Before They Take Down the StoreRetail and supermarket wiring closets get re-cabled often; built-in loop detection flags an accidental cable loop immediately instead of letting it broadcast-storm the whole switch.

Real-Time Port Alarms Replace the Routine Walk-ThroughPort abnormal alarms report to the software the moment a link drops, so IT reacts to an actual failure instead of discovering a dead camera during the next site visit.

Priority Ports 1-8 Keep Critical Cameras Powered When the Budget TightensPorts 1-8 hold PoE power and forwarding priority, so entrance, cash-register or other critical cameras on those ports stay online first if total demand across all 16 ports nears the 250 W budget.

Not a good fit if:

If you don't need cloud/app management, VLAN segmentation or remote diagnostics, the unmanaged NSW2020-16T1GT1GC-POE-IN sibling (same 16-port, 250 W hardware) costs less and works with zero configuration.
Downlink ports are Fast Ethernet only (10/100Mbps, no Gigabit) — only the G2 RJ45 and G1/SFP1 Combo uplinks run at 1000Mbps; for 4K or multi-stream cameras that need per-port Gigabit throughput, choose a Gigabit PoE switch.
Cloud-managed Layer-2 switch with loop detection only — no ERPS ring or STP/RSTP spanning-tree protocol and no dynamic Layer-3 routing; for self-healing ring topologies, choose an industrial managed switch such as the ISW series.

Key Features

16 × 10/100Mbps RJ45 PoE ports (priority ports 1-8) plus a 1000Mbps RJ45 uplink (G2) and a 1000Mbps Combo RJ45/SFP uplink (G1/SFP1)
250 W total PoE budget, up to 30 W per port, IEEE 802.3af/at, Mode A and Mode B pinout both supported
Cloud management via Web, app and QR-code login — unified configuration, management and search across multiple devices
Auto-discovers connected video devices and generates a network topology on the software
Up to 32 VLANs (ID 1–4094) in Access/Trunk mode for traffic segmentation
Remote PoE status view, per-port enable/disable and power restart from the Web or app
Built-in loop detection and real-time port abnormal alarm reporting
All-metal 440×195×44 mm 1U rack chassis with a single internal cooling fan, NDAA compliant

Specifications

IEEE Standards

IEEE802.3 / 802.3u	10/100Base Ethernet
IEEE802.3ab	1000Base-T Gigabit Ethernet (copper)
IEEE802.3z	1000Base-X Gigabit Ethernet (fiber)
IEEE802.3az	Energy Efficient Ethernet (EEE)
IEEE802.3x	Flow control
IEEE802.3af / 802.3at	PoE / PoE+ power sourcing

Ports

Total ports	16 × 100Mbps RJ45 (PoE) + 1 × 1000Mbps RJ45 (G2) + 1 × 1000Mbps Combo (G1/SFP1)
PoE ports	16 (ports 1–16)
Uplink ports	1 × 1000Mbps RJ45 (G2) + 1 × 1000Mbps Combo RJ45/SFP (G1/SFP1)
Priority ports	1–8 (PoE power and forwarding priority)

Performance

Switching capacity	7.2 Gbps
Forwarding rate	5.36 Mpps
Packet buffer	4M bit
MAC address table	16K

PoE

Total budget	250 W
Per port	30 W max
PoE standard	IEEE 802.3af / 802.3at
Pin mode	Mode A (1/2, 3/6) and Mode B (4/5, 7/8), both supported

Power & Environment

Power input	AC 100–240V, 50/60Hz (built-in)
Max. power consumption	265 W
Cooling	1 internal fan
Operating temp.	0°C ~ 45°C (32°F ~ 113°F)
Humidity	5% ~ 90% non-condensing
Dimensions (W×D×H)	440 × 189.8 × 44 mm
Weight	2.1 kg
Indicators	Power · PoE · PoE-MAX · Link/Act
Working modes	Default / Extend (up to 250 m reach, 10 Mbps full-duplex)
Compliance	NDAA compliant

Software Features

Cloud management	Unified configuration, management and search across multiple devices via Web, app and QR-code cloud login; view device status and remotely restart PoE power
Auto topology	Auto-discovers connected video devices and generates a network topology on the software
VLAN	Access & Trunk modes, up to 32 VLANs, ID 1–4094
Link aggregation	1 group, combining the two uplink ports
PoE management	View PoE status and power draw per port; enable/disable PoE power supply remotely
Loop & traffic control	Built-in loop detection; port rate limitation and broadcast storm control
Security	Port isolation (downlink ports only); login IP address locking, up to 64 addresses
Maintenance & system	Device upgrade, factory reset, configuration import/export, log export and restart via the software; view device info and up to 32 peer switches and 64 connected video devices on the same network

Model	Product Description	Price
NSW3000-16T1GT1GC-POE-IN	Cloud managed 19-inch rack Fast Ethernet PoE switch — 16 × 100Mbps RJ45 PoE ports (priority 1-8, 250 W total budget, 30 W/port max, Mode A/B) + 1000Mbps RJ45 + 1000Mbps Combo uplink, 1-fan all-metal 1U housing, 0°C to 45°C, NDAA compliant.	✆ WhatsApp

16-Port Cloud Managed PoE Switch FAQ — NSW3000-16T1GT1GC-POE-IN

How many cameras can the NSW3000-16T1GT1GC-POE-IN power at once?

All 16 PoE ports simultaneously. The 250 W budget averages about 15 W per port while typical IP cameras draw 4–12 W, leaving headroom for several PTZ or heated cameras at up to 30 W each (IEEE 802.3af/at). Ports 1–8 hold power and forwarding priority for the most important channels.

How does it differ from the LPOE-IN version?

Same 16 × 100 Mbps PoE ports, gigabit RJ45 plus Combo uplinks, 7.2 Gbps fabric and cloud management. This POE-IN version raises the PoE budget to 250 W (max draw 265 W) and uses one internal fan; the LPOE-IN version gives 150 W and is fanless. Pick by total camera wattage and noise tolerance.

Can I manage it from a phone in the field?

Yes. Cloud login works via web, app or QR-code scan, covering several devices in one place: view status, see per-port PoE power draw, switch a port's PoE off and on to reboot a stuck camera, upgrade firmware, import/export configuration and export logs. Up to 32 peer switches and 64 video devices are visible.

What VLAN and protection features does it offer?

Up to 32 VLANs (IDs 1–4094) in Access or Trunk mode, one aggregation group across the two uplinks, built-in loop detection, port rate limiting and broadcast storm control. Downlink port isolation keeps cameras from talking to each other, and web login can be locked to up to 64 IP addresses.

What are the uplinks, and how far can a camera link reach?

G2 is a 1000 Mbps RJ45 uplink and G1/SFP1 is a gigabit Combo port for copper or SFP fiber; the two can form one link-aggregation group toward the recorder. Camera runs are 100 m standard, or up to 250 m in Extend mode at 10 Mbps full duplex. Housing is 19-inch 1U, 440 × 189.8 × 44 mm.
