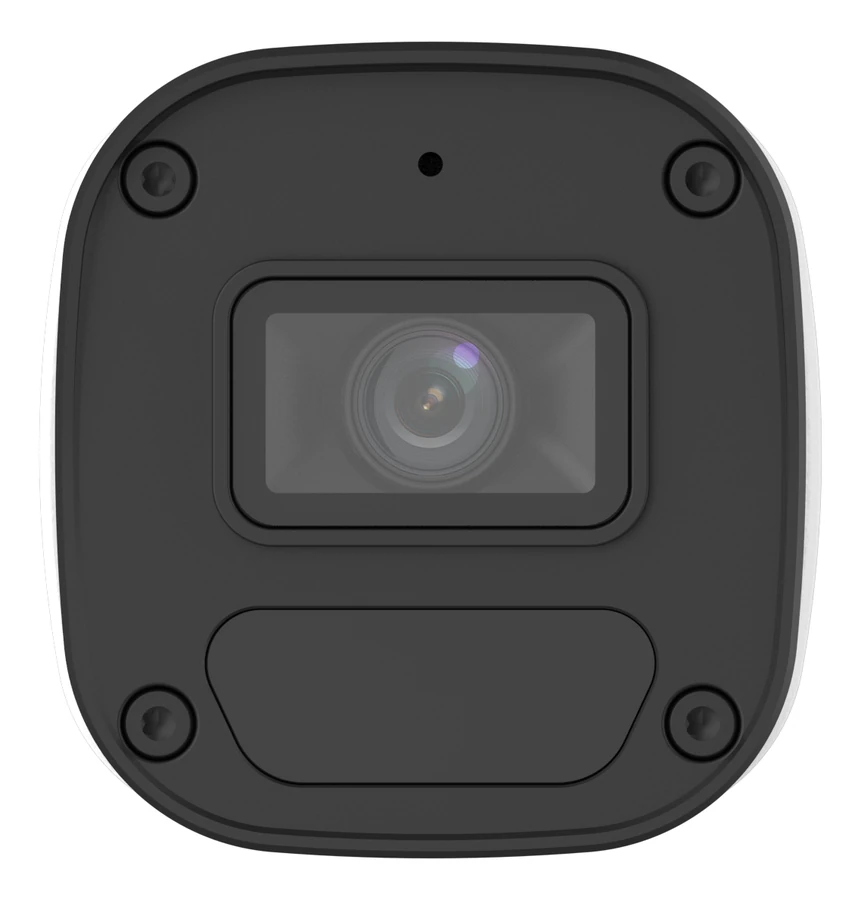

4MP Fixed IR Mini Bullet Network Camera IPC-B134-AF28(40)-ECO

4MP Fixed IR Mini Bullet Network Camera IPC-B134-AF28(40)-ECO — view 1

4MP Fixed IR Mini Bullet Network Camera IPC-B134-AF28(40)-ECO — view 2

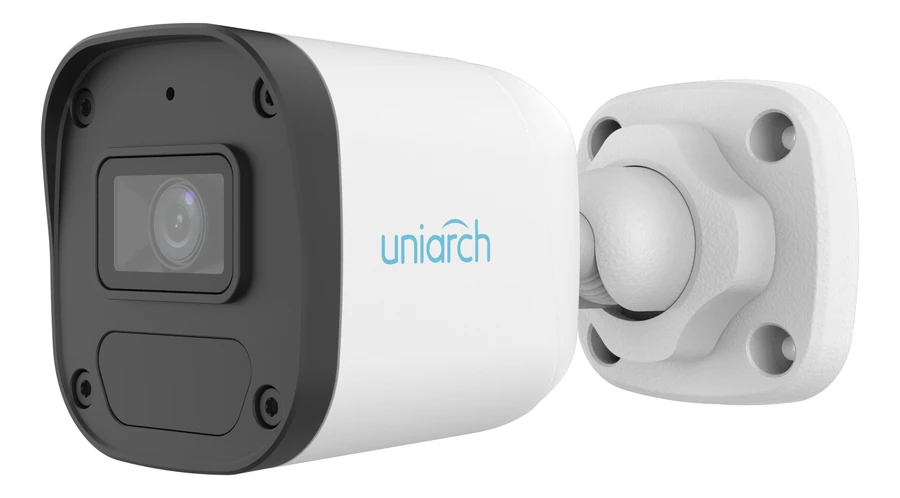

4MP Fixed IR Mini Bullet Network Camera IPC-B134-AF28(40)-ECO — view 3

UniarchEntry Series · IR

4MP IR Bullet · Entry Series

IPC-B134-AF28(40)-ECO

Name: Uniarch IPC-B134-AF28(40)-ECO
Brand: Uniarch
SKU: IPC-B134-AF28(40)-ECO

4MP fixed IR bullet network camera — up to 30m smart infrared night vision, PoE single-cable install, built-in mic, NDAA-compliant, IP67 outdoor body.

4 MP · 1440P@25fpsUltra 265 · low bandwidthSmart IR · up to 30mPoE · 802.3afIP67 · outdoorMic · built-in audioNDAA · compliant construction

CHOOSE YOUR LENS — TWO MODELS ON THIS PAGE

AF28 (2.8 mm, 97° view) covers a wide area near the camera — doorways, small rooms, shop counters. AF40 (4.0 mm, 75° view) trades width for reach — corridors, driveways, fence lines. Highlighted rows in the spec table below show every difference.

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCRoHSWEEEIP67ONVIF

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

30 mIR night vision

IP67Outdoor rated

3.5 WPoE max power

-30~60°CWorking temperature

The Uniarch IPC-B134-AF28(40)-ECO is a 4MP fixed bullet network camera from the Entry Series IR line. It provides up to 30 m of smart infrared night vision, accurate human body detection 2.0, PoE single-cable power, and an NDAA-compliant, IP67 outdoor build for −30 °C to 60 °C. It is offered with two fixed lenses: 2.8 mm (AF28, wider view) or 4.0 mm (AF40, longer reach).

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Shops & storefrontsSee who enters in sharp 4MP detail, and the built-in mic records what is said at the counter. AF28 covers the whole shop floor from a corner.

Home gates & yardsSmart IR turns on at night for discreet black-and-white night vision — the camera watches without lighting up the scene.

Warehouse & site perimetersIP67 body and −30 to 60 °C rating survive rain, dust and heat. AF40 detects movement up to 90 m away along long fence lines.

Residential compoundsHuman body detection 2.0 raises alerts for people, not for stray animals or moving branches.

Procurement-sensitive sitesNDAA-compliant build for buyers with government or institutional procurement rules. Ultra 265 compression keeps recordings small on the NVR.

Kiosks & fuel stationsOne PoE cable does power + video — no electrician needed at the pole, quick to install and move.

Not the right pick if you need…

Full-color night vision — this is IR-only, night video is black & white, not color
Two-way talk — it has a mic but no speaker
Wi-Fi — this is a wired RJ45 camera
Zoom — the lens is fixed (2.8 or 4.0 mm, chosen at purchase)
MicroSD card recording — it records to an NVR, no local storage slot
Alarm in/out wiring for sirens or sensors

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 4 MP, 1/3.0" CMOS sensor

4 MP (2560 × 1440)@25/20 fps; 3 MP (2304 × 1296)@25/30 fps; 1080P (1920 × 1080)@25/30 fps

Supports accurate human body detection 2.0

Ultra 265, H.265, H.264

2D/3D DNR (digital noise reduction)

ROI (region of interest) ensures image quality in areas of interest with low bandwidth

Smart IR, up to 30 m (98.4 ft.) IR distance

3-axis

Built-in mic

Wide temperature range: −30 °C to 60 °C (−22 °F to 140 °F)

PoE (IEEE 802.3af)

IP67

Night Vision: Smart IR

Invisible infrared night vision — this model has no warm-light module.

IR MODE

Invisible infrared — discreet black & white night vision

Smart IR up to 30 m (98.4 ft.) at 850 nm. The camera watches without lighting up the scene — nothing shows it is recording. This model has a single IR illuminator only, no warm-light module.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Switch the lens buttons above to compare.

Detectsomething is there

63 m206.7 ft

Observewhat is happening

25.2 m82.7 ft

Recognizesomeone you know

12.6 m41.3 ft

Identifya stranger's face

6.3 m20.7 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	AF28 · 97.0°	AF40 · 74.6°
5 m16 ft	11.3 m37.1 ft	7.6 m25.0 ft
10 m33 ft	22.6 m74.2 ft	15.2 m50.0 ft
15 m49 ft	33.9 m111 ft	22.9 m75.0 ft
20 m66 ft	45.2 m148 ft	30.5 m100.0 ft
30 m98 ft	67.8 m222 ft	45.7 m150 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the two models:AF28 = 2.8 mmAF40 = 4.0 mm

Camera

Max Resolution	4 MP
Sensor	1/3.0" CMOS
Min. Illumination	Color: 0.003 Lux (F2.0, AGC ON), 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
Adjustment Angle	Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
S/N	> 52 dB
WDR	DWDR

Lens

Focal Length	AF28 · 2.8 mmAF40 · 4.0 mm
Iris	F2.0
Field of View (H)	AF28 · 97°AF40 · 74.6°
Field of View (V)	AF28 · 54.9°AF40 · 40.5°
Field of View (D)	AF28 · 111.9°AF40 · 89.1°

DORI

DORI Distance (Lens)	AF28 · 2.8 mmAF40 · 4 mm
DORI Distance (Detect)	AF28 · 63.0 m (206.7 ft.)AF40 · 90.0 m (295.3 ft.)
DORI Distance (Observe)	AF28 · 25.2 m (82.7 ft.)AF40 · 36.0 m (118.1 ft.)
DORI Distance (Recognize)	AF28 · 12.6 m (41.3 ft.)AF40 · 18.0 m (59.1 ft.)
DORI Distance (Identify)	AF28 · 6.3 m (20.7 ft.)AF40 · 9.0 m (29.5 ft.)

Illuminator

Supplemental Light	IR
Illumination Distance (IR)	30 m (98.4 ft.)
Wavelength	850 nm
IR On/Off Control	Auto/Manual

Video

Video Compression	Ultra 265, H.265, H.264
H.264 Code Profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 4 MP (2560×1440) max. 25 fps; 3 MP (2304×1296) max. 30 fps; 1080P (1920×1080) max. 30 fps · Sub Stream: 640×360 max. 30 fps; 2CIF (704×288) max. 30 fps; CIF (352×288) max. 30 fps
Video Bit Rate	128 Kbps to 6144 Kbps
U-code	Support
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Support
Video Stream	Dual streams


Smart Illumination	Support
White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital defog

Events

Basic Detection	Motion detection, Audio detection, Human body detection 2.0
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	N/A
Suppression	Support
Sampling Rate	8 kHz

Network

Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, DNS, DDNS, NTP, UPnP, HTTP, QoS, RTCP, RTMP, SNMP
Compatible Integration	ONVIF (Profile S, Profile T), SDK
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Security	Strong Password, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, WSSE and Digest Authentication for ONVIF, Log Encrypted Export
Client	APP, Uniarch client
Web Browser	Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O	N/A
Alarm I/O	N/A
Built-in Mic	Support
Built-in Speaker	N/A
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A

Certification

EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
Safety	CE LVD (EN 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)
Protection	IP67 (IEC 60529)

General

Power	PoE (IEEE 802.3af)
Power Consumption	Max. 2.5 W
Power Interface	N/A
Dimensions	140 mm × 61 mm × 65 mm (5.5" × 2.4" × 2.6") (L × W × H)
Weight	0.14 kg (1.32 lb.)
Material	Plastic
Working Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	N/A
Web Client Language	4 Languages: English, Russian, Spanish, Vietnamese

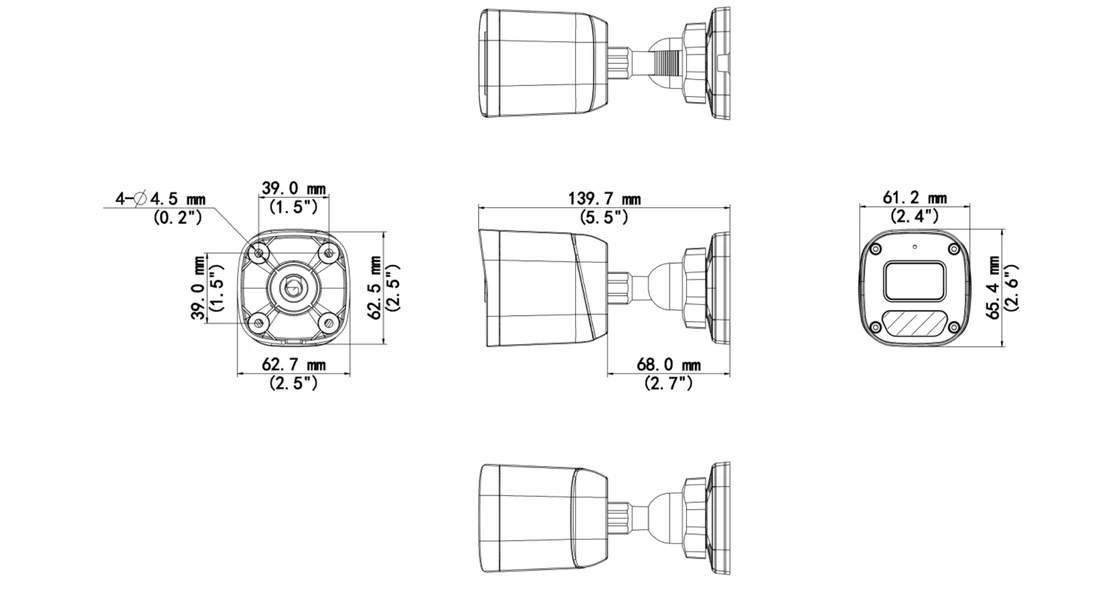

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	140 × 61 × 65 mm (5.5" × 2.4" × 2.6")
Weight	0.14 kg (1.32 lb.)
Material	Plastic
Mount adjustment	Pan 0–360° · Tilt 0–90° · Rotate 0–360°

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-JB05-A-INSmall bullet junction box (rear wiring, square)

TR-UP06-B-INBullet pole mounting bracket

TR-A01-INNPT 3/4" waterproof cable gland

TR-UP06-C-IN-V2Pole bracket for bullet junction box

TR-UC08-C-V2Bullet & dome corner mounting bracket

4MP IR Bullet Camera FAQ — IPC-B134-AF28(40)-ECO

How well does the IPC-B134-ECO see in the dark?

Smart IR reaches 30 m (98.4 ft) at 850 nm — invisible, so the camera watches without lighting the scene. Color holds to a low 0.003 Lux (F2.0, AGC on) before switching to black-and-white at 0 Lux with IR, and smart illumination plus the auto ICR filter manage the transition on their own.

How far can it detect and identify a person?

DORI figures: the 2.8 mm lens (97 degree horizontal view) detects at 63.0 m, recognizes at 12.6 m and identifies at 6.3 m; the 4.0 mm lens (74.6 degrees) detects at 90.0 m, recognizes at 18.0 m and identifies at 9.0 m. Position cameras so critical points fall inside the identify band.

Is this model NDAA compliant?

Yes, it is listed as NDAA compliant. That makes it a safe specification when the end customer — a government site, bank, NGO or multinational — writes NDAA compliance into the tender. You keep the same 4MP IR bullet form factor and PoE cabling plan while meeting the procurement requirement.

How is it powered and mounted outside?

Power comes over PoE, so the same Ethernet cable from your PoE switch carries data and power — no local supply at the mount. The IP67 housing is sealed against dust and rain, and the bracket adjusts pan 0–360, tilt 0–90 and rotate 0–360 degrees for wall or pole aiming.

What video and detection does it give the recorder?

Dual streams with a 4 MP (2560x1440) main stream at up to 25 fps — or 3 MP and 1080P at 30 fps — under Ultra 265, H.265 or H.264 with U-code, bitrate 128–6144 Kbps. Detection covers Human body detection 2.0, motion and audio events, and the built-in mic adds G.711U/A sound at 64 Kbps.
