NVR / Recorders › NVR502-08B-P8 / 16B-P16 / 32B-P16

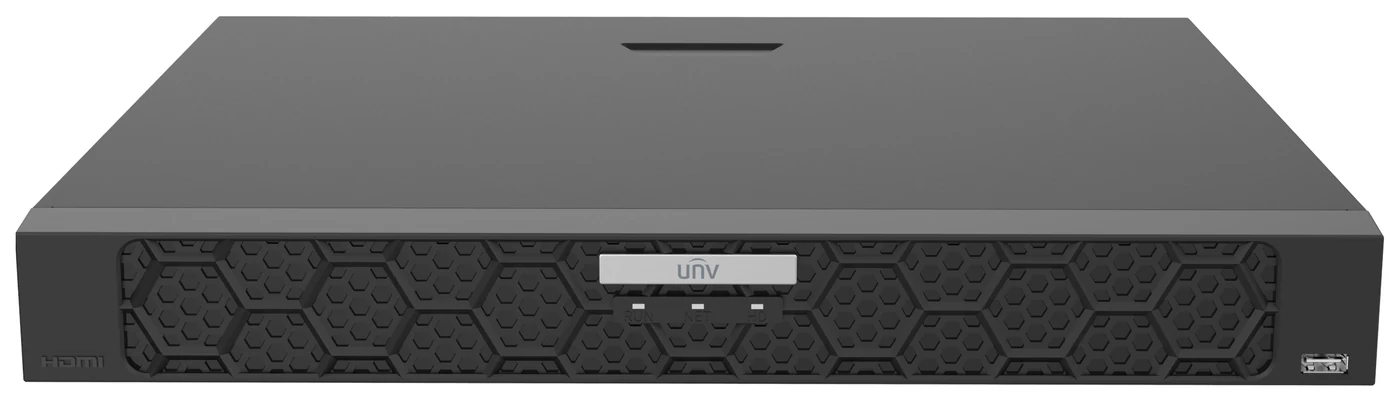

8/16/32-Channel 2-HDD PoE Network Video Recorder NVR502-08B-P8 / NVR502-16B-P16 / NVR502-32B-P16 — view 1

8/16/32-Channel 2-HDD PoE Network Video Recorder NVR502-08B-P8 / NVR502-16B-P16 / NVR502-32B-P16 — view 2

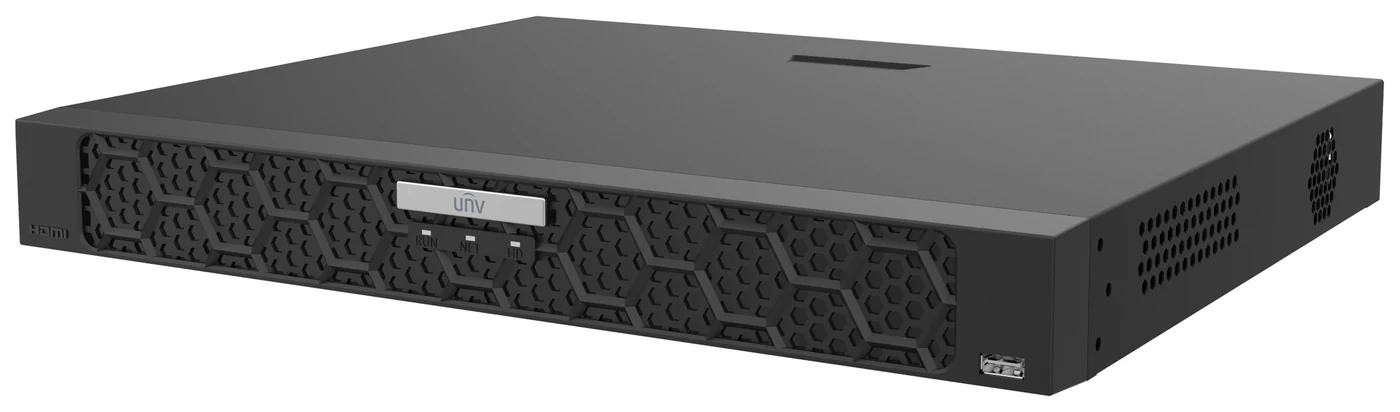

8/16/32-Channel 2-HDD PoE Network Video Recorder NVR502-08B-P8 / NVR502-16B-P16 / NVR502-32B-P16 — view 3

8/16/32-Channel 2-HDD PoE Network Video Recorder NVR502-08B-P8 / NVR502-16B-P16 / NVR502-32B-P16 — view 4

Uniview (UNV)B-P Series · 2× SATA HDD · PoE

2-HDD PoE Network Video Recorder · B-P Series

NVR502-08B-P8 / 16B-P16 / 32B-P16

8 / 16 / 32-channel PoE network video recorder — built-in PoE ports power the cameras directly, dual SATA bays support RAID 1, Ultra 265 compression, and 4K HDMI output.

16MP · max recordingUltra 265 · low storage4K HDMI · independent VGA output2× SATA · up to 24 TB eachPoE · 8/16 ports built in38 languages · local interfaceONVIF · certified

CHOOSE YOUR SIZE — THREE MODELS ON THIS PAGE

Rule of thumb: match channels to your camera count, then check PoE — the 08B-P8 and 16B-P16 power every camera from the built-in ports, but the 32B-P16 has only 16 PoE ports for 32 channels, so half the cameras need external power or a separate switch. Highlighted rows in the spec table below show every other difference between the three.

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

How many terabytes for your channels and days? Use the storage calculator →

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCULRoHSWEEEONVIFNDAA

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

8/16/32Channel options

320 MbpsIncoming bandwidth

2×24 TBMax HDD capacity

8/16PoE ports

The Uniview NVR502-B-P Series is a 2-HDD PoE network video recorder offered in three sizes: NVR502-08B-P8 (8-ch, 8 PoE ports), NVR502-16B-P16 (16-ch, 16 PoE ports) and NVR502-32B-P16 (32-ch, 16 PoE ports). All three record cameras up to 16MP with Ultra 265 / H.265 / H.264 compression, output independently over 4K HDMI and VGA, and support Face Detection, Face Comparison, Vehicle Detection (LPR) and other Smart-by-IPC analytics. Two SATA bays take hard disks up to 24 TB each with RAID 1 and redundant storage support; the local interface is available in 38 languages including Spanish (Latin America), Portuguese (Brazil) and French.

Is this the right recorder for you?

Plain-language guide for buyers and installers — based only on what this recorder actually does.

Medium-to-large sites8/16/32-ch models scale from a small office to a full warehouse or campus without changing recorder families.

Power cameras from the recorderBuilt-in PoE ports (8 on the 08B-P8, 16 on the 16B-P16/32B-P16) power most cameras directly — no separate PoE switch needed for a same-size install.

Sites that can't lose footageTwo SATA bays support RAID 1 and redundant storage — if one drive fails, recording continues on the mirror.

Investigations & analyticsFace Detection, Face Comparison, Vehicle Detection (LPR), People Counting and Heat Map turn hours of footage into a short list of matches.

Sites wired for alarms8-ch alarm input and 2-ch alarm output connect directly to sirens, door sensors and panic buttons — no extra alarm hub needed.

Local-language interface38 GUI languages including Spanish (Latin America), Portuguese (Brazil), French, Arabic and more — your customer operates it in their own language.

Not the right pick if you need…

Full 32-ch PoE power — the 32B-P16 has only 16 built-in PoE ports for 32 channels; the other 16 cameras need external power or a separate switch
Simultaneous full-resolution HDMI + VGA — the two outputs are independent; VGA shows by default and must be cleared on the preview page to get the highest-resolution HDMI image
32-channel synchronous local playback — local playback tops out at 16-ch even on the 32B-P16 (all 32 channels are still viewable live and remotely)
RS-232 serial control — this series has RS-485 only, no RS-232 port
Multi-channel or built-in audio — audio is 1-ch RCA input and 1-ch RCA output only, no embedded mic/speaker array

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

Support Ultra 265 / H.265 / H.264 video formats

8 / 16 / 32-channel input

Plug & Play with 8/16 independent PoE network interfaces

Support 1-ch HDMI, 1-ch VGA, HDMI up to 4K (3840×2160) resolution

VGA and HDMI independent output

Up to 16 Megapixels resolution recording

ANR technology to enhance the storage reliability when the network is disconnected

Support cloud upgrade

Power the cameras. Protect the footage.

The two hardware-level capabilities that set the B-P series apart: built-in PoE power and RAID 1 storage redundancy.

PLUG & PLAY POE

One box powers the cameras too

Built-in PoE ports (8 on the 08B-P8, 16 on the 16B-P16/32B-P16) deliver up to 30W per port and up to 240W total — most installs need no separate PoE switch.

DUAL SATA · RAID 1

Built-in protection against drive failure

Two SATA bays support Disk Group and Redundant Storage with RAID 1 mirroring, up to 24 TB per drive — if one HDD fails, recording keeps running on the other.

Which size fits your project?

Bars show camera capacity per model. Click the model buttons above to switch — the spec table highlights every other difference.

NVR502-08B-P8PoE ×8 · live view up to 9 · sync playback 8-ch

8cameras

NVR502-16B-P16PoE ×16 · live view up to 16 · sync playback 16-ch

16cameras

NVR502-32B-P16PoE ×16 of 32 · live view up to 32 · sync playback 16-ch

32cameras

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the three models:NVR502-08B-P8 · 8-chNVR502-16B-P16 · 16-chNVR502-32B-P16 · 32-ch

Decoding

Decoding Format	Ultra 265, H.265, H.264
Decoding Capability	08B-P8 · Ultra 265/H.265: 2×16MP@30, 2×12MP@30, 4×4K@30, 6×5MP@30, 8×4MP@30; H.264: 2×16MP(4800×2688)@30, 2×12MP@30, 2×4K@30, 4×5MP@30, 6×4MP@30, 8×3MP@3016B-P16 · Ultra 265/H.265: 2×16MP@30, 2×12MP@30, 4×4K@30, 6×5MP@30, 8×4MP@30, 10×3MP@30, 16×1080P@30; H.264: 2×16MP(4800×2688)@30, 2×12MP@30, 2×4K@30, 4×5MP@30, 6×4MP@30, 8×3MP@30, 14×1080P@30, 16×720P@3032B-P16 · Ultra 265/H.265: 2×16MP@30, 2×12MP@30, 4×4K@30, 6×5MP@30, 8×4MP@30, 10×3MP@30, 16×1080P@30, 32×960P@25; H.264: 2×16MP(4800×2688)@30, 2×12MP@30, 2×4K@30, 4×5MP@30, 6×4MP@30, 8×3MP@30, 14×1080P@30, 30×720P@30, 32×D1
Decoding Capability Description	The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width. For VGA/HDMI independent output, the VGA live video is output by default; to output the highest-resolution video from the HDMI port, clear the VGA video on the preview page.
Audio Compression	G.711A, G.711U

Network

Incoming Bandwidth	320 Mbps
Outgoing Bandwidth	160 Mbps
Remote Users	128
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4
Browser (Plugin)	IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+

Video/Audio Input

IP Video Input	08B-P8 · 8-ch16B-P16 · 16-ch32B-P16 · 32-ch
RCA Audio Input	1-ch

Video/Audio Output

HDMI Output	4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
VGA Output	1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz
RCA Audio Output	1-ch
Liveview Display	08B-P8 · 1/4/6/8/916B-P16 · 1/4/6/8/9/1632B-P16 · 1/4/6/8/9/16/25/32
Corridor Mode Screen	08B-P8 · 3/4/5/7/916B-P16 · 3/4/5/7/9/10/12/1632B-P16 · 3/4/5/7/9/10/12/16/32
Two-way Audio	1-ch, RCA (using the audio input and output)
Snapshot	FTP/Schedule/Event Snapshot; 4-ch snapshot (max. D1 (720×576) video resolution, with D1 snapshot resolution)

Recording

Recording Resolution	16 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080P / 960P / 720P / D1 / 2CIF / CIF
Synchronous Playback in Local	08B-P8 · 8-ch16B-P16 · 16-ch32B-P16 · 16-ch

Smart

Smart by IPC	All channels (up to 8 images/s in total): Face Detection, Face Comparison, Vehicle Detection (LPR), Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring
VCA Search	Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map

Alarm

General Alarm	Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm	IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

GUI Language

38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian

Hard Disk

SATA	2 SATA Interfaces
Capacity	Up to 24 TB for each HDD (the maximum HDD capacity varies with environment temperature and hard disk size; the environment temperature for use should not exceed 40 °C)
Disk Group	Support
Redundant Storage	Support
Disk Array Type	RAID 1

External Interface

Network Interface	1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
USB	Front panel: 1 × USB 2.0, Rear panel: 1 × USB 3.0
RS485	1
RS232	N/A
Alarm In	8-ch
Alarm Out	2-ch
Power Supply	AC 100 to 240 V
Power Switch	Support

PoE

PoE Interface	08B-P8 · 8 RJ45 10 M/100 M self-adaptive Ethernet Interface16B-P16 · 16 RJ45 10 M/100 M self-adaptive Ethernet Interface32B-P16 · 16 RJ45 10 M/100 M self-adaptive Ethernet Interface
Max Power	08B-P8 · Max 30 W for single port, max 130 W in total16B-P16 · Max 30 W for single port, max 240 W in total32B-P16 · Max 30 W for single port, max 240 W in total
Supported Standard	IEEE 802.3at, IEEE 802.3af

Working Environment

Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity	≤ 90% RH (non-condensing)
Power Consumption (without HDD)	≤ 20 W

Dimensions

Weight (without HDD)	≤ 2.6 kg (5.73 lb)
Dimensions	380 mm × 322 mm × 53 mm (15.0" × 12.7" × 2.1")

Certification

Certification	CE; FCC; UL; RoHS; WEEE
CE	EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC	Part15 Subpart B

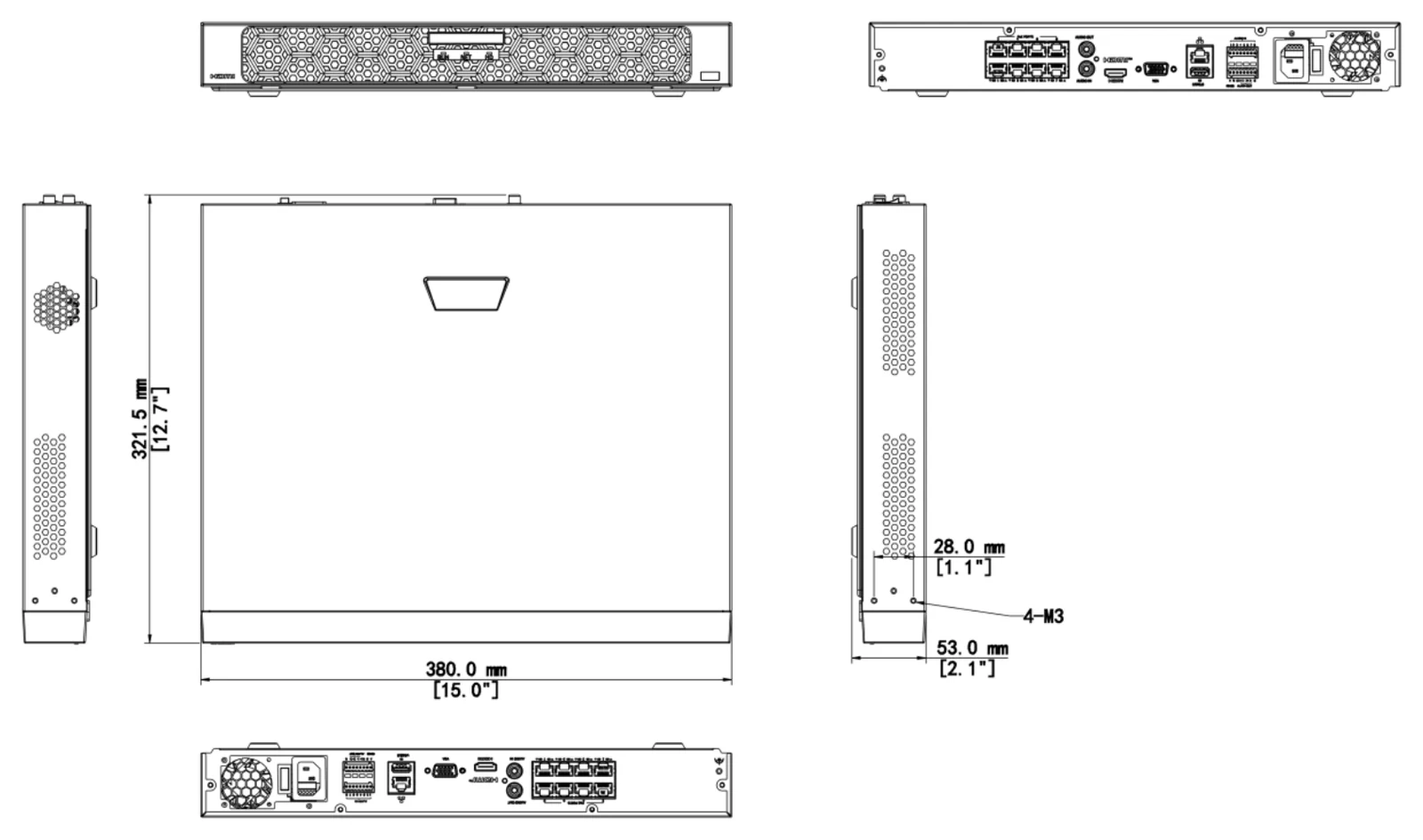

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	380 × 322 × 53 mm (15.0" × 12.7" × 2.1")
Weight (without HDD)	≤ 2.6 kg (5.73 lb)
Power supply	AC 100–240 V
Consumption (without HDD)	≤ 20 W

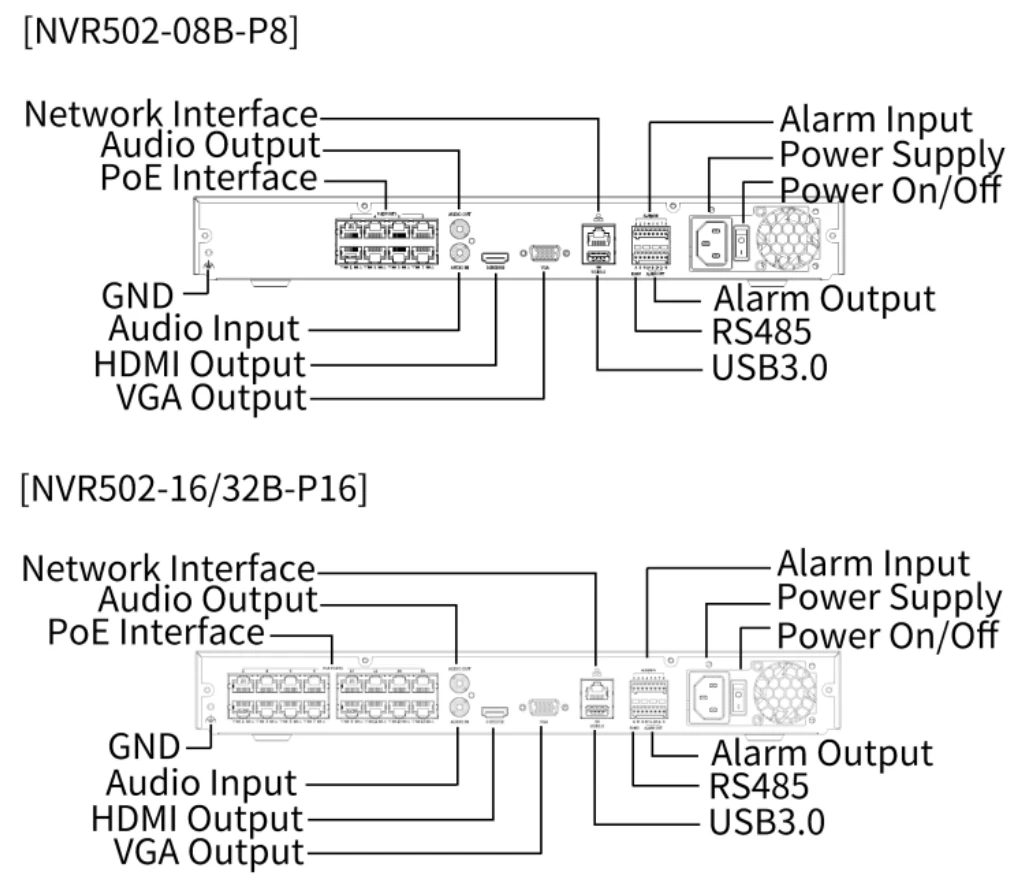

Rear panel — all interfaces

Optional Mounting Accessories

Order together with the camera to save shipping.

RM-1U-3802 HDD 1U NVR rack mount tray

8/16/32-Channel PoE NVR FAQ — NVR502-B-P Series

How many cameras can the NVR502-16B-P16 power directly?

The NVR502-08B-P8 has 8 built-in PoE ports (130 W total); the 16B-P16 and 32B-P16 have 16 ports, with a 240 W budget on the 16B-P16. Each PoE port delivers up to 30 W (IEEE 802.3at/af), so typical 4–12 W IP cameras plug straight into the recorder — power and video over one cable, no separate PoE switch needed.

How many IP cameras can I connect?

The NVR502-08B-P8 records 8 IP cameras, the 16B-P16 16 and the 32B-P16 32, up to 16 MP per channel. Incoming bandwidth is 320 Mbps, so size camera bitrates to stay inside that figure, and pick the channel count that leaves room to add cameras as the site grows.

What happens if a hard drive fails?

The two SATA bays (up to 24 TB each) support Disk Group and Redundant Storage with RAID 1 mirroring, so both disks hold an identical copy of critical footage. A single drive failure then doesn't stop recording or lose the protected footage — worth enabling on sites where video is evidence, such as shops, warehouses and residential compounds.

Can I connect alarm sensors and sirens?

Yes — it has 8 alarm inputs and 2 alarm outputs plus an RS485 port, so PIR sensors, door contacts or sirens wire directly to the recorder and can trigger recording, snapshots or notifications alongside the video events.

Does it support face detection and smart search?

Yes — with UNV smart cameras, every channel can report Face Detection, Face Comparison, Vehicle Detection (LPR) and Temperature Detection events (up to 8 images/s total). The NVR indexes these events for VCA Search — face snapshot/comparison, vehicle and human-body search — so you jump straight to the right clip instead of scrubbing hours of video.

Can I view live video remotely?

Yes — up to 128 remote users can connect. The recorder supports P2P, DDNS, HTTP/HTTPS and RTSP and works in a browser (IE10/11, Chrome 45+, Edge 79+, Firefox 52+), so an integrator can check several client sites from one office. Outgoing bandwidth for remote streams is 160 Mbps.
