IP Cameras › IPC2314LE-ADF28(40)KM-WP

4MP ColorHunter with Wise-ISP Fixed Bullet Network Camera IPC2314LE-ADF28(40)KM-WP

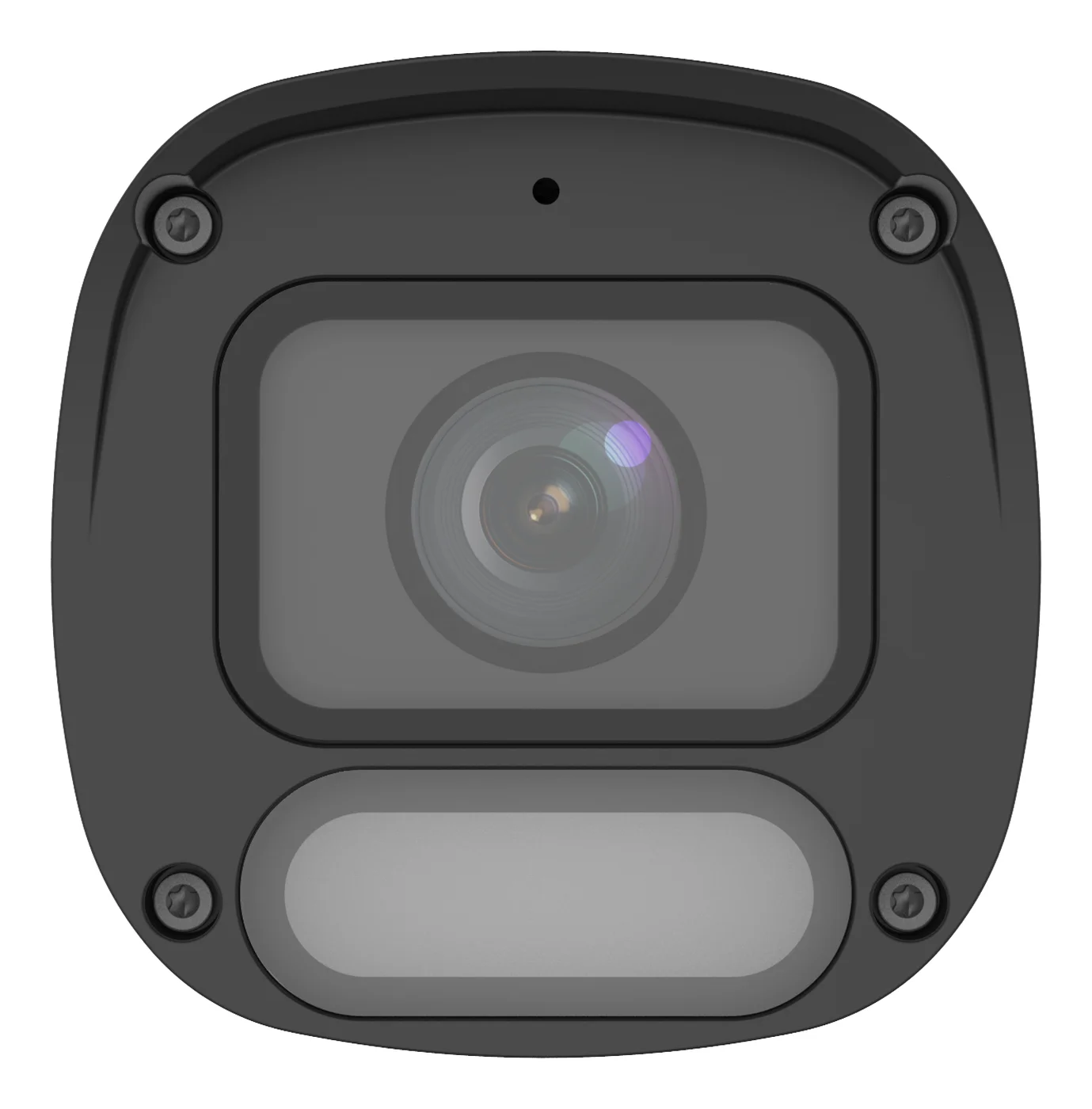

4MP ColorHunter with Wise-ISP Fixed Bullet Network Camera IPC2314LE-ADF28(40)KM-WP — view 1

4MP ColorHunter with Wise-ISP Fixed Bullet Network Camera IPC2314LE-ADF28(40)KM-WP — view 2

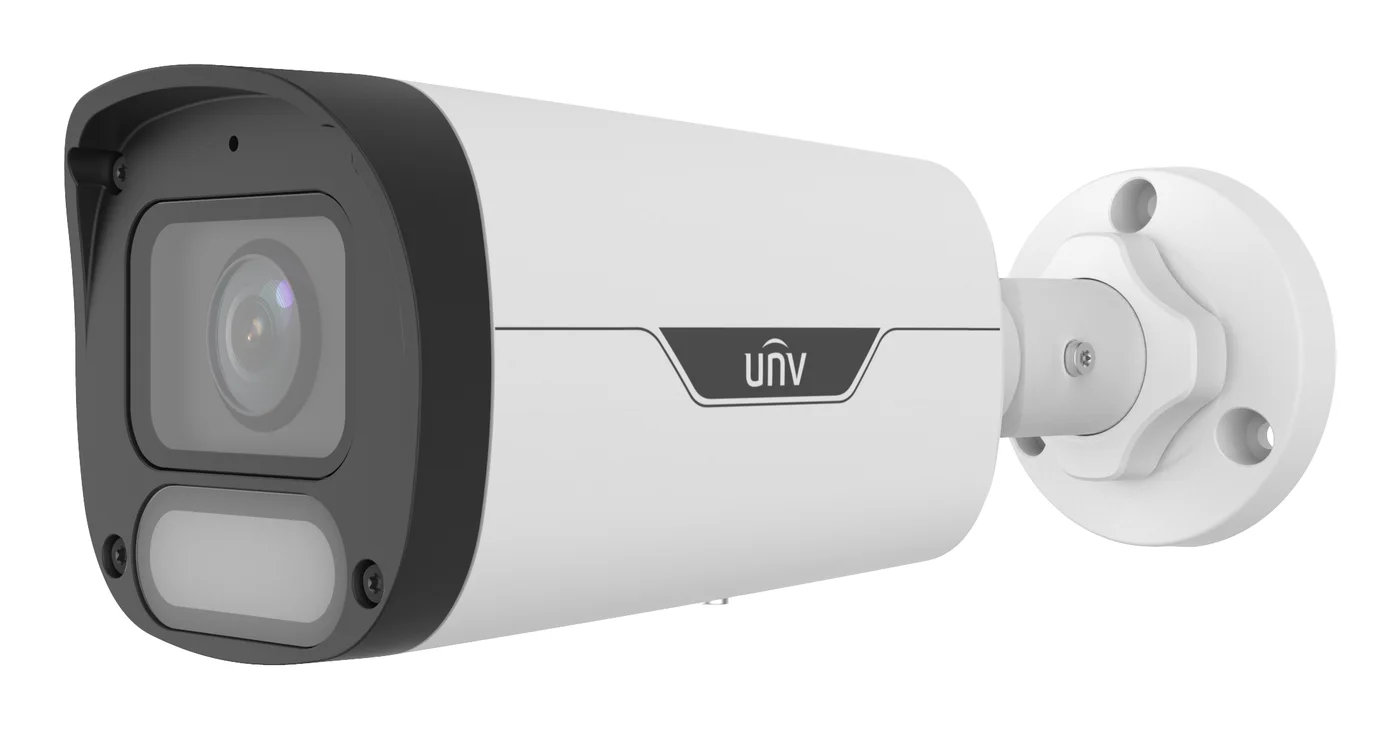

4MP ColorHunter with Wise-ISP Fixed Bullet Network Camera IPC2314LE-ADF28(40)KM-WP — view 3

Uniview (UNV) · BulletColorHunter · Wise-ISP

4MP ColorHunter Bullet · Wise-ISP

IPC2314LE-ADF28(40)KM-WP

Name: Uniview IPC2314LE-ADF28(40)KM-WP
Brand: Uniview
SKU: IPC2314LE-ADF28(40)KM-WP

4MP fixed bullet network camera with ColorHunter full-color night vision powered by Wise-ISP — warm light up to 30 m, 120 dB true WDR, PoE, MicroSD up to 512 GB, IP67 outdoor body.

4 MP · 1/1.8" CMOS, F1.0Ultra 265 · low bandwidthColorHunter · warm light 30m, no IR120 dB · true WDRMicroSD · up to 512 GBIP67 · outdoor

CHOOSE YOUR LENS — TWO MODELS ON THIS PAGE

ADF28KM (2.8 mm, 135.0° diagonal view) covers a wide area near the camera — doorways, small rooms, shop counters. ADF40KM (4.0 mm, 113.5° diagonal view) trades width for reach — corridors, driveways, fence lines. Highlighted rows in the spec table below show every difference.

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCULRoHSWEEEIP67ONVIFNDAA

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

4 MPResolution

30 mWarm light

120 dBTrue WDR

IP67Outdoor rated

The Uniview IPC2314LE-ADF28(40)KM-WP is a 4MP fixed bullet network camera built around ColorHunter full-color night vision with Wise-ISP processing — a warm-light illuminator up to 30 m keeps the scene in color after dark, while Wise-ISP optimizes color, detail and smear in extremely low light rather than relying on infrared. It adds 120 dB true WDR for high-contrast scenes, 9:16 corridor mode, MicroSD edge storage up to 512 GB, and an IP67 outdoor rating for -30°C to 60°C operation, all powered over a single PoE cable. It is offered with two fixed lenses: 2.8 mm (ADF28KM, wider view) or 4.0 mm (ADF40KM, longer reach).

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Shops & storefronts4MP detail plus ColorHunter full-color night vision — faces, price tags and cash-counter activity stay in color instead of grainy IR gray. ADF28KM covers the whole shop floor from a corner.

Home gates & drivewaysWarm light up to 30 m keeps visitors and vehicle colors visible at night — easier to identify than black-and-white IR, and intruders know they are seen.

Loading docks & backlit entrances120 dB true WDR keeps faces visible against bright headlights or a blown-out sky — no silhouettes.

Narrow corridors & hallways9:16 corridor mode reframes the sensor vertically — full-height coverage of a corridor without wasted width on both sides.

Small sites without an NVRMicroSD edge storage up to 512 GB records locally — no NVR required for a single camera or a small handful.

Kiosks & fuel stationsOne PoE cable does power + video — no electrician needed at the pole, quick to install and move.

Not the right pick if you need…

Two-way talk — it has a mic but no speaker
Wi-Fi — this is a wired RJ45 camera
Zoom — the lens is fixed (2.8 or 4.0 mm, chosen at purchase)
Covert/invisible night vision — this model has no infrared, only a visible warm-light illuminator
Alarm in/out wiring for sirens or sensors

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 4 MP, 1/1.8" CMOS sensor and F1.0 large aperture lens

4 MP (2688 × 1520)@25/20 fps; 4 MP (2560 × 1440)@25/20 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps

Ultra 265, H.265, H.264, MJPEG

Supports ColorHunter with Wise-ISP technology, deeply optimizing color, detail, and smear effects in extremely low-light scenes

120 dB true WDR technology enables clear image in strong light scene

Supports 9:16 corridor mode

Built-in mic

White light, up to 30 m (98.4 ft.) warm light distance

MicroSD, up to 512 GB

IP67 protection

Supports PoE power supply

3-axis adjustment

ColorHunter: full-color night vision without infrared

Two mechanisms work together — a physical warm-light illuminator and an ISP algorithm — instead of an IR mode.

WISE-ISP

Image processing tuned for extreme low light

Wise-ISP works alongside the F1.0 lens and 1/1.8" sensor to deeply optimize color accuracy, fine detail, and motion smear in extremely low-light scenes, and pairs with 120 dB true WDR for high-contrast conditions.

WARM LIGHT

Visible white illuminator — full-color, all night

A warm-light illuminator reaching up to 30 m (98.4 ft.), switchable Auto/Manual, keeps the scene lit and in color at night — there is no invisible IR mode on this model.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Switch the lens buttons above to compare.

Detectsomething is there

43.4 m142.4 ft

Observewhat is happening

17.4 m57.1 ft

Recognizesomeone you know

8.7 m28.5 ft

Identifya stranger's face

4.3 m14.1 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	KM · 124.3°	KM · 96.1°
5 m16 ft	18.9 m62.1 ft	11.1 m36.5 ft
10 m33 ft	37.9 m124 ft	22.3 m73.0 ft
15 m49 ft	56.8 m186 ft	33.4 m110 ft
20 m66 ft	75.7 m248 ft	44.5 m146 ft
30 m98 ft	114 m373 ft	66.8 m219 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the two models:ADF28KM = 2.8 mmADF40KM = 4.0 mm

Camera

Max Resolution	4 MP
Sensor	1/1.8" CMOS
Min. Illumination	Color: 0.0003 Lux (F1.0, AGC ON)
Shutter	Auto/Manual, 1 ~ 1/100000 s
Adjustment Angle	Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
S/N	> 52 dB
WDR	120 dB

Lens

Focal Length	ADF28KM · 2.8 mmADF40KM · 4.0 mm
Iris Type	Fixed
Iris	F1.0
Field of View (H)	ADF28KM · 124.3°ADF40KM · 96.1°
Field of View (V)	ADF28KM · 64.1°ADF40KM · 52.2°
Field of View (D)	ADF28KM · 135.0°ADF40KM · 113.5°

DORI

DORI Distance (Detect)	ADF28KM · 43.4 m (142.4 ft.)ADF40KM · 62.1 m (203.7 ft.)
DORI Distance (Observe)	ADF28KM · 17.4 m (57.1 ft.)ADF40KM · 24.8 m (81.4 ft.)
DORI Distance (Recognize)	ADF28KM · 8.7 m (28.5 ft.)ADF40KM · 12.4 m (40.7 ft.)
DORI Distance (Identify)	ADF28KM · 4.3 m (14.1 ft.)ADF40KM · 6.2 m (20.3 ft.)

Illuminator

Supplemental Light	Warm light
Illumination Distance (Warm Light)	30 m (98.4 ft.)
Light On/Off Control	Auto/Manual

Video

Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 4 MP (2688 × 1520), max. 25 fps; 4 MP (2560 × 1440), max. 25 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps · Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps
Video Bit Rate	128 Kbps to 6144 Kbps
U-code	Support
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 8 areas, Support
Video Stream	Dual streams


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Smart Illumination	Support
Digital Noise Reduction	2D/3D DNR
Flip	Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital defog

Intelligent

Smart Intrusion Prevention (Lite)

Intrusion, crossline detection (both detection are based on human body and vehicle detection)

Events

Basic Detection	Motion detection, Ultra motion detection (based on human body and vehicle detection), Tampering alarm, Audio detection
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	N/A
Suppression	Support
Sampling Rate	8 kHz

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)

Network

Protocols	IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host	Up to 32 users, 2 user levels: administrator and common user
Security	Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	EZStation, APP
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+; Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O	N/A
Alarm I/O	N/A
Serial Port	N/A
Built-in Mic	Support
Built-in Speaker	N/A
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A

Certification

EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
Safety	CE LVD (EN 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)
Protection	IP67 (IEC 60529)

General

Power	DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption	Max. 3.2 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	206 mm × 73 mm × 73 mm (8.1" × 2.9" × 2.9") (L × W × H)
Weight	0.46 kg (1.01 lb.)
Material	Graphene + Metal
Working Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	Support
Web Client Language	13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian

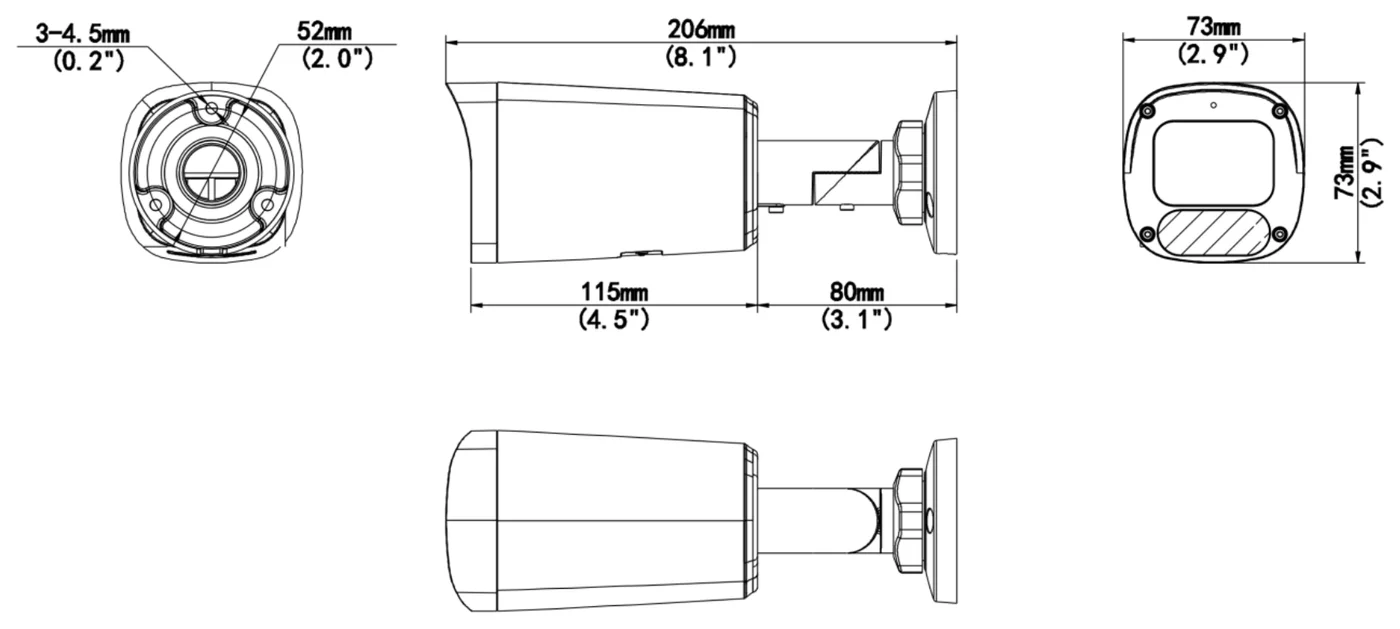

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	206 × 73 × 73 mm (8.1" × 2.9" × 2.9")
Weight	0.46 kg (1.01 lb.)
Material	Graphene + Metal
Mount adjustment	Pan 0–360° · Tilt 0–90° · Rotate 0–360°

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-JB05-B-INSmall bullet junction box (elegant white)

TR-A01-INNPT 3/4" waterproof cable gland

TR-UP06-C-IN-V2Pole mounting bracket for bullet junction box only

TR-UC08-C-V2Bullet & dome corner mounting bracket

4MP Color Night Vision Camera FAQ — IPC2314LE-ADF28(40)KM-WP

Why is the IPC2314LE-ADF28(40)KM-WP so good in low light?

It pairs a large 1/1.8-inch CMOS sensor with an F1.0 lens — a combination that reaches 0.0003 lux in color — and Wise-ISP processing that optimizes color accuracy, fine detail and motion smear in extreme low light. Streets with weak public lighting stay in usable color without any illuminator.

Does it switch to black-and-white IR mode at night?

No. There is no IR mode on this model — night coverage comes from a warm-light illuminator reaching up to 30 m (98.4 ft), switchable Auto or Manual, so footage stays in full color all night. Keep that in mind if you specifically need covert, unlit surveillance.

How wide is the field of view?

Very wide for a bullet: the 2.8 mm version covers 124.3° horizontally (135° diagonal), often enough to watch a whole forecourt with one unit. The 4.0 mm covers 96.1° but reaches farther — 62.1 m detection and 6.2 m identification versus 43.4 m and 4.3 m on the 2.8 mm.

Can it store recordings on the camera itself?

Yes. The microSD slot takes cards up to 512 GB, so the camera keeps recording locally if the NVR or network fails — or serves small sites with no recorder at all. The main stream runs 4 MP (2688×1520) at up to 25 fps with Ultra 265 compression to stretch card capacity.

What detection and alarm functions does it include?

Smart Intrusion Prevention (Lite) provides intrusion and cross-line detection based on human body and vehicle recognition, so alarms fire on people and cars rather than animals. Ultra motion detection, tampering alarm and audio detection back it up, with a built-in mic recording G.711 audio.

How do I install it outdoors and what about backlight?

One PoE cable powers it and carries the video, and the IP67 body handles rain and dust. The mount adjusts pan 0–360°, tilt 0–90°, rotate 0–360°. For scenes mixing bright and dark zones — a lit forecourt against a dark street — 120 dB WDR with HLC and BLC keeps both readable.
