UniarchEntry Series · IR

4MP IR Bullet · Entry Series

IPC-B234-AF40-ECO

Name: Uniarch IPC-B234-AF40-ECO
Brand: Uniarch

4MP fixed IR bullet network camera — up to 30m smart infrared night vision, PoE single-cable install, built-in mic, NDAA-compliant, IP67 outdoor body.

4 MP · 25fps @2560×1440Ultra 265 · low bandwidthSmart IR · up to 30mPoE · 802.3afIP67 · outdoorMic · built-in audioNDAA · compliant construction

Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCRoHSWEEEIP67ONVIF

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

30 mIR night vision

IP67Outdoor rated

3.1 WPoE max power

-30~60°CWorking temperature

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Shops & storefrontsSee who enters in sharp 4MP detail, and the built-in mic records what is said at the counter. The 4.0 mm lens covers a full shop floor from a corner.

Home gates & yardsSmart IR turns on at night for discreet black-and-white night vision — the camera watches without lighting up the scene.

Warehouse & site perimetersIP67 body and −30 to 60 °C rating survive rain, dust and heat. The larger housing detects movement up to 90.0 m away along fence lines.

Residential compoundsHuman body detection 2.0 raises alerts for people, not for stray animals or moving branches.

Procurement-sensitive sitesNDAA-compliant build for buyers with government or institutional procurement rules. Ultra 265 compression keeps recordings small on the NVR despite the higher 4MP resolution.

Kiosks & fuel stationsOne PoE cable does power + video — no electrician needed at the pole, quick to install and move.

Not the right pick if you need…

Full-color night vision — this is IR-only, night video is black & white, not color
Two-way talk — it has a mic but no speaker
Wi-Fi — this is a wired RJ45 camera
Zoom — the lens is fixed at 4.0 mm, no optical zoom
MicroSD card recording — Edge Storage is N/A, it records to an NVR instead
Alarm in/out wiring for sirens or sensors

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

End-User Project PriceEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Camera

Max Resolution	4 MP
Sensor	1/3.0" CMOS
Min. Illumination	Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
Adjustment Angle	Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
S/N	> 52 dB
WDR	DWDR

Lens

Focal Length	4.0 mm
Iris Type	Fixed
Iris	F2.0
Field of View (H)	74.6°
Field of View (V)	40.5°
Field of View (D)	89.1°
Lens Type	Fixed

DORI

DORI Distance (Lens)	4 mm
DORI Distance (Detect)	90.0 m (295.3 ft.)
DORI Distance (Observe)	36.0 m (118.1 ft.)
DORI Distance (Recognize)	18.0 m (59.1 ft.)
DORI Distance (Identify)	9.0 m (29.5 ft.)

Illuminator

Supplemental Light	IR
Illumination Distance (IR)	30 m (98.4 ft.)
Wavelength	850 nm

Video

Video Compression	Ultra 265, H.265, H.264
H.264 Code Profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 4 MP (2560×1440), max. 25 fps; 3 MP (2304×1296), max. 30 fps; 1080P (1920×1080), max. 30 fps · Sub Stream: 640×360, max. 30 fps; 2CIF (704×288), max. 30 fps; CIF (352×288), max. 30 fps
Video Bit Rate	128 Kbps to 6144 Kbps
U-code	Support
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Support
Video Stream	Dual streams


Smart Illumination	Support
White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°
Dewarping	N/A
HLC	Support
BLC	Support
Image Stabilization	N/A
Defog	Digital defog

Events

Basic Detection	Motion detection, Audio detection, Human body detection 2.0
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	N/A
Suppression	Support
Sampling Rate	8 kHz

Storage

Edge Storage

N/A

Network

Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, SNMP, QoS, SSL/TLS
Compatible Integration	ONVIF (Profile S, Profile T), API, SDK
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Security	Password Protection, Strong Password, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, WSSE and Digest Authentication for ONVIF
Client	APP, Uniarch client
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O	N/A
Alarm I/O	N/A
Serial Port	N/A
Built-in Mic	Support
Built-in Speaker	N/A
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A

Certification

Protection	IP67 (IEC 60529)
EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 50130-4); FCC (FCC 47 CFR part15 B)
Safety	CE LVD (EN 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU); Packaging and Packaging Waste (94/62/EC)

General

Power	PoE (IEEE 802.3af)
Power Consumption	Max. 3.1 W
Power Interface	N/A

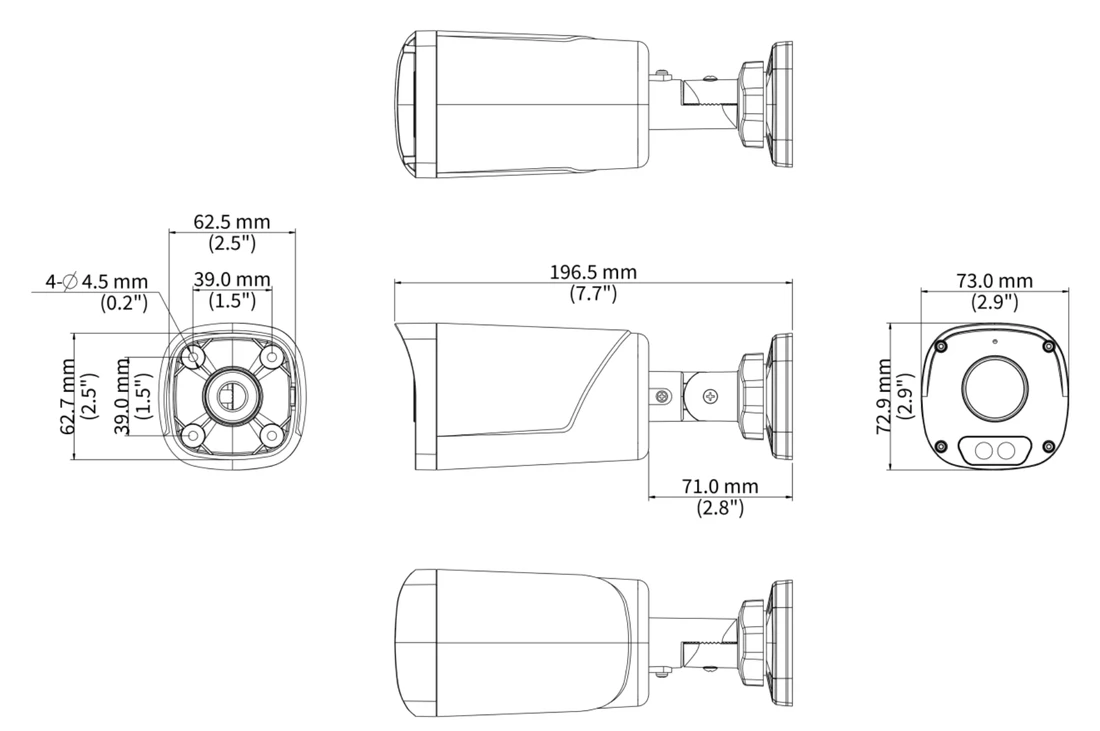

Dimensions	196.5 mm × 73.0 mm × 72.9 mm (7.7" × 2.9" × 2.9") (L × W × H)
Weight	0.22 kg (0.49 lb.)
Material	Graphene + Plastic
Working Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	N/A
Web Client Language	4 Languages: English, Russian, Spanish, Vietnamese

4MP IR Bullet Camera FAQ — IPC-B234-AF40-ECO

How far does the night vision of the IPC-B234-AF40-ECO reach?

Its single 850 nm smart IR illuminator reaches 30 m in total darkness with black-and-white footage. Thanks to the 4MP sensor, DORI figures for the 4.0 mm lens are strong: detect a person at 90 m, observe at 36 m, recognize at 18 m and identify at 9 m.

Does it show color at night?

This is an IR-only model: in darkness the IR-cut filter switches to black and white, and the 850 nm light stays invisible so the camera records discreetly. With ambient light it holds color down to 0.01 lux through the F2.0 lens. Need color at night? Choose the dual-light version.

How is it powered and can it stay outdoors?

PoE delivers power and video over one network cable, cutting cabling cost along fences and driveways. The IP67 housing withstands dust and heavy rain, the bracket adjusts 360° pan and 90° tilt, and the model is NDAA compliant for tenders that require it.

Can it pick up audio and detect people?

Yes. The built-in microphone records G.711U/G.711A audio with the video, and audio detection raises an event on loud noise. Human body detection 2.0 filters people from swaying vegetation and animals, so alerts are more reliable than with basic motion detection alone.

What resolution does it record and how much bandwidth does it use?

Main stream records 4MP (2560×1440) at up to 25 fps, or 3MP/1080p at 30 fps if you prefer smoother motion. Encoding is Ultra 265, H.265 or H.264 with dual streams, and bit rate adjusts from 128 to 6144 Kbps to balance quality against bandwidth and storage.
