NVR301-04B-P4 / 08B-P8-IQ
4 / 8-channel PoE network video recorder — built-in 4/8-port PoE switch, Ultra 265 compression, 4K HDMI output, records cameras up to 12MP, with onboard Face Detection and AI search.
Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port
Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
How many terabytes for your channels and days? Use the storage calculator →
Need the PDF datasheet? Get it on WhatsApp →Sample quantities are welcome — testing one or two units first is the normal way to start.

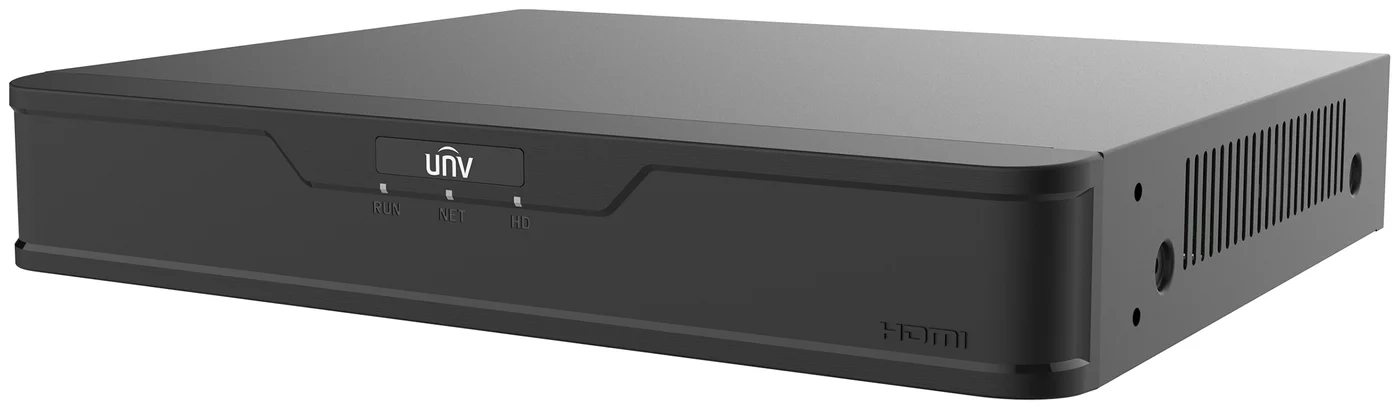

The Uniview NVR301-B-P-IQ Series is a 1-HDD PoE network video recorder offered in two sizes: NVR301-04B-P4-IQ (4-ch, 4-port PoE) and NVR301-08B-P8-IQ (8-ch, 8-port PoE). Both record cameras up to 12MP with Ultra 265 / H.265 / H.264 compression, output simultaneously over 4K HDMI and VGA, and include built-in Face Detection, Face Comparison and AcuSearch / AcuTrack smart search. One SATA bay takes a hard disk up to 24 TB; the local interface is available in 38 languages including Spanish (Latin America), Portuguese (Brazil) and French.
Is this the right recorder for you?
Plain-language guide for buyers and installers — based only on what this recorder actually does.
- Gigabit network uplink — the built-in network port is 10/100M (matched to this series' 80 Mbps bandwidth)
- A second hard disk or RAID — this series has a single SATA bay
- Serial PTZ control from the NVR itself — RS485 and RS232 are both listed N/A on this series
- Physical alarm input/output terminals — Alarm In and Alarm Out are both N/A on the rear panel
- Extra PoE budget for high-draw cameras — each port is capped at 30 W (standard PoE/PoE+, not PoE++ 60W+ devices)
Worried about counterfeits? Order under your own company name.
For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.
Using your own freight forwarder? No problem.
For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.
Key Features
Complete list from the official datasheet.
Cameras plug in. AI finds the moment.
Two real capabilities that define this series: built-in PoE and onboard AI search.
No separate PoE switch to buy
Each RJ45 port is independent PoE — up to 30 W per port, 50 W total on the 04B-P4-IQ or 75 W total on the 08B-P8-IQ (IEEE 802.3at/af) — plug cameras straight into the recorder.
Find the moment, not the footage
Built-in Face Detection, Face Comparison and Vehicle Detection (LPR) on the camera side feed AcuSearch, AcuTrack, Face Snapshot Search and Human Body Search on the recorder — narrow hours of footage down to the exact clip.
Which size fits your project?
Bars show camera capacity per model. Click the model buttons above to switch — the spec table highlights every other difference.
Full Specifications
Complete official specifications from the manufacturer's datasheet (technical values in English).
Decoding
| Decoding Format | Ultra 265, H.265, H.264 |
| Decoding Capability | 04B-P4-IQ · Smart Off: 2×12MP@30, 2×4K@30, 4×4MP@30 | Smart On: 2×4K@30, 4×4MP@3008B-P8-IQ · Smart Off: 2×12MP@30, 2×4K@30, 4×4MP@30, 8×1080P@30 | Smart On: 2×4K@30, 4×4MP@30, 8×1080P@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width |
| Audio Compression | G.711A, G.711U |
Network
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4, 802.1x, UPnP |
| Browser (Plugin) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
Video/Audio Input
| IP Video Input | 04B-P4-IQ · 4-ch08B-P8-IQ · 8-ch |
| RCA Audio Input | 1-ch |
| Peripheral Input — Ip Speaker | 16-ch |
| Peripheral Input — POS | All channels |
Video/Audio Output
| HDMI Output | 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| VGA Output | 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| RCA Audio Output | 1-ch |
| Liveview Display | 04B-P4-IQ · 1/408B-P8-IQ · 1/4/6/8/9 |
| Corridor Mode Screen | 04B-P4-IQ · 3/408B-P8-IQ · 3/4/5/7/9 |
| Two-way Audio | 1-ch, RCA (Using the audio input and output) |
| Snapshot | FTP/Schedule/Event Snapshot; 4-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution) |
Recording
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Num of Concurrent Playback | 16-ch |
Smart Function
| Smart by IPC | All channels (up to 8 images/s in total) Face Detection, Face Comparison, Vehicle Detection (LPR), SIP, UMD, Traffic Monitoring |
| Smart by NVR | Face Detection, Face Comparison, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD) |
| Smart by NVR Analyzer Mode | Single Mode (Face Recognition), Single Mode (SIP), Single Mode (UMD), Single Mode (AcuSearch/AcuTrack); modes cannot be active simultaneously, only one mode can be active at a time |
| VCA Search | AcuSearch, AcuTrack, Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map |
| AcuSearch — Acu Search Performance | All channels with UNV SIP/UMD Camera |
| AcuTrack — Acu Track Performance | All channels with UNV SIP/UMD Camera |
| AcuTrack — by NVR | 04B-P4-IQ · Up to 4-ch with UNV Face Detection Camera | Up to 1-ch with normal camera (UNV and Third-part brand, 1-ch 2MP)08B-P8-IQ · Up to 8-ch with UNV Face Detection Camera | Up to 1-ch with normal camera (UNV and Third-part brand, 1-ch 2MP) |
| AcuTrack — Search by Image | Support |
| SIP — SIP by NVR with normal cameras | Up to 2-ch with normal camera (UNV and Third-part brand, 2-ch 2MP, 1-ch 4MP) |
| UMD — UMD by NVR with normal cameras | Up to 4-ch with normal camera (UNV and Third-part brand, 4-ch 2MP, 2-ch 4MP, 1-ch 4K) |
Alarm
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
GUI Language
| GUI Language | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
Hard Disk
| SATA | 1 SATA Interfaces |
| Capacity | Up to 24 TB for each HDD (the maximum HDD capacity varies with environment temperature and hard disk size; the environment temperature for use should not exceed 40°C) |
External Interface
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| USB | Rear panel: 1 × USB 2.0, 1 × USB 3.0 |
| RS485 | N/A |
| RS232 | N/A |
| Alarm In | N/A |
| Alarm Out | N/A |
| Power Supply | 04B-P4-IQ · DC 48 V / 1.35 A08B-P8-IQ · DC 52 V / 1.8 A |
| Power Switch | N/A |
PoE
| PoE Interface | 04B-P4-IQ · 4 RJ45 10 M/100 M self-adaptive Ethernet Interface08B-P8-IQ · 8 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | 04B-P4-IQ · Max 30W for single port, Max 50W in total08B-P8-IQ · Max 30W for single port, Max 75W in total |
| Supported Standard | IEEE 802.3at, IEEE 802.3af |
Working Environment
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Power Consumption (without HDD) | ≤ 12 W |
Dimensions
| Weight (without HDD) | 04B-P4-IQ · ≤ 0.8 Kg (1.76 lb)08B-P8-IQ · ≤ 2.7 Kg (6.0 lb) |
| Height | 1U |
| Dimensions | 260 mm × 222 mm × 47 mm (10.2" × 8.7" × 1.8") |
Certification
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC | Part15 Subpart B |
| Compliance — NDAA Compliant | Support |
Dimensions

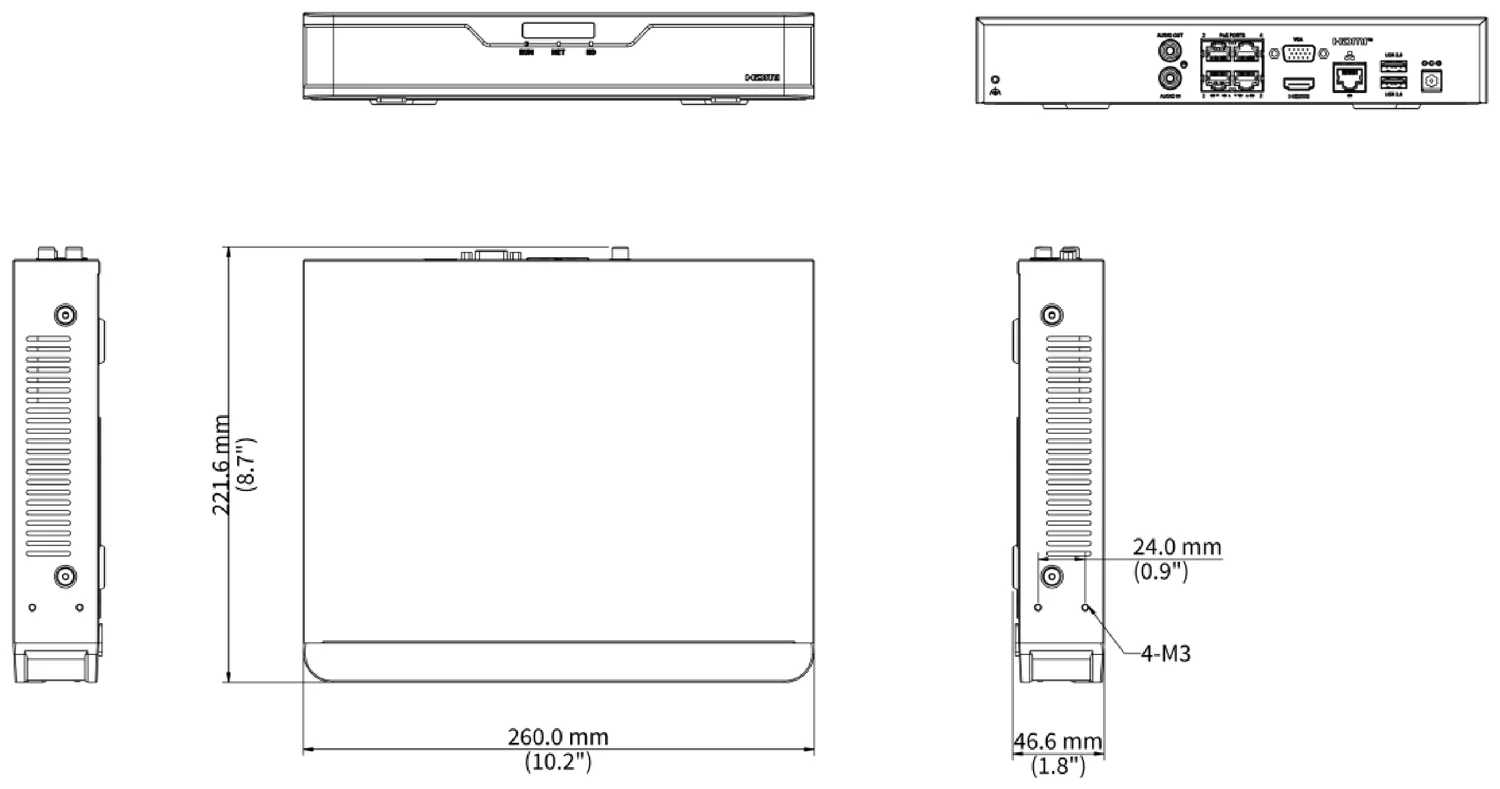

Engineering drawing reproduced 1:1 from the official datasheet.
| Dimensions | 260 × 222 × 47 mm (10.2" × 8.7" × 1.8") |
| Height | 1U |
| Power Consumption (without HDD) | ≤ 12 W |
| PoE Standard | IEEE 802.3at, IEEE 802.3af |
Optional Mounting Accessories
Order together with the camera to save shipping.
4/8 Channel PoE AI NVR FAQ — NVR301-B-P-IQ
How much power can the PoE ports deliver?
What AI does it run and how do I search recordings?
How many hard drives and what capacity?
Will third-party cameras still get smart functions?

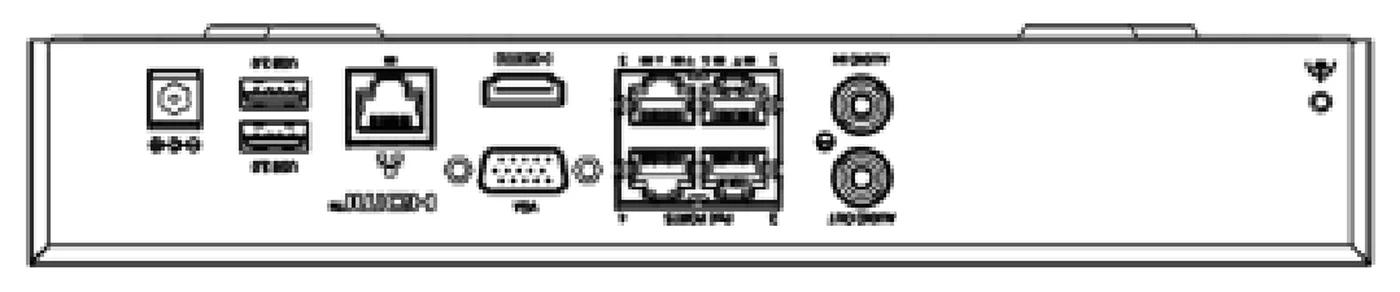

What monitor and audio connections are on the back?
How many people can connect remotely?
