NVR / Recorders › NVR301-04B-IQ / 08B-IQ / 16B-IQ

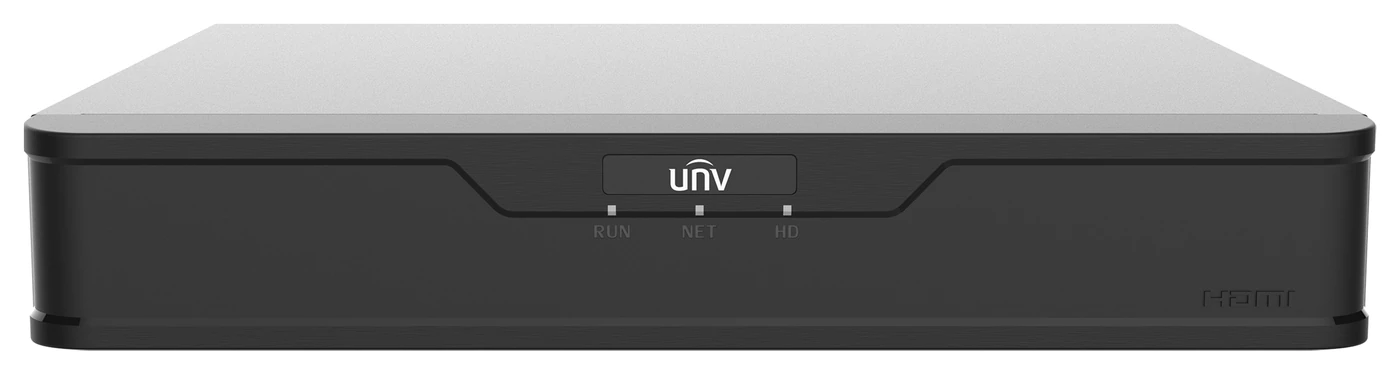

Uniview NVR301-B-IQ Series
view 1
view 2

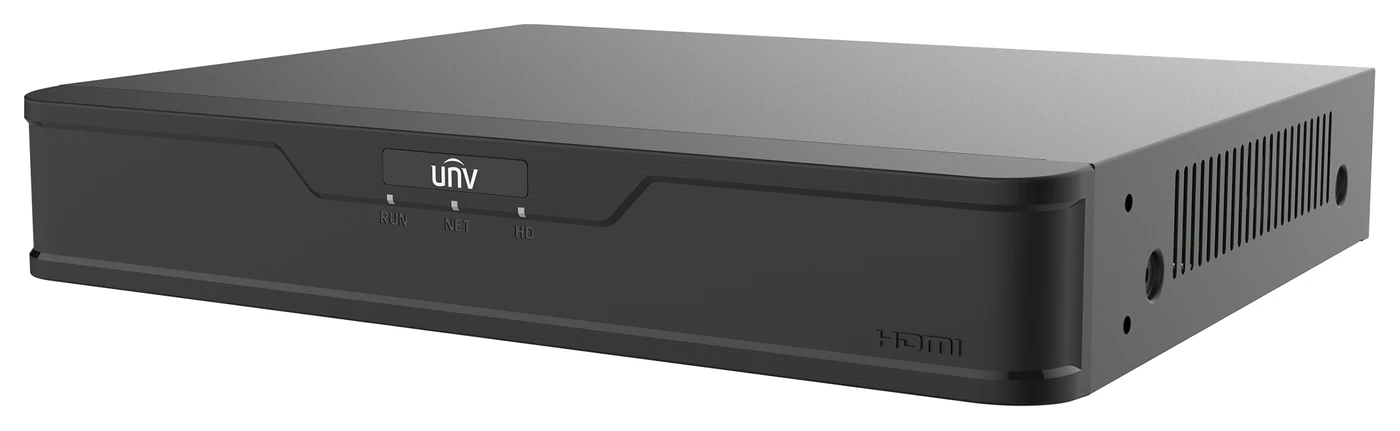

view 3
view 4
UniviewB-IQ Series · 1× SATA HDD
1-HDD Network Video Recorder · B-IQ Series

NVR301-04 / 08 / 16B-IQ

4 / 8 / 16-channel network video recorder — Ultra 265 compression, 4K HDMI output, records cameras up to 12MP, built-in Smart Function with face and vehicle detection.

12MP · max recordingUltra 265 · low storage4K HDMI · + VGA simultaneous1× SATA · up to 24 TBONVIF · certified38 languages · local interface
CHOOSE YOUR SIZE — THREE MODELS ON THIS PAGE
Rule of thumb: count your cameras, then leave room to grow — a shop with 3 cameras runs happily on the 04B-IQ; pick the 08B-IQ or 16B-IQ if you may add cameras later. Highlighted rows in the spec table below show every difference between the three.
Get Best Price on WhatsApp Need the PDF datasheet? Get it on WhatsApp →
In-stock models: 3 days to your designated warehouse after payment · Out-of-stock or insufficient stock: 7–15 working days

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCULRoHSWEEEONVIFNDAA
Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.
4/8/16Channel options
80 MbpsIncoming bandwidth
24 TBMax HDD capacity
4KHDMI output

The Uniview NVR301-B-IQ Series is a 1-HDD network video recorder offered in three sizes: NVR301-04B-IQ (4-ch), NVR301-08B-IQ (8-ch) and NVR301-16B-IQ (16-ch). All three record cameras up to 12MP with Ultra 265 / H.265 / H.264 compression, output simultaneously over 4K HDMI and VGA, and include built-in Smart Function covering face detection, face comparison, vehicle detection (LPR) and traffic monitoring. One SATA bay takes a hard disk up to 24 TB; the local interface is available in 38 languages including Spanish (Latin America), Portuguese (Brazil) and French.

Is this the right recorder for you?

Plain-language guide for buyers and installers — based only on what this recorder actually does.

Small shops & homesThe 4-ch 04B-IQ plus four cameras with built-in Smart Function is a complete kit — one disk, one screen, done.
Growing businessesBuy channels you don't use yet: the 08B-IQ/16B-IQ lets you add cameras later without replacing the recorder.
Remote viewing on phoneP2P protocol built in — the owner checks the shop from a phone app without a fixed IP or network skills.
Local-language interface38 GUI languages including Spanish (Latin America), Portuguese (Brazil), French, Korean and Japanese — your customer operates it in their own language.
Longer video retentionUltra 265 roughly halves file size versus H.264 — the same 24 TB disk keeps months more footage even at 12MP.
Vehicle & people analyticsVehicle Detection (LPR), Motor/Non-Motor Vehicle Search, People Counting and Heat Map turn parking lots and storefronts into searchable, measurable traffic data.
Face-based quick searchFace Detection and Face Comparison feed Face Snapshot Search and Face Comparison Search — investigations that took hours now take minutes.
Not the right pick if you need…
  • PoE ports — cameras need a separate PoE switch (we bundle one at combo price)
  • A second hard disk or RAID — this series has a single SATA bay
  • Gigabit uplink — the network port is 10/100M (fine even at 80 Mbps total bandwidth)
  • Alarm in/out wiring for sirens or sensors — RS485/RS232 and alarm terminals are not present on this model
  • Full Smart-feature channel counts with third-party cameras — deepest face/vehicle AI (up to 8-ch) requires Uniview cameras; normal/third-party cameras are limited to 1-ch face detection, 2-ch SIP or 4-ch UMD

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order
Note: manufacturer order registration (left) is available via the corporate purchase channel.
How to get a better price
Volume Discount50+ units of a single model
CONTACT US
Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit
BETTER
End-User Project PriceEnd user with a real project? Send your requirements / BOQ — best price, plus professional system design & planning advice
BEST
All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

Support Ultra 265 / H.265 / H.264 video formats
Support 4 / 8 / 16-channel input
Support HDMI and VGA simultaneous output
Support up to 12 Megapixels resolution recording
Support ANR technology to enhance the storage reliability when the network is disconnected
Support cloud upgrade

Sharper footage. Smarter search.

Two real capabilities from the datasheet that matter every day: higher-resolution recording within a normal storage budget, and built-in AI search across faces, vehicles and people.

12MP RECORDING

Sharper footage, same efficient storage

Ultra 265 compression cuts recording size dramatically versus H.264 — on the same up-to-24 TB disk you can record at up to 12MP and still keep footage for weeks longer than older H.264 systems.

SMART SEARCH SUITE

Face, vehicle and people — all searchable

Built-in Face Detection, Face Comparison, Vehicle Detection (LPR) and People Counting/Heat Map feed AcuSearch, AcuTrack, Face Snapshot/Comparison Search and Vehicle Search — up to 8 channels with Uniview cameras — so an investigation that took hours now takes minutes.

Which size fits your project?

Bars show camera capacity per model. Click the model buttons above to switch — the spec table highlights every other difference.

NVR301-04B-IQlive view split 1/4/6/8/9 · face detection up to 4-ch
4cameras
NVR301-08B-IQlive view split up to 1/4/6/8/9/16 · face detection up to 8-ch
8cameras
NVR301-16B-IQlive view split up to 1/4/6/8/9/16 · face detection up to 8-ch
16cameras

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the three models:NVR301-04B-IQ · 4-chNVR301-08B-IQ · 8-chNVR301-16B-IQ · 16-ch

Decoding

Decoding FormatUltra 265, H.265, H.264
Decoding Capability04B-IQ · Smart Off: 2×12MP@30, 2×4K@30, 4×4MP@30 | Smart On: 2×4K@30, 4×4MP@3008B-IQ · Smart Off: 2×12MP@30, 2×4K@30, 4×4MP@30, 8×1080P@30 | Smart On: 2×4K@30, 4×4MP@30, 8×1080P@3016B-IQ · Smart Off: 2×12MP@30, 2×4K@30, 4×4MP@30, 10×1080P@30, 16×720P@30 | Smart On: 2×4K@30, 4×4MP@30, 8×1080P@30, 16×720P@30
Decoding Capability DescriptionThe resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width
Audio CompressionG.711A, G.711U

Network

Incoming Bandwidth80 Mbps
Outgoing Bandwidth80 Mbps
Remote Users128
ProtocolsTCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4, 802.1x, UPnP
Browser (Plugin)IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+

Video/Audio Input

IP Video Input04B-IQ · 4-ch08B-IQ · 8-ch16B-IQ · 16-ch
RCA Audio Input1-ch
IP Speaker (Peripheral Input)16-ch
POS (Peripheral Input)All channels

Video/Audio Output

HDMI Output4K (3840×2160)/30 Hz, 1920×1080/60 Hz, 1920×1080/50 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz
VGA Output1920×1080/60 Hz, 1920×1080/50 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz
RCA Audio Output1-ch
Liveview Display04B-IQ · 1/4/6/8/908B-IQ · 1/4/6/8/9/1616B-IQ · 1/4/6/8/9/16
Corridor Mode Screen04B-IQ · 3/408B-IQ · 3/4/5/7/9/1016B-IQ · 3/4/5/7/9/10/12/16
Two-way Audio1-ch, RCA (using the audio input and output)
SnapshotFTP/Schedule/Event Snapshot; 4-ch snapshot (max. D1 (720×576) video resolution, with D1 snapshot resolution)

Recording

Recording Resolution12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080P / 960P / 720P / D1 / 2CIF / CIF
Num of Concurrent Playback16-ch

Smart Function

Smart by IPCAll channels (up to 8 images/s in total) Face Detection, Face Comparison, Vehicle Detection (LPR), SIP, UMD, Traffic Monitoring
Smart by NVRFace Detection, Face Comparison, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD)
Smart by NVR Analyzer ModeSingle Mode (Face Recognition), Single Mode (SIP), Single Mode (UMD), Single Mode (AcuSearch/AcuTrack); modes cannot activate simultaneously, only one mode can activate at a time
VCA SearchAcuSearch, AcuTrack, Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map
Acu Search PerformanceAll channels with UNV SIP/UMD Camera
Acu Track PerformanceAll channels with UNV SIP/UMD Camera
by NVR (Face Detection capacity)04B-IQ · Up to 4-ch with UNV Face Detection Camera | Up to 1-ch with normal camera (UNV and Third-part brand, 1-ch 2MP)08B-IQ · Up to 8-ch with UNV Face Detection Camera | Up to 1-ch with normal camera (UNV and Third-part brand, 1-ch 2MP)16B-IQ · Up to 8-ch with UNV Face Detection Camera | Up to 1-ch with normal camera (UNV and Third-part brand, 1-ch 2MP)
Search by ImageSupport
Vehicle Picture LibraryUp to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total
SIP by NVR with normal camerasUp to 2-ch with normal camera (UNV and Third-part brand, 2-ch 2MP, 1-ch 4MP)
UMD by NVR with normal camerasUp to 4-ch with normal camera (UNV and Third-part brand, 4-ch 2MP, 2-ch 4MP, 1-ch 4K)

Alarm

General AlarmDefocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert AlarmIP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

GUI Language

GUI Language38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian

Hard Disk

SATA1 SATA Interface
CapacityUp to 24 TB for each HDD (the maximum HDD capacity varies with environment temperature and hard disk size; the environment temperature for use should not exceed 40°C)

External Interface

Network Interface1 RJ45 10 M/100 M self-adaptive Ethernet Interface
USBRear panel: 1 × USB2.0, 1 × USB3.0
RS485N/A
RS232N/A
Alarm InN/A
Alarm OutN/A
Power SupplyDC 12 V / 2 A
Power SwitchN/A

Working Environment

Working Temperature-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity≤ 90% RH (non-condensing)
Power Consumption (without HDD)≤ 12 W

Dimensions

Weight (without HDD)≤ 2 kg (4.4 lb)
Height1U
Dimensions260 mm × 222 mm × 47 mm (10.2" × 8.7" × 1.8")

Certification

CertificationCE; FCC; UL; RoHS; WEEE
FCCPart15 Subpart B
ComplianceNDAA Compliant

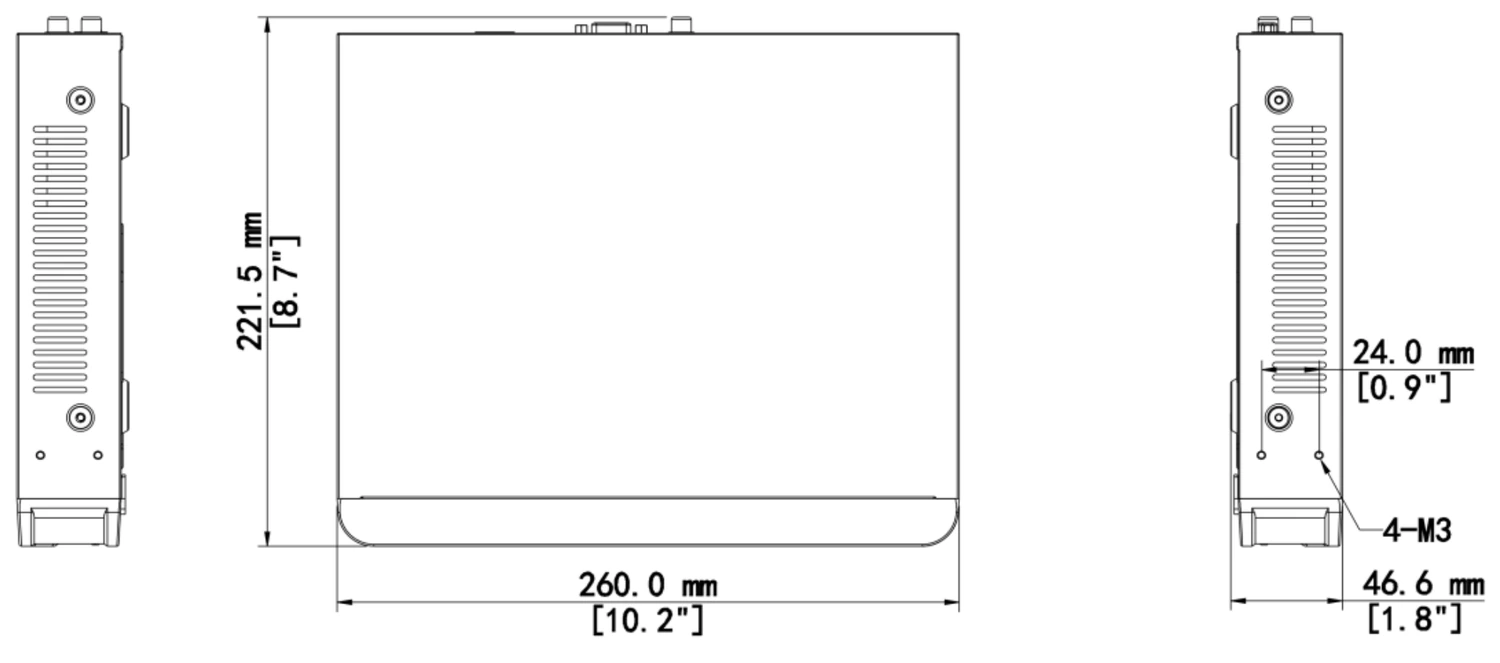

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

dimensions
unit: mm (in.)
Dimensions260 mm × 222 mm × 47 mm (10.2" × 8.7" × 1.8")
Weight (without HDD)≤ 2 kg (4.4 lb)
Power supplyDC 12 V / 2 A
Consumption (without HDD)≤ 12 W
NVR301-B-IQ series rear panel
Rear panel — all interfaces
