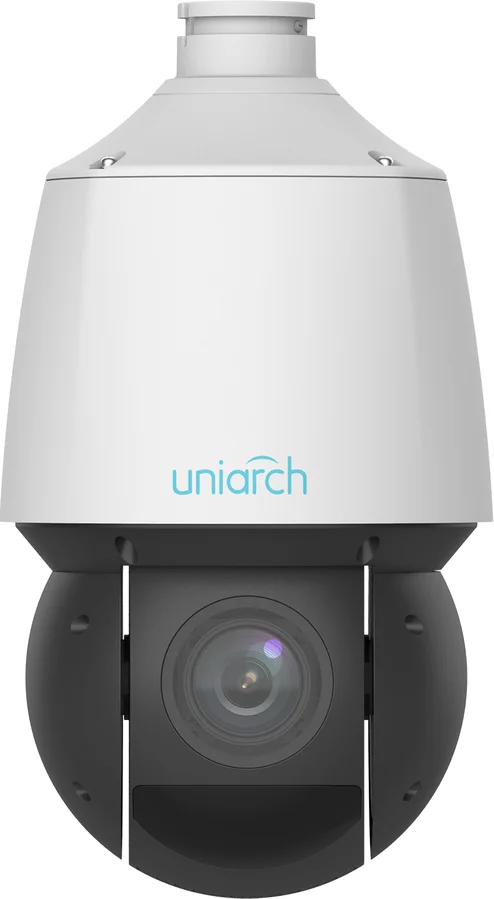

3MP 20X Network PTZ Dome Camera IPC-P413-X20K

3MP 20X Network PTZ Dome Camera IPC-P413-X20K — view 1

3MP 20X Network PTZ Dome Camera IPC-P413-X20K — view 2

Uniarch20X Network PTZ Dome

3MP 20X Network PTZ Dome

IPC-P413-X20K

Name: Uniarch IPC-P413-X20K
Brand: Uniarch
SKU: IPC-P413-X20K

3MP network PTZ dome camera with 20X optical zoom — auto tracking, smart intrusion prevention, people counting, Smart IR up to 100m, IP66 outdoor body.

3 MP · 2304×1296@30fps20X · optical zoom, 5–100mmAuto Tracking · follows motionSmart IR · up to 100mPoE+ / DC12V · dual powerIP66 · outdoor

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:IP66ONVIF

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

20XOptical zoom

100 mIR night vision

IP66Outdoor rated

360°Pan range (endless)

The Uniarch IPC-P413-X20K is a 3MP network PTZ dome camera with a 20X optical zoom lens (5–100 mm, F1.7–F2.8). It supports auto tracking, smart intrusion prevention (cross line, intrusion, enter/leave area detection with false-alarm filtering), people counting, and Smart IR night vision up to 100 m. The head moves on an endless 360° pan and −15° to 90° auto-reversing tilt, with 1024 presets and multiple patrol modes. It is IP66 outdoor-rated and powers over PoE+ (802.3at) or DC 12V.

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Parking lots & large yards20X optical zoom reads a license plate or a face from far across the lot — one PTZ camera can cover what several fixed cameras would need.

Perimeters & fence linesSmart intrusion prevention (cross line, intrusion, enter/leave area) tells people from vehicles and filters false alarms from blowing leaves or small animals.

Retail entrances & mallsPeople counting tracks footfall and crowd density for staffing and layout decisions, without a separate counting sensor.

Warehouse & industrial sitesIP66 body and a −40 °C to 65 °C working range with a built-in heater keep the head working through heat, dust and freezing winters.

Unattended sites needing automated coverageUp to 1024 presets and 16 patrol routes let the camera automatically sweep a large area on a schedule, without an operator at the joystick.

Moving-target trackingAuto tracking keeps the camera pointed at a moving person or vehicle automatically, following the target across the field of view.

Not the right pick if you need…

Audio — this model has no built-in mic, speaker, or audio I/O of any kind
Wi-Fi — this is a wired RJ45 camera
A fixed, unchanging field of view — this is a moving PTZ head, not a fixed-mount camera
A low-cost simple installation — PTZ cameras cost more and need PoE+ (802.3at), not standard PoE
Alarm in/out wiring for sirens or sensors — this model's datasheet lists Alarm I/O as N/A

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 3 MP, 1/2.8" CMOS sensor

2304 × 1296@30 fps in the main stream

20X optical zoom allows for closer viewing of subjects

Smart intrusion prevention, supports false alarm filtering, including cross line, intrusion, enter area, leave area detection

Automatic selection of best snapshots

People counting, supports people flow counting and crowd density monitoring, suitable for different statistical scenarios

Up to 120 dB optical WDR (wide dynamic range)

Smart IR, up to 100 m (328 ft) IR distance

DC 12 V±25%, PoE+ (IEEE 802.3at)

MicroSD, up to 512 GB

IP66 ingress protection

Night Vision: Smart IR

Invisible infrared night vision — this model has no warm-light module.

IR MODE

Invisible infrared — discreet black & white night vision

Smart IR up to 100 m (328 ft.) at 850 nm. The camera watches without lighting up the scene — nothing shows it is recording. This model has a single IR illuminator only, no warm-light module.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Because this model has a 20X zoom lens (5–100 mm), each capability spans a range — from the widest zoom setting to full telephoto, not a single fixed number.

Detectsomething is there

WIDE (5mm)77.6 m254.5 ft

TELE (100mm)1551.7 m5091.0 ft

Observewhat is happening

WIDE (5mm)31.0 m101.8 ft

TELE (100mm)620.7 m2036.4 ft

Recognizesomeone you know

WIDE (5mm)155.5 m510.2 ft

TELE (100mm)310.3 m1018.0 ft

Identifya stranger's face

WIDE (5mm)7.8 m25.6 ft

TELE (100mm)155.2 m509.2 ft

Note: the Recognize row's wide-end figure (155.5 m) is higher than Observe's wide-end figure (31.0 m) in the manufacturer's own datasheet — the opposite of the usual Detect > Observe > Recognize > Identify order. Reproduced verbatim from the source datasheet; flagged for manufacturer confirmation.

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	51.7° wide	3.9° tele
5 m16 ft	4.8 m15.9 ft	0.3 m1.1 ft
10 m33 ft	9.7 m31.8 ft	0.7 m2.2 ft
15 m49 ft	14.5 m47.7 ft	1.0 m3.3 ft
20 m66 ft	19.4 m63.6 ft	1.3 m4.4 ft
30 m98 ft	29.1 m95.4 ft	2.0 m6.6 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Camera

Sensor	1/2.8", 3.0 megapixel, progressive scan, CMOS
Min. Illumination	Color: 0.003 Lux (F1.7, AGC ON), 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
WDR	120 dB
S/N	> 52 dB

Lens

Focal Length	5 to 100 mm
Optical Zoom	20X
Iris	F1.7 to F2.8
Field of View (H)	51.70° to 3.85°
Field of View (V)	30.49° to 2.16°
Field of View (D)	63.60° to 4.54°

DORI

DORI Distance (Lens)	5 to 100 mm
DORI Distance (Detect)	77.6 m to 1551.7 m (254.5 ft. to 5091.0 ft.)
DORI Distance (Observe)	31.0 m to 620.7 m (101.8 ft. to 2036.4 ft.)
DORI Distance (Recognize)	155.5 m to 310.3 m (510.2 ft. to 1018.0 ft.)
DORI Distance (Identify)	7.8 m to 155.2 m (25.6 ft. to 509.2 ft.)

Video

Privacy Mask	24 areas, up to 4 areas per scene
Video Compression	H.265, H.264, MJPEG
Frame Rate	Main Stream: 3 MP (2304×1296), max. 30 fps · Sub Stream: 720P (1280×720), max. 30 fps · Third Stream: D1 (720×576), max. 30 fps
Video Bit Rate	128 Kbps to 16 Mbps
ROI	Support
Video Stream	Triple streams
OSD	Up to 8 OSDs

Intelligent

Auto Tracking	Support
Smart Intrusion Prevention	Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
People Counting	Support people flow counting and crowd density monitoring
Exception Detection	Object removed, Object Left Behind


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Flip	Normal, Flip vertical, Flip horizontal, 180°
HLC	Support
BLC	Support
Smart IR	Support
Defog	Digital defog

Events

Basic Detection	Motion detection, Tampering alarm, Object removed, Object Left Behind
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication

Storage

Edge Storage	MicroSD, up to 512 GB (spec table; the datasheet feature summary states 256 GB — for cards above 256 GB, confirm with us before ordering)
Network Storage	ANR

Illuminator

IR On/Off Control	Auto/Manual
Wavelength	850 nm
Illumination Distance (IR)	Up to 100 m (328 ft.) IR range

Network

Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, RTMP, SSL/TLS, IPv6
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Security	Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	APP, Uniarch client
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+

PTZ

Number of Presets	1024
Preset Patrol	16 patrols, up to 64 presets for each patrol
Route Patrol	16 patrols, up to 32 actions for each patrol
Recorded Patrol	16 patrols, up to 128 actions for each patrol
Patrol Stay Time	15 s to 1800 s
Home Position	Support
Pan Range	360° (endless)
Tilt Range	-15° to 90° (auto reverse)
Pan Speed	0.1°/s to 80°/s
Tilt Speed	0.1°/s to 80°/s

Interface

Audio I/O	N/A
Alarm I/O	N/A
Serial Port	N/A
Built-in Mic	N/A
Built-in Speaker	N/A
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A

General

Power	DC 12 V (±25%), PoE+ (IEEE 802.3at)
Power Consumption	Max. 20 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Ø162 mm × 293 mm (Ø6.4" × 11.5") (Ø × H)
Weight	1.79 kg (3.95 lb.)
Working Environment	-40 °C to 65 °C (-40 °F to 149 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-40 °C to 70 °C (-40 °F to 158 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	6 KV
Reset Button	Support
Heater	Support

Configurable

P/N

Support

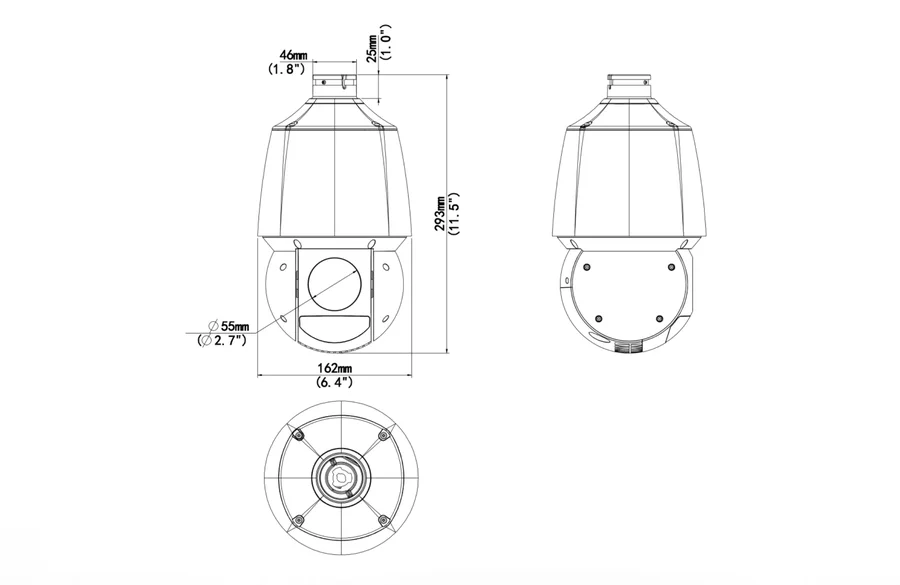

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	Ø162 mm × 293 mm (Ø6.4" × 11.5") (Ø × H)
Weight	1.79 kg (3.95 lb.)
Pan / Tilt range	Pan 360° (endless) · Tilt -15° to 90° (auto reverse)

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-UF45-A-INDome indoor ceiling mounting pedestal

TR-SE45-A-INDome ceiling mounting pole 500

TR-SE45-INDome ceiling mounting pole 200

TR-CE45-INDome indoor ceiling mounting bracket

TR-WE45-INDome wall mounting bracket

TR-WE45-A-INLong wall mounting bracket for dome

TR-WE45-B-INDome gooseneck bracket

TR-JB12-INDome junction box

TR-UP08-A-INDome pole mounting bracket

TR-UP08-B-INAluminium alloy pole mounting bracket

TR-UC08-A-INDome corner mounting bracket

TR-UC08-B-INAluminium alloy corner mounting bracket

3MP 20X PTZ Camera FAQ — IPC-P413-X20K

How far can the IPC-P413-X20K see with the 20X zoom?

At the 100 mm end of the 5–100 mm lens, DORI figures are: detect a person at up to 1551 m, observe at 620 m, recognize at 310 m and identify at 155 m. At the wide end the 51.7° horizontal field covers the whole scene for context.

How good is the night vision on this PTZ camera?

Built-in 850 nm Smart IR reaches up to 100 m, and the IR-cut filter switches to black-and-white automatically. In color the sensor works down to 0.003 lux at F1.7. The 850 nm light is invisible, so the camera does not reveal itself at night.

Does it track people automatically?

Yes. Auto tracking follows moving targets, and smart intrusion prevention adds cross-line, intrusion, enter-area and leave-area detection with false-alarm filtering. It also supports people flow counting, crowd density monitoring, and object-removed / object-left-behind detection for busier commercial sites.

Will it work with my existing NVR or VMS?

It integrates over ONVIF Profile S, Profile G and Profile T, plus API and SDK. Video is H.265, H.264 or MJPEG in triple streams — main stream 3 MP (2304×1296) at up to 30 fps — with RTSP, HTTP/HTTPS and the usual IP protocol stack.

How do I power it, and can it stay outdoors?

It runs on PoE+, so a single network cable to the pole or wall bracket carries both power and data. The IP66-rated housing handles rain and dust, while 120 dB WDR plus digital defog keep gate and headlight scenes readable in harsh light.

Can it record without an NVR?

Yes — edge storage on a MicroSD card up to 512 GB, plus ANR: if the network drops, footage stays on the card and is re-synced to network storage once the link returns. Bit rate is adjustable from 128 Kbps to 16 Mbps to match your bandwidth.
