IP Cameras › IPC-T132-AF28-ECO

2MP Fixed IR Turret Network Camera IPC-T132-AF28-ECO

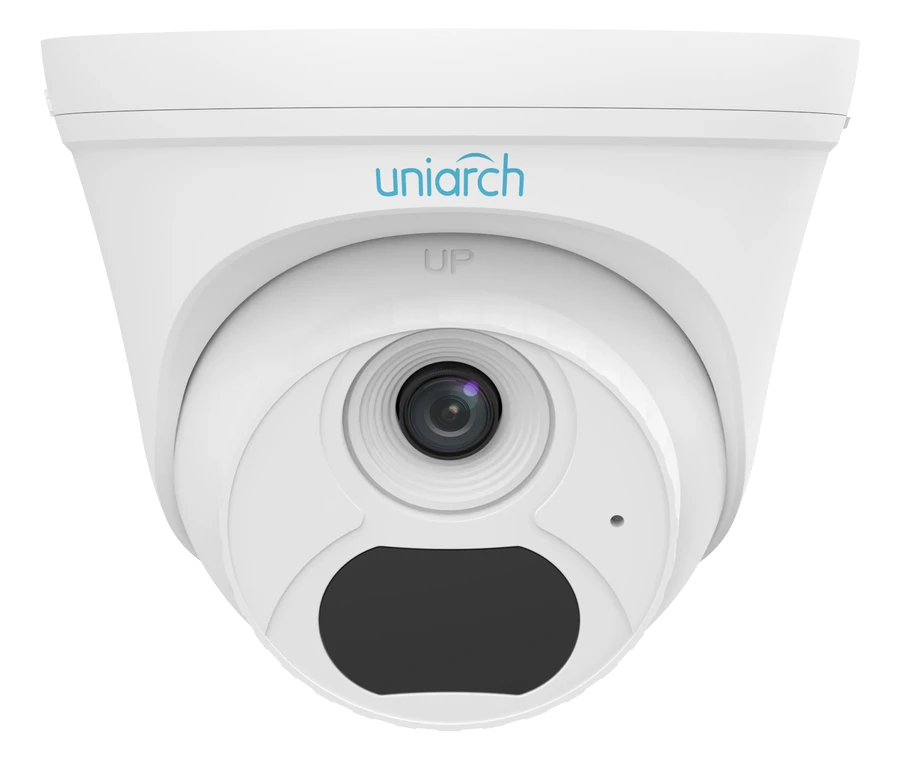

2MP Fixed IR Turret Network Camera IPC-T132-AF28-ECO — view 1

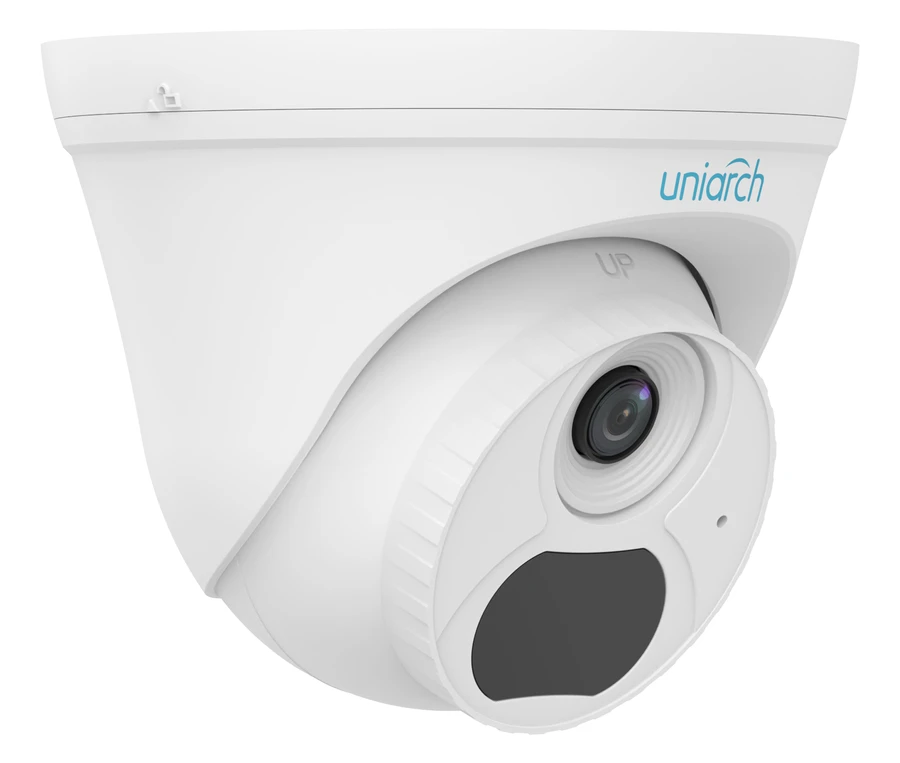

2MP Fixed IR Turret Network Camera IPC-T132-AF28-ECO — view 2

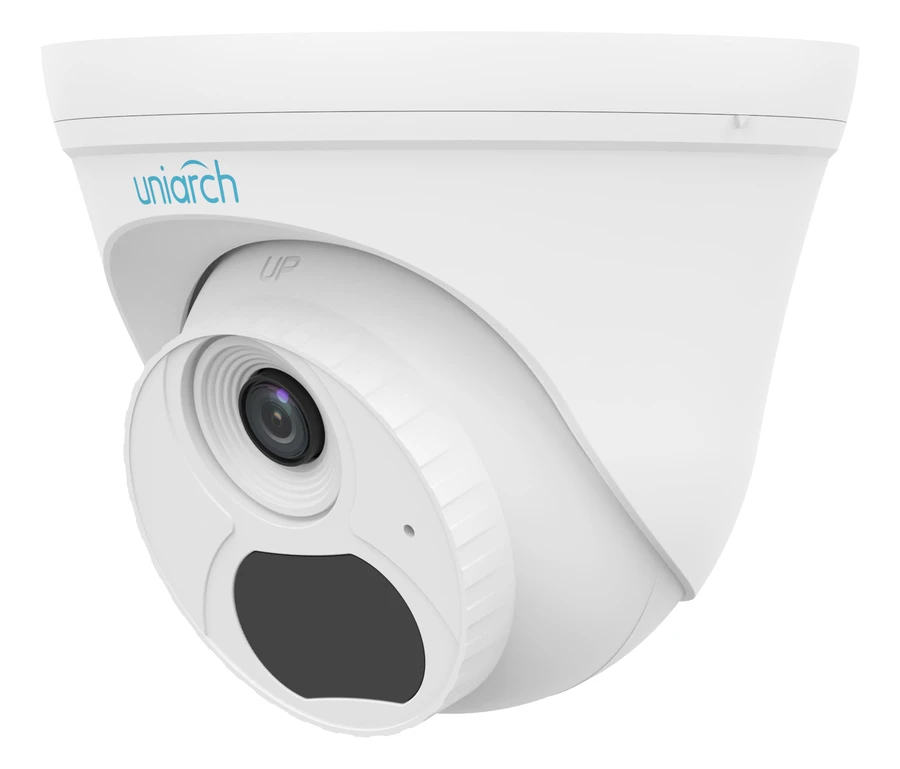

2MP Fixed IR Turret Network Camera IPC-T132-AF28-ECO — view 3

UniarchEntry Series · IR

2MP IR Turret · Entry Series

IPC-T132-AF28-ECO

Name: Uniarch IPC-T132-AF28-ECO
Brand: Uniarch
SKU: IPC-T132-AF28-ECO

2MP fixed IR turret network camera — up to 30m smart infrared night vision, PoE single-cable install, built-in mic, ONVIF-compatible.

2 MP · 1080P@30fpsUltra 265 · low bandwidthSmart IR · up to 30mPoE · 802.3afONVIF · Profile S / TMic · built-in audio

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCRoHSWEEEONVIF

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

30 mIR night vision

ONVIFOpen integration

2.5 WPoE max power

-30~60°CWorking temperature

The Uniarch IPC-T132-AF28-ECO is a 2MP fixed turret network camera from the Entry Series IR line. It provides up to 30 m of smart infrared night vision, powers over a single PoE cable, and is ONVIF-compatible for easy NVR integration, with a −30 °C to 60 °C working range. It carries a fixed 2.8 mm lens (88° view) for wide-area indoor/outdoor coverage.

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Shops & storefrontsSee who enters, and the built-in mic records what is said at the counter. The 2.8 mm lens covers a full shop floor from a corner or ceiling.

Offices & reception areasThe turret's compact ceiling or wall mount blends into indoor spaces, and ONVIF support means it drops straight into most existing NVR systems.

Home gates & yardsSmart IR turns on at night for discreet black-and-white night vision — the camera watches without lighting up the scene.

Residential compoundsHuman body detection 2.0 raises alerts for people, not for stray animals or moving branches.

Small offices & receptionUltra 265 compression keeps recordings small — more days of footage on the same NVR disk.

Kiosks & fuel stationsOne PoE cable does power + video — no electrician needed at the mount point, quick to install and move.

Not the right pick if you need…

An outdoor-rated ingress protection number — this model's datasheet does not list an IP rating
Full-color night vision — this is IR-only, night video is black & white, not color
Two-way talk — it has a mic but no speaker
Wi-Fi — this is a wired RJ45 camera
Zoom — the lens is fixed at 2.8 mm, no optical zoom
MicroSD card recording — it records to an NVR, no local storage slot
Alarm in/out wiring for sirens or sensors

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 1080P, 1/3.0" CMOS sensor

1080P (1920 × 1080)@30 fps; 720P (1280 × 720)@30 fps

Ultra 265, H.265, H.264

2D/3D DNR (digital noise reduction)

ROI (region of interest) ensures image quality in areas of interest with low bandwidth

Smart IR, up to 30 m (98.4 ft.) IR distance

3-axis

Built-in mic

Wide temperature range: −30 °C to 60 °C (−22 °F to 140 °F)

PoE (IEEE 802.3af)

Night Vision: Smart IR

Invisible infrared night vision — this model has no warm-light module.

IR MODE

Invisible infrared — discreet black & white night vision

Smart IR up to 30 m (98.4 ft.) at 850 nm. The camera watches without lighting up the scene — nothing shows it is recording. This model has a single IR illuminator only, no warm-light module.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance.

Detectsomething is there

51.4 m168.7 ft

Observewhat is happening

20.6 m67.5 ft

Recognizesomeone you know

10.3 m33.8 ft

Identifya stranger's face

5.1 m16.9 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	87.8°
5 m16 ft	9.6 m31.6 ft
10 m33 ft	19.2 m63.1 ft
15 m49 ft	28.9 m94.7 ft
20 m66 ft	38.5 m126 ft
30 m98 ft	57.7 m189 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Camera

Max Resolution	2 MP
Sensor	1/3.0" CMOS
Min. Illumination	Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
Adjustment Angle	Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360°
S/N	> 52 dB
WDR	DWDR

Lens

Focal Length	2.8 mm
Iris	F2.0
Field of View (H)	87.8°
Field of View (V)	48.9°
Field of View (D)	99.0°

DORI

DORI Distance (Lens)	2.8 mm
DORI Distance (Detect)	51.4 m (168.7 ft.)
DORI Distance (Observe)	20.6 m (67.5 ft.)
DORI Distance (Recognize)	10.3 m (33.8 ft.)
DORI Distance (Identify)	5.1 m (16.9 ft.)

Illuminator

Supplemental Light	IR
Illumination Distance (IR)	30 m (98.4 ft.)
Wavelength	850 nm
IR On/Off Control	Auto/Manual

Video

Video Compression	Ultra 265, H.265, H.264
H.264 Code Profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 1080P (1920×1080), max. 30 fps; 720P (1280×720), max. 30 fps · Sub Stream: 640×360, max. 30 fps; 2CIF (704×288), max. 30 fps; CIF (352×288), max. 30 fps
Video Bit Rate	128 Kbps to 6144 Kbps
U-code	Support
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Up to 8 areas
Video Stream	Dual streams


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital defog

Events

Basic Detection	Motion detection, Audio detection, Human body detection 2.0
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	N/A
Suppression	Support
Sampling Rate	8 kHz

Network

Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, DNS, DDNS, NTP, UPnP, HTTP, QoS, RTCP, RTMP
Compatible Integration	ONVIF (Profile S, Profile T), API, SDK
User/Host	Up to 32 users. 2 user levels: administrator and common user
Client	APP, Uniarch client
Web Browser	Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O	N/A
Alarm I/O	N/A
Built-in Mic	Support
Built-in Speaker	N/A
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A

Certification

Protection	N/A
EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
Safety	CE LVD (EN 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)

General

Power	PoE (IEEE 802.3af)
Power Consumption	Max. 2.5 W
Power Interface	N/A
Dimensions	Ø118 mm × 100 mm (Ø4.6" × 3.9") (Ø × H)
Weight	0.19 kg (0.42 lb.)
Material	Plastic
Working Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	N/A
Web Client Language	1 Language: English

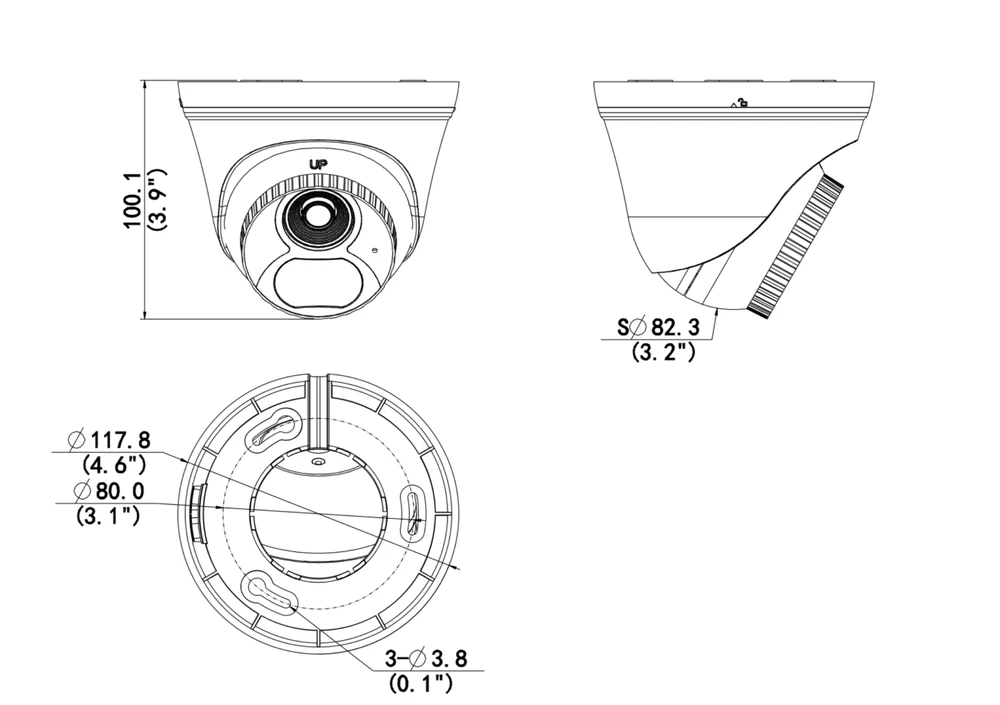

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	Ø118 × 100 mm (Ø4.6" × 3.9")
Weight	0.19 kg (0.42 lb.)
Material	Plastic
Mount adjustment	Pan 0–360° · Tilt 0–80° · Rotate 0–360°

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-JB03-I-INJunction box for plastic turret camera (rear wiring)

TR-A01-INNPT 3/4" waterproof cable gland

TR-WM07P-BDome wall mounting plastic bracket

TR-SM05-INSwitch box adapter for fixed dome

TR-CM24-INDome pendant mounting bracket (indoor)

TR-SE24-INDome pendant mounting pole, 200 mm

TR-SE24-A-INDome pendant mounting pole, 500 mm

TR-JB07/WM03-G-IN-V2Wall mounting assembling bracket for fix-dome & plastic turret

TR-WM03-D-IN-V2Wall mounting bracket for fix-dome & plastic turret

TR-UC08-C-V2Bullet & dome corner mounting bracket

TR-UP06-C-IN-V2Pole bracket for bullet junction box

2MP PoE Turret Camera FAQ — IPC-T132-AF28-ECO

How far does the IPC-T132-AF28-ECO see at night?

Smart IR at 850 nm reaches 30 m, and the IR-cut filter switches the image to black-and-white automatically in the dark. In color mode the sensor works down to 0.01 lux at F2.0, so lit storefronts and courtyards keep color into the evening.

Is it ONVIF compatible with third-party NVRs?

Yes, this model supports ONVIF, so it can register on third-party NVRs and VMS platforms. Video comes as dual streams in Ultra 265, H.265 or H.264 — main stream 1080P at up to 30 fps — so mixed-brand surveillance projects are straightforward.

Does it detect people or just any motion?

Besides standard motion and audio detection, it supports Human Body Detection 2.0, which focuses alerts on human shapes. In practice that means fewer nuisance notifications from stray animals, headlights and moving vegetation, which matters when alarms go to a phone or guard post.

What area does the 2.8 mm lens cover?

The fixed 2.8 mm lens gives an 87.8° horizontal field. DORI distances: detect a person at 51.4 m, observe at 20.6 m, recognize at 10.3 m and identify at 5.1 m — sized for shop floors, corridors, small parking areas and building entrances.

How do I power it, and how much bandwidth does it need?

It is PoE powered — one cable from the PoE switch or NVR carries power and video. Bit rate is adjustable from 128 to 6144 Kbps, and U-code compression trims bandwidth further on quiet scenes. A built-in microphone records G.711 audio alongside the video.
