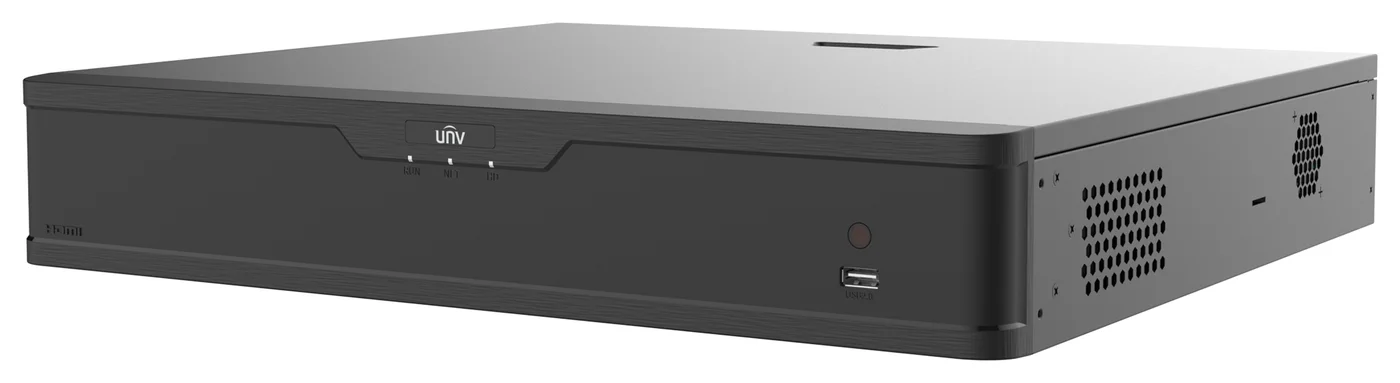

NVR304-16 / 32B-P16-IQ
16 / 32-channel network video recorder — 16 built-in PoE ports power cameras directly, four SATA bays for large-capacity storage, Ultra 265 compression, 4K HDMI output, records cameras up to 12MP, with onboard Face Detection, Vehicle Detection (LPR) and AI smart search.
Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port
Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
How many terabytes for your channels and days? Use the storage calculator →
Need the PDF datasheet? Get it on WhatsApp →Sample quantities are welcome — testing one or two units first is the normal way to start.
The Uniview NVR304-B-P16-IQ Series is a 16-port PoE, 4-HDD network video recorder offered in two sizes: NVR304-16B-P16-IQ (16-ch) and NVR304-32B-P16-IQ (32-ch), with 16 built-in PoE ports delivering up to 30 W per port (150 W total budget, IEEE 802.3at/af). Both record cameras up to 12MP with Ultra 265 / H.265 / H.264 compression, output simultaneously over 4K HDMI and VGA, and include built-in Face Detection, Face Comparison, Vehicle Detection (LPR) and AcuSearch / AcuTrack smart search. Four independent SATA bays each take a hard disk up to 24 TB, and the local interface is available in 38 languages including Spanish (Latin America), Portuguese (Brazil) and French.
Is this the right recorder for you?
Plain-language guide for buyers and installers — based only on what this recorder actually does.
- Powering all 32 cameras via built-in PoE on the 32B-P16-IQ — this series has 16 PoE ports regardless of model; channels 17–32 on the 32-ch unit need a separate switch or injector
- A second/redundant network uplink — only one 10/100/1000M RJ45 network interface is provided (separate from the 16 PoE camera ports)
- RS232 serial connection — RS232 is listed N/A on this series (RS485 is provided, e.g. for PTZ control)
- A fifth hard disk or more — this series tops out at 4 SATA bays (up to 96 TB total with four 24 TB drives)
- Redundant/dual power input — it runs on a single AC 100–240 V power supply, no built-in PSU redundancy
Worried about counterfeits? Order under your own company name.
For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.
Using your own freight forwarder? No problem.
For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.
Key Features
Complete list from the official datasheet.
16 ports of PoE. AI finds the moment.
Two real capabilities that define this series: built-in 16-port PoE and onboard AI search.
Cameras plug in and power up
16 independent PoE ports deliver up to 30 W per port (150 W total budget, IEEE 802.3at/af) — cameras get power and data over one cable, and most 16-camera installs skip a separate PoE switch entirely.
Find the moment, not the footage
Built-in Face Detection, Face Comparison and Vehicle Detection (LPR) on the camera side feed AcuSearch, AcuTrack, Face Snapshot Search and Human Body Search on the recorder — narrow hours of footage down to the exact clip.
Which size fits your project?
Bars show camera capacity per model. Click the model buttons above to switch — the spec table highlights every other difference.
Full Specifications
Complete official specifications from the manufacturer's datasheet (technical values in English).
Decoding
| Decoding Format | Ultra 265, H.265, H.264 |
| Decoding Capability | 16B-P16-IQ · Smart Off: 2×12MP@30, 2×4K@30, 4×4MP@30, 10×1080P@30, 16×720P@30 | Smart On: 2×4K@30, 4×4MP@30, 8×1080P@30, 16×720P@3032B-P16-IQ · Smart Off: 2×12MP@30, 2×4K@30, 4×4MP@30, 10×1080P@30, 20×720P@30, 32×D1 | Smart On: 2×4K@30, 4×4MP@30, 8×1080P@30, 16×720P@30, 32×D1 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width |
| Audio Compression | G.711A, G.711U |
Network
| Incoming Bandwidth | 160 Mbps |
| Outgoing Bandwidth | 128 Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4, 802.1x, UPnP |
| Browser (Plugin) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
Video/Audio Input
| IP Video Input | 16B-P16-IQ · 16-ch32B-P16-IQ · 32-ch |
| RCA Audio Input | 1-ch |
| Peripheral Input — Ip Speaker | 16-ch |
| Peripheral Input — POS | All channels |
Video/Audio Output
| HDMI Output | 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| VGA Output | 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| RCA Audio Output | 1-ch |
| Liveview Display | 16B-P16-IQ · 1/4/6/8/9/1632B-P16-IQ · 1/4/6/8/9/16/25/32 |
| Corridor Mode Screen | 16B-P16-IQ · 3/4/5/7/9/10/12/1632B-P16-IQ · 3/4/5/7/9/10/12/16/32 |
| Two-way Audio | 1-ch, RCA (Using the audio input and output) |
| Snapshot | FTP/Schedule/Event Snapshot; 4-ch snapshot (max. D1 (720 × 576) video resolution, with D1 snapshot resolution) |
Recording
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Synchronous Playback in Local | 16-ch |
Smart Function
| Smart by IPC | All channels (up to 8 images/s in total) Face Detection, Face Comparison, Vehicle Detection (LPR), SIP, UMD, Traffic Monitoring |
| Smart by NVR | Face Detection, Face Comparison, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD) |
| VCA Search | AcuSearch, AcuTrack, Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map |
| AcuSearch | All channels with UNV SIP/UMD Camera |
| AcuTrack | All channels with UNV SIP/UMD Camera |
| by NVR | Up to 8-ch with UNV Face Detection Camera, Up to 1-ch with normal camera (UNV and Third-part brand, 1-ch 2MP) |
| Vehicle Picture Library | Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total |
| SIP by NVR with normal cameras | Up to 2-ch with normal camera (UNV and Third-part brand, 2-ch 2MP, 1-ch 4MP) |
| UMD by NVR with normal cameras | Up to 4-ch with normal camera (UNV and Third-part brand, 4-ch 2MP, 2-ch 4MP, 1-ch 4K) |
Alarm
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
GUI Language
| GUI Language | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
Hard Disk
| SATA | 4 SATA Interfaces |
| Capacity | Up to 24 TB for each HDD (the maximum HDD capacity varies with environment temperature and hard disk size; the environment temperature for use should not exceed 40°C) |
External Interface
| Network Interface | 1 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 1 × USB2.0, Rear panel: 1 × USB3.0 |
| RS485 | 1 |
| RS232 | N/A |
| Alarm In | 16-ch |
| Alarm Out | 4-ch |
| Power Supply | AC 100~240 V |
PoE
| PoE Interface | 16 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | Max 30 W for single port, Max 150 W in total |
| Supported Standard | IEEE 802.3at, IEEE 802.3af |
Working Environment
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Power Consumption (without HDD) | ≤ 12 W |
Dimensions
| Weight (without HDD) | ≤ 4 kg (8.8 lb) |
| Dimensions | 400 mm × 369 mm × 74 mm (15.7" × 14.5" × 2.9") |
Certification
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC | Part15 Subpart B |
Dimensions
Engineering drawing reproduced 1:1 from the official datasheet.
| Dimensions | 400 mm × 369 mm × 74 mm (15.7" × 14.5" × 2.9") |
| Weight (without HDD) | ≤ 4 kg (8.8 lb) |
| Power supply | AC 100–240 V |
| Consumption (without HDD) | ≤ 12 W |
16-Port PoE AI NVR FAQ — NVR304-B-P16-IQ Series
How many cameras can the NVR304-16B-P16-IQ power directly?
How many IP cameras can I connect?
How many hard drives fit and what is the maximum capacity?
What AI functions are built into the recorder itself?
Can I connect alarm sensors and sirens?
Can I view live video remotely?
