2MP HD WDR Fixed IR Bullet Network Camera IPC2122LB-ADF28(40)KM-H

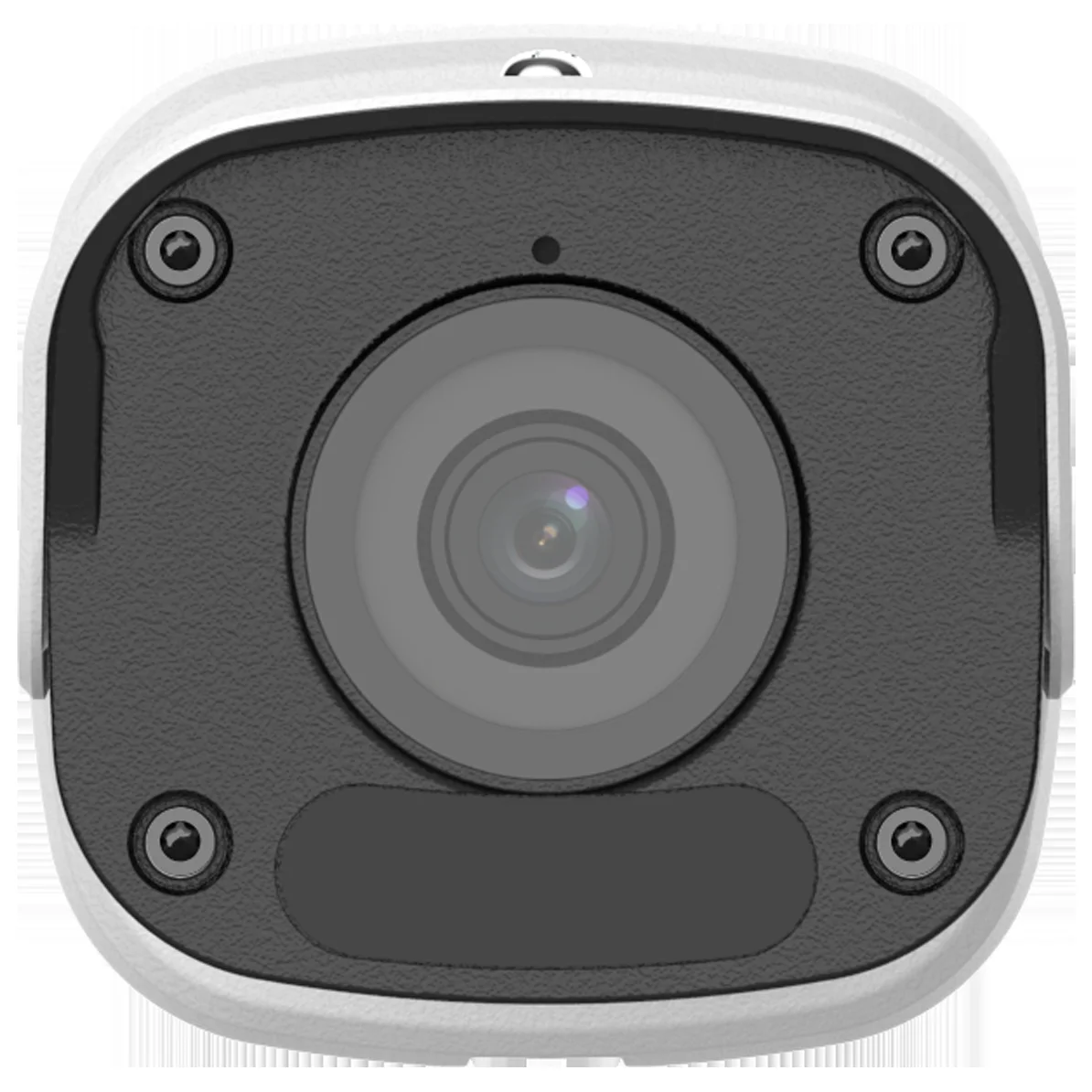

2MP HD WDR Fixed IR Bullet Network Camera IPC2122LB-ADF28(40)KM-H — view 1

2MP HD WDR Fixed IR Bullet Network Camera IPC2122LB-ADF28(40)KM-H — view 2

2MP HD WDR Fixed IR Bullet Network Camera IPC2122LB-ADF28(40)KM-H — view 3

Uniview (UNV) · Bullet2MP · WDR

2MP HD WDR Bullet · Fixed IR

IPC2122LB-ADF28(40)KM-H

Name: Uniview IPC2122LB-ADF28(40)KM-H
Brand: Uniview
SKU: IPC2122LB-ADF28(40)KM-H

2MP fixed IR bullet network camera — 120 dB true WDR for high-contrast scenes, Smart IR up to 30 m, PoE single-cable install, built-in mic, IP67 outdoor body.

2 MP · 1080P@30fpsUltra 265 · MJPEG, H.265, H.264WDR · 120 dB true WDRPoE · 802.3afIP67 · outdoorMic · built-in audioMicroSD · up to 512 GB

CHOOSE YOUR LENS — TWO MODELS ON THIS PAGE

ADF28KM (2.8 mm, 112.9° view) covers a wide area near the camera — doorways, small rooms, shop counters. ADF40KM (4.0 mm, 91.2° view) trades width for reach — corridors, driveways, fence lines. Highlighted rows in the spec table below show every difference.

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCCBUL/CULRoHSWEEEIP67ONVIFNDAA

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

30 mIR night vision

120 dBTrue WDR

IP67Outdoor rated

3.8 WPoE max power

The Uniview IPC2122LB-ADF28(40)KM-H is a 2MP fixed IR bullet network camera. It delivers 120 dB true WDR for high-contrast scenes, Smart IR up to 30 m (98.4 ft.), single-cable PoE power, and an IP67 outdoor-rated body built for a −30 °C to 60 °C working range. It is offered with two fixed lenses: 2.8 mm (ADF28KM, wider view) or 4.0 mm (ADF40KM, longer reach).

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Shops & storefrontsSee who enters, and the built-in mic records what is said at the counter. ADF28KM covers the whole shop floor from a corner.

Backlit entrances & glass fronts120 dB true WDR keeps faces visible even against bright daylight or glass reflections.

Warehouse & site perimetersIP67 body and −30 to 60 °C rating survive rain, dust and heat. ADF40KM watches long fence lines.

Residential compoundsCross line and intrusion alerts are based on human body detection, so stray animals or moving branches do not trigger false alarms.

Corridors & narrow hallways9:16 corridor mode reframes the image to match tall, narrow spaces instead of wasting pixels on walls.

Small offices & receptionUltra 265 compression keeps recordings small, and a MicroSD slot up to 512 GB backs up footage even if the network drops.

Not the right pick if you need…

Color night vision — this is IR-only; it switches to black & white in low light
Two-way talk — it has a mic but no speaker
Wi-Fi — this is a wired RJ45 camera
Zoom — the lens is fixed (2.8 or 4.0 mm, chosen at purchase)
Alarm in/out wiring for sirens or sensors

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 1080P, 1/2.8" CMOS sensor

1080P (1920 × 1080)@30/25 fps; 720P (1280 × 720)@30/25 fps

Ultra 265, H.265, H.264, MJPEG

120 dB true WDR technology enables clear image in strong light scene

Supports 9:16 corridor mode

Built-in mic

Smart IR, up to 30 m (98.4 ft.) IR distance

MicroSD, up to 512 GB

Supports PoE power supply

3-axis adjustment

Smart IR: how it sees at night

Automatic infrared illumination, switchable to Manual control.

IR MODE

Invisible infrared — discreet black & white night vision

Smart IR up to 30 m (98.4 ft.) at 850 nm, Auto/Manual control. The camera watches without lighting up the scene. This model has infrared illumination only — there is no warm-light output.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Switch the lens buttons above to compare.

Detectsomething is there

42 m137.8 ft

Observewhat is happening

16.8 m55.1 ft

Recognizesomeone you know

8.4 m27.6 ft

Identifya stranger's face

4.2 m13.8 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	KM · 112.9°	KM · 91.2°
5 m16 ft	15.1 m49.5 ft	10.2 m33.5 ft
10 m33 ft	30.2 m98.9 ft	20.4 m67.0 ft
15 m49 ft	45.2 m148 ft	30.6 m101 ft
20 m66 ft	60.3 m198 ft	40.8 m134 ft
30 m98 ft	90.5 m297 ft	61.3 m201 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the two models:ADF28KM = 2.8 mmADF40KM = 4.0 mm

Camera

Max Resolution	2 MP
Sensor	1/2.8" CMOS
Min. Illumination	Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
Adjustment Angle	Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
S/N	> 52 dB
WDR	120 dB

Lens

Focal Length	ADF28KM · 2.8 mmADF40KM · 4.0 mm
Iris	F2.0
Field of View (H)	ADF28KM · 112.9°ADF40KM · 91.2°
Field of View (V)	ADF28KM · 59.1°ADF40KM · 47.9°
Field of View (D)	ADF28KM · 121.2°ADF40KM · 95.9°
Iris Type	Fixed

DORI

DORI Distance (Detect)	ADF28KM · 42.0 m (137.8 ft.)ADF40KM · 60.0 m (196.9 ft.)
DORI Distance (Observe)	ADF28KM · 16.8 m (55.1 ft.)ADF40KM · 24.0 m (78.7 ft.)
DORI Distance (Recognize)	ADF28KM · 8.4 m (27.6 ft.)ADF40KM · 12.0 m (39.3 ft.)
DORI Distance (Identify)	ADF28KM · 4.2 m (13.8 ft.)ADF40KM · 6.0 m (19.7 ft.)

Illuminator

Supplemental Light	IR
Illumination Distance (IR)	30 m (98.4 ft.)
Wavelength	850 nm
IR On/Off Control	Auto/Manual

Video

Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps · Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps
Video Bit Rate	128 Kbps to 6144 Kbps
U-code	Support
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Support
Video Stream	Dual streams


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital defog

Events

Basic Detection	Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Cross line (based on human body detection), Intrusion (based on human body detection)
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	N/A
Suppression	Support
Sampling Rate	8 kHz

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)

Network

Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API, SDK
Client	EZStation, APP
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+; Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+
Security	Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
User/Host	Up to 32 users, 2 user levels: administrator and common user

Interface

Audio I/O	N/A
Alarm I/O	N/A
Serial Port	N/A
Built-in Mic	Support
Built-in Speaker	N/A
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A

Certification

EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
Safety	CE LVD (EN 62368-1); CB (IEC 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)
Protection	IP67 (IEC 60529)

General

Power	DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption	Max. 3.8 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	166 mm × 63 mm × 62 mm (6.5" × 2.5" × 2.5") (L × W × H)
Weight	0.39 kg (0.86 lb.)
Material	Graphene + Metal
Working Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	N/A
Web Client Language	4 Languages: English, Russian, Spanish, Vietnamese

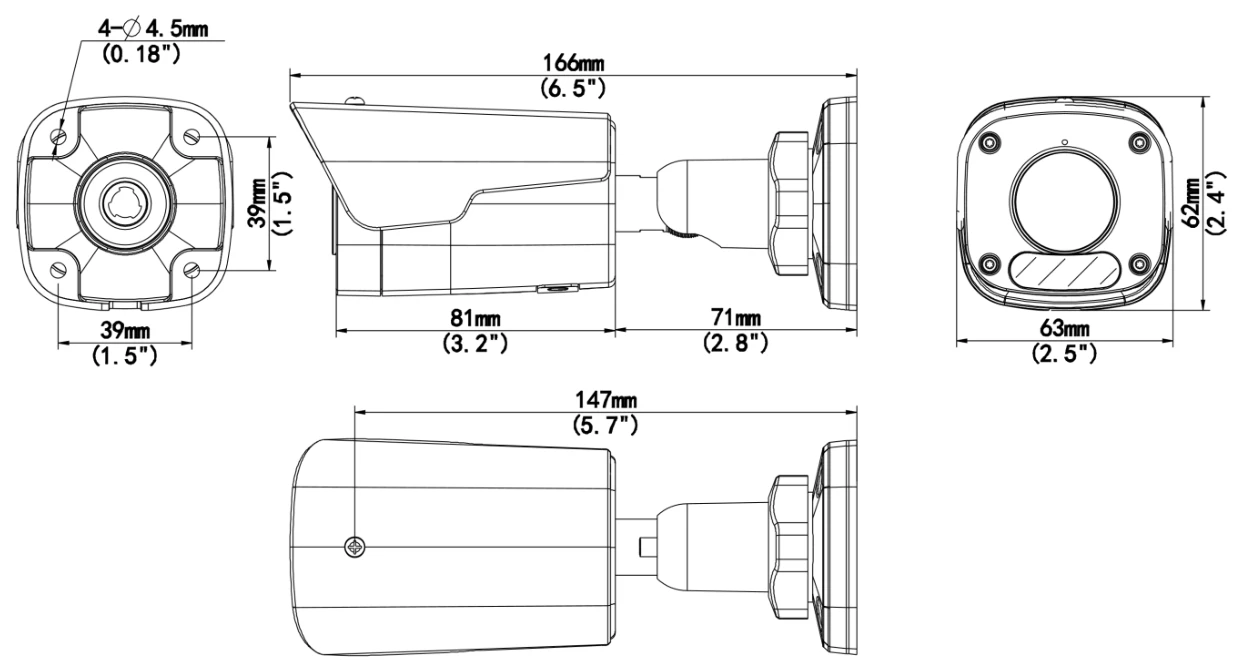

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	166 × 63 × 62 mm (6.5" × 2.5" × 2.5")
Weight	0.39 kg (0.86 lb.)
Material	Graphene + Metal
Mount adjustment	Pan 0–360° · Tilt 0–90° · Rotate 0–360°

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-JB05-A-INSmall bullet junction box (rear wiring, square)

TR-UP06-B-INBullet pole mounting bracket

TR-A01-INNPT 3/4" waterproof cable gland

TR-UP06-C-IN-V2Pole bracket for bullet junction box

TR-UC08-C-V2Bullet & dome corner mounting bracket

2MP WDR Bullet Camera FAQ — IPC2122LB-ADF28(40)KM-H

Which lens option should I pick for the IPC2122LB-ADF28(40)KM-H?

The 2.8 mm (ADF28KM) covers 112.9° horizontally and detects a person at 42 m — pick it for wide, close scenes like forecourts. The 4.0 mm (ADF40KM) narrows to 91.2° but detects at 60 m and identifies at 6 m versus 4.2 m, better for driveways and passages.

What does 120 dB true WDR actually do for me?

It exposes bright and dark parts of the frame separately, so a doorway looking out into strong sunlight shows both the lit street and the person stepping inside. Without it, backlit subjects become silhouettes. HLC and BLC add headlight and backlight correction on top.

How far does it see at night?

Smart IR at 850 nm reaches 30 m with auto or manual control, and the IR-cut filter switches to black-and-white in the dark. In color the sensor works down to 0.01 lux at F2.0, so areas under street or compound lighting hold color into the night.

Does it have people-based perimeter detection?

Yes — cross-line detection is based on human body detection, so a rule drawn along a wall or gate fires on people, not stray animals or shadows. Ultra motion detection, standard motion detection, tampering alarm and audio detection complete the alert options.

How is it powered and mounted outdoors?

PoE carries power and video on one network cable from your switch or NVR. The IP67 bullet housing is sealed against dust and rain, the bracket adjusts 0-360 degrees pan and 0-90 degrees tilt, and a built-in microphone records audio without extra wiring.

How much bandwidth does each camera need?

Main stream is 1080P at up to 30 fps with the bit rate adjustable between 128 and 6144 Kbps. Ultra 265 plus U-code compression pull the average well down on quiet scenes, and dual streams mean remote phone viewing rides the lighter sub stream.
