IP Cameras › IPC2125LB-SF28(40)-A

5MP Fixed IR Mini Bullet Network Camera IPC2125LB-SF28(40)-A

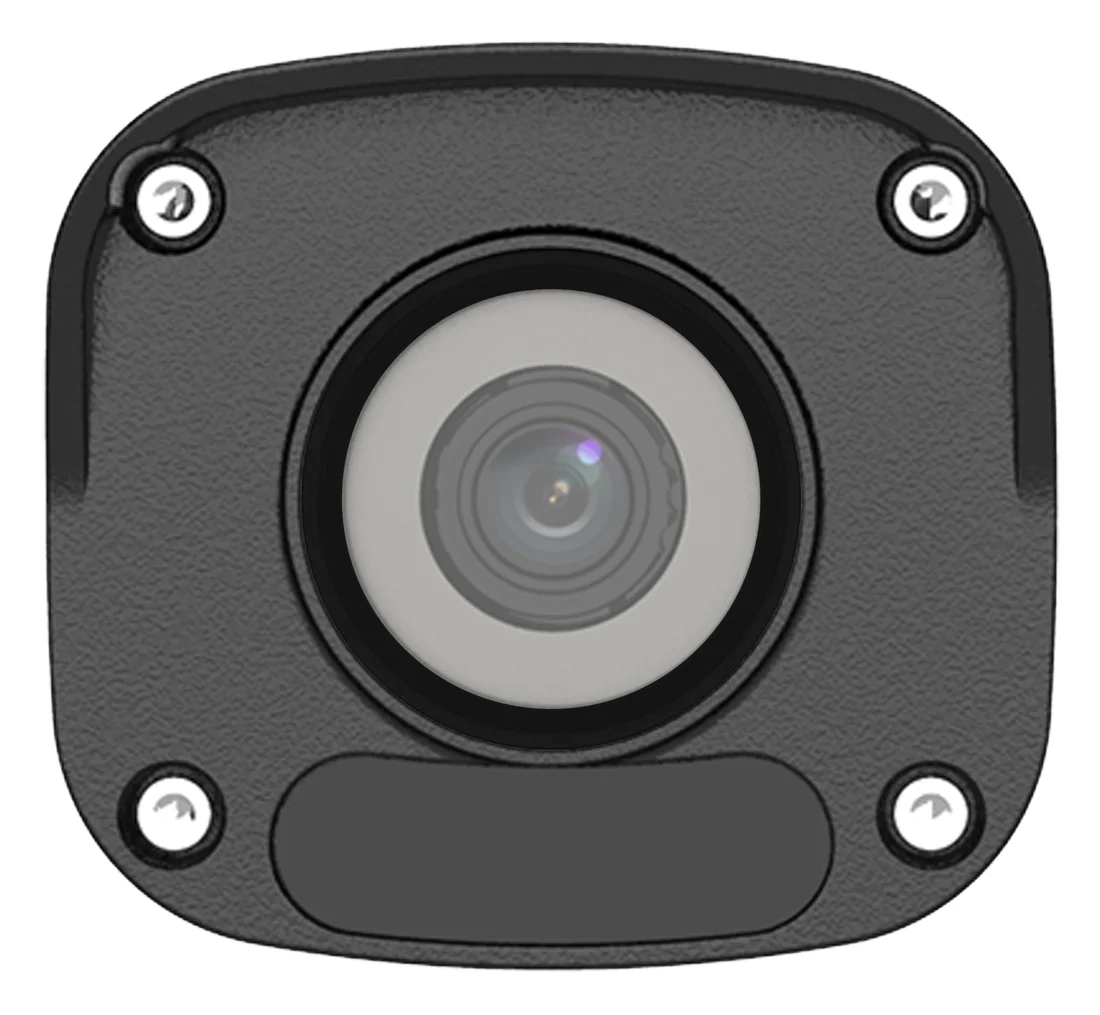

5MP Fixed IR Mini Bullet Network Camera IPC2125LB-SF28(40)-A — view 1

5MP Fixed IR Mini Bullet Network Camera IPC2125LB-SF28(40)-A — view 2

Uniview (UNV) · BulletMini Series · Fixed IR

5MP Fixed IR Mini Bullet Network Camera

IPC2125LB-SF28(40)-A

Name: Uniview IPC2125LB-SF28(40)-A
Brand: Uniview
SKU: IPC2125LB-SF28(40)-A

5MP fixed IR mini bullet network camera — Smart IR night vision up to 30 m, PoE single-cable install, IP67 outdoor body, NDAA compliant.

5 MP · 2592×1944@20fpsUltra 265 · low bandwidthSmart IR · up to 30mPoE · 802.3afIP67 · outdoorNDAA · compliant

CHOOSE YOUR LENS — TWO MODELS ON THIS PAGE

SF28 (2.8 mm, 97.0° view) covers a wide area near the camera — doorways, small rooms, shop counters. SF40 (4.0 mm, 79.0° view) trades width for reach — corridors, driveways, fence lines. Highlighted rows in the spec table below show every difference.

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCCBUL/CULRoHSWEEEIP67ONVIFNDAA

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

30 mSmart IR distance

IP67Outdoor rated

5.0 WPoE max power

NDAACompliant

The Uniview IPC2125LB-SF28(40)-A is a 5MP fixed IR mini bullet network camera with Smart IR night vision up to 30 m, single-cable PoE installation, and an IP67 outdoor-rated body for −30 °C to 60 °C operation. It ships with two fixed lens options: 2.8 mm (SF28, 97.0° wide view) or 4.0 mm (SF40, 79.0° longer-reach view). It supports Ultra 265 compression to reduce NVR storage and bandwidth, and is NDAA compliant.

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Shops & storefronts5MP detail sees faces clearly at the register. SF28's 97.0° view covers the whole shop floor from a corner.

Home gates & drivewaysSmart IR sees up to 30 m at night in black & white. SF40's narrower 79.0° view watches the full length of a gate or driveway.

Warehouse & site perimetersIP67 body and −30 °C to 60 °C rating survive rain, dust and heat. PoE single-cable install simplifies mounting on poles and walls.

Government & critical-infrastructure projectsThe camera is NDAA compliant, relevant for procurement that requires equipment from non-restricted sources.

Small offices & multi-camera sitesUltra 265 compression and dual video streams keep bandwidth and NVR storage use low across many cameras, even at 5MP resolution.

Network-security-conscious deploymentsHTTPS encryption, RTSP/HTTP/ONVIF authentication, ARP protection and watermarking harden the camera against common network attacks.

Not the right pick if you need…

Two-way talk or any built-in audio — no microphone or speaker at all
Wi-Fi — this is a wired RJ45 camera
Zoom — the lens is fixed (2.8 or 4.0 mm, chosen at purchase)
MicroSD card recording — it records to an NVR, no local storage slot
Color night vision — this camera has Smart IR (black & white) only, no warm-light illuminator
Alarm in/out wiring for sirens or sensors

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 5 MP, 1/3.0" CMOS sensor

5 MP (2592 × 1944)@20 fps; 4 MP (2560 × 1440)@20 fps; 3 MP (2304 × 1296)@20 fps; 1080P (1920 × 1080)@30/25 fps

Ultra 265, H.265, H.264, MJPEG

Smart IR, up to 30 m (98.4 ft.) IR distance

Day/night functionality

2D/3D DNR (digital noise reduction)

IP67 protection

DC 12 V, PoE (IEEE 802.3af) power supply

3-axis

Night Vision: Smart IR

Invisible infrared night vision — this model has no warm-light module.

IR MODE

Invisible infrared — discreet black & white night vision

Smart IR up to 30 m (98.4 ft.) at 850 nm. The camera watches without lighting up the scene — nothing shows it is recording. This model has Smart IR only; there is no warm-light illuminator.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Switch the lens buttons above to compare.

Detectsomething is there

63 m206.7 ft

Observewhat is happening

25.2 m82.7 ft

Recognizesomeone you know

12.6 m41.3 ft

Identifya stranger's face

6.3 m20.7 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	SF28 · 97.0°	SF40 · 79.0°
5 m16 ft	11.3 m37.1 ft	8.2 m27.0 ft
10 m33 ft	22.6 m74.2 ft	16.5 m54.1 ft
15 m49 ft	33.9 m111 ft	24.7 m81.1 ft
20 m66 ft	45.2 m148 ft	33.0 m108 ft
30 m98 ft	67.8 m222 ft	49.5 m162 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the two models:SF28 = 2.8 mmSF40 = 4.0 mm

Camera

Max Resolution	5 MP
Sensor	1/3.0" CMOS
Min. Illumination	Color: 0.01 Lux (F2.1, AGC ON), 0 Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
Adjustment Angle	Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
S/N	> 52 dB
WDR	DWDR

Lens

Focal Length	SF28 · 2.8 mmSF40 · 4.0 mm
Iris Type	Fixed
Iris	F2.1
Field of View (H)	SF28 · 97.0°SF40 · 79.0°
Field of View (V)	SF28 · 52.2°SF40 · 42.3°
Field of View (D)	SF28 · 107.5°SF40 · 85.1°

DORI

DORI Distance (Detect)	SF28 · 63.0 m (206.7 ft.)SF40 · 90.0 m (295.3 ft.)
DORI Distance (Observe)	SF28 · 25.2 m (82.7 ft.)SF40 · 36.0 m (118.1 ft.)
DORI Distance (Recognize)	SF28 · 12.6 m (41.3 ft.)SF40 · 18.0 m (59.1 ft.)
DORI Distance (Identify)	SF28 · 6.3 m (20.7 ft.)SF40 · 9.0 m (29.5 ft.)

Illuminator

Supplemental Light	IR
Illumination Distance (IR)	30 m (98.4 ft.)
Wavelength	850 nm
IR On/Off Control	Auto/Manual

Video

Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 5 MP (2592×1944), max. 20 fps; 4 MP (2560×1440), max. 20 fps; 3 MP (2304×1296), max. 20 fps; 1080P (1920×1080), max. 30 fps · Sub Stream: D1 (720×576), max. 30 fps; 640×360, max. 30 fps; 2CIF (704×288), max. 30 fps; CIF (352×288), max. 30 fps
Video Bit Rate	128 Kbps to 6144 Kbps
U-code	Support
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Support
Video Stream	Dual streams


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital defog

Events

Basic Detection	Motion detection, Tampering alarm
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Network

Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, UPnP, HTTP, HTTPS, QoS, SSL/TLS, SMTP, SNMP
Compatible Integration	ONVIF (Profile S, Profile T), API, SDK
User/Host	Up to 32 users, 2 user levels: administrator and common user
Security	Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, WSSE and Digest Authentication for ONVIF
Client	EZStation, APP
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+; Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O	N/A
Alarm I/O	N/A
Serial Port	N/A
Built-in Mic	N/A
Built-in Speaker	N/A
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A

Certification

EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
Safety	CE LVD (EN 62368-1); CB (IEC 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)
Protection	IP67 (IEC 60529)

General

Power	DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption	Max. 5.0 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	161 mm × 63 mm × 62 mm (6.4" × 2.5" × 2.4") (L × W × H)
Weight	0.31 kg (0.68 lb.)
Material	Graphene + Plastic
Working Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	N/A
Web Client Language	1 Language: English

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	161 × 63 × 62 mm (6.4" × 2.5" × 2.4")
Weight	0.31 kg (0.68 lb.)
Material	Graphene + Plastic
Mount adjustment	Pan 0–360° · Tilt 0–90° · Rotate 0–360°

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-JB05-A-INSmall bullet junction box (support wiring from behind, square)

TR-UP06-B-INBullet pole mounting bracket

TR-A01-INNPT 3/4" waterproof cable gland

TR-UP06-C-IN-V2Pole mounting bracket for bullet junction box only

TR-UC08-C-V2Bullet & dome corner mounting bracket

5MP PoE Bullet Camera FAQ — IPC2125LB-SF28(40)-A

What resolution and frame rate does the IPC2125LB-SF28(40)-A deliver?

The main stream tops out at 5 MP (2592×1944) at 20 fps; you can also run 4 MP or 3 MP at 20 fps, or drop to 1080p for 30 fps. Compression covers Ultra 265, H.265, H.264 and MJPEG with bit rate from 128 Kbps to 6144 Kbps.

How far can it see in total darkness?

Smart IR at 850 nm illuminates up to 30 m (98.4 ft) and works down to 0 lux — full darkness. The IR is invisible, so the camera does not draw attention at night, and LED power adapts automatically so subjects close to the lens keep detail.

Can I add it to a third-party NVR I already own?

Yes. ONVIF Profile S and Profile T support plus API and SDK make it usable with most third-party NVRs and VMS platforms, and the protocol stack includes RTSP, RTMP, HTTPS, SSL/TLS, SMTP and SNMP. Dual streams let the recorder and mobile clients pull different qualities.

2.8 mm or 4.0 mm — which version should I buy?

The 2.8 mm (SF28) covers 97° horizontally, detecting people to 63 m and identifying at 6.3 m — best for entrances and small courtyards. The 4.0 mm (SF40) narrows to 79° but detects to 90 m and identifies at 9 m — best along walls, lanes and parking rows.

Is it built for outdoor use and restricted tenders?

Yes on both counts. The housing is IP67 rated against dust and rain, powered over PoE with a single cable, and the model is NDAA compliant. Hardening includes HTTPS encryption, strong passwords, RTSP authentication, IP filtering and exportable operation logs — with motion and tampering alarms built in.
