NVR301-04B-LP4 / 08B-LP8 / 16B-LP8-IQ
4 / 8 / 16-channel PoE network video recorder — built-in PoE ports power and connect cameras over a single cable, Ultra 265 compression, 4K HDMI output, records cameras up to 12MP, built-in Smart Function with face and vehicle detection.
Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port
Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
How many terabytes for your channels and days? Use the storage calculator →
Need the PDF datasheet? Get it on WhatsApp →Sample quantities are welcome — testing one or two units first is the normal way to start.

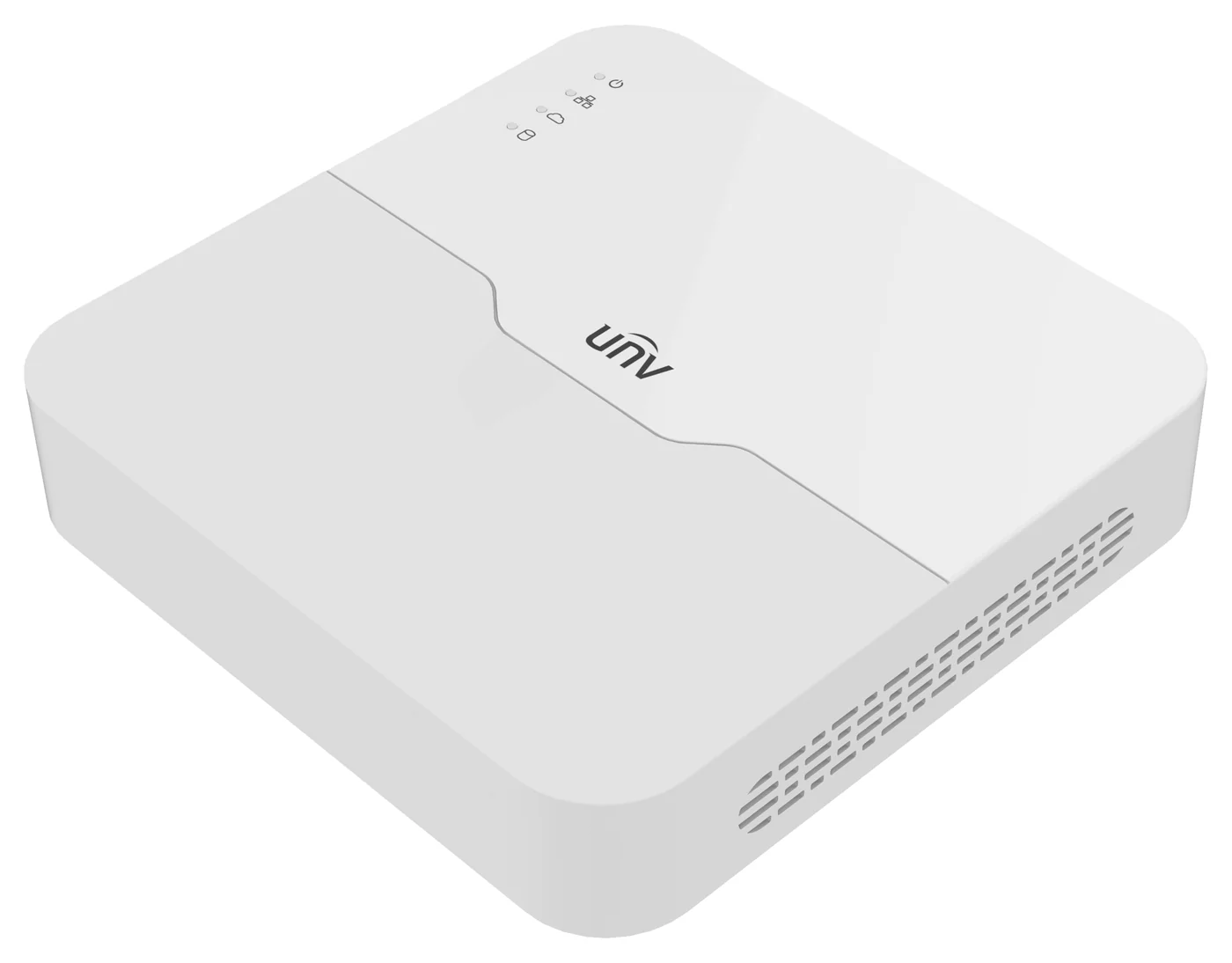

The Uniview NVR301-B-LP-IQ Series is a 1-HDD PoE network video recorder offered in three sizes: NVR301-04B-LP4-IQ (4-ch, 4 built-in PoE ports), NVR301-08B-LP8-IQ (8-ch, 8 built-in PoE ports) and NVR301-16B-LP8-IQ (16-ch, 8 built-in PoE ports). All three record cameras up to 12MP with Ultra 265 / H.265 / H.264 compression, output simultaneously over 4K HDMI and VGA, and include built-in Smart Function covering face detection, face comparison, vehicle detection (LPR) and traffic monitoring. One SATA bay takes a hard disk up to 24 TB; the local interface is available in 38 languages including Spanish (Latin America), Portuguese (Brazil) and French.
Is this the right recorder for you?
Plain-language guide for buyers and installers — based only on what this recorder actually does.
- More PoE cameras than built-in ports — the 16-ch model has only 8 built-in PoE ports; channels 9–16 need an external PoE switch or non-PoE cameras with their own power
- A second hard disk or RAID — this series has a single SATA bay
- Gigabit uplink — the network port is 10/100M (fine even at 80 Mbps total bandwidth)
- Alarm in/out wiring for sirens or sensors — RS485/RS232 and alarm terminals are not present on this model
- Full Smart-feature channel counts with third-party cameras — deepest face/vehicle AI (up to 8-ch) requires Uniview cameras; normal/third-party cameras are limited to 1-ch face detection, 2-ch SIP or 4-ch UMD
Worried about counterfeits? Order under your own company name.
For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.
Using your own freight forwarder? No problem.
For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.
Key Features
Complete list from the official datasheet.
Power and video on one cable. Search on demand.
Two real capabilities from the datasheet that matter every day: built-in PoE ports that simplify camera installation, and AI search across faces, vehicles and people.
Camera power and video on one cable
Every model in this series has built-in PoE — 4 ports on the 04-channel model, 8 ports on the 08/16-channel models — each port delivering up to 30 W, with a total budget of 50 W (04) or 75 W (08/16), so IP cameras get power and video over a single Ethernet cable with no separate injector.
Face, vehicle and people — all searchable
Built-in Face Detection, Face Comparison, Vehicle Detection (LPR) and traffic monitoring feed AcuSearch, AcuTrack, Face Snapshot/Comparison Search and Vehicle Search — up to 8 channels with Uniview cameras — so an investigation that took hours now takes minutes.
Which size fits your project?
Bars show camera capacity per model. Click the model buttons above to switch — the spec table highlights every other difference.
Full Specifications
Complete official specifications from the manufacturer's datasheet (technical values in English).
Decoding
| Decoding Format | Ultra 265, H.265, H.264 |
| Decoding Capability | 04B-LP4-IQ · Smart Off: 2×12MP@30, 2×4K@30, 4×4MP@30 | Smart On: 2×4K@30, 4×4MP@3008B-LP8-IQ · Smart Off: 2×12MP@30, 2×4K@30, 4×4MP@30, 8×1080P@30 | Smart On: 2×4K@30, 4×4MP@30, 8×1080P@3016B-LP8-IQ · Smart Off: 2×12MP@30, 2×4K@30, 4×4MP@30, 10×1080P@30, 16×720P@30 | Smart On: 2×4K@30, 4×4MP@30, 8×1080P@30, 16×720P@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width |
| Audio Compression | G.711A, G.711U |
Network
| Incoming Bandwidth | 80 Mbps |
| Outgoing Bandwidth | 80 Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, IPv6, IPv4, 802.1x, UPnP |
| Browser (Plugin) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
Video/Audio Input
| IP Video Input | 04B-LP4-IQ · 4-ch08B-LP8-IQ · 8-ch16B-LP8-IQ · 16-ch |
| RCA Audio Input | 1-ch |
| IP Speaker (Peripheral Input) | 16-ch |
| POS (Peripheral Input) | All channels |
Video/Audio Output
| HDMI Output | 4K (3840×2160)/30 Hz, 1920×1080/60 Hz, 1920×1080/50 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz |
| VGA Output | 1920×1080/60 Hz, 1920×1080/50 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz |
| RCA Audio Output | 1-ch |
| Liveview Display | 04B-LP4-IQ · 1/408B-LP8-IQ · 1/4/6/8/916B-LP8-IQ · 1/4/6/8/9/16 |
| Corridor Mode Screen | 04B-LP4-IQ · 3/408B-LP8-IQ · 3/4/5/7/916B-LP8-IQ · 3/4/5/7/9/10/12/16 |
| Two-way Audio | 1-ch, RCA (using the audio input and output) |
| Snapshot | FTP/Schedule/Event Snapshot; 4-ch snapshot (max. D1 (720×576) video resolution, with D1 snapshot resolution) |
Recording
| Recording Resolution | 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080P / 960P / 720P / D1 / 2CIF / CIF |
| Num of Concurrent Playback | 16-ch |
Smart Function
| Smart by IPC | All channels (up to 8 images/s in total) Face Detection, Face Comparison, Vehicle Detection (LPR), SIP, UMD, Traffic Monitoring |
| Smart by NVR | Face Detection, Face Comparison, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD) |
| Smart by NVR Analyzer Mode | Single Mode (Face Recognition), Single Mode (SIP), Single Mode (UMD), Single Mode (AcuSearch/AcuTrack); modes cannot activate simultaneously, only one mode can activate at a time |
| VCA Search | AcuSearch, AcuTrack, Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map |
| Acu Search Performance | All channels with UNV SIP/UMD Camera |
| Acu Track Performance | All channels with UNV SIP/UMD Camera |
| by NVR (Face Detection capacity) | 04B-LP4-IQ · Up to 4-ch with UNV Face Detection Camera | Up to 1-ch with normal camera (UNV and Third-part brand, 1-ch 2MP)08B-LP8-IQ · Up to 8-ch with UNV Face Detection Camera | Up to 1-ch with normal camera (UNV and Third-part brand, 1-ch 2MP)16B-LP8-IQ · Up to 8-ch with UNV Face Detection Camera | Up to 1-ch with normal camera (UNV and Third-part brand, 1-ch 2MP) |
| Search by Image | Support |
| SIP by NVR with normal cameras | Up to 2-ch with normal camera (UNV and Third-part brand, 2-ch 2MP, 1-ch 4MP) |
| UMD by NVR with normal cameras | Up to 4-ch with normal camera (UNV and Third-part brand, 4-ch 2MP, 2-ch 4MP, 1-ch 4K) |
Alarm
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
GUI Language
| GUI Language | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
Hard Disk
| SATA | 1 SATA Interfaces |
| Capacity | Up to 24 TB for each HDD (the maximum HDD capacity varies with environment temperature and hard disk size; the environment temperature for use should not exceed 35°C) |

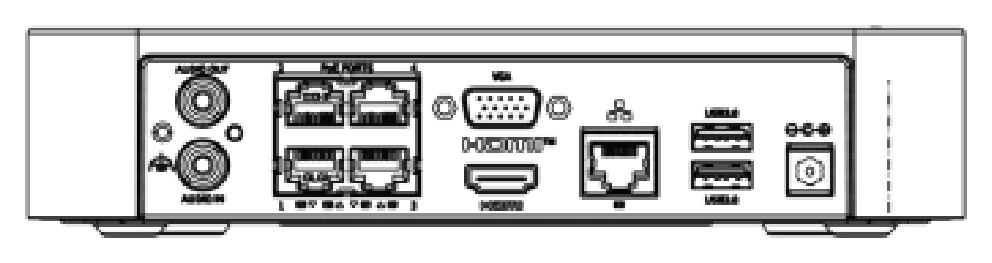

External Interface
| Network Interface | 1 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| USB | Rear panel: 1 × USB2.0, 1 × USB3.0 |
| RS485 | N/A |
| RS232 | N/A |
| Alarm In | N/A |
| Alarm Out | N/A |
| Power Supply | 04B-LP4-IQ · DC 48 V/1.35 A08B-LP8-IQ · DC 52 V/1.8 A16B-LP8-IQ · DC 52 V/1.8 A |
| Power Switch | N/A |
PoE
| PoE Interface | 04B-LP4-IQ · 4 RJ45 10 M/100 M self-adaptive Ethernet Interface08B-LP8-IQ · 8 RJ45 10 M/100 M self-adaptive Ethernet Interface16B-LP8-IQ · 8 RJ45 10 M/100 M self-adaptive Ethernet Interface |
| Max Power | 04B-LP4-IQ · Max 30 W for single port, Max 50 W in total08B-LP8-IQ · Max 30 W for single port, Max 75 W in total16B-LP8-IQ · Max 30 W for single port, Max 75 W in total |
| Supported Standard | IEEE 802.3at, IEEE 802.3af |
Working Environment
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Power Consumption (without HDD) | ≤ 12 W |
Dimensions
| Weight (without HDD) | 04B-LP4-IQ · ≤ 2.7 kg (6.0 lb)08B-LP8-IQ · ≤ 4 kg (8.8 lb)16B-LP8-IQ · ≤ 4 kg (8.8 lb) |
| Height | 1U |
| Dimensions | 04B-LP4-IQ · 205 mm × 212 mm × 46 mm (8.1" × 8.3" × 1.8")08B-LP8-IQ · 270 mm × 212 mm × 46 mm (10.6" × 8.3" × 1.8")16B-LP8-IQ · 270 mm × 212 mm × 46 mm (10.6" × 8.3" × 1.8") |
Certification
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC | Part15 Subpart B |
| Compliance | NDAA Compliant |
Dimensions

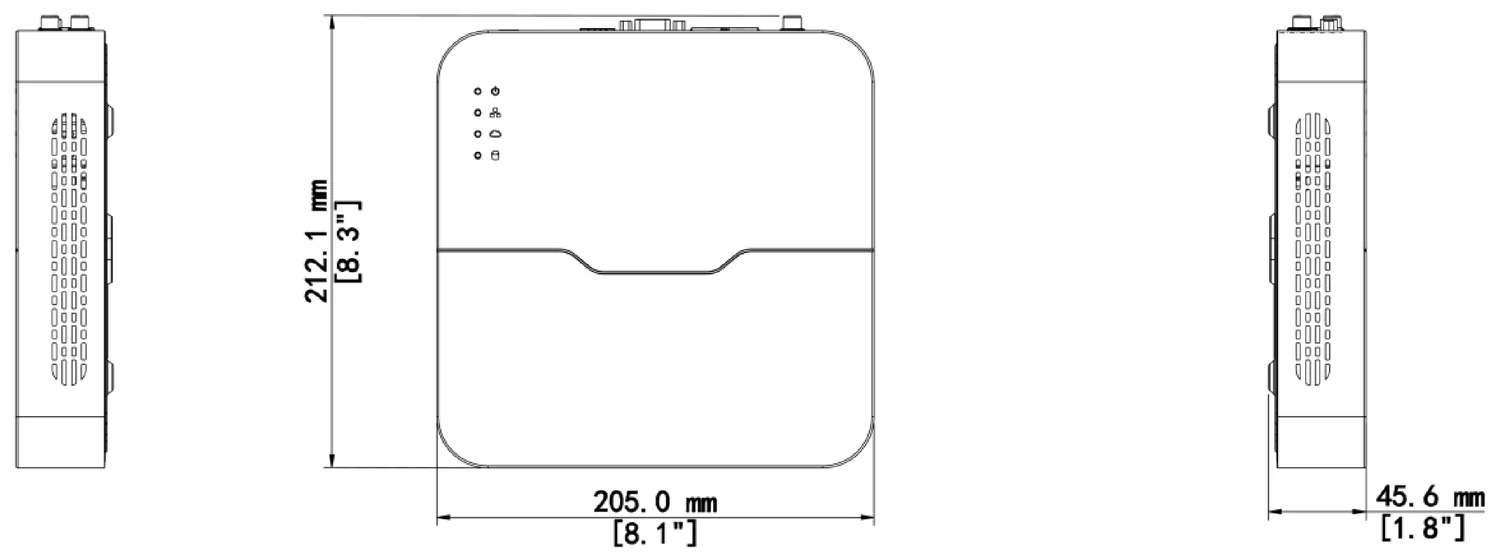

Engineering drawing reproduced 1:1 from the official datasheet (04B-LP4-IQ shown; 08B-LP8-IQ/16B-LP8-IQ share the same height and depth on a longer 270mm chassis — see table).
| Dimensions | 04B-LP4-IQ · 205×212×46mm (8.1"×8.3"×1.8")08B-LP8-IQ · 270×212×46mm (10.6"×8.3"×1.8")16B-LP8-IQ · 270×212×46mm (10.6"×8.3"×1.8") |
| Weight (without HDD) | 04B-LP4-IQ · ≤2.7kg (6.0lb)08B-LP8-IQ · ≤4kg (8.8lb)16B-LP8-IQ · ≤4kg (8.8lb) |
| Power supply | 04B-LP4-IQ · DC48V/1.35A08B-LP8-IQ · DC52V/1.8A16B-LP8-IQ · DC52V/1.8A |
| Consumption (without HDD) | ≤ 12 W |
4/8/16 Channel PoE AI NVR FAQ — NVR301-B-LP-IQ
How many channels and PoE ports does each model have?
What AI search functions do I get?
What is the maximum recording resolution and HDD size?
Can I use it with cameras from another brand?
How is it powered and what bandwidth does it handle?
Does it output 4K to a monitor?
