IP Cameras › IPC2322LB-ADEZK-H

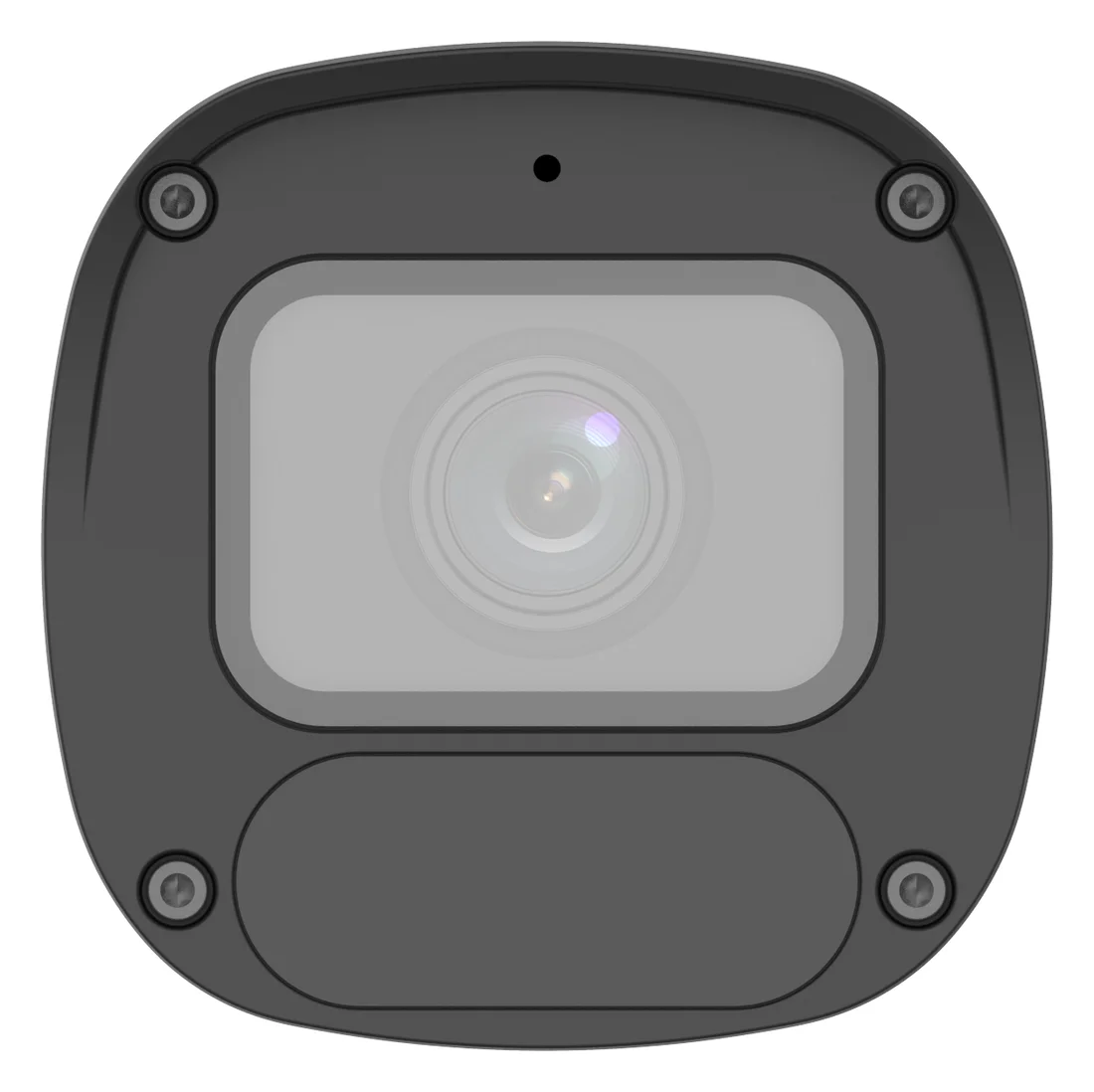

2MP HD IR VF Bullet Network Camera IPC2322LB-ADEZK-H

2MP HD IR VF Bullet Network Camera IPC2322LB-ADEZK-H — view 1

2MP HD IR VF Bullet Network Camera IPC2322LB-ADEZK-H — view 2

Uniview (UNV) · Bullet2MP · Motorized VF

2MP HD IR VF Bullet

IPC2322LB-ADEZK-H

Name: Uniview IPC2322LB-ADEZK-H
Brand: Uniview
SKU: IPC2322LB-ADEZK-H

2MP motorized varifocal (2.8–12mm) IR bullet network camera — 120dB true WDR, built-in mic with audio I/O, Smart IR up to 50m, PoE, IP67 outdoor body.

2 MP · 1080P@30fps2.8–12mm · motorized varifocalMic + Audio I/O · built-in audio capture & outputPoE / DC12V · dual powerIP67 · outdoorAlarm I/O · 1/1, external sensor/siren

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCCBUL/CULRoHSWEEEIP67ONVIF

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

50 mIR night vision

120 dBTrue WDR

9.6 WMax power

-30~60°CWorking temperature

The Uniview IPC2322LB-ADEZK-H is a 2MP bullet network camera with a motorized varifocal lens (2.8–12 mm) that can be reframed remotely after installation, plus a built-in mic and a 1/1 audio input/output interface for audio capture and playback. It combines 120 dB true WDR for strong-light scenes, Ultra motion detection with human-body-based cross-line and intrusion alerts, and Smart IR night vision up to 50 m. It is IP67 outdoor-rated and powers over PoE (IEEE 802.3af) or DC 12 V, with a −30 °C to 60 °C working range.

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Shops & storefrontsSee who enters, and the built-in mic plus audio I/O capture what is said at the counter. The 2.8–12mm motorized zoom lets you tune the framing after mounting.

Long driveways & fence linesZoom in to the telephoto end (12 mm) for a longer, narrower view down a driveway or fence line — no re-aiming the bracket needed.

Storefronts facing strong sunlight120 dB true WDR keeps both the bright doorway and the shaded interior visible in the same frame, instead of one washing out the other.

Gates & boundary linesCross line and intrusion detection (based on human body detection) flags anyone crossing a boundary — tuned to real movement, not blowing leaves or shadows.

Warehouse & site perimetersIP67 body and −30 to 60 °C rating survive rain, dust and heat outdoors, day after day; the Alarm I/O (1/1) can trigger a siren or light on-site.

Quick retrofits & pole installsOne PoE cable does power + video — no electrician needed on site, quick to install and reframe later thanks to the motorized zoom.

Not the right pick if you need…

Full-color night vision — this is IR-only, night video is black & white; there is no warm/white-light module
Two-way talk / intercom — it has a built-in mic and an audio output line, but no built-in speaker, and two-way audio is not a supported feature
Wi-Fi — this is a wired RJ45 camera
A one-time fixed focal length choice at purchase — the zoom on this model is motorized and adjustable on site, not a pick-one-at-checkout fixed lens
Vandal-resistant IK rating — this model's datasheet lists no IK protection rating (IP67 dust/water rating only)

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 1080P, 1/2.8" CMOS sensor

1080P (1920 × 1080)@30/25 fps; 720P (1280 × 720)@30/25 fps

Ultra 265, H.265, H.264, MJPEG

120 dB true WDR technology enables clear image in strong light scene

Supports 9:16 corridor mode

Built-in mic

Alarm I/O: 1/1, audio I/O: 1/1

Smart IR, up to 50 m (164.0 ft.) IR distance

MicroSD, up to 512 GB

IP67 protection

Supports PoE power supply

3-axis adjustment

IR night vision + true WDR: clear day or night

IR on/off is switchable Auto/Manual — true WDR handles harsh light on its own.

IR MODE

Smart IR — discreet black & white night vision

Smart IR reaches 50 m (164.0 ft.) at 850 nm, with the IR-cut filter auto-switching (ICR) between day and night. IR on/off control is Auto or Manual.

TRUE WDR

120 dB true WDR — clear image in strong light

120 dB true WDR keeps a bright doorway and a shaded interior both visible in the same frame, instead of one washing out the other.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance.

Detectsomething is there

43.4 m142.4 ft

Observewhat is happening

17.4 m57.1 ft

Recognizesomeone you know

8.7 m28.5 ft

Identifya stranger's face

4.3 m14.1 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	103.6° wide	33.4° tele
5 m16 ft	12.7 m41.7 ft	3.0 m9.8 ft
10 m33 ft	25.4 m83.4 ft	6.0 m19.7 ft
15 m49 ft	38.1 m125 ft	9.0 m29.5 ft
20 m66 ft	50.8 m167 ft	12.0 m39.4 ft
30 m98 ft	76.2 m250 ft	18.0 m59.1 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Camera

Max Resolution	2 MP
Sensor	1/2.8" CMOS
Min. Illumination	Color: 0.003 Lux (F1.6, AGC ON), 0 Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 ~ 1/100000 s
Adjustment Angle	Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
S/N	> 52 dB
WDR	120 dB

Lens

Focal Length	2.8 to 12 mm
Iris	F1.6
Iris Type	Fixed
Field of View (H)	103.6° to 33.4°
Field of View (V)	54.8° to 18.7°
Field of View (D)	107.9° to 37.8°

DORI

DORI Distance (Lens)	2.8 to 12 mm
DORI Distance (Detect)	43.4 m to 186.2 m (142.4 ft. to 610.9 ft.)
DORI Distance (Observe)	17.4 m to 74.5 m (57.1 ft. to 244.4 ft.)
DORI Distance (Recognize)	8.7 m to 37.2 m (28.5 ft. to 122.1 ft.)
DORI Distance (Identify)	4.3 m to 18.6 m (14.1 ft. to 61.0 ft.)

Illuminator

Supplemental Light	IR
Illumination Distance (IR)	50 m (164.0 ft.)
Wavelength	850 nm
IR On/Off Control	Auto/Manual

Video

Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 1080P (1920×1080) max. 30 fps; 720P (1280×720) max. 30 fps · Sub Stream: 720P (1280×720) max. 30 fps; D1 (720×576) max. 30 fps; 640×360 max. 30 fps
Video Bit Rate	128 Kbps to 6144 Kbps
U-code	Support
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Support
Video Stream	Dual streams


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital defog

Events

Basic Detection	Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Cross line (based on human body detection), Intrusion (based on human body detection)
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	N/A
Suppression	Support
Sampling Rate	8 kHz

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)

Network

Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, QoS, SNMP
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host	Up to 32 users, 2 user levels: administrator and common user
Security	Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	EZStation, APP
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O	1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p]
Alarm I/O	1/1
Serial Port	N/A
Built-in Mic	Support
Built-in Speaker	N/A
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A

Certification

EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
Safety	CE LVD (EN 62368-1); CB (IEC 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)
Protection	IP67 (IEC 60529)

General

Power	DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption	Max. 9.6 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	206 mm × 73 mm × 73 mm (8.1" × 2.9" × 2.9") (L × W × H)
Weight	0.51 kg (1.12 lb.)
Material	Graphene + Metal
Working Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	6 KV
Reset Button	Support
Web Client Language	4 Languages: English, Russian, Spanish, Vietnamese
Configurable P/N	Support

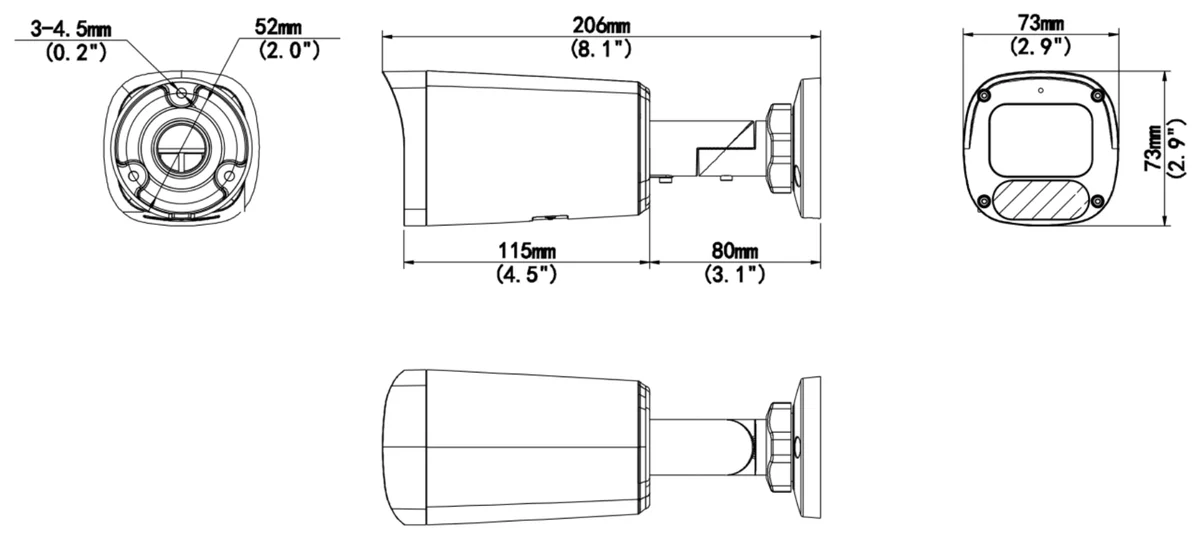

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	206 × 73 × 73 mm (8.1" × 2.9" × 2.9")
Weight	0.51 kg (1.12 lb.)
Material	Graphene + Metal
Mount adjustment	Pan 0–360° · Tilt 0–90° · Rotate 0–360°

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-JB05-B-INSmall bullet junction box (elegant white)

TR-A01-INNPT 3/4" waterproof cable gland

TR-UP06-C-IN-V2Pole mounting bracket for bullet junction box only

TR-UC08-C-V2Bullet & dome corner mounting bracket

2MP Varifocal PoE Bullet FAQ — IPC2322LB-ADEZK-H

What does the motorized 2.8–12 mm lens change on site?

You set the field of view from the NVR or browser instead of opening the housing: 103.6° wide down to 33.4° at full zoom. DORI detection stretches from 43.4 m at 2.8 mm to 186.2 m at 12 mm, so one model covers gates, corridors and fence lines.

How far can it see at night?

Smart IR reaches 50 m at 850 nm, with the IR-cut filter switching automatically between day and night. Minimum illumination is 0.003 lux in color and 0 lux with IR on, so the image stays usable in black and white even in total darkness.

Does it record audio, and can I connect external audio gear?

It has a built-in microphone plus an audio input/output interface for external gear, with G.711U/G.711A compression at 64 Kbps and audio detection alarms. Note it is not a two-way talk camera — the spec sheet lists two-way audio as not available on this model.

How is it powered, and is it rated for outdoor use?

It runs on PoE, so a single cable from your PoE switch or PoE NVR delivers power and video together. The housing is IP67 rated against dust and heavy rain, and the bracket adjusts pan 0–360° and tilt 0–90° for wall or pole mounting.

Is 2MP enough, and how much bandwidth does it use?

For general monitoring, 1080P at 30 fps is enough to follow people and vehicles clearly. With Ultra 265 and U-code compression the bitrate stays between 128 Kbps and 6144 Kbps over dual streams, so remote viewing works even on the limited uplinks common at many sites.

Will strong sunlight at a gate wash out the image?

No — 120 dB true WDR balances a bright entrance and a shaded interior in the same frame. HLC, BLC and digital defog are also supported, so vehicle headlights at night or haze in the morning do not blind the sensor at critical moments.
