4MP LightHunter WDR 22X Zoom Network IR Bullet Camera IPC254EB-DX22GK-I0

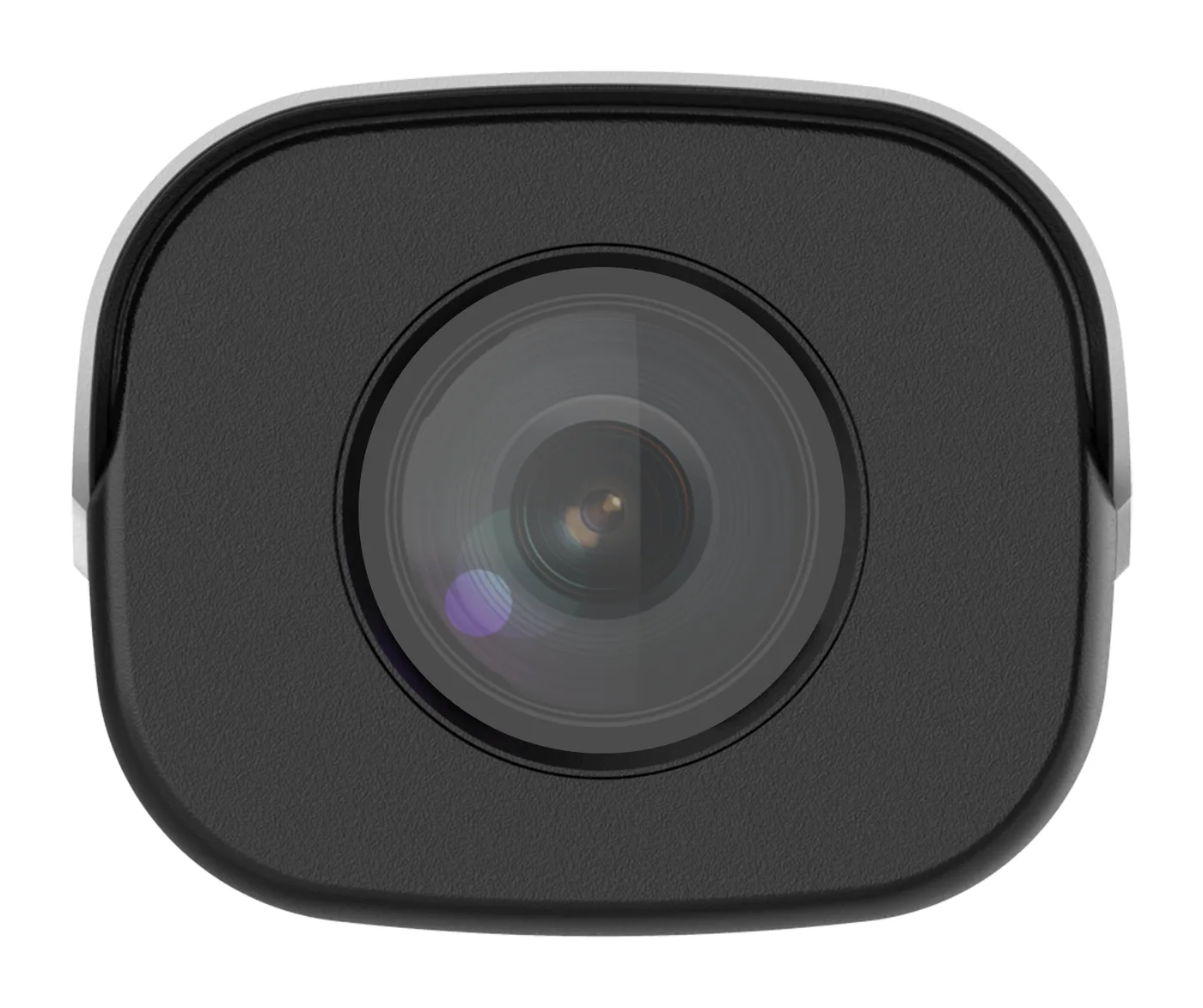

4MP LightHunter WDR 22X Zoom Network IR Bullet Camera IPC254EB-DX22GK-I0 — view 1

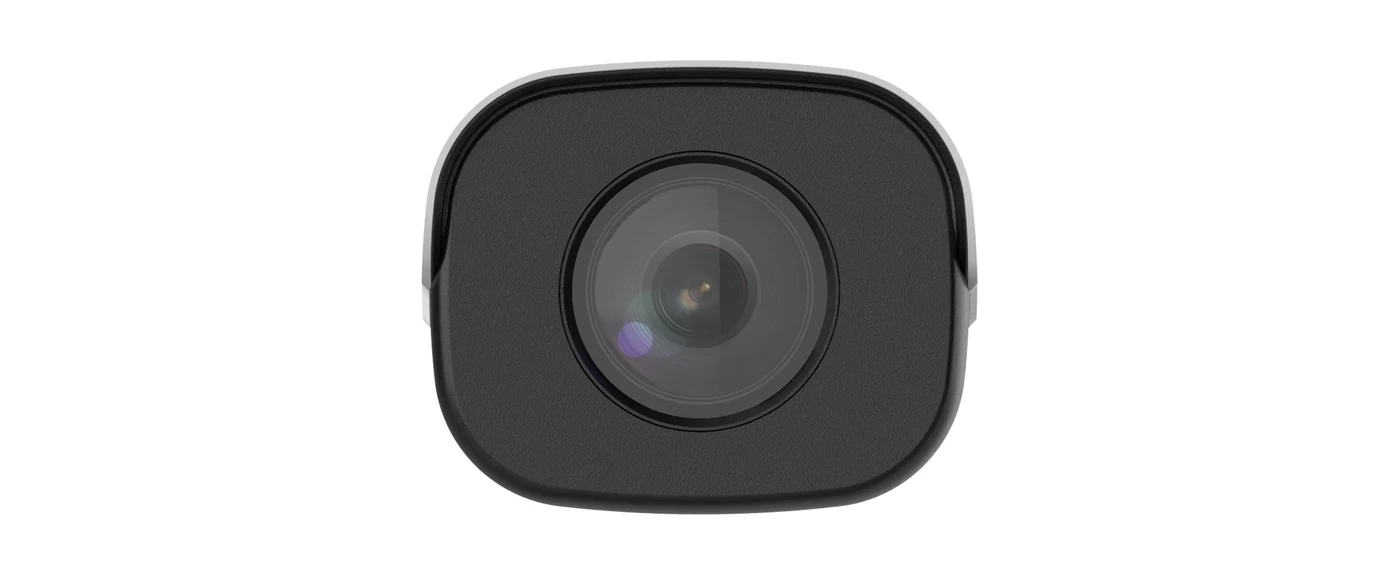

4MP LightHunter WDR 22X Zoom Network IR Bullet Camera IPC254EB-DX22GK-I0 — view 2

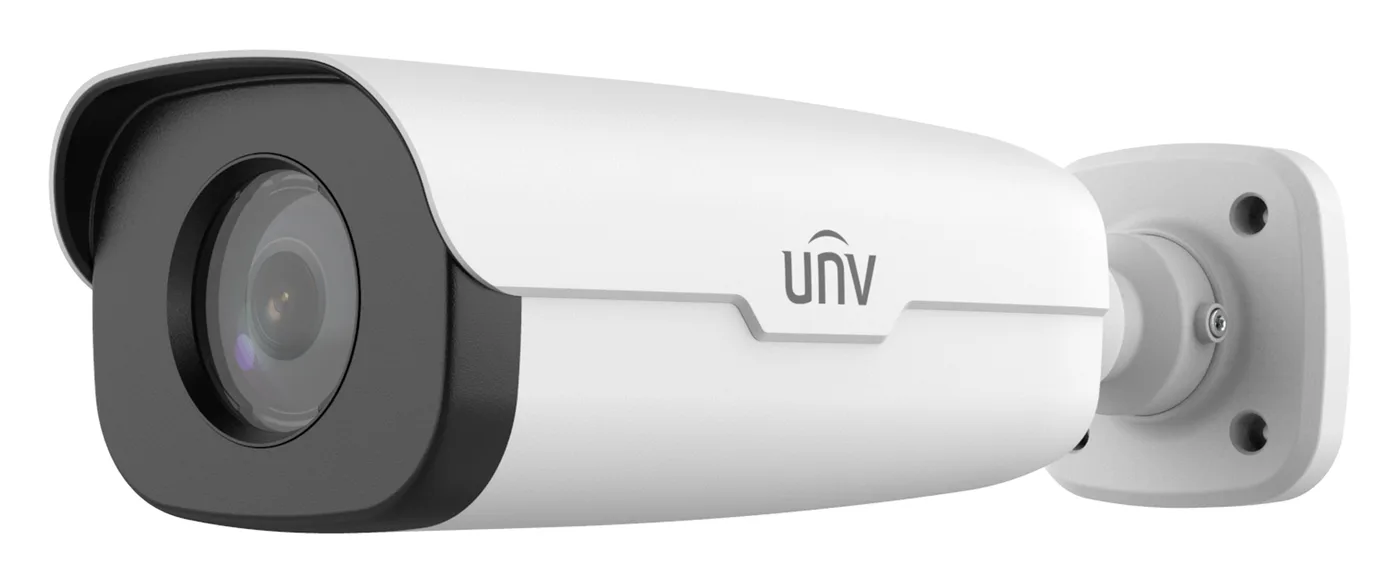

4MP LightHunter WDR 22X Zoom Network IR Bullet Camera IPC254EB-DX22GK-I0 — view 3

Uniview (UNV) · BulletLightHunter · 22X Zoom

4MP LightHunter WDR · 22X Zoom Bullet

IPC254EB-DX22GK-I0

Name: Uniview IPC254EB-DX22GK-I0
Brand: Uniview
SKU: IPC254EB-DX22GK-I0

4MP LightHunter WDR network bullet camera with a 22X optical zoom lens (6.5-143mm) plus 16X digital zoom — 120dB WDR, Smart IR to 150m, PoE/AC24V, IP67 outdoor body.

4 MP · 2688×1520@30fpsUltra 265 · low bandwidth22X · optical zoom (6.5-143mm) + 16X digitalPoE · 802.3atIP67 · outdoorTwo-way Audio · mic + speaker I/O terminals

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CERoHSWEEEREACHIP67ONVIF

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

150 mIR night vision

22XOptical zoom

IP67Outdoor rated

16 WMax power draw

The Uniview IPC254EB-DX22GK-I0 is a 4MP LightHunter WDR network bullet camera built around a 6.5-143 mm lens with 22X optical zoom plus 16X digital zoom, so the same mounting position can cover a wide entry view or a distant detail shot. It combines 120 dB WDR and LightHunter low-light imaging (color down to 0.001 Lux) with a 150 m Smart IR illuminator, smart intrusion prevention with human/vehicle classification, people counting, and up to 4-lane license-plate capture. It has an IP67 outdoor housing with a built-in heater for cold starts, and powers over PoE (802.3at) or AC 24V, with a −40 °C to 70 °C working range.

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Long perimeters & fence linesZoomed to 143 mm, DORI Identify reaches 214.5 m (703.7 ft.) — one camera can watch a whole fence line without blind spots.

Toll gates & vehicle lanesTraffic monitoring captures license plates on up to 4 lanes as vehicles cross a tripwire — set up for high-pole or low-pole mounting.

Warehouse & site perimetersIP67 body and −40 to 70 °C rating survive rain, dust and heat; a built-in heater keeps it starting up in the cold.

Residential compoundsSmart intrusion prevention classifies people, non-motor vehicles and vehicles — fewer false alerts from stray animals or moving branches.

Small offices & receptionUltra 265 compression and triple streaming keep recordings small — more days of footage on the same NVR disk.

Kiosks & remote polesOne PoE cable does power + video, or run AC 24V where PoE isn't available — quick to install and move.

Not the right pick if you need…

Wi-Fi — this is a wired RJ45/SFP camera
Built-in speaker/mic — audio uses wired I/O terminals for an external mic and speaker, not on-body audio hardware
Remote motorized pan-tilt (PTZ) — pan/tilt/rotate adjustment here is a manual mounting aim, not a steerable PTZ head

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 4 MP, 1/1.8" CMOS sensor

2688 × 1520@30 fps in the main stream

Ultra 265, H.265, H.264, MJPEG

Triple streams offer more choices for different clients in an integrated solution

22X optical zoom allows for closer viewing of subjects

Smart intrusion prevention, supports false alarm filtering, including cross line, intrusion, enter area, leave area detection

Automatic selection of best snapshots, supports face detection masked area

People counting, supports people flow counting and crowd density monitoring, suitable for different statistical scenarios

LightHunter technology ensures ultra-high image quality in low illumination environment

Up to 120 dB optical WDR (wide dynamic range)

Built-in heater, supports normal start-up at low temperature

Supports optical interface and network interface serial connection, reduce the cost of wiring

22X optical zoom: one lens, two extremes

Same mounting position, same camera — aim wide or zoom in without moving anything.

WIDE END

6.5 mm — wide entry view

At the widest end (6.5 mm, 60.47° horizontal FOV) the camera covers a full gate or yard. DORI Identify range: 9.8 m (32.0 ft.).

TELE END

143 mm — 22X zoom reach

Zoomed to 143 mm (3.49° horizontal FOV) plus 16X digital zoom, DORI Identify range extends to 214.5 m (703.7 ft.) — read a distant plate or face.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance.

Detectsomething is there

97.5 m319.9 ft

Observewhat is happening

39 m128.0 ft

Recognizesomeone you know

19.5 m64.0 ft

Identifya stranger's face

9.8 m32.0 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	60.5° wide	3.5° tele
5 m16 ft	5.8 m19.1 ft	0.3 m1.0 ft
10 m33 ft	11.7 m38.2 ft	0.6 m2.0 ft
15 m49 ft	17.5 m57.4 ft	0.9 m3.0 ft
20 m66 ft	23.3 m76.5 ft	1.2 m4.0 ft
30 m98 ft	35.0 m115 ft	1.8 m6.0 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Camera

Max Resolution	4 MP
Sensor	1/1.8" CMOS
Min. Illumination	Color: 0.001 Lux (F1.5, AGC ON), 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
Adjustment Angle	Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
S/N	> 56 dB
WDR	120 dB

Lens

Focal Length	6.5 to 143 mm
Optical Zoom	22X
Digital Zoom	16X
Iris	F1.5
Field of View (H)	3.49° to 60.47°
Field of View (V)	1.97° to 36.30°
Field of View (D)	4.12° to 74.38°

DORI

DORI Distance (Lens)	6.5 to 143 mm
DORI Distance (Detect)	WIDE · 97.5 m (319.9 ft.)TELE · 2145.0 m (7037.4 ft.)
DORI Distance (Observe)	WIDE · 39.0 m (128.0 ft.)TELE · 858.0 m (2815.0 ft.)
DORI Distance (Recognize)	WIDE · 19.5 m (64.0 ft.)TELE · 429.0 m (1407.5 ft.)
DORI Distance (Identify)	WIDE · 9.8 m (32.0 ft.)TELE · 214.5 m (703.7 ft.)

Illuminator

Illumination Distance (IR)	150 m (492.1 ft.)
IR On/Off Control	Auto/Manual
Wavelength	850 nm

Video

Video Compression	Ultra 265, H.265, H.264, MJPEG
Frame Rate-Main Stream	4 MP (2688 × 1520), max. 30 fps
Frame Rate-Sub Stream	1080P (1920 × 1080), max. 30 fps
Frame Rate-Third Stream	D1 (720 × 576), max. 30 fps
Video Bit Rate	128 Kbps to 16 Mbps
U-code	Support
OSD	Up to 10 OSDs
Privacy Mask	Up to 4 areas
ROI	Support
Video Stream	Triple streams


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
HLC	Support
BLC	Support
Defog	Digital defog
Heatwave Reduction	Support

Intelligent

Exception Detection	Object removed, Object Left Behind
Smart Intrusion Prevention	Cross line detection, intrusion detection, enter area detection, leave area detection (supports false alarm filtering and classification of human, non-motor vehicle and vehicle)
People Counting	Supports people flow counting and crowd density monitoring
Traffic Monitoring	Supports capturing car license picture when the car passes a tripwire, up to 4 lanes; High-pole or Low-pole application mode

Events

Basic Detection	Motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, Alarm input, Alarm output

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	128 Kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	16 kHz

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)

Network

Protocols	SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Security	TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	EZStation, UNV-Link, UNV-Link Pro
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+; Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O	1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p]; 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Alarm I/O	2/1
Serial Port	1 × RS485
Network	1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet + 1 × 100 M/1000 M SFP
Video Output	1 BNC (for debugging)

Certification

Environment	CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection	IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013)

General

Power	AC 24 V (±25%), PoE (IEEE 802.3at)
Power Consumption	Max. 16 W
Power Interface	Wires with cold-pressed terminal
Dimensions	395 mm × 137 mm × 112 mm (15.6" × 5.4" × 4.4") (L × W × H)
Weight	3.7 kg (8.16 lb.)
Working Environment	-40 °C to 70 °C (-40 °F to 158 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-40 °C to 70 °C (-40 °F to 158 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	6 KV
Reset Button	Support
Heater	Support
Web Client Language	22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak

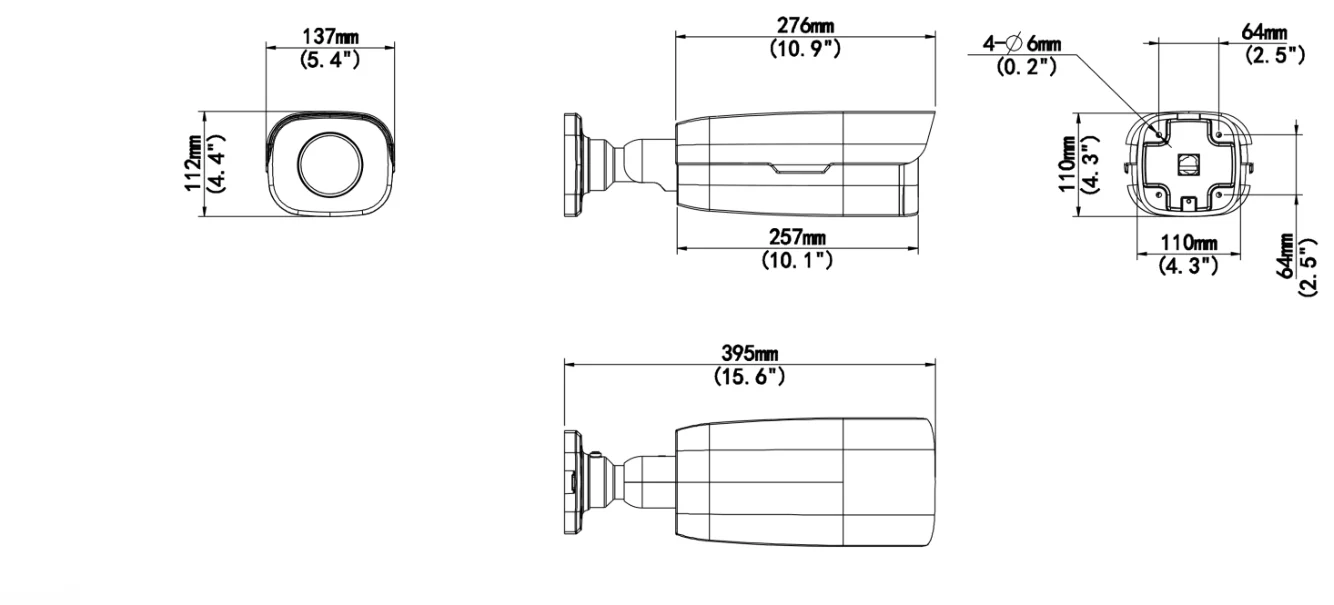

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	395 × 137 × 112 mm (15.6" × 5.4" × 4.4")
Weight	3.7 kg (8.16 lb.)
Mount adjustment	Pan 0–360° · Tilt 0–90° · Rotate 0–360°

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-JB07-D-INBullet junction box (supports wiring from behind)

TR-A01-INNPT 3/4" waterproof cable gland

TR-UP06-C-IN-V2Pole mounting bracket for bullet junction box only

4MP 22X Zoom Bullet FAQ — IPC254EB-DX22GK-I0

How far can it identify a face or read a plate?

At full 143 mm telephoto the DORI identify range is 214.5 m, with recognize at 429 m and detect out to 2145 m. The 22X optical zoom plus 16X digital zoom lets one camera watch a long approach road that would otherwise need several fixed units.

What is the IR range at night?

Smart IR reaches up to 150 m at 850 nm with Auto or Manual control, matched to the long zoom so targets stay lit when you zoom in. Minimum illumination is 0.001 lux in color and 0 lux with IR, on a 1/1.8-inch LightHunter sensor.

Can it capture vehicle plates on a road?

Yes — traffic monitoring captures a car license picture when the vehicle crosses a tripwire, across up to 4 lanes, with high-pole and low-pole application modes. Smart Intrusion Prevention adds cross-line, intrusion, enter and leave-area rules with false-alarm filtering.

What power options does it accept?

Two options: PoE over the network cable, or AC24V where you already have local power on the pole. The IP67 housing is sealed for outdoor mounting, and heatwave reduction keeps long-range telephoto images stable over hot roads and rooftops.

What streams and bandwidth should I plan for?

Triple streams: a 4 MP (2688×1520) main stream at up to 30 fps, a 1080P sub stream and a D1 third stream, each up to 30 fps. Bitrate is configurable from 128 Kbps to 16 Mbps with Ultra 265 and U-code, so you can tune quality per link.

Does it include people counting?

Yes — it supports people flow counting and crowd density monitoring, plus exception detection for object removed and object left behind. For a market, terminal or depot entrance, this gives basic footfall statistics from the same camera doing perimeter work.
