IP Cameras › IPC265EB-DX12K-I0

5MP LightHunter WDR 12X Zoom Network IR Bullet Camera IPC265EB-DX12K-I0

5MP LightHunter WDR 12X Zoom Network IR Bullet Camera IPC265EB-DX12K-I0 — view 1

5MP LightHunter WDR 12X Zoom Network IR Bullet Camera IPC265EB-DX12K-I0 — view 2

5MP LightHunter WDR 12X Zoom Network IR Bullet Camera IPC265EB-DX12K-I0 — view 3

Uniview (UNV) · Bullet5MP · 12X Zoom

5MP LightHunter WDR · 12X Zoom Bullet

IPC265EB-DX12K-I0

Name: Uniview IPC265EB-DX12K-I0
Brand: Uniview
SKU: IPC265EB-DX12K-I0

5MP network bullet camera with a 12X motorized zoom lens (5-60mm) — LightHunter low-light imaging, 120dB WDR, Smart IR to 100m, PoE+ single-cable install, IP67 outdoor body.

5 MP · 2880×1620@30fpsUltra 265 · low bandwidth12X Zoom · 5–60mm motorizedPoE+ · 802.3atIP67 · outdoorTwo-way Audio · built-in mic + speaker

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCRoHSWEEEIP67ONVIF

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

100 mIR night vision

12XOptical zoom

IP67Outdoor rated

13 WPoE+ max power

The Uniview IPC265EB-DX12K-I0 is a 5MP network bullet camera built around a 12X motorized zoom lens covering 5 to 60mm, with 16X additional digital zoom for closer inspection of distant subjects. LightHunter low-light imaging and 120dB wide dynamic range keep footage usable in mixed light, while Smart IR reaches up to 100m at night and smart intrusion prevention, people counting and traffic monitoring run on the camera itself. It draws up to 13W over PoE+ (IEEE 802.3at) or 12V DC, carries an IP67 outdoor rating, and — with its built-in heater — starts normally down to −40°C.

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Long perimeters & fence lines12X motorized zoom (5–60mm) reaches deep down a fence line or driveway, plus 16X digital zoom to inspect distant details.

Warehouse & construction sitesSmart intrusion prevention (cross line, intrusion, enter/leave area) classifies human, non-motor vehicle and vehicle to cut false alarms.

Parking lots & access roadsPeople counting and traffic monitoring (up to 4 lanes, license-plate capture on tripwire) run on the camera itself.

Sites without an on-site NVRMicroSD edge storage (up to 512 GB) and ANR keep footage on the camera itself if the network drops.

Reception desks & gatehousesBuilt-in two-way audio (mic + speaker) lets staff talk to visitors directly through the camera.

Harsh outdoor climatesIP67 + IK10 body and a built-in heater keep it running from −40 °C to 60 °C, with normal start-up even in extreme cold.

Not the right pick if you need…

Wi-Fi — this is a wired RJ45 camera
Visible warm-light deterrence — the illuminator is invisible IR only, no built-in white/warm light
Discreet, compact mounting — this is a large 354mm/1.93kg motorized-zoom body, not a mini bullet

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 5 MP, 1/2.7" CMOS sensor

2880 × 1620@30 fps in the main stream

Ultra 265, H.265, H.264, MJPEG

Triple streams offer more choices for different clients in an integrated solution

12X optical zoom allows for closer viewing of subjects

Smart intrusion prevention: cross line, intrusion, enter area, leave area detection with false-alarm filtering

Automatic selection of best snapshots, supports face detection masked area

People counting: people flow counting and crowd density monitoring

LightHunter technology ensures ultra-high image quality in low illumination

Up to 120 dB optical WDR (wide dynamic range)

Built-in heater, supports normal start-up at low temperature

DC 12 V, PoE+ (IEEE 802.3at) power supply

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Figures below are at full 12X zoom (60mm) — at the wide end (5mm) ranges are shorter but the field of view is much wider.

Detectsomething is there

1417.5 m4650.6 ft

Observewhat is happening

567 m1860.2 ft

Recognizesomeone you know

283.5 m930.1 ft

Identifya stranger's face

141.8 m465.1 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	60.0° wide	5.7° tele
5 m16 ft	5.8 m18.9 ft	0.5 m1.6 ft
10 m33 ft	11.5 m37.9 ft	1.0 m3.3 ft
15 m49 ft	17.3 m56.8 ft	1.5 m4.9 ft
20 m66 ft	23.1 m75.8 ft	2.0 m6.6 ft
30 m98 ft	34.6 m114 ft	3.0 m9.9 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Camera

Sensor	1/2.7" CMOS
Min. Illumination	Color: 0.001 Lux (F1.6, AGC ON), 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
WDR	120 dB
Adjustment Angle	Pan: 0° to 360°, Tilt: 0° to 90°, Rotate: 0° to 360°
S/N	> 56 dB

Lens

Focal Length	5 to 60 mm
Optical Zoom	12X
Digital Zoom	16X
Iris	F1.6
Iris Type	DC-iris
Field of View (H)	59.99° to 5.73°
Field of View (V)	35.03° to 3.39°
Field of View (D)	67.01° to 6.61°

DORI

DORI Distance (Lens)	5 to 60 mm
DORI Distance (Detect)	119.3 m to 1417.5 m (391.2 ft. to 4650.6 ft.)
DORI Distance (Observe)	47.7 m to 567.0 m (156.5 ft. to 1860.2 ft.)
DORI Distance (Recognize)	23.9 m to 283.5 m (78.2 ft. to 930.1 ft.)
DORI Distance (Identify)	11.9 m to 141.8 m (39.1 ft. to 465.1 ft.)

Illuminator

Illumination Distance (IR)	100 m (328.1 ft.)
IR On/Off Control	Auto/Manual
Wavelength	850 nm

Video

Video Compression	Ultra 265, H.265, H.264, MJPEG
Video Bit Rate	128 Kbps to 16 Mbps
U-code	Support
ROI	Support
Video Stream	Triple streams
Privacy Mask	Up to 4 areas
OSD	Up to 10 OSDs
Frame Rate-Main Stream	5 MP (2880 × 1620), max. 30 fps
Frame Rate-Sub Stream	1080P (1920 × 1080), max. 30 fps
Frame Rate-Third Stream	D1 (720 × 576), max. 30 fps

Intelligent

Exception Detection	Object removed, Object Left Behind
Smart Intrusion Prevention	Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
People Counting	Support people flow counting and crowd density monitoring
Traffic Monitoring	Support capturing car license picture when the car passes tripwire, Up to 4 lanes can be set, Two types of application mode avaliable: High/Low pole


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
HLC	Support
BLC	Support
Defog	Digital defog
Heatwave Reduction	Support

Events

Basic Detection	Motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	128 Kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	16 kHz

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)

Network

Protocols	SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Security	TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	EZStation, UNV-Link, UNV-Link Pro
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O	1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Alarm I/O	2/1
Serial Port	1 × RS485
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	1 BNC (for debugging)

Certification

EMC	CE-EMC (EN 55032: 2015+A1:2020, EN 61000-3-3: 2013+A1:2019, EN IEC 61000-3-2: 2019+A1:2021, EN 55035: 2017+A11:2020); FCC (FCC CFR 47 part15, Subpart B, ANSI C63.4-2014)
Safety	CE LVD (EN 62368-1:2014+A11:2017); UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment	CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)
Protection	IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013); IK10 (IEC 62262:2002)

General

Power	DC 12 V (±25%), PoE+ (IEEE 802.3at)
Power Consumption	Max. 13 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	354 mm × 105 mm × 98 mm (13.9" × 4.1" × 3.9") (L × W × H)
Weight	1.93 kg (4.25 lb.)
Working Environment	-40 °C to 60 °C (-40 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-40 °C to 70 °C (-40 °F to 158 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	6 KV
Reset Button	Support
Web Client Language	22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
Heater	Support
Configurable P/N	Support

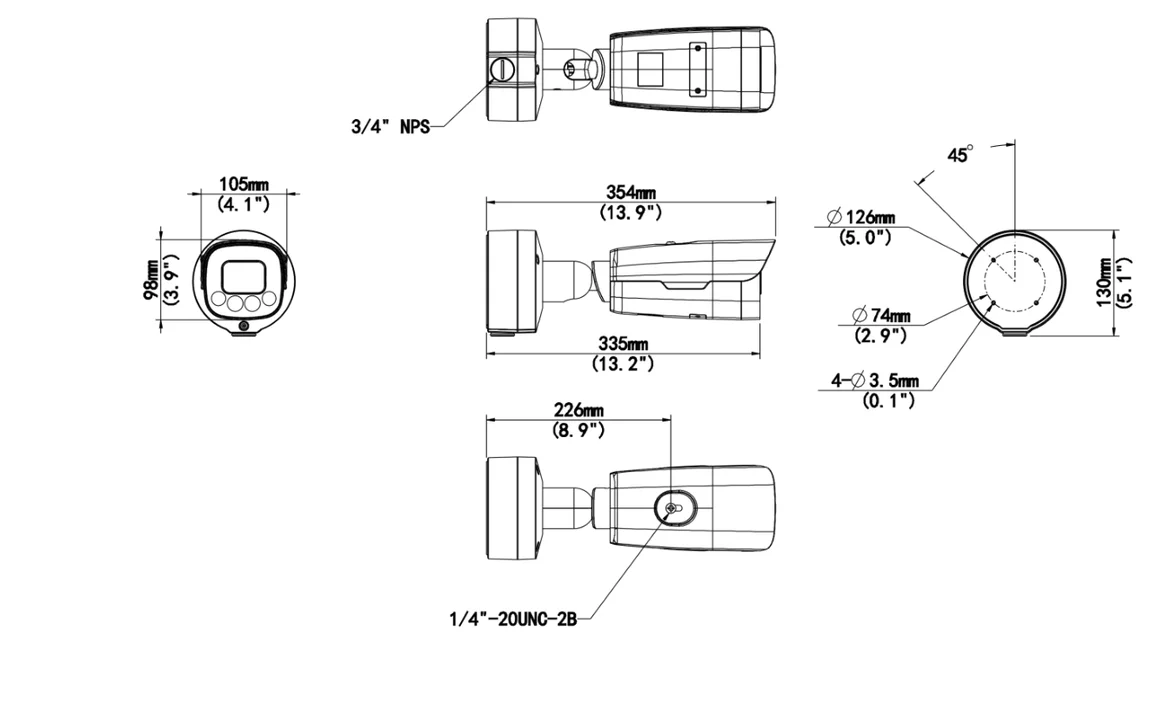

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	354 × 105 × 98 mm (13.9" × 4.1" × 3.9")
Weight	1.93 kg (4.25 lb.)
Mount adjustment	Pan 0–360° · Tilt 0–90° · Rotate 0–360°

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-UP06-C-IN-V2Pole mounting bracket for bullet junction box only

5MP 12X Zoom Bullet FAQ — IPC265EB-DX12K-I0

How far can the 12X zoom identify a person?

DORI identification runs from 11.9 m at the 5 mm wide end to 141.8 m at 60 mm telephoto, with detection out to 1417.5 m. The DC-iris lens plus 16X digital zoom on top let you inspect distant activity along roads or perimeters.

What night vision does it offer?

IR illumination reaches 100 m at 850 nm with Auto/Manual control, and Smart IR avoids overexposing close objects. The 1/2.7-inch LightHunter sensor rates 0.001 lux in color and 0 lux with IR, so long-range night monitoring stays usable.

What resolution and bandwidth should I budget?

Triple streams: a 5 MP (2880×1620) main stream at up to 30 fps, a 1080P sub stream and a D1 third stream. Bitrate adjusts from 128 Kbps to 16 Mbps with Ultra 265 and U-code compression, letting you balance recording quality against limited site uplinks.

How is it powered and is it weatherproof?

It runs on PoE+ over a single network cable, in an IP67-sealed housing with a built-in heater for cold mornings and condensation. Pan, tilt and rotation adjust across 0–360°, 0–90° and 0–360° for pole or wall brackets.

Which analytics are built in?

Smart Intrusion Prevention with cross-line, intrusion, enter and leave-area detection plus false-alarm filtering; people flow counting and crowd density monitoring; exception detection for objects removed or left behind; and traffic monitoring that captures plate pictures at a tripwire across up to 4 lanes.
