8MP+4MP Bi-Channel LightHunter Bullet Network Camera IPC28184EA-ADX5K-F40-I1

8MP+4MP Bi-Channel LightHunter Bullet Network Camera IPC28184EA-ADX5K-F40-I1 — view 1

8MP+4MP Bi-Channel LightHunter Bullet Network Camera IPC28184EA-ADX5K-F40-I1 — view 2

8MP+4MP Bi-Channel LightHunter Bullet Network Camera IPC28184EA-ADX5K-F40-I1 — view 3

8MP+4MP Bi-Channel LightHunter Bullet Network Camera IPC28184EA-ADX5K-F40-I1 — view 4

Uniview (UNV) · BulletLightHunter · Bi-Channel

8MP+4MP Bi-Channel Bullet · LightHunter

IPC28184EA-ADX5K-F40-I1

Name: Uniview IPC28184EA-ADX5K-F40-I1
Brand: Uniview
SKU: IPC28184EA-ADX5K-F40-I1

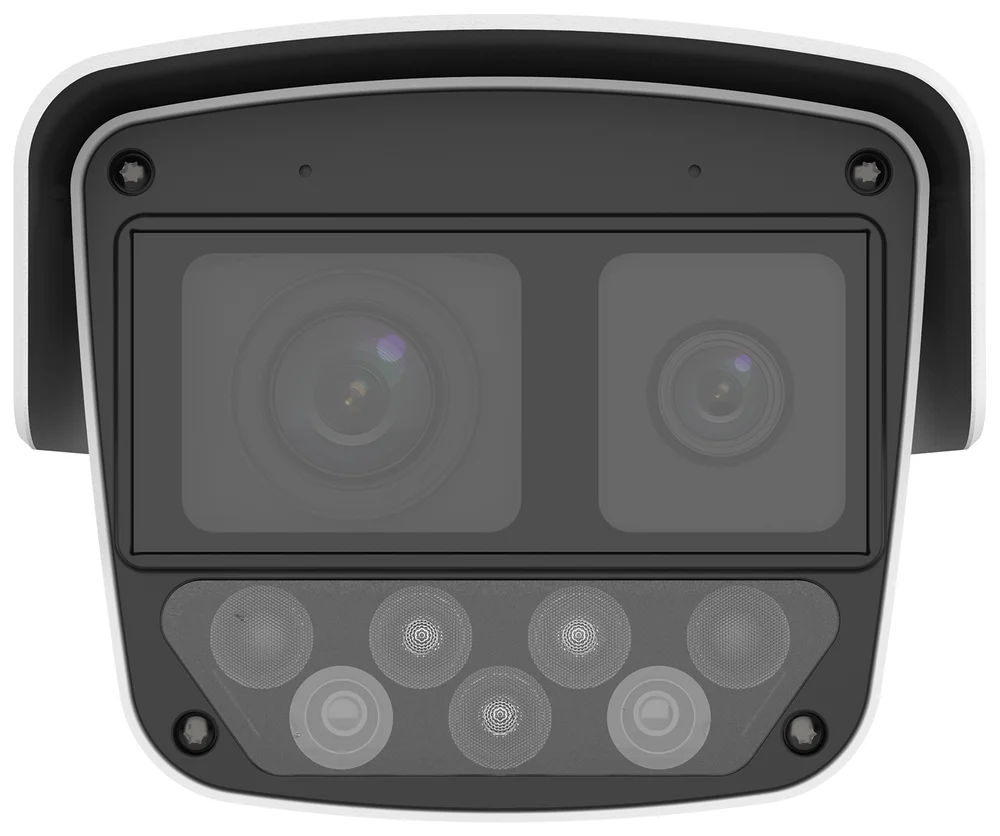

8MP+4MP bi-channel LightHunter bullet camera — one IP body with a fixed 4MP wide-overview lens (4.0mm) plus an 8MP 5X zoom detail lens (10-50mm, electric tilt). Ultra265 compression, dual-mic + speaker, AC24V power, IP66 outdoor body.

8MP+4MP · bi-channel, one IPUltra 265 · low bandwidth5X Zoom · 10-50mm detail channelMic+Speaker · 2-way audioAC24V · 31W max, no PoEIP66 · outdoor

TWO CHANNELS, ONE IP ADDRESS — ALWAYS ON TOGETHER

This is a single camera, not a choice between two models. Channel 1 streams the fixed 4MP wide view (4.0mm); Channel 2 streams the 8MP 5X zoom detail view (10-50mm, electric tilt) — both run at the same time from the same IP address, so you get the full scene and a zoomed-in target on one screen. The spec table below marks every value that differs between the two channels.

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCULRoHSWEEEIP66ONVIF

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

8 MPDetail channel (zoom)

5XOptical zoom, 10-50mm

IP66Outdoor rated

31 WMax power (AC24V)

The Uniview IPC28184EA-ADX5K-F40-I1 is an 8MP+4MP bi-channel LightHunter bullet camera that puts two lenses in one IP body: a fixed 4MP wide-overview channel (4.0mm) and an 8MP 5X optical zoom detail channel (10-50mm, -10° to 10° electric tilt) that keeps the full scene and a zoomed-in target on screen at the same time. Intelligent functions include mix-traffic detection (human/vehicle/non-motor vehicle), face recognition with up to 16 libraries and 100,000 faces, and people counting with crowd density monitoring. It runs on AC24V power, supports MicroSD edge storage up to 512GB, and carries an IP66 body rated -30°C to 60°C.

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Perimeter & wide-area sitesThe 4MP wide channel watches the whole yard or fence line while the 8MP zoom channel closes in on a gate or entry point — no second camera needed.

Traffic & vehicle monitoringMix-traffic detection captures human, motor-vehicle and non-motor-vehicle attributes for parking lots, loading yards and site entrances.

Access checkpoints & face verificationFront-end face comparison checks against blocklist/allowlist libraries — up to 16 libraries, 100,000 faces total, up to 120 faces detected at once.

Plazas & crowd managementPeople counting plus crowd density monitoring suit entrances, lobbies and event spaces.

Long-range identificationThe 5X zoom detail channel plus electric tilt reaches subjects the fixed wide lens alone cannot identify.

Sites needing audio evidenceBuilt-in dual-mic and speaker support two-way audio and sound-light warning for active deterrence.

Not the right pick if you need…

Simple single-cable PoE install — this model runs on AC24V and needs dedicated power wiring, not PoE
Wi-Fi — this is a wired Gigabit RJ45 camera
A single lens that zooms across the whole scene — only the 8MP detail channel zooms (10-50mm); the 4MP wide channel is a fixed 4.0mm lens
Infrared night vision on the wide channel — only the 8MP zoom channel has IR (up to 50 m); the wide channel relies on the shared warm light (up to 30 m)

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

One IP with two channels, combines the details and full view, making target area stand out without losing overall view

3840 × 2160@30fps in the main stream of the detailed channel with ISP algorithm, provides high definition image

Ultra 265, H.265, H.264, MJPEG

Built-in dual-mic, has better sound performance

Two types of illumination light, offer three illumination modes and support sound-light warning

Detailed channel supports electric control and tilt angle adjustment, easier for installation and debugging

Switching among three intelligent functions, suitable for various application scenes

Mix-traffic detection, supports human body, motor vehicle and non-motor vehicle image capture and attribute collection, realizes data visualization management, allows users to get target information for further data analysis

Supports front-end face comparison, supports blocklist and allowlist comparison, increases the concurrent detection number up to 120 faces

Smart intrusion prevention, supports false alarm filtering, realizes accurate detection based on specific target

LightHunter technology ensures ultra-high image quality in low illumination environment

Alarm I/O: 3/2, audio I/O: 2/1

Dual illumination: two ways to light the scene

Auto/Manual switchable, offering three illumination modes overall.

IR MODE (CHANNEL 2)

Near-infrared — discreet night vision on the zoom detail channel

The 8MP zoom detail channel (Channel 2) reaches up to 50 m (164.0 ft.) of infrared at 750 nm, giving covert night vision on the zoomed-in target without lighting the scene. The 4MP wide channel has no IR of its own.

WARM LIGHT MODE (SHARED)

Warm white light — full-color night view with active deterrence

Warm white illumination reaches up to 30 m (98.4 ft.), keeping color detail visible on both channels at night. Combined with sound-light warning, it tells intruders the area is monitored.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Both channels are shown side by side — Channel 2's range spans its 10-50mm zoom, from wide to full tele.

Detectsomething is there

CH1 · 79.1 m (259.6 ft.)CH2 · 292.5–1237.5 m (959.6–4060.0 ft.)

Observewhat is happening

CH1 · 31.7 m (103.9 ft.)CH2 · 117.0–495.0 m (383.9–1624.0 ft.)

Recognizesomeone you know

CH1 · 15.8 m (51.8 ft.)CH2 · 58.5–247.5 m (191.9–812.0 ft.)

Identifya stranger's face

CH1 · 7.9 m (25.9 ft.)CH2 · 29.3–123.8 m (96.1–406.2 ft.)

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	CH1 · 94.7°	8.4° tele
5 m16 ft	10.9 m35.6 ft	0.7 m2.4 ft
10 m33 ft	21.7 m71.2 ft	1.5 m4.8 ft
15 m49 ft	32.6 m107 ft	2.2 m7.2 ft
20 m66 ft	43.4 m142 ft	2.9 m9.6 ft
30 m98 ft	65.1 m214 ft	4.4 m14.5 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows show separate values for each channel:CH1 = 4MP Wide (4.0mm fixed)CH2 = 8MP Zoom (10-50mm, 5X)

Camera

Max Resolution	CH1 · 4 MPCH2 · 8 MP
Sensor	1/1.8" CMOS
Min. Illumination	CH1 · Color: 0.0005 Lux (F1.0, AGC ON)CH2 · Color: 0.005 Lux (F1.6, AGC ON), 0 Lux with IR
Day/Night	CH1 · N/ACH2 · IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
WDR	120 dB
Adjustment Angle	Tilt: -10° to 10° (electric control, for installation and debugging)
S/N	>56 dB

Lens

Focal Length	CH1 · 4.0 mmCH2 · 10 to 50 mm
Optical Zoom	CH1 · N/ACH2 · 5X
Iris	CH1 · F1.0CH2 · F1.6
Field of View (H)	CH1 · 94.7°CH2 · 33.8° to 8.4°
Field of View (V)	CH1 · 50.3°CH2 · 18.8° to 4.6°
Field of View (D)	CH1 · 116.5°CH2 · 39.9° to 10.0°
Iris Type	CH1 · FixedCH2 · DC-iris

DORI

DORI Distance (Detect)	CH1 · 79.1 m (259.6 ft.)CH2 · 292.5 m to 1237.5 m (959.6 ft. to 4060.0 ft.)
DORI Distance (Observe)	CH1 · 31.7 m (103.9 ft.)CH2 · 117.0 m to 495.0 m (383.9 ft. to 1624.0 ft.)
DORI Distance (Recognize)	CH1 · 15.8 m (51.8 ft.)CH2 · 58.5 m to 247.5 m (191.9 ft. to 812.0 ft.)
DORI Distance (Identify)	CH1 · 7.9 m (25.9 ft.)CH2 · 29.3 m to 123.8 m (96.1 ft. to 406.2 ft.)

Illuminator

Illumination Distance (Warm Light)	Up to 30 m (98.4 ft.)
Light On/Off Control	Auto/Manual
Illumination Distance (IR)	CH1 · N/ACH2 · Up to 50 m (164.0 ft.)
Wavelength	CH1 · N/ACH2 · 750 nm

Video

Video Compression	Ultra 265, H.265, H.264, MJPEG
Video Bit Rate	128 Kbps to 16 Mbps
U-code	Support
ROI	Support
Video Stream	Triple streams
OSD	Up to 10 OSDs
Frame Rate - Main Stream	CH1 · 4 MP (2688 × 1520), max. 30 fpsCH2 · 8 MP (3840 × 2160), max. 30 fps
Frame Rate - Sub Stream	1080P (1920 × 1080), max. 30 fps
Frame Rate - Third Stream	D1 (720 × 576), max. 30 fps

Intelligent

Recognition	CH1 · N/ACH2 · Face Recognition: Max support 16 face libraries, Max supports 100000 faces in face library
Metadata Analyse	CH1 · N/ACH2 · Support human body, human face, motor vehicle and non-motor vehicle image capture and attribute collection
Smart Intrusion Prevention	Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
People Counting	CH1 · N/ACH2 · Support people flow counting and crowd density monitoring


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Flip	Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
HLC	Support
BLC	Support
Smart IR	Support
Defog	Digital defog

Events

Basic Detection	CH1 · Motion detection, Tampering alarm, Audio detectionCH2 · Motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input, Alarm output

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	128 Kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	16 KHz

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)

Network

Protocols	SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Security	TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	EZStation, UNV-Link, UNV-Link Pro
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+

Interface

Audio I/O	2 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Alarm I/O	3/2
Serial Port	1 × RS485
Built-in Mic	Built-in dual-mic
Built-in Speaker	Support
Network	1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet

Certification

EMC	CE-EMC (EN 55032: 2015+A1:2020, EN 61000-3-3: 2013+A1: 2019, EN IEC 61000-3-2: 2019+A1: 2021, EN 55035: 2017+A11:2020); FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety	CE LVD (EN 62368-1:2014+A11:2017); UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment	CE-RoHS (2011/65/EU;(EU)2015/863); WEEE (2012/19/EU); Reach (Regulation (EC) No 1907/2006)
Protection	IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)

General

Power	AC 24 V±25%
Power Consumption	Max. 31 W
Power Interface	Wires with cold-pressed terminal
Dimensions	326 mm × 147 mm × 121 mm (12.8" × 5.8" × 4.8") (L × W × H)
Weight	2.11 kg (4.65 lb.)
Working Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-40 °C to 70 °C (-40 °F to 158 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	6 KV
Reset Button	Support
Web Client Language	22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak

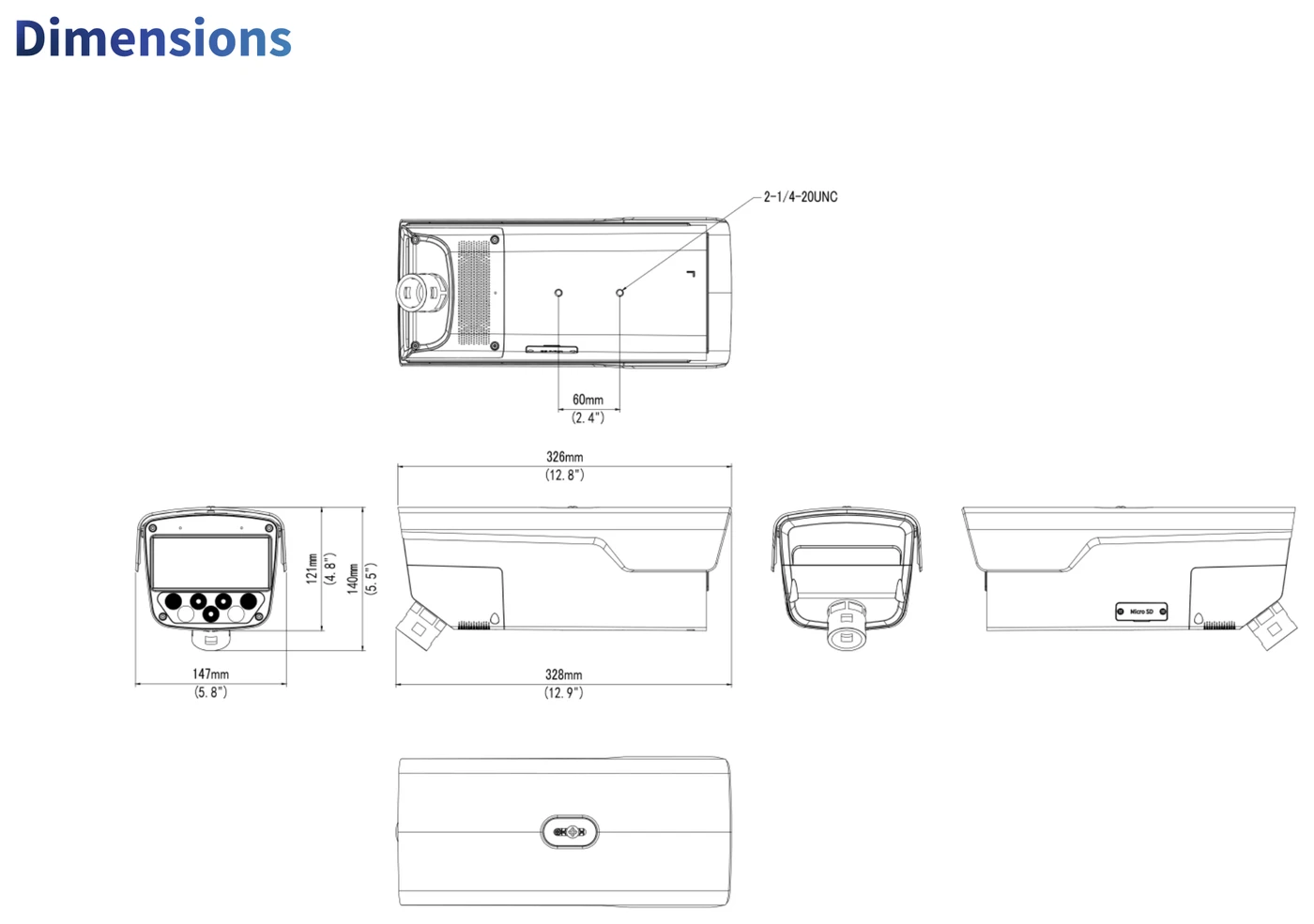

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	326 × 147 × 121 mm (12.8" × 5.8" × 4.8") (L × W × H)
Weight	2.11 kg (4.65 lb.)
Power	AC 24 V±25%
Power Consumption	Max. 31 W
Detail channel tilt	-10° to 10° (electric control)

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-CM06-INBox housing ceiling mounting bracket

TR-UV06-A-IN3D adjustable mounting bracket

TR-UP06-INUniversal pole mounting bracket

TR-WM06-I-INWall mounting bracket for 28 & 29 housing

TR-CM06-C-INPanoramic camera ceiling mounting bracket

8MP+4MP Bi-Channel Bullet FAQ — IPC28184EA-ADX5K-F40-I1

How do the two lenses work on one camera?

One IP address, two channels: Channel 1 is a 4MP fixed 4.0 mm lens giving a 94.7° overview of the whole scene, while Channel 2 is an 8MP 10–50 mm lens with 5X optical zoom that captures close detail. You record and view both like a single device.

How far can the detail channel identify someone?

Channel 2 DORI identification runs from 29.3 m to 123.8 m across the 10–50 mm zoom, with detection out to 1237.5 m. The wide channel identifies at 7.9 m and detects at 79.1 m, so near-field context and far-field detail are covered at the same time.

What does it do at night to deter intruders?

Warm white light reaches up to 30 m, keeping full color on both channels, while Channel 2 also carries near-infrared to 50 m at 750 nm for covert zoomed views. Sound-light warning uses the dual microphones and speaker to challenge intruders actively.

Can I power it with PoE?

This model is specified for AC24V power, so plan a 24V AC supply at the mounting point rather than PoE cabling. The housing is rated IP66 against dust and heavy rain, and an electric tilt of -10° to +10° assists alignment during commissioning.

Which AI functions does the zoom channel run?

Channel 2 supports face recognition with up to 16 libraries and 100,000 faces, metadata capture of human bodies, faces, motor and non-motor vehicles, plus people flow counting and crowd density monitoring. Smart Intrusion Prevention adds cross-line, intrusion, enter and leave-area rules with false-alarm filtering.

What streams do the two channels deliver?

Channel 1 records 4 MP (2688×1520) and Channel 2 records 8 MP (3840×2160), both at up to 30 fps on the main stream, with 1080P sub and D1 third streams at 30 fps. Ultra 265 compression keeps bitrate between 128 Kbps and 16 Mbps.
