NVR516-64 / 128E-R
64 / 128-channel 3U rack-mount network video recorder — 16 hot-swap SATA bays with RAID 0/1/5/6/10/50/60, records cameras up to 32MP, Ultra 265 compression, optional redundant power supply.
Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port
Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
How many terabytes for your channels and days? Use the storage calculator →
Need the PDF datasheet? Get it on WhatsApp →Sample quantities are welcome — testing one or two units first is the normal way to start.

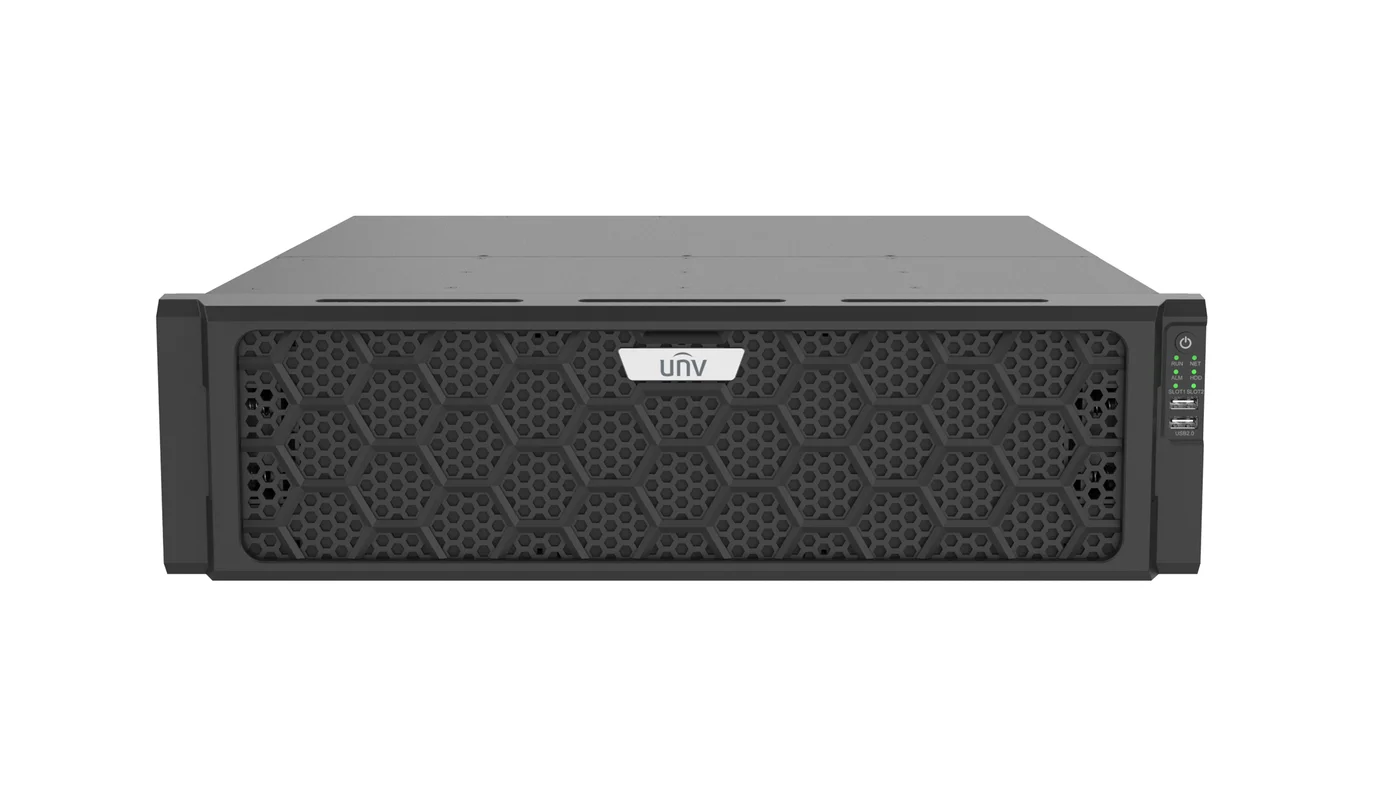

The Uniview NVR516-E-R Series is a 16-bay 3U rack-mount network video recorder offered in two sizes: NVR516-64E-R (64-ch) and NVR516-128E-R (128-ch). Both record cameras up to 32MP with Ultra 265 / H.265 / H.264 compression, support hot-swappable SATA drives (up to 24 TB each) configurable as RAID 0, 1, 5, 6, 10, 50 or 60, and accept an optional second power supply for redundancy. The recorder outputs over 2 HDMI (HDMI1 up to 8K, HDMI2 up to 4K) and 2 VGA ports, includes Smart features such as face, vehicle (LPR) and temperature detection, and provides a 38-language local interface.
Is this the right recorder for you?
Plain-language guide for buyers and installers — based only on what this recorder actually does.
- PoE ports — this recorder has no built-in PoE; cameras need a separate PoE switch
- A redundant power supply included as standard — the manual lists it as an optional add-on module (PWR-DC12-350A-IN), not pre-installed
- Full per-channel bandwidth headroom at 128 channels — 640 Mbps incoming bandwidth is shared across all channels, so plan the average bitrate per camera accordingly at the top model
- 8K or 4K resolution over VGA — VGA output tops out at 1920×1080; use HDMI1 for the 8K/4K modes
- A dedicated two-way audio port — two-way audio reuses the shared RCA audio input/output jacks, not a separate connector
Worried about counterfeits? Order under your own company name.
For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.
Using your own freight forwarder? No problem.
For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.
Key Features
Complete list from the official datasheet.
Hot-swap RAID storage. Investigation-ready search.
The two capabilities that decide whether a large-scale recorder survives a hardware failure and finds the footage that matters.
Swap a failed disk without downtime
16 hot-swap SATA bays (up to 24 TB each) configurable as RAID 0, 1, 5, 6, 10, 50 or 60, plus N+1 hot spare — a failed drive is pulled and replaced while the array and the recorder keep running.
Find the moment across 128 channels
Face detection, face comparison, vehicle (LPR), temperature detection, human body and general VCA search plus Heat Map and People Counting turn hours of multi-channel footage into the exact clip you need.
Which size fits your project?
Bars show camera capacity per model. Click the model buttons above to switch — the spec table highlights every other difference.
Full Specifications
Complete official specifications from the manufacturer's datasheet (technical values in English).
Decoding
| Decoding Format | Ultra 265, H.265, H.264 |
| Decoding Capability | 64E-R · H264 : 2 × 32MP@30, 4 × 16MP@30, 6 × 12MP@30, 9 × 4K@30, 14 × 5MP@30, 18 × 4MP@30, 24 × 3MP@30, 36 × 1080P@30, 64 × 720P@30 | H265 : 3 × 32MP@30, 6 × 16MP@30, 8 × 12MP@30, 12 × 4K@30, 19 × 5MP@30, 24 × 4MP@30, 32 × 3MP@30, 48 × 1080P@30, 64 × 720P@30128E-R · H264 : 2 × 32MP@30, 4 × 16MP@30, 6 × 12MP@30, 9 × 4K@30, 14 × 5MP@30, 18 × 4MP@30, 24 × 3MP@30, 36 × 1080P@30, 72 × 720P@30, 128 × D1 | H265 : 3 × 32MP@30, 6 × 16MP@30, 8 × 12MP@30, 12 × 4K@30, 19 × 5MP@30, 24 × 4MP@30, 32 × 3MP@30, 48 × 1080P@30, 96 × 720P@30, 128 × D1 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8640 pixels in length or width. For VGA/HDMI independent output, the VGA live video is output by default. To output the highest resolution video from the HDMI port, please clear the VGA video on the preview page. |
| Audio Compression | G.711A, G.711U |
Network
| Incoming Bandwidth | 640 Mbps |
| Outgoing Bandwidth | 640 Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPv6, IPv4 |
| Browser (Plugin) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
Video/Audio Input
| IP Video Input | 64E-R · 64-ch128E-R · 128-ch |
| RCA Audio Input | 1-ch |
Video/Audio Output
| HDMI Output | HDMI1: 8K (7680 × 4320)/30 Hz, 4K (3840 × 2160)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz; HDMI2: 4K (3840 × 2160)/60 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| VGA Output | 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| RCA Audio Output | 2-ch |
| Liveview Display | 1/4/6/8/9/16/25/36/64 |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 |
| Two-way Audio | 1-ch, RCA (Using the audio input and output) |
| Snapshot | FTP/Schedule/Event Snapshot; 16-ch snapshot (max. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution) |
Recording
| Recording Resolution | 32 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Synchronous Playback in Local | 16-ch |
Smart Function
| Smart by IPC | All channels (up to 32 images/s in total) Face Detection, Face Comparison, Vehicle Detection (LPR), Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring |
| VCA Search | Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map |
Alarm
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
GUI Language
| GUI Language | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
Hard Disk
| SATA | 16 SATA Interfaces |
| Capacity | Up to 24 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size, the environment temperature for use should not exceed 40°C) |
| Disk Group | Support |
| Redundant Storage | Support |
| Disk Array Type | RAID 0, 1, 5, 6, 10, 50, 60 |
| Hot Swap | Support |

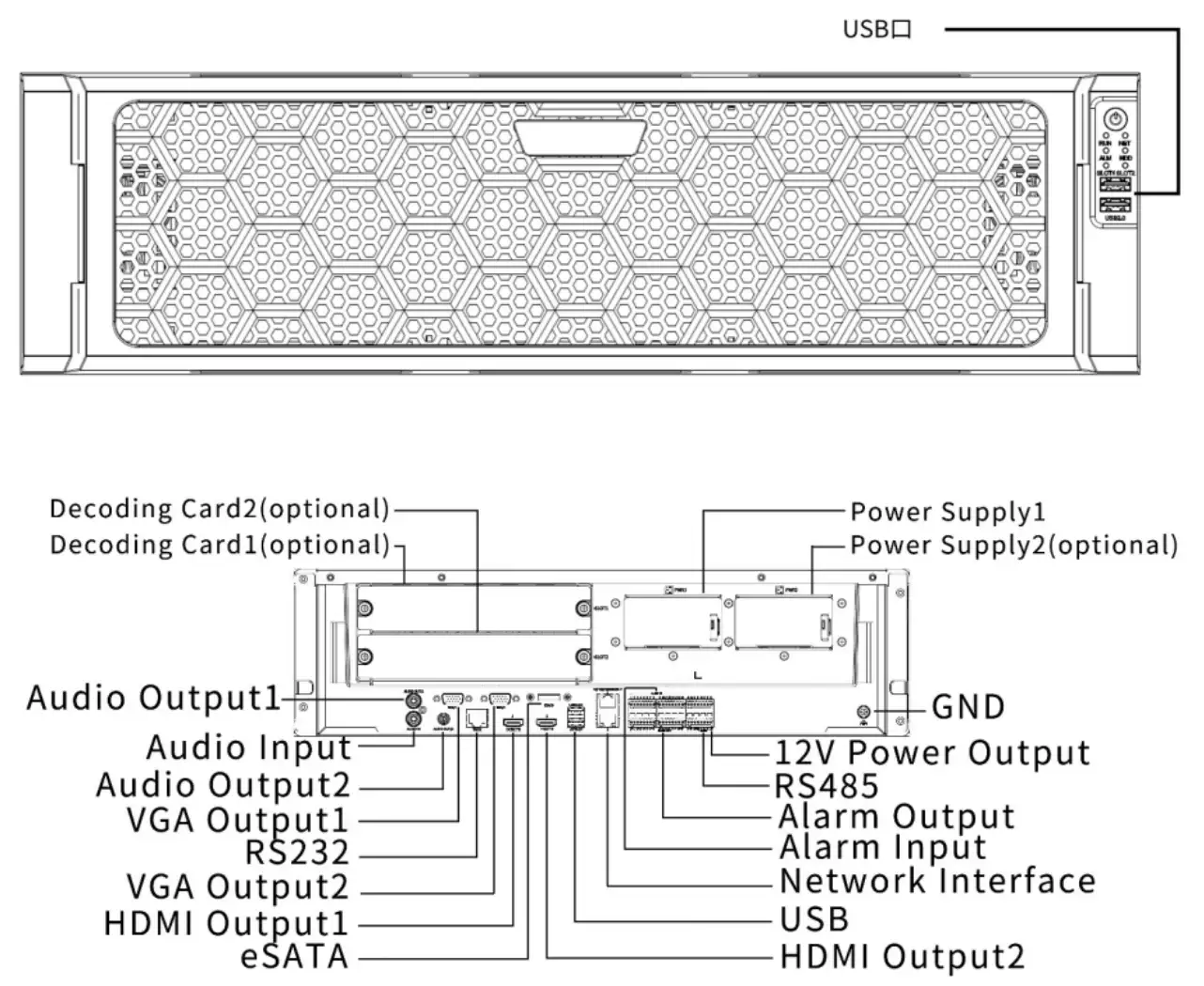

External Interface
| Network Interface | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 2 × USB2.0, Rear panel: 2 × USB3.0 |
| RS485 | 1 |
| RS232 | 1 |
| Alarm In | 16-ch |
| Alarm Out | 10-ch |
| Power Output | 12 V |
| Power Supply | AC 100 to 240 V |
| Power Switch | Support |
| Redundant Power Supply | Support |
Working Environment
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Power Consumption (without HDD) | ≤ 50 W |
Dimensions
| Weight (without HDD) | ≤ 6.5 Kg (14.3 lb) |
| Height | 3U |
| Dimensions | 482 mm × 533 mm × 131 mm (19.0" × 21.0" × 5.1") |
Certification
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC | Part15 Subpart B |

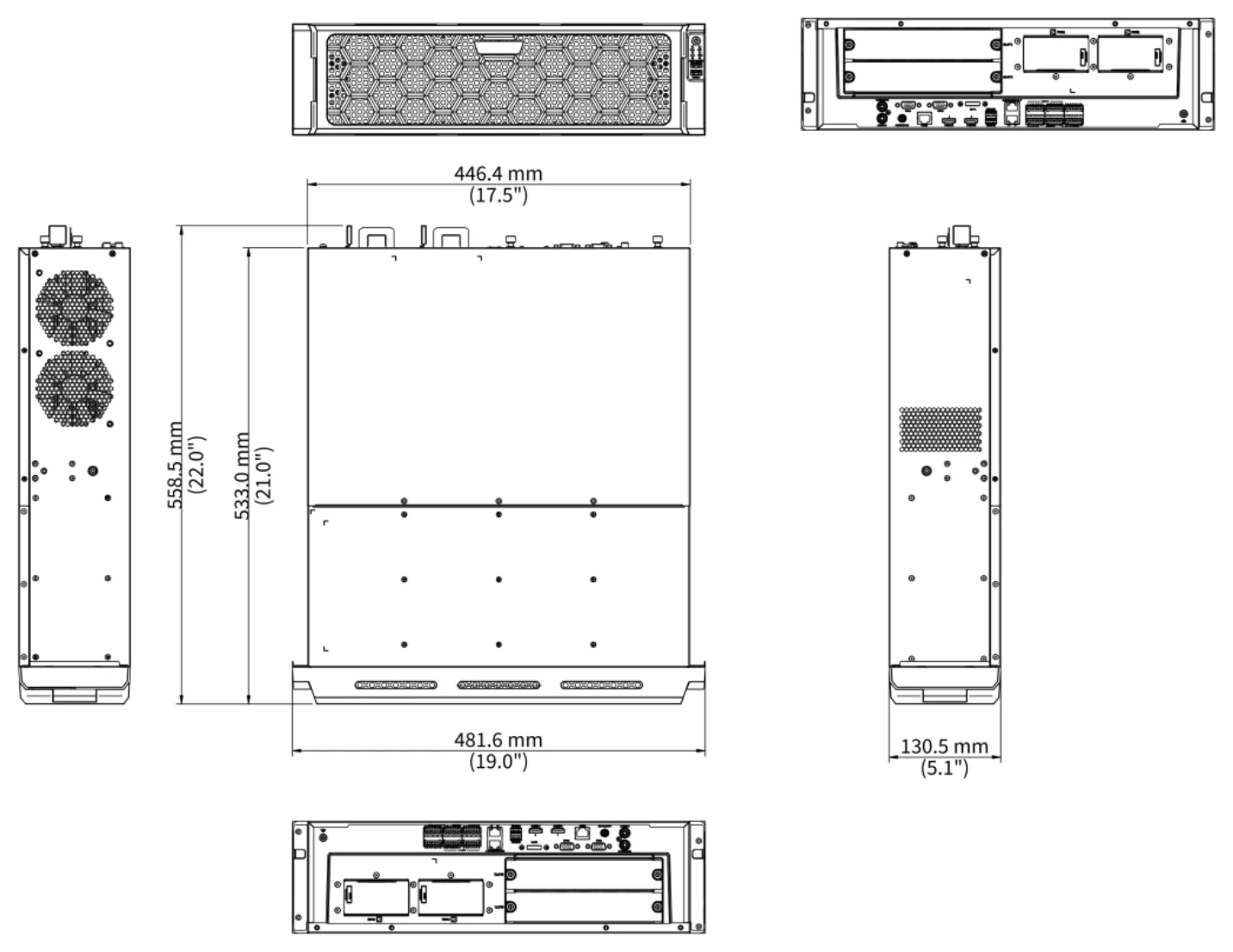

Dimensions
Engineering drawing reproduced 1:1 from the official datasheet.
| Dimensions | 482 mm × 533 mm × 131 mm (19.0" × 21.0" × 5.1") |
| Height | 3U |
| Weight (without HDD) | ≤ 6.5 kg (14.3 lb) |
| Power supply | AC 100 to 240 V |
| Consumption (without HDD) | ≤ 50 W |
Optional Mounting & Expansion Accessories
Order together with the recorder to save shipping.
64/128-Channel Hot-Swap RAID NVR FAQ — NVR516-E-R
What happens when a hard disk fails?
How much video can 128 channels push into it?
What is the maximum camera resolution and monitor output?
Which smart functions work across the channels?
Is it suitable for sites with unreliable mains power?
