6MP 200° Panorama + 4MP 42× Detail · Dual-Channel PTZ
IPC98246EFW-X42-W-VH1
Three lenses, two channels, one IP: a pair of spliced lenses outputs a single 200° panorama while the 42× detail channel tracks whatever the panorama detects — drag on the wide view and the zoom lens centers there instantly.
PoE 802.3bt · or 24 V AC/DC · max. 74 WIP67 · IK10 · vandal-resistant housing-40 to 70 °C · all-climate operationDrag-to-zoom · panorama drives the 42× lens512 GB · edge MicroSD + ANR
Get Best Price on WhatsApp
Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port
Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
Need the PDF datasheet? Get it on WhatsApp →In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port
Sample quantities are welcome — testing one or two units first is the normal way to start.
Compliance:ONVIF Profile SONVIF Profile GONVIF Profile T
Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.
The IPC98246EFW-X42-W-VH1 is a panoramic linkage PTZ camera with a three-lens, dual-channel design: two lenses are stitched into one 6MP 200°×78° panorama (3680 × 1656 @30 fps), while a third 42× lens (6–252 mm) delivers 4MP close-up detail. When the panorama channel detects intrusion, line crossing or area entry/exit, the detail channel automatically tracks the target and captures snapshots — and drag-to-zoom lets an operator magnify any spot of the panorama in the detail view. Both channels use 1/1.8" Wise-ISP sensors rated to 0.0005 lux, backed by 30 m warm light on the panorama and 350 m vari-focal laser IR on the detail side, in an IP67/IK10 housing rated -40 to 70 °C.
Is this the right camera for you?
Plain-language guide for buyers and installers — based only on what this camera actually does.
City squares & transit hubsOne pole covers a 200° sweep of the plaza while the 42× channel pulls close-ups at distance. After hours, panoramic linkage tracks intruders automatically on intrusion, cross-line and enter/leave-area events.
Stadiums & event crowdsPeople flow counting and crowd density detection run right on the panorama channel; at the gates, the detail channel classifies and snapshots motor vehicles, non-motor vehicles and pedestrians.
Ports & logistics yardsThe 350 m laser IR on the detail channel patrols container rows at night — 1024 presets and 16 patrol routes with recording — while the 200° panorama keeps the whole apron in one frame.
Riverbanks & reservoir damsIP67 sealing, -40 to 70 °C rating, snow removal mode and optical defog keep both channels usable in fog, frost and spray; 6 KV surge protection suits exposed pole mounts far from the equipment room.
Ring roads & interchangesAdaptive highlight compensation tames headlight glare at night; multi-target detection extracts metadata of motor vehicles, non-motor vehicles, faces and bodies while the panorama watches every approach lane at once.
Control-room investigationDrag a box on the 200° panorama and the 42× lens centers there instantly (drag-to-zoom); 3D positioning, 35 concurrent streams and 50 Mbps of bandwidth serve several operators at the same time.
Not the right pick if you need…
- Max. 74 W: PoE needs an IEEE 802.3bt (Hi-PoE) port or a 24 V AC/DC feed — a standard 802.3af/at switch port will not power this camera.
- The panorama is fixed at 200° with motorized 0–30° vertical adjustment only — if you need a full 360° stitched panorama, the 16MP IPC96342 flagship is the right pick.
- The detail channel tops out at 4MP / 42× (DORI Identify 333 m at telephoto) — for ultra-long-range work with a 32MP panorama and 500 m IR, see the IPC98344.
- 8.4 kg dome body: mount it on the dome-series brackets from the accessory list (wall / pole / corner / gooseneck) — light-duty camera brackets are not rated for this weight.
- No built-in microphone — two-way audio works through the external audio input (1 kΩ); a speaker is built in, the mic is not.
Worried about counterfeits? Order under your own company name.
For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.
1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site
Using your own freight forwarder? No problem.
For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.
EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order
Note: manufacturer order registration (left) is available via the corporate purchase channel.
How to get a better price
Volume Discount50+ units of a single model
CONTACT USMix & Match DiscountMix any categories & models storewide in one order — no quantity limit
BETTERVerified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you
BESTAll discounts are quoted personally — message me on WhatsApp ↑
Key Features
Complete list from the official datasheet.
Three-lens design: two lenses splice into one seamless 200° (H) × 78° (V) panorama — 260° diagonal — while the third lens zooms 42×
Panoramic linkage: intrusion, cross-line and enter/leave-area events on the panorama automatically trigger detail-channel tracking and snapshots
Drag-to-zoom: drag on the panoramic image and the detail channel centers on that area at once
Wise-ISP low-light processing on both 1/1.8" sensors: 0.0005 lux in color, 0 lux with IR, 120 dB WDR
Full-spectrum illumination: 30 m warm light for the panorama, 350 m vari-focal laser IR for the detail channel
Deep-learning VCA: smart intrusion prevention and people flow counting on the panorama; SIP, people counting, multi-target detection and auto tracking on the detail channel
Metadata extraction for motor vehicles, non-motor vehicles, faces and human bodies — attributes collected at capture time
Hard-scene toolkit: optical defog and heatwave reduction on the detail lens, adaptive highlight compensation for night traffic, motorized 0–30° panorama tilt

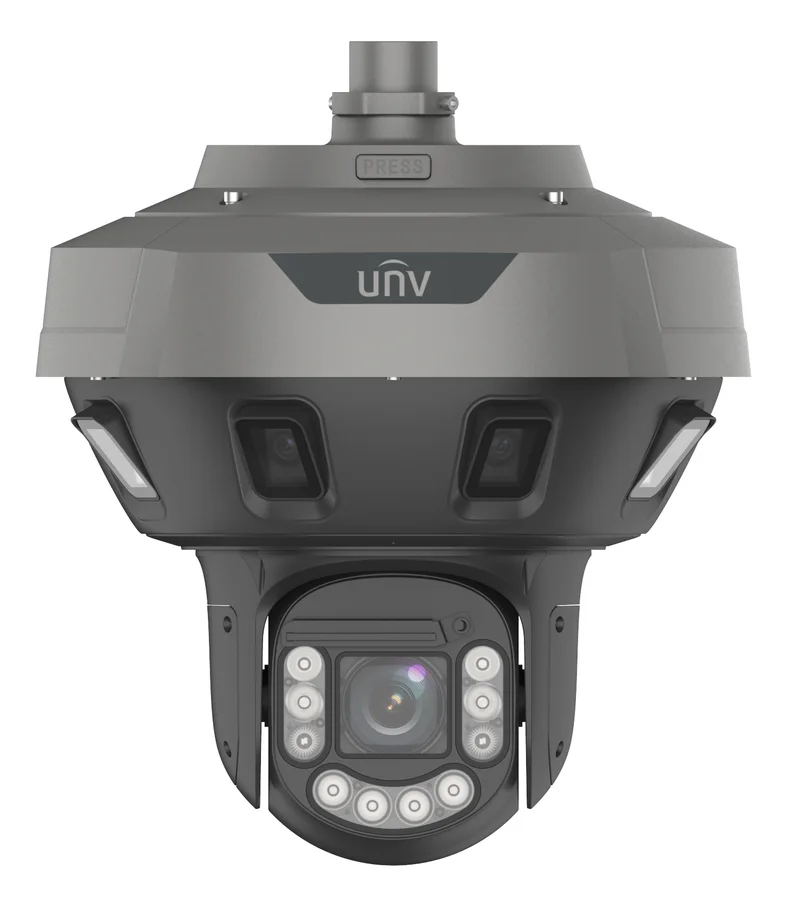

One Body: 200° Panorama + 42× Detail
Both channels stream simultaneously from a single IP address.
PANORAMA
Two spliced lenses output one 6MP 200° image with 30 m warm light — smart intrusion prevention and people counting run on the wide view, with motorized 0–30° vertical trim
undefined
DETAIL CHANNEL
42× zoom with full 360° pan at up to 180°/s, 350 m vari-focal laser IR, auto tracking with human/vehicle filtering, manual wiper and optical defog — the chase camera of the pair
undefined
How far can it see? (DORI — Optical Channel)
DORI (EN 62676-4) is the industry yardstick for what a camera can resolve at distance. The Panorama column is the fixed 2.2 mm 200° stitched view; the Detail column shows the 42× channel at full telephoto — its wide-end figures (Detect from 107.2 m) are kept in the spec table below.
Detectsomething is there
34.1 m111.9 ft
Observewhat is happening
13.7 m45.0 ft
Recognizeseen this person before?
6.8 m22.3 ft
Identifyidentify beyond doubt
3.4 m11.2 ft
How wide a view at each distance
Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.
| Distance | MAL · 59.5° | 2.2° tele |
|---|---|---|
| 5 m16 ft | 5.7 m18.7 ft | 0.2 m0.6 ft |
| 10 m33 ft | 11.4 m37.5 ft | 0.4 m1.3 ft |
| 15 m49 ft | 17.1 m56.2 ft | 0.6 m1.9 ft |
| 20 m66 ft | 22.8 m75.0 ft | 0.8 m2.5 ft |
| 30 m98 ft | 34.3 m112 ft | 1.2 m3.8 ft |
Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.
Full Specifications
Complete official specifications from the manufacturer's datasheet (technical values in English).
Highlighted rows are channel-specific:PANORAMA = 6MP 200° stitchedDETAIL = 4MP 42× PTZ channel
Camera
| Max Resolution | OPTICAL · 6 MP (3680 × 1656)THERMAL · 4 MP (2688 × 1520) |
| Sensor | 1/1.8" CMOS (both channels) |
| Min. Illumination | Color: 0.0005 lux (F1.2, AGC ON), 0 lux with IR |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB |
| S/N | >56 dB |
Lens & Field of View
| Focal Length | OPTICAL · 2.2 mm (fixed)THERMAL · 6 to 252 mm |
| Optical Zoom | OPTICAL · N/ATHERMAL · 42× |
| Digital Zoom | OPTICAL · N/ATHERMAL · 16× |
| Field of View (H) | OPTICAL · 200°±5°THERMAL · 59.47° to 2.20° |
| Field of View (V) | OPTICAL · 78°THERMAL · 35.62° to 1.24° |
| Field of View (D) | OPTICAL · 260°±5°THERMAL · 73.14° to 2.59° |
DORI Distance
| Detect | OPTICAL · 34.1 m (111.9 ft.)THERMAL · 107.2 m to 3330.6 m (351.7 ft. to 10927.2 ft.) |
| Observe | OPTICAL · 13.7 m (45.0 ft.)THERMAL · 42.9 m to 1332.2 m (140.8 ft. to 4370.7 ft.) |
| Recognize | OPTICAL · 6.8 m (22.3 ft.)THERMAL · 21.4 m to 666.1 m (70.2 ft. to 2185.4 ft.) |
| Identify | OPTICAL · 3.4 m (11.2 ft.)THERMAL · 10.7 m to 333.1 m (35.1 ft. to 1092.9 ft.) |
Video
| Privacy Mask | 24 areas, up to 8 areas per scene |
| Frame Rate — Main Stream | OPTICAL · 6 MP (3680 × 1656), max. 30 fps; 6 MP (3632 × 1632), max. 30 fps; 1200 × 536, max. 30 fps; 960 × 432, max. 30 fpsTHERMAL · 4 MP (2688 × 1520), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps; 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps |
| Frame Rate — Sub Stream | OPTICAL · 1200 × 536, max. 30 fps; 960 × 432, max. 30 fpsTHERMAL · 1080P (1920 × 1080), max. 30 fps; 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps |
| Frame Rate — Third Stream | OPTICAL · 960 × 432, max. 30 fpsTHERMAL · D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps; 2CIF (704 × 288), max. 30 fps; CIF (352 × 288), max. 30 fps |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate Recommendation | OPTICAL · 3680 × 1656@30 fps + 1200 × 536@30 fps + 960 × 432@30 fpsTHERMAL · 2688 × 1520@30 fps + 1080P@30 fps + D1@30 fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| ROI | Up to 8 areas |
| Video Stream | Triple streams (per channel) |
| OSD | Up to 10 OSDs |
Intelligent
| Metadata Analyse | Human body, human face, motor vehicle and non-motor vehicle image capture and attribute collection |
| Linkage Function | Support — triggered by the fixed (panorama) lens via smart intrusion prevention to track the target |
| Auto Tracking | OPTICAL · N/ATHERMAL · Support; target filtering: human, non-motor vehicle and vehicle |
| Multi-target Detection | OPTICAL · N/ATHERMAL · Support |
| Smart Intrusion Prevention | Cross line, intrusion, enter area, leave area (false-alarm filtering; classification of human, non-motor vehicle and vehicle) |
| People Counting | People flow counting and crowd density detection |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Flip | OPTICAL · Flip verticalTHERMAL · Normal, Flip vertical, Flip horizontal, 180° |
| HLC / BLC | Support |
| Smart IR | OPTICAL · N/ATHERMAL · Support |
| Defog | OPTICAL · Digital defogTHERMAL · Optical defog |
| Heatwave Reduction | OPTICAL · N/ATHERMAL · Support |
Illuminator
| Light On/Off Control | Auto / Manual |
| Warm Light Distance | OPTICAL · 30 m (98.4 ft.)THERMAL · N/A |
| VF Laser IR Distance | OPTICAL · N/ATHERMAL · 350 m (1148.2 ft.) |
Events
| Basic Detection | Motion detection, Audio detection, Tampering alarm, Ultra motion detection |
| General Function | OPTICAL · Watermark, IP address filtering, Alarm input, Alarm output, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authenticationTHERMAL · Watermark, IP address filtering, Access policy, Alarm output, Alarm input, User authentication, RTSP authentication, ARP protection, HTTP authentication |
Audio
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 8 kHz, 16 kHz |
Storage
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
Network & Integration
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | OPTICAL · ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDKTHERMAL · ONVIF (Profile S, Profile G, Profile T), API, SDK |
| Security | TLS 1.3/1.2, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, WSSE and Digest Authentication for ONVIF |
| Client | EZStation, UNV-Link, UNV-Link Pro |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
| User/Host | Up to 32 users; 3 levels: administrator, common user, operator |
PTZ
| Number of Presets | OPTICAL · N/ATHERMAL · 1024 |
| Preset Patrol | OPTICAL · N/ATHERMAL · 16 patrols, up to 64 presets each |
| Preset Image Freeze | OPTICAL · N/ATHERMAL · Support |
| Home Position | OPTICAL · N/ATHERMAL · Support |
| Pan Range | OPTICAL · N/ATHERMAL · 360° |
| Tilt Range | OPTICAL · 0° to 30° (motorized)THERMAL · -15° to 90° |
| Pan / Tilt Speed | OPTICAL · N/ATHERMAL · 0.1°/s to 180°/s |
| 3D Positioning | OPTICAL · N/ATHERMAL · Support |
| Number of Patrol | OPTICAL · N/ATHERMAL · 16 |
| Snow Removal Mode | OPTICAL · N/ATHERMAL · Support |
| Patrol Recording | OPTICAL · N/ATHERMAL · Support |
Interface
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p]; 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Alarm I/O | 7 in / 2 out |
| Serial Port | 1 × RS485 |
| Built-in Speaker | Support |
| Network | 1 × RJ45 1000 M Base-TX Ethernet |
Certification
| EMC | CE-EMC (EN 55032: 2015+A1: 2020, EN 61000-3-3: 2013+A1: 2019, EN IEC 61000-3-2: 2019+A1: 2021, EN 55035: 2017+A11: 2020) |
| Safety | CE LVD (EN 62368-1:2014+A11:2017) |
| Environment | CE-RoHS (2011/65/EU; (EU) 2015/863) |
| Protection | IP67 (IEC 60529); IK10 (IEC 62262, anti-vandalism except the front window) |
General
| Power | DC 24 V (±25%), AC 24 V (±25%), PoE (IEEE 802.3bt) |
| Power Consumption | Max. 74 W |
| Power Interface | Wires with cold-pressed terminal |
| Dimensions | 456 mm × 223 mm × 266 mm (17.95" × 8.78" × 10.47") (L × W × H) |
| Weight | 8.4 kg (18.52 lb.) |
| Working / Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 6 KV |
| Web Client Language | 22 languages incl. English, French, Spanish (Europe/LatAm), Portuguese (Europe/Brazil), Arabic, Russian |
| Wiper | OPTICAL · N/ATHERMAL · Manual |
Live View
| Maximum Bitstream | 35 |
| Maximum Bandwidth | 50 Mbps |
| 3D Privacy Mask | OPTICAL · N/ATHERMAL · Support |
Dimensions

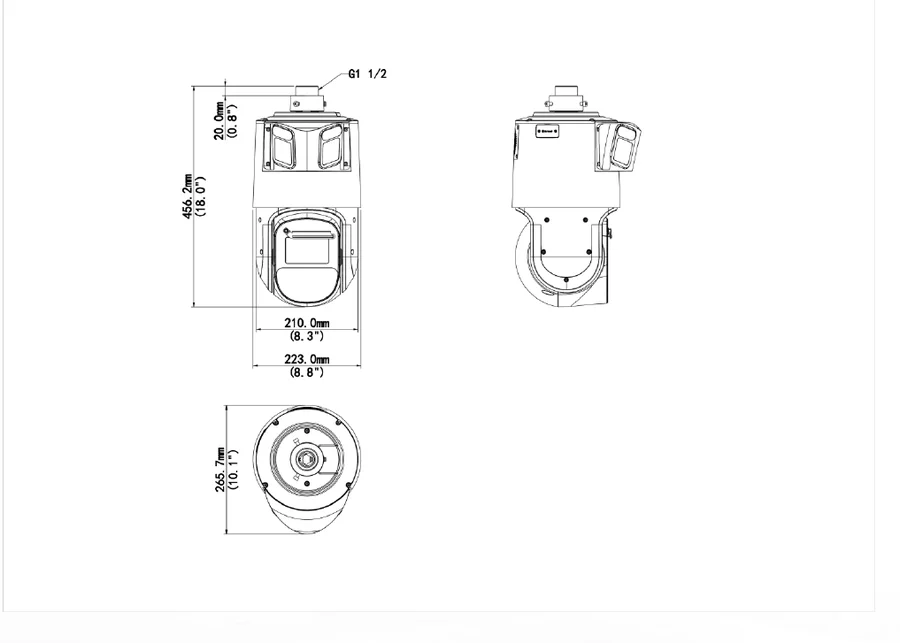

Engineering drawing reproduced 1:1 from the official datasheet.
unit: mm (in.)
| Dimensions | 456 × 223 × 266 mm (17.95" × 8.78" × 10.47") (L × W × H) |
| Weight | 8.4 kg (18.52 lb.) |
| Power | DC 24 V / AC 24 V (±25%) · PoE (IEEE 802.3bt) |
| Power Consumption | Max. 74 W |
| Wiper | Manual (detail channel) |
| Surge Protection | 6 KV |
| Working Environment | -40 °C to 70 °C, ≤ 95% RH (non-condensing) |
Optional Mounting Accessories
Order together with the camera to save shipping.
TR-UF45-A-INDome indoor ceiling mounting pedestal
TR-SE45-A-INDome ceiling mounting pole 500
TR-SE45-INDome ceiling mounting pole 200
TR-CE45-INDome indoor ceiling mounting bracket
TR-JB12-INDome junction box
TR-WE45-A-INLong wall mounting bracket for dome
TR-WE45-B-INDome gooseneck bracket
TR-UP08-B-INAluminium alloy pole mounting bracket
TR-UP08-A-INDome pole mounting bracket
TR-UC08-A-INDome corner mounting bracket
TR-UC08-B-INAluminium alloy corner mounting bracket
200° Panoramic PTZ FAQ — IPC98246EFW-X42-W-VH1
What does the 200° panorama channel give me?
A stitched 6MP image of 3680×1656 at 30 fps covering 200°±5° horizontally and 78° vertically from a fixed 2.2 mm lens — wider than a human field of view, so one wall- or mast-mounted unit watches an entire frontage, yard or shoreline.
How far does the 42x detail channel reach?
The detail channel runs 6–252 mm (42x optical, 16x digital) at 4MP. DORI figures reach 3,330 m to detect, 1,332 m to observe, 666 m to recognize and 333 m to identify, with VF laser IR extending night reach to 350 m.
Does it track targets automatically?
Yes. Smart intrusion prevention on the panorama channel triggers the detail channel to track, with target filtering for humans, vehicles and non-motor vehicles, plus multi-target detection. Metadata analysis captures human body, face, vehicle and non-motor images with attributes for later search.
What power does the IPC98246EFW need?
It is powered by PoE bt, so a single network cable from a bt-capable switch or injector carries power plus both video channels. Each channel provides triple streams with Ultra 265/H.265 compression at 128 Kbps–16 Mbps.
How does it handle rain, fog and heat haze?
The body is IP67 rated. The detail channel uses optical defog and heatwave reduction — real optics, not only software — while the panorama channel has digital defog; 120 dB WDR and a 30 m warm light on the panorama side handle backlight and near-field colour at night.
