PTZ Cameras › IPC98544EFW-X42-X25-W-VH

Triple-Channel PTZ Camera, Dual 25× Panorama + 42× Detail IPC98544EFW-X42-X25-W-VH

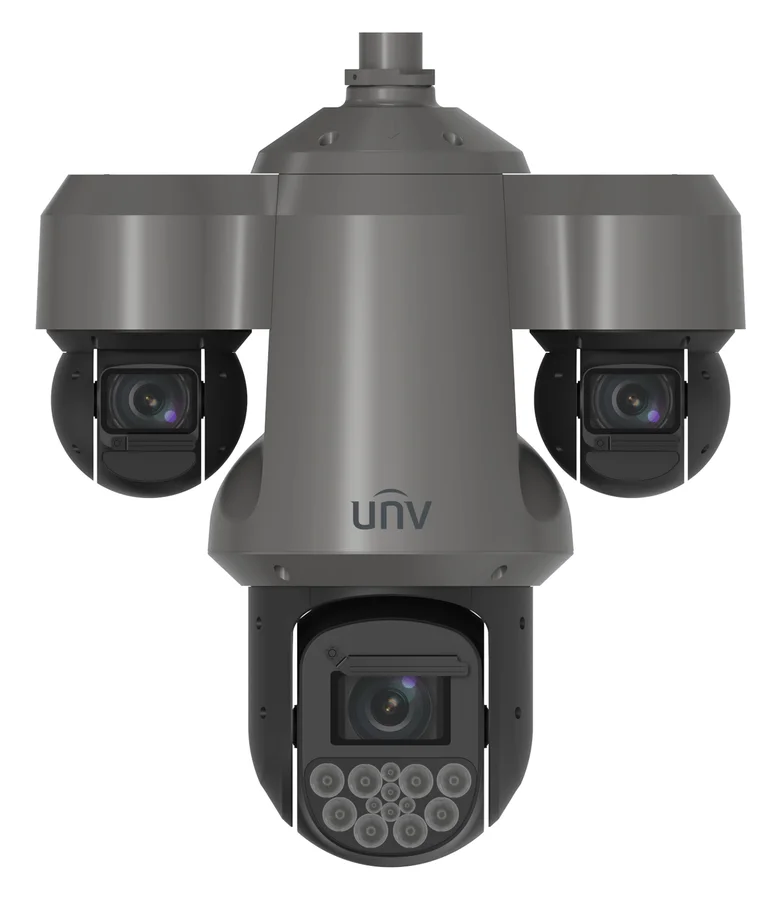

Triple-Channel PTZ Camera, Dual 25× Panorama + 42× Detail IPC98544EFW-X42-X25-W-VH — view 1

Triple-Channel PTZ Camera, Dual 25× Panorama + 42× Detail IPC98544EFW-X42-X25-W-VH — view 2

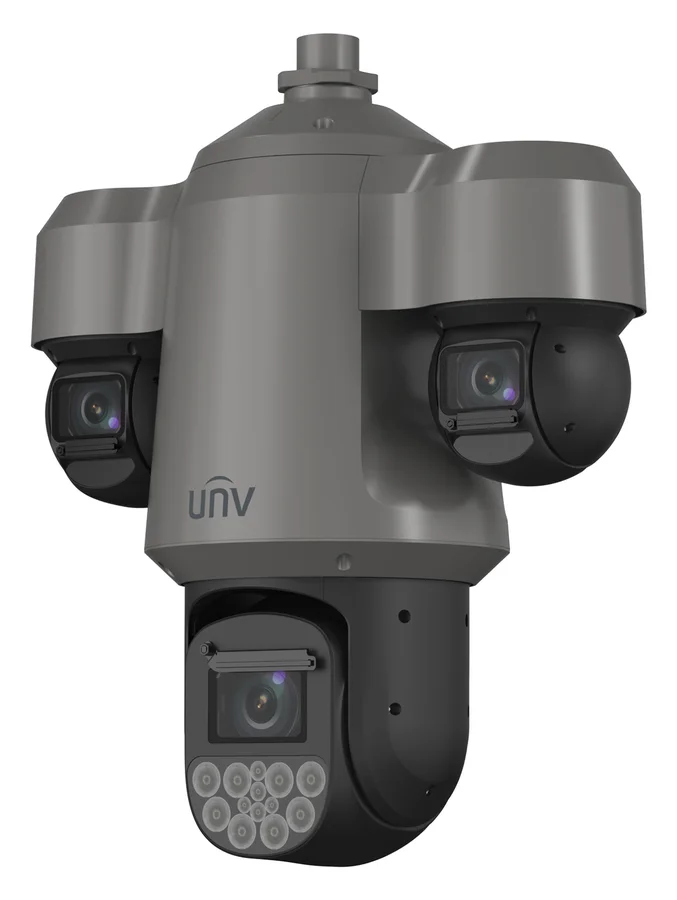

Triple-Channel PTZ Camera, Dual 25× Panorama + 42× Detail IPC98544EFW-X42-X25-W-VH — view 3

Uniview (UNV) · Panoramic PTZTiangong · Triple-Channel

4MP Triple-Channel PTZ · Dual 25× Panorama + 42× Detail

IPC98544EFW-X42-X25-W-VH

Name: IPC98544EFW-X42-X25-W-VH
Brand: Uniview
SKU: IPC98544EFW-X42-X25-W-VH

Three cameras in one body on a single IP: two 25× panorama channels split the wide view between them while a 42× detail channel chases the target — with picture-in-picture and four-split display, triple wipers and GPS auto-positioning.

PiP & 4-split · free view layoutTriple Wiper · all lenses stay clearGPS · auto positioningGyro OIS · steady at full zoom0.0001 lux · IR-mode sensitivity120 dB · WDR, all channels

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Compliance:ONVIF Profile SONVIF Profile GONVIF Profile T

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

3×4MPTriple channel, single IP

25×·25×·42×Optical zoom per channel

500 mDetail-channel IR (+80 m white light)

±0.04°Encoder precision, smooth PT

The IPC98544EFW-X42-X25-W-VH is a triple-channel PTZ camera: two identical 25× panorama channels (Channels 1–2) and one 42× detail channel (Channel 3), all 4MP 1/1.8" starlight sensors (0.0005 lux color, 0.0001 lux IR) with 120 dB WDR, streaming independently over a single IP. Picture-in-picture and four-split display arrange panoramic and detail views freely; a ±0.04° encoder, gyroscopic optical stabilization, smart IR and optical fog penetration keep long-zoom images steady and clear. Triple-channel wipers, GPS auto-positioning, 500 m IR plus 80 m white light on the detail channel and 150 m IR on each panorama channel complete the package.

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Long ridgelines & bordersThe twin 25× panorama channels split the horizon between them — each sweeping its own half — while the 42× detail channel chases whatever either of them finds, with no blind spot at the seam.

Ports, rail yards & stockpilesThree cameras record independently at once: two zoomed panoramas covering opposite work faces plus a 42× detail on the active berth or track — one pole does the work of three.

Rivers, lakes & reservoirsOptical fog penetration adjusts itself to the haze over the water, and smart IR tunes brightness in real time so close boats never white out — morning mist stops being an excuse.

Rapid & mobile deploymentBuilt-in GPS collects longitude and latitude automatically — no manual position calibration when the unit moves to a new site, which makes redeployment genuinely fast.

Night, far and near at once0.0001 lux IR-mode sensitivity with 150 m IR on each panorama and 500 m IR plus 80 m white light on the detail channel — the white light doubles as full-color evidence lighting at the close range where it matters.

Tall poles in bad weatherTriple-channel wipers keep all three windows clear in the rain, gyroscopic optical stabilization cancels pole sway at full zoom, and the -40 °C to 70 °C rating with 6 kV surge protection handles the rest.

Not the right pick if you need…

Power is DC 48 V only (max. 88 W) — no PoE and no AC input: plan a dedicated outdoor 48 V supply at the pole.
14.41 kg and 523×270×630 mm: a heavy triple-head unit that needs the dedicated Tiangong brackets and a rigid pole — not a light camera arm.
This datasheet lists no ingress-protection (IP) rating and no on-camera AI analytics section — if you need certified IP67 sealing or on-device face recognition / people counting, choose the Tiangong 96342 / 98344 panoramic-linkage models instead. Ask us and we will match the right unit honestly.

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

Single-IP triple channel: two 25× panorama cameras + one 42× detail camera, each capturing independently

Picture-in-picture and four-split display — arrange panoramic and detail views freely

All channels: 4MP 1/1.8" starlight sensor, 0.0005 lux color / 0.0001 lux IR, 120 dB WDR

Triple-channel wipers keep all three windows clear in rain

Gyroscopic optical image stabilization for tall-pole installations

Smart IR (anti-overexposure) and optical fog penetration with automatic level adjustment

Built-in GPS: automatic longitude/latitude collection, no manual position calibration

±0.04° high-precision encoder with automatic correction for smooth PT motion

One Body, Three Channels: Dual Panorama + Detail

Both channels stream simultaneously from a single IP address.

PANORAMA ×2

Twin 25× zoom panorama cameras split the wide view and record independently — pan -10° to 190° each

undefined

DETAIL CHANNEL

42× zoom, full 360° pan at up to 180°/s, 500 m IR + 80 m white light — the chase camera of the trio

undefined

How far can it see? (DORI — Optical Channel)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Both columns here are zoom channels — Panorama bars show the 25× channels at full telephoto; Detail bars show the 42× channel at full telephoto.

Detectsomething is there

2327.6 m7636.4 ft

Observewhat is happening

931 m3054.6 ft

Recognizesomeone you know

465.5 m1527.3 ft

Identifybeyond doubt

232.8 m763.6 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	CAL · 60.6°	2.2°
5 m16 ft	5.8 m19.2 ft	0.2 m0.6 ft
10 m33 ft	11.7 m38.4 ft	0.4 m1.3 ft
15 m49 ft	17.5 m57.5 ft	0.6 m1.9 ft
20 m66 ft	23.4 m76.7 ft	0.8 m2.5 ft
30 m98 ft	35.1 m115 ft	1.2 m3.8 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows are channel-specific:PANORAMA ×2 = twin 25× channelsDETAIL = 4MP 42× channel

Camera (all channels)

Sensor	1/1.8" CMOS · 4 MP per channel
Min. Illumination	Color: 0.0005 lux (F1.5, AGC ON) · IR: 0.0001 lux (F1.5, AGC ON)
WDR	120 dB

Lens & Field of View

Focal Length	OPTICAL · 6–150 mmTHERMAL · 6–240 mm
Optical Zoom	OPTICAL · 25× (each of 2 channels)THERMAL · 42×
Field of View (H)	OPTICAL · 60.62°(W) – 3.29°(T)THERMAL · 59.47°(W) – 2.2°(T)
Field of View (V)	OPTICAL · 36.4°(W) – 1.85°(T)THERMAL · 35.62°(W) – 1.23°(T)

Illuminator

IR Distance	OPTICAL · 150 m (492.1 ft.) eachTHERMAL · 500 m (1640.4 ft.)
White Light	OPTICAL · —THERMAL · 80 m (262.5 ft.)
Light Control	Auto / Manual

Video

Main Stream	4 MP (2688 × 1520), max. 30 fps (per channel)
Sub Stream	1080P (1920 × 1080), max. 30 fps
Third Stream	D1 (720 × 576), max. 30 fps
Video Compression	H.265, H.264, MJPEG · U-code
Video Bit Rate	128 Kbps to 16 Mbps
ROI	Up to 8 areas
OSD	Up to 10 OSDs
Max Live Bandwidth	50 Mbps · up to 35 bitstreams

Audio

Audio Compression	G.711A, G.711U
Sampling Rate	8 kHz / 16 kHz

PTZ

Pan Range / Speed	OPTICAL · -10° – 190° · 0.1–80°/sTHERMAL · 0° – 360° · 0.1–180°/s
Tilt Range / Speed	OPTICAL · -9° – 90° · 0.1–80°/sTHERMAL · -15° – 90° · 0.1–180°/s
Presets	1024

Network & Security

Protocols	IPv4/v6, TCP/UDP, RTSP/RTMP, HTTP/HTTPS, DHCP, NTP, UPnP, 802.1x, SNMP, QoS, SSL/TLS, SSH, FTP, SMTP, DNS/DDNS (all channels)
Integration	ONVIF (Profile S/G/T/M) · API · SDK
Security	TLS 1.3/1.2 · HTTPS · strong password · RTSP/HTTP digest · WSSE/ONVIF digest · log export
Users	Up to 32 users · administrator / operator / common
Web Browser	Plug-in live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+
Storage	MicroSD up to 512 GB

Interface

Alarm I/O	7 in / 2 out
Audio I/O	1 in (35 kΩ) / 1 out (600 Ω)
Serial	1 × RS485
Network	1 × RJ45 10/100/1000M Base-TX

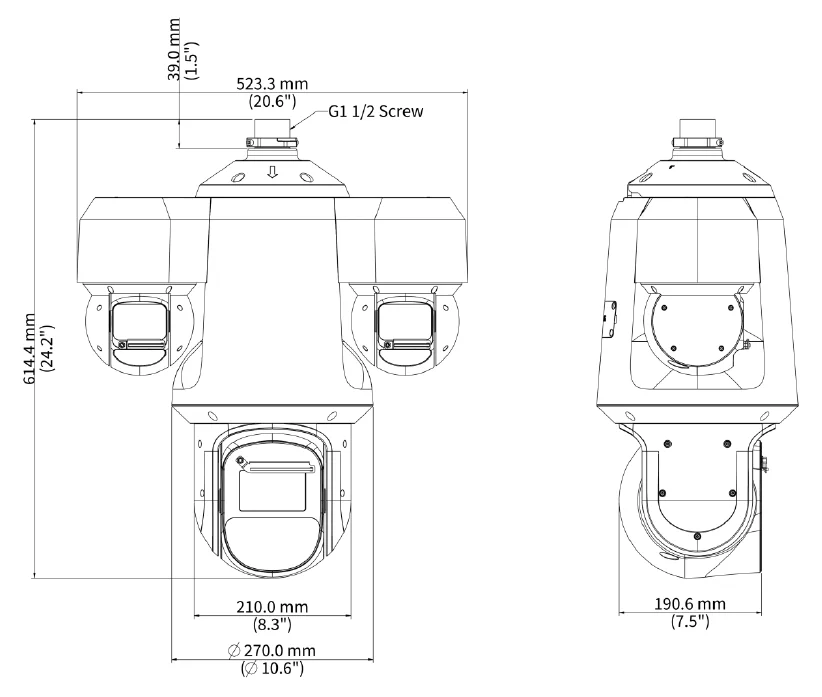

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	523 × 270 × 630 mm (20.6" × 10.6" × 24.8")
Weight	14.41 kg (31.8 lb.)
Power	DC 48 V (±25%) · max. 88 W
Working Environment	-40 °C to 70 °C (-40 °F to 158 °F), ≤95% RH non-condensing
Surge Protection	6 kV
Wiper	[object Object]

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-UP08M-A-INTiangong integrated-machine pole mounting bracket

TR-CE45-S-INTiangong integrated-machine pendant mounting bracket

TR-WE45-S-INTiangong integrated-machine wall mount bracket

Triple-Channel PTZ FAQ — IPC98544EFW-X42-X25-W-VH

What do the three channels do?

Two 25x (6–150 mm) panorama channels and one 42x (6–240 mm) detail channel, each with a 4MP 1/1.8-inch starlight sensor at 2688×1520, 30 fps. The pair watches two wide sectors while the detail channel zooms on targets, with picture-in-picture and 4-split display modes.

How dark can it work?

The starlight sensors reach 0.0005 lux in colour and 0.0001 lux in IR mode. IR illumination covers 150 m on each 25x channel and 500 m on the 42x detail channel, plus an 80 m white light — sized for unlit perimeters, rivers and coastlines.

Can I run it on PoE?

No — this unit draws up to 88 W and requires DC 48 V (±25%). Plan a dedicated 48 V supply at the mast, with the single RJ45 10/100/1000M link carrying all three channels. Surge protection is rated at 6 kV for exposed pole installations.

How does it stay usable in rain and at remote sites?

Triple wipers clear all three windows, GPS reports position, and the housing runs from -40 to 70 °C at up to 95% humidity. At 14.41 kg and 523×270×630 mm, specify a mast bracket rated for the weight plus wind load.

Will it integrate with our VMS and alarm panel?

Yes — ONVIF Profile S, G, T and M plus API and SDK, RTSP/RTMP, HTTPS with TLS 1.3/1.2, SNMP and 802.1x. Hardwired I/O covers 7 alarm inputs, 2 alarm outputs, audio in and out plus RS485, and up to 32 user accounts with three permission levels.

What about recording and simultaneous live viewers?

Edge storage takes a MicroSD card up to 512 GB. Max live bandwidth is 50 Mbps with up to 35 concurrent bitstreams, and each channel streams H.265/H.264 with U-code at 128 Kbps–16 Mbps, so several control rooms can watch at once without starving the recorder.
