NVR824-128R / 256R
128 / 256-channel network video recorder — 24 hot-swap SATA bays with RAID 0/1/5/6/10/50/60, two independent 4K HDMI outputs plus VGA, records cameras up to 12MP, with 768 Mbps incoming bandwidth and an optional redundant power supply.
Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port
Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
How many terabytes for your channels and days? Use the storage calculator →
Need the PDF datasheet? Get it on WhatsApp →Sample quantities are welcome — testing one or two units first is the normal way to start.

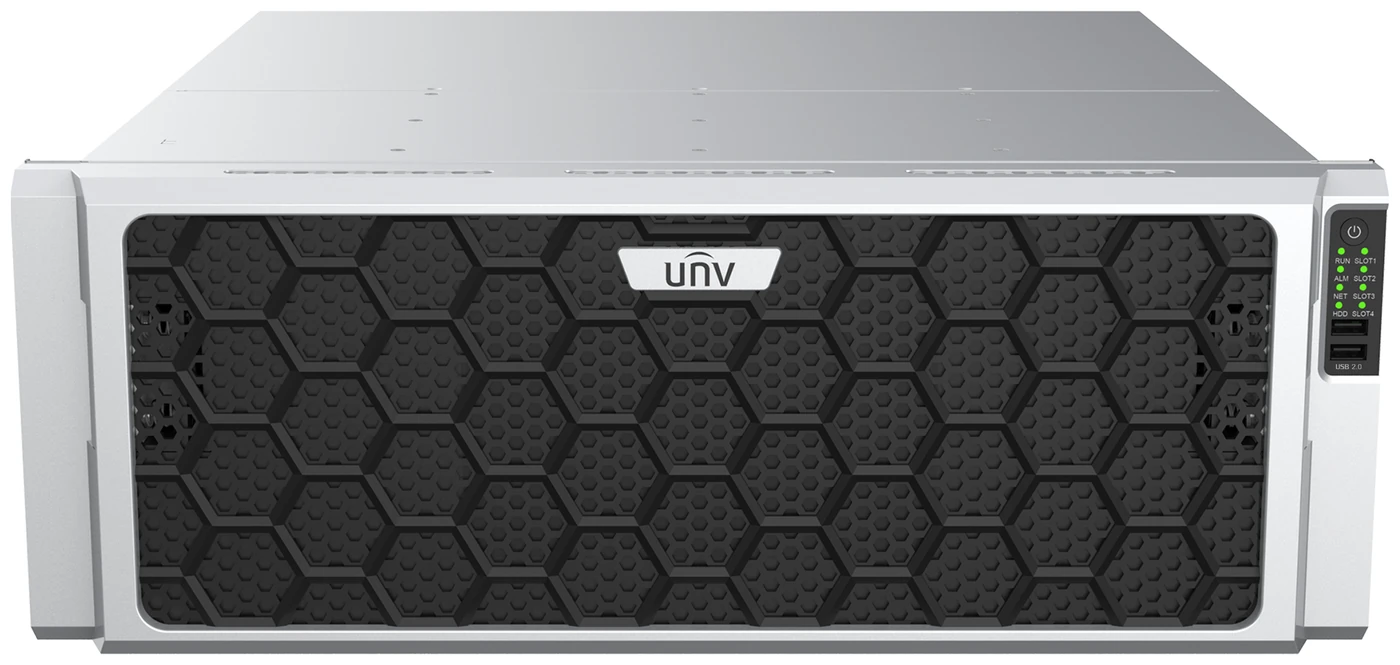

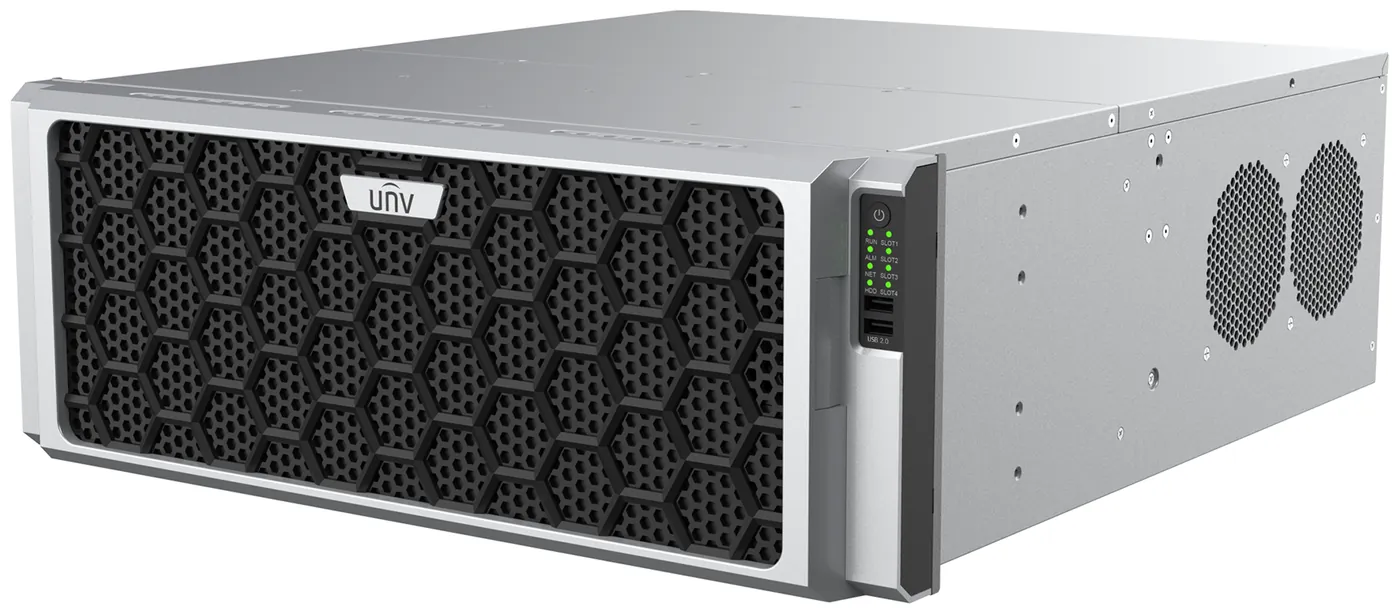

The Uniview NVR824-R Series is a 24-HDD rack-mount network video recorder offered in two sizes: NVR824-128R (128-ch) and NVR824-256R (256-ch). Both record cameras up to 12MP with Ultra 265 / H.265 / H.264 compression, output independently over two HDMI ports (each up to 4K) plus one VGA port, and support hot-swappable SATA bays with RAID 0/1/5/6/10/50/60 and an optional second power supply for redundancy. Each of the 24 SATA bays takes a hard disk up to 24 TB, two miniSAS ports allow expansion to an external disk enclosure, and the local interface is available in 38 languages including Spanish (Latin America), Portuguese (Brazil) and French.
Is this the right recorder for you?
Plain-language guide for buyers and installers — based only on what this recorder actually does.
- A compact desktop unit — this is a large rack-mount chassis (484.6 × 533 × 175.5mm, about 12.5kg without HDDs), not a desktop recorder
- Built-in PoE ports — cameras need a separate PoE switch
- A second power supply included as standard — the redundant PSU (PWR-DC12-550A-IN) is an optional add-on, not included
- A small deployment — this series starts at 128 channels; a lower-channel Uniview NVR fits smaller sites better
- Full per-channel NVR-side smart analytics specs in this document — the detailed Smart-by-NVR feature and channel-count breakdown is published in a separate Smart Card datasheet, not in this general specification
Worried about counterfeits? Order under your own company name.
For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.
Using your own freight forwarder? No problem.
For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.
Key Features
Complete list from the official datasheet.
Twenty-four bays. Seven RAID levels. Zero downtime.
Two real capabilities from the datasheet that matter most on large, mission-critical sites: hot-swap storage redundancy and city-scale smart search.
24 bays, seven RAID levels, one live swap
24 hot-swap SATA bays with RAID 0/1/5/6/10/50/60 and N+1 hot spare — replace a failed disk without powering down, and expand further with two miniSAS ports to an external disk enclosure.
Find one face or one vehicle across 256 channels
VCA Search indexes face snapshots, face comparisons, motor and non-motor vehicles, human bodies and general search — combined with a vehicle picture library holding up to 25,000 images across 5 libraries, so investigators jump straight to the match instead of scrubbing footage channel by channel.
Which size fits your project?
Bars show camera capacity per model. Click the model buttons above to switch — the spec table highlights every other difference.
Full Specifications
Complete official specifications from the manufacturer's datasheet (technical values in English).
Decoding
| Decoding Format | Ultra 265, H.265, H.264 |
| Decoding Capability | 3 x 12MP@30, 5 x 4K@30, 20 x 1080P@30, 24 x 1080P@25, 40 x 960P@25, 45 x 720P@30, 54 x 720P@25, 96 x D1 |
| Decoding Capability Description | The resolution of each channel cannot exceed 4096 pixels in length or width. For VGA/HDMI independent output, the VGA live video is output by default. To output the highest resolution video from the HDMI port, please clear the VGA video on the preview page. |
| Audio Compression | G.711A, G.711U |
Network
| Incoming Bandwidth | 768 Mbps |
| Outgoing Bandwidth | 768 Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPv6, IPv4 |
| Browser (Plugin) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
Video/Audio Input
| IP Video Input | 128R · 128-ch256R · 256-ch |
| RCA Audio Input | 1-ch |
Video/Audio Output
| HDMI Output | 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| VGA Output | 1920 × 1080/60 Hz, 1920 × 1080/50 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| RCA Audio Output | 1-ch |
| Liveview Display | VGA: 1/4/6/8/9/16/25/36, HDMI1/HDMI2: 1/4/6/8/9/16/25/36/64 |
| Corridor Mode Screen | 3/4/5/7/9/10/12/16/32 |
Two-way Audio
| Two-way Audio | 1-ch, RCA (using the audio input and output) |
Snapshot
| FTP/Schedule/Event Snapshot | Full-ch snapshot (max. 4000 × 3000 video resolution, with snapshot resolution same as the video resolution) |
Recording
| Recording Resolution | 12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
| Synchronous Playback in Local | 16-ch |
Smart
| Smart by IPC | All channels (up to 64 images/s in total) Face Detection, Face Comparison, Vehicle Detection (LPR), Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring |
| Smart by NVR | In the Smart Card datasheet |
| VCA Search | Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report |
| by NVR | In the Smart Card datasheet |
| Vehicle Picture Library | Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total |
| SIP by NVR with normal cameras | In the Smart Card datasheet |
| Capacity of Snapshot Records | 5 millions records for face snapshot, 5 millions records for vehicle snapshot, 2 millions records for SIP |
Alarm
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal, High CPU Temperature, High Motherboard Temperature, Array Damaged, Array Degraded |
GUI Language
| GUI Language | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
Hard Disk
| SATA | 24 SATA interfaces |
| Capacity | Up to 24 TB for each HDD (the maximum HDD capacity varies with environment temperature and hard disk size, the environment temperature for use should not exceed 40°C) |
| Disk Array Type | RAID 0, 1, 5, 6, 10, 50, 60 |
| Hot Swap | Support |

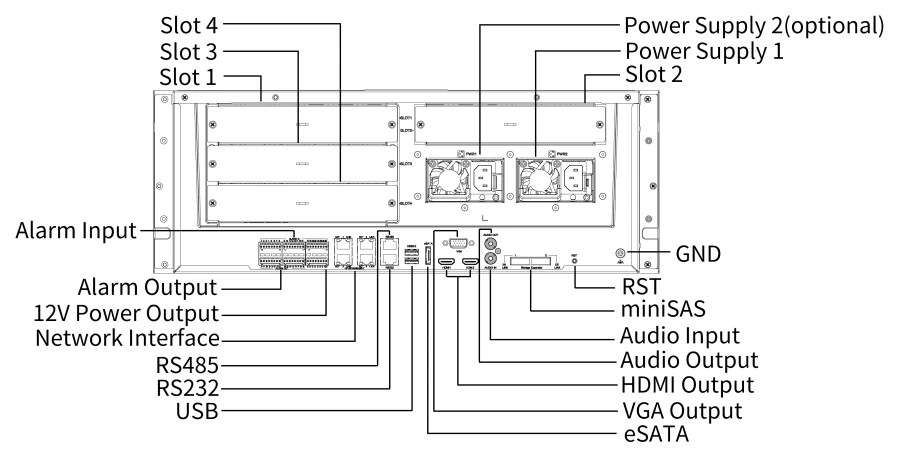

External Interface
| Network Interface | 4 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 2 × USB2.0, Rear panel: 2 × USB3.0 |
| RS485 | 1 |
| RS232 | 1 |
| Alarm In | 24-ch |
| Alarm Out | 8-ch |
| eSATA | 1 |
| miniSAS | 2 |
| Extension Board | 4 |
| Power Output | 12 V |
| Power Supply | AC 100 to 240 V |
| Power Switch | Support |
| Redundant Power Supply | Support |
Working Environment
| Working Temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Power Consumption (without HDD) | ≤ 70 W |
Dimensions
| Weight (without HDD) | ≤ 12.5 kg (27.56 lb) |
| Dimensions | 484.6 mm × 533 mm × 175.5 mm (19.1" × 21.0" × 6.9") |
Certification
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC | Part15 Subpart B |
Dimensions

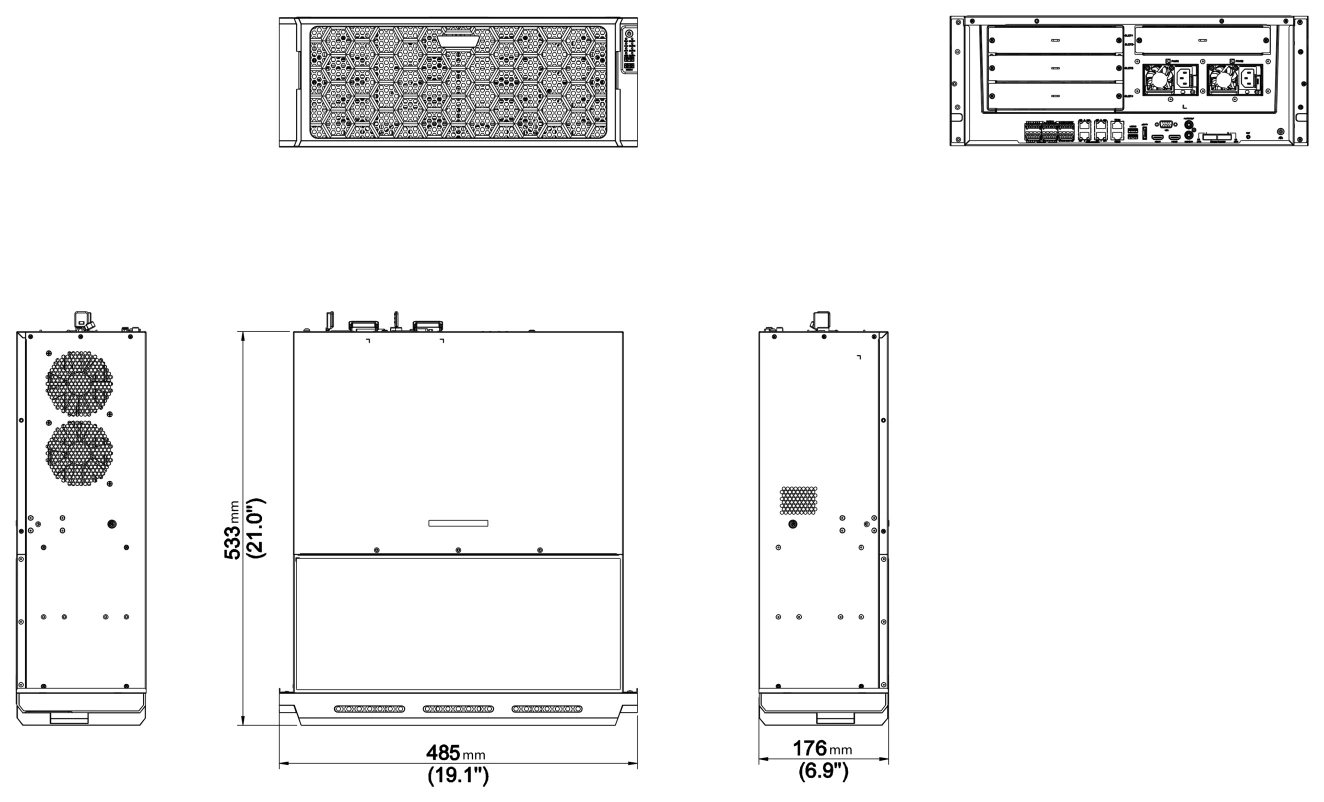

Engineering drawing reproduced 1:1 from the official datasheet.
| Dimensions | 484.6 × 533 × 175.5 mm (19.1" × 21.0" × 6.9") |
| Weight (without HDD) | ≤ 12.5 kg (27.56 lb) |
| Power supply | AC 100 to 240 V |
| Consumption (without HDD) | ≤ 70 W |
