IP Cameras › IPC328LE-ADF28(40)K-H

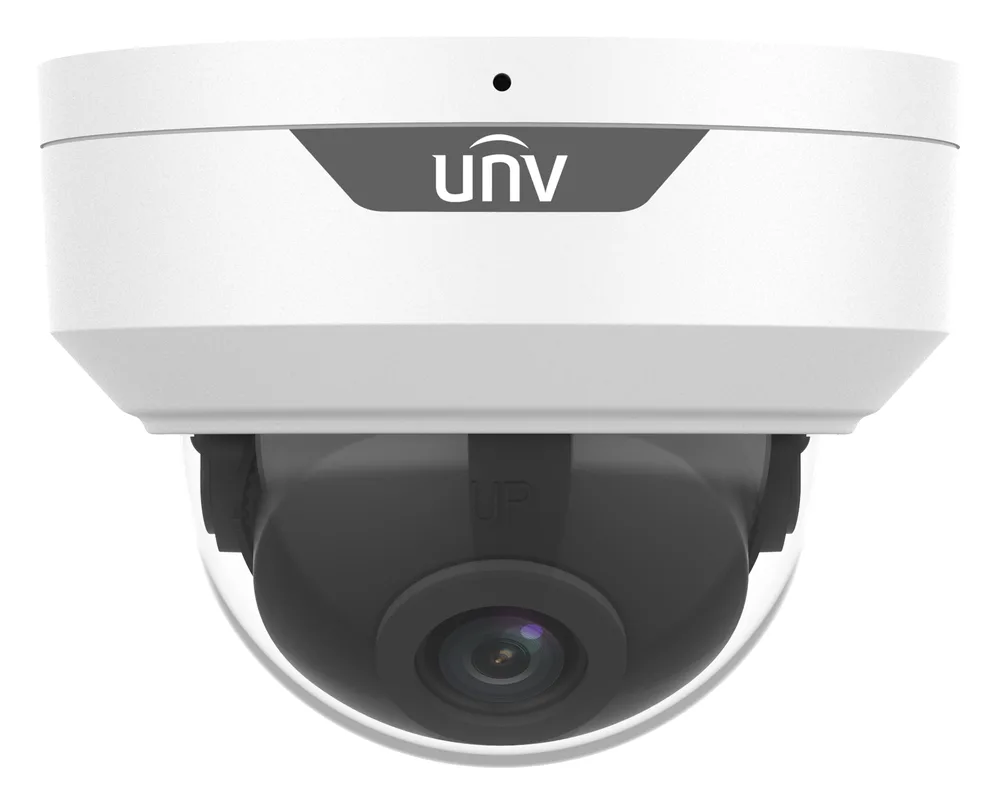

8MP Vandal-resistant IR Fixed Dome Network Camera IPC328LE-ADF28(40)K-H

8MP Vandal-resistant IR Fixed Dome Network Camera IPC328LE-ADF28(40)K-H — view 1

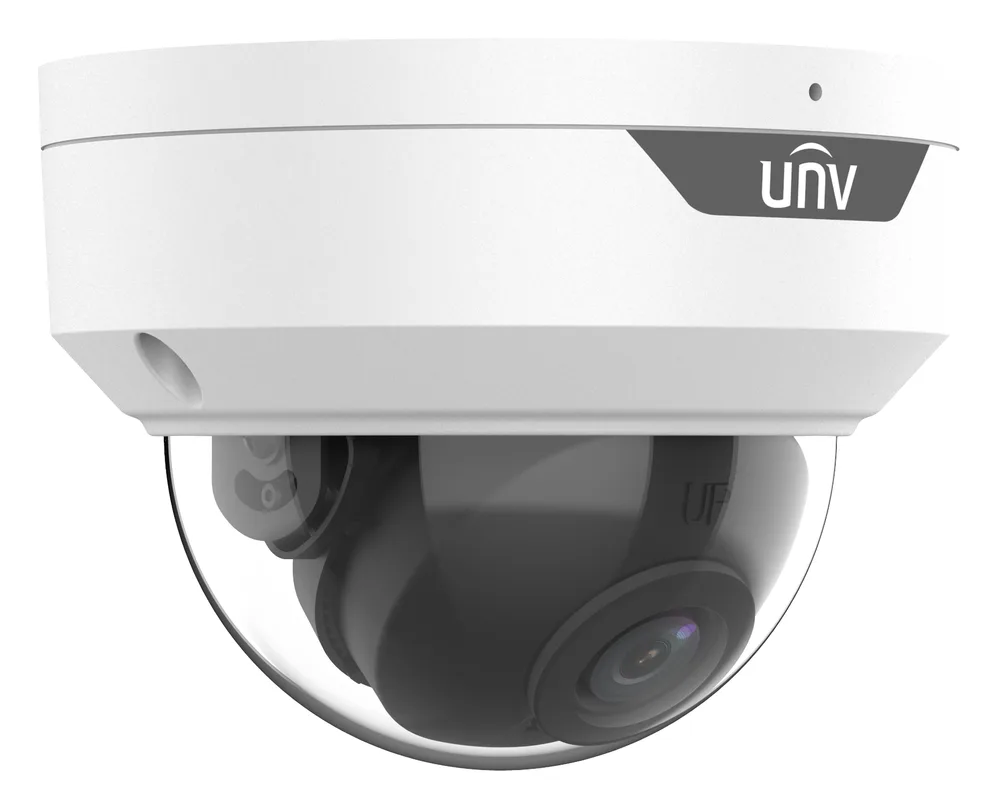

8MP Vandal-resistant IR Fixed Dome Network Camera IPC328LE-ADF28(40)K-H — view 2

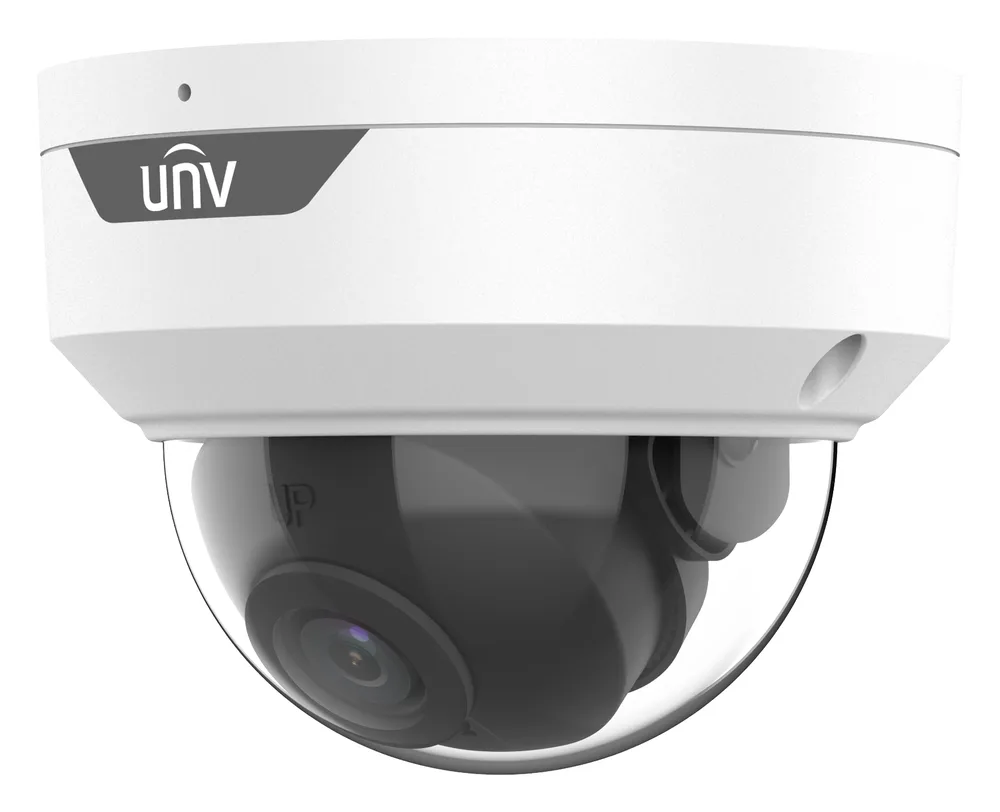

8MP Vandal-resistant IR Fixed Dome Network Camera IPC328LE-ADF28(40)K-H — view 3

Uniview (UNV) · Dome8MP · Vandal-resistant IR

8MP Vandal-resistant IR Dome · Smart IR

IPC328LE-ADF28(40)K-H

Name: Uniview IPC328LE-ADF28(40)K-H
Brand: Uniview
SKU: IPC328LE-ADF28(40)K-H

8MP fixed vandal-resistant IR dome network camera — Smart IR night vision up to 30 m, IK10 + IP67 outdoor body, PoE/DC12V install, built-in mic.

8 MP · 3840×2160@20fpsUltra 265 · low bandwidthSmart IR · up to 30mPoE · 802.3af / DC12VIK10 · vandal-resistantIP67 · outdoor

CHOOSE YOUR LENS — TWO MODELS ON THIS PAGE

ADF28K (2.8 mm, 98.7° view) covers a wide area near the camera — doorways, small rooms, shop counters. ADF40K (4.0 mm, 83.1° view) trades width for reach — corridors, driveways, fence lines. Highlighted rows in the spec table below show every difference.

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCRoHSWEEEIP67ONVIF

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

30 mSmart IR distance

IK10Vandal-resistant

IP67Outdoor rated

4.9 WPoE max power

The Uniview IPC328LE-ADF28(40)K-H is an 8MP fixed dome network camera with an IK10 vandal-resistant metal body and IP67 outdoor rating. Smart IR reaches up to 30 m for night vision, MicroSD edge storage holds up to 512 GB, and it powers over a single PoE cable or DC 12V, with a −30 °C to 60 °C working range. It is offered with two fixed lenses: 2.8 mm (ADF28K, wider view) or 4.0 mm (ADF40K, longer reach).

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

ATMs, kiosks & public terminalsIK10 impact resistance survives hammer strikes and deliberate vandalism — built for high-risk unattended sites.

Corridors & stairwells9:16 corridor mode turns the image portrait-shaped to fit narrow hallways with no wasted frame.

Warehouse & site perimetersIP67 body and −30 to 60 °C rating survive rain, dust and heat. ADF40K watches long fence lines.

Entrances & lobbiesCross line and intrusion detection (based on human body detection) raise alerts for people, not for stray animals or moving branches. The built-in mic records what is said nearby.

Small offices & receptionUltra 265 compression keeps recordings small, and MicroSD edge storage up to 512 GB backs up footage locally.

Quick outdoor installsOne PoE cable does power + video, or wire it to DC 12V where PoE is not available — quick to install and relocate.

Not the right pick if you need…

Two-way talk — it has a mic but no speaker
Wi-Fi — this is a wired RJ45 camera
Zoom — the lens is fixed (2.8 or 4.0 mm, chosen at purchase)
Alarm in/out wiring for sirens or sensors
Serial port or video output for local monitors

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 8 MP, 1/2.8" CMOS sensor

8 MP (3840 × 2160)@20 fps; 5 MP (3072 × 1728)@30/25 fps; 4 MP (2560 × 1440)@30/25 fps; 1080P (1920 × 1080)@30/25 fps

Ultra 265, H.265, H.264, MJPEG

120 dB true WDR technology enables clear image in strong light scene

Supports 9:16 corridor mode

Built-in mic

Smart IR, up to 30 m (98.4 ft.) IR distance

MicroSD, up to 512 GB

IP67 protection

IK10 protection

Supports PoE power supply

3-axis adjustment

Night Vision: Smart IR

Auto/Manual switchable infrared illumination for clear monitoring after dark.

IR MODE

Invisible infrared — discreet black & white night vision

Smart IR up to 30 m (98.4 ft.) at 850 nm, Auto/Manual control. The camera watches without lighting up the scene — nothing shows it is recording.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Switch the lens buttons above to compare.

Detectsomething is there

86.9 m285.1 ft

Observewhat is happening

34.8 m114.2 ft

Recognizesomeone you know

17.4 m57.1 ft

Identifya stranger's face

8.7 m28.5 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	AF28 · 98.7°	AF40 · 83.1°
5 m16 ft	11.6 m38.2 ft	8.9 m29.1 ft
10 m33 ft	23.3 m76.4 ft	17.7 m58.2 ft
15 m49 ft	34.9 m115 ft	26.6 m87.2 ft
20 m66 ft	46.6 m153 ft	35.5 m116 ft
30 m98 ft	69.9 m229 ft	53.2 m174 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the two models:ADF28K = 2.8 mmADF40K = 4.0 mm

Camera

Max Resolution	8 MP
Sensor	1/2.8" CMOS
Min. Illumination	Support Easystar: color: 0.005 Lux (F1.6, AGC ON), 0 Lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
Adjustment Angle	Pan: 8° to 360°, Tilt: 0° to 68°, Rotate: 10° to 360°
S/N	> 52 dB
WDR	120 dB

Lens

Focal Length	AF28 · 2.8 mmAF40 · 4.0 mm
Iris Type	Fixed
Iris	F1.6
Field of View (H)	AF28 · 98.7°AF40 · 83.1°
Field of View (V)	AF28 · 53.9°AF40 · 48.0°
Field of View (D)	AF28 · 103.6°AF40 · 86.5°

DORI

DORI Distance (Detect)	AF28 · 86.9 m (285.1 ft.)AF40 · 124.1 m (407.2 ft.)
DORI Distance (Observe)	AF28 · 34.8 m (114.2 ft.)AF40 · 49.7 m (163.1 ft.)
DORI Distance (Recognize)	AF28 · 17.4 m (57.1 ft.)AF40 · 24.8 m (81.4 ft.)
DORI Distance (Identify)	AF28 · 8.7 m (28.5 ft.)AF40 · 12.4 m (40.7 ft.)

Illuminator

Supplemental Light	IR
Illumination Distance (IR)	30 m (98.4 ft.)
Wavelength	850 nm
IR On/Off Control	Auto/Manual

Video

Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 8 MP (3840×2160), max. 20 fps; 5 MP (3072×1728), max. 30 fps; 4 MP (2560×1440), max. 30 fps; 1080P (1920×1080), max. 30 fps; 720P (1280×720), max. 30 fps · Sub Stream: 1080P (1920×1080), max. 30 fps; 720P (1280×720), max. 30 fps; D1 (720×576), max. 30 fps; 640×360, max. 30 fps; 2CIF (704×288), max. 30 fps; CIF (352×288), max. 30 fps
Video Bit Rate	128 Kbps to 16 Mbps
U-code	Support
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Support
Video Stream	Dual streams


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital defog

Events

Basic Detection	Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Cross line (based on human body detection), Intrusion (based on human body detection)
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	N/A
Suppression	Support
Sampling Rate	8 kHz

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)

Network

Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, SSL/TLS, QoS, 802.1x, SNMP
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Security	Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	EZStation, APP
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+; Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O	N/A
Alarm I/O	N/A
Serial Port	N/A
Built-in Mic	Support
Built-in Speaker	N/A
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A

Certification

EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
Safety	CE LVD (EN 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)
Protection	IP67 (IEC 60529); IK10 (IEC 62262)

General

Power	DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption	Max. 4.9 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Ø111 mm × 83 mm (Ø4.4" × 3.3") (Ø × H)
Weight	0.36 kg (0.79 lb.)
Material	Metal + Plastic
Working Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	Support
Web Client Language	13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian

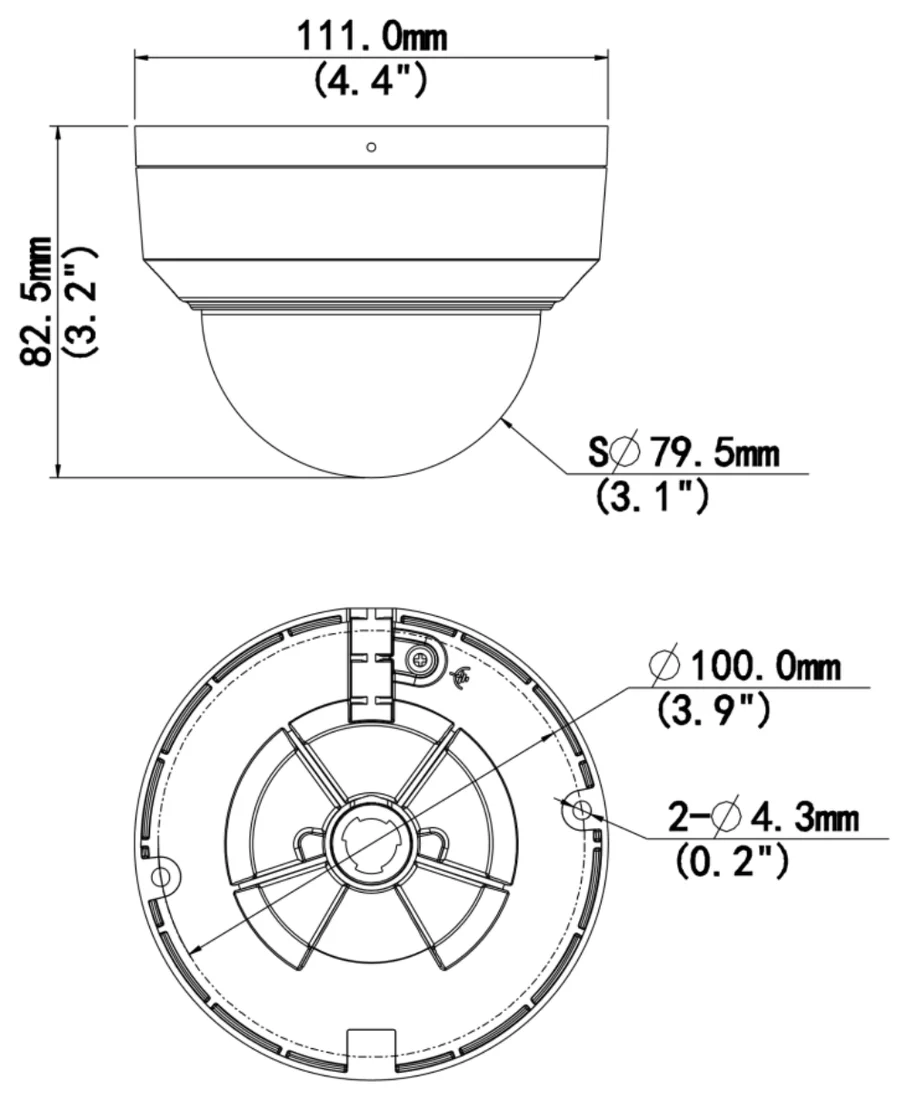

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	Ø111 × 83 mm (Ø4.4" × 3.3") (Ø × H)
Weight	0.36 kg (0.79 lb.)
Material	Metal + Plastic
Mount adjustment	Pan 8–360° · Tilt 0–68° · Rotate 10–360°

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-JB03-G-INJunction box for mini fix-dome (support wiring from behind)

HS-205SSunshade shell for fixed focus dome

TR-UM06-E-INSlant mounting bracket for fixed dome

TR-A01-INNPT 3/4" waterproof cable gland

TR-SE24-INDome pendent mounting pole, 200 mm

TR-SE24-A-INDome pendent mounting pole, 500 mm

TR-CM24-INDome pendent mounting bracket (indoor)

TR-JB07/WM03-G-IN-V2Wall mounting assembling bracket for 32 series fix-dome, mini fix-dome & plastic turret camera

TR-WM03-D-IN-V2Wall mounting bracket for 32 series fix-dome, mini fix-dome & plastic turret camera

TR-UC08-C-V2Bullet & dome corner mounting bracket

TR-WM07P-BDome wall mounting plastic bracket

TR-FM116In-ceiling bracket for fix-dome

TR-UP06-C-IN-V2Pole mounting bracket for bullet junction box only

8MP 4K Dome Camera FAQ — IPC328LE-ADF28(40)K-H

What do I actually gain from 8 MP over 4 MP?

Reach and cropping room. At 3840×2160 the 2.8 mm version detects people to 86.9 m and the 4.0 mm to 124.1 m, identifying at 8.7 m and 12.4 m. One 4K dome can cover a yard where you would otherwise install two lower-resolution cameras.

Will 4K flood my network and hard disks?

Managed properly, no. The bit rate window is 128 Kbps to 16 Mbps and Ultra 265 with U-code compresses far harder than H.264, so a tuned 4K stream stays practical. Note the 8 MP main stream tops out at 20 fps; 5 MP and 4 MP modes run 30 fps.

Can it record locally without a recorder?

Yes, there is a microSD card slot for edge recording, so a single-camera site can run standalone, and in larger systems the card keeps recording if the network or NVR fails. The built-in microphone adds audio (G.711U/G.711A, 64 Kbps) with audio detection alarms.

How is night performance on an 8 MP sensor?

Easystar keeps color usable down to 0.005 Lux with the F1.6 lens and AGC on, and 120 dB WDR handles mixed light. In darkness, invisible 850 nm Smart IR reaches 30 m with auto intensity control, switching to black and white through the ICR filter.

Is the housing suitable for public and outdoor areas?

Yes. IK10 impact resistance protects against knocks and tampering in reachable public spots, and IP67 sealing handles dust and heavy rain outdoors. Human-body-based cross-line detection, ultra motion detection, tampering alarm and audio detection give practical alerting for busy sites.
