4MP Fixed Dome Network Camera IPC3614LB-ADF28(40)K-H

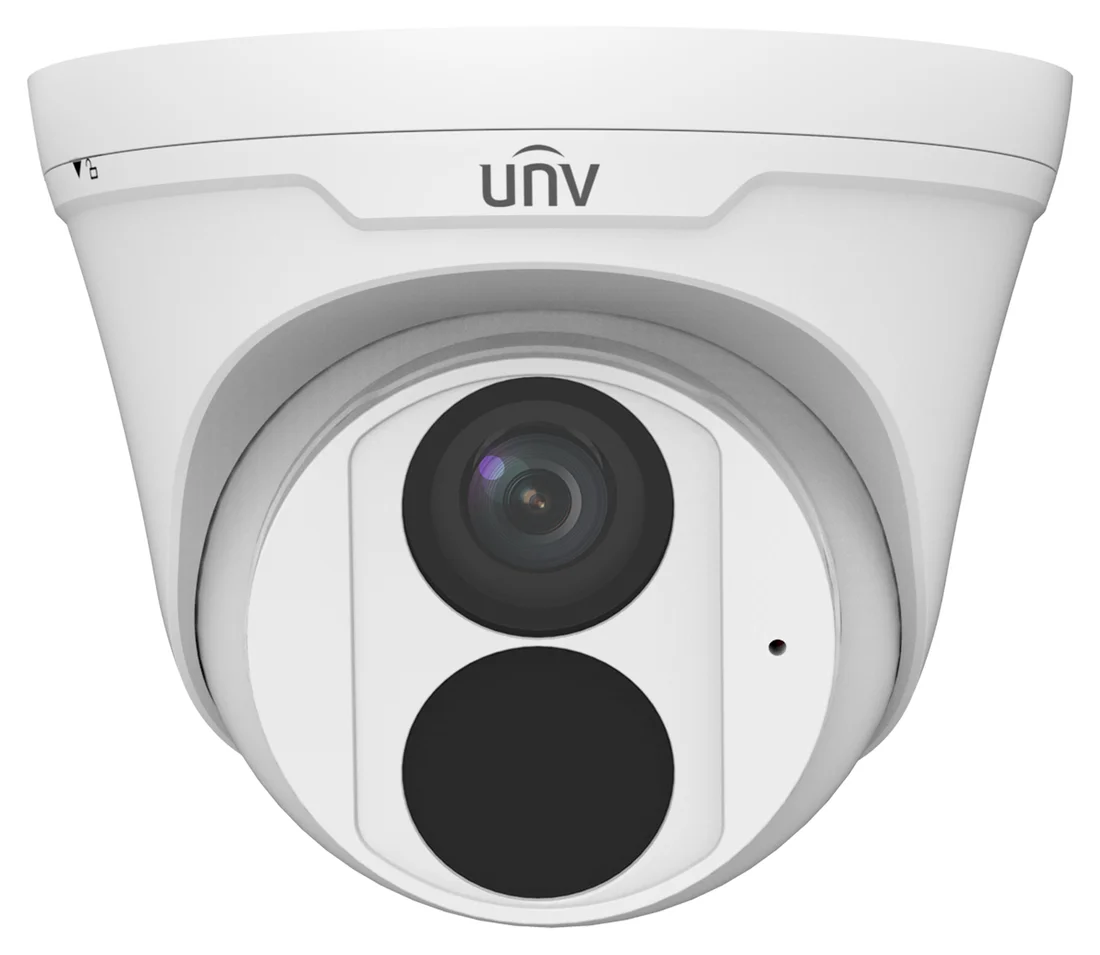

4MP Fixed Dome Network Camera IPC3614LB-ADF28(40)K-H — view 1

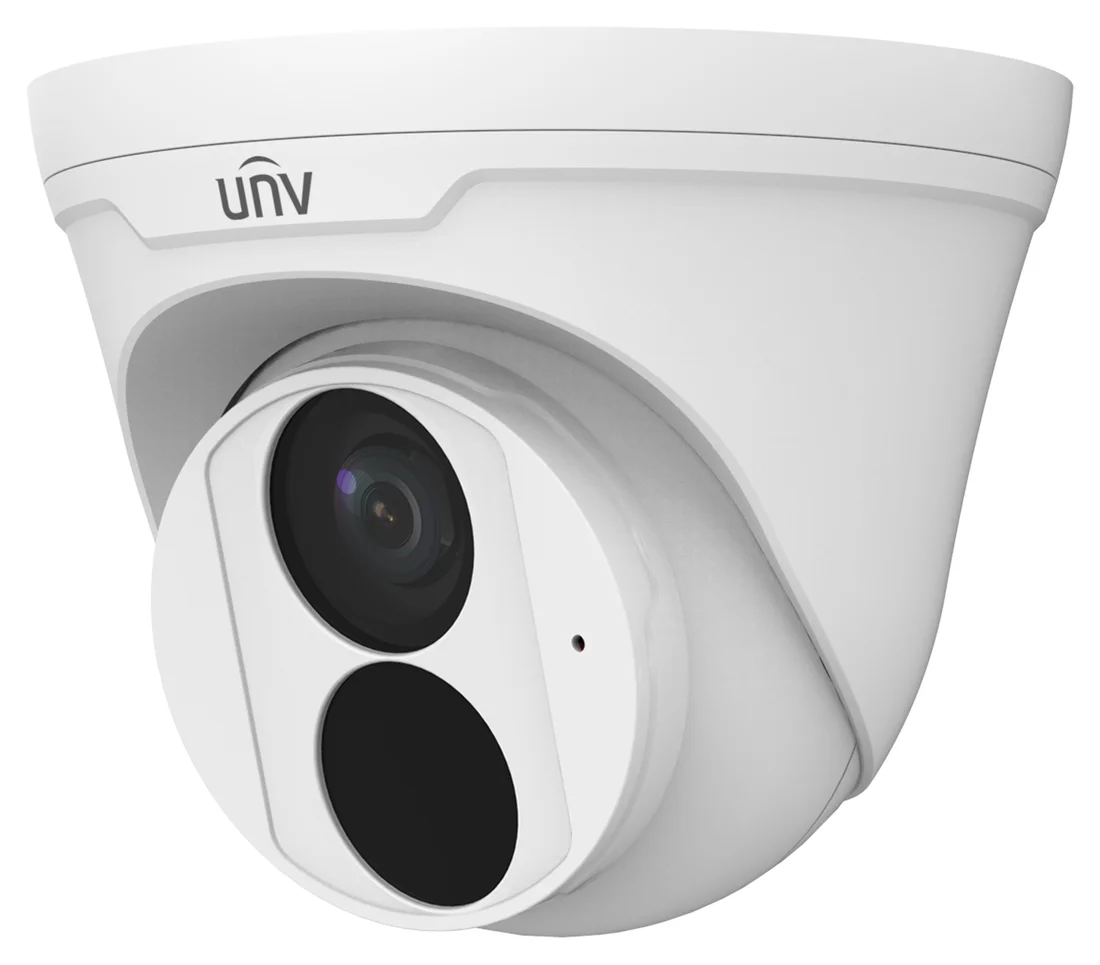

4MP Fixed Dome Network Camera IPC3614LB-ADF28(40)K-H — view 2

Uniview (UNV) · Dome4MP · Fixed Lens

4MP Fixed Dome

IPC3614LB-ADF28(40)K-H

Name: Uniview IPC3614LB-ADF28(40)K-H
Brand: Uniview
SKU: IPC3614LB-ADF28(40)K-H

4MP fixed dome network camera — Smart IR night vision, PoE single-cable install, built-in mic, MicroSD edge storage, IP67 outdoor body.

4 MP · 2560×1440@25fpsUltra 265 · low bandwidthSmart IR · up to 30mPoE · 802.3afIP67 · outdoorMic · built-in audioMicroSD · up to 512GBNDAA · compliant

CHOOSE YOUR LENS — TWO MODELS ON THIS PAGE

ADF28K (2.8 mm, 101.5° view) covers a wide area near the camera — doorways, small rooms, shop counters. ADF40K (4.0 mm, 84.1° view) trades width for reach — corridors, driveways, fence lines. Highlighted rows in the spec table below show every difference.

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCCBUL/CULRoHSWEEEIP67ONVIFNDAA

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

4 MPResolution

30 mSmart IR distance

IP67Outdoor rated

3.9 WPoE max power

The Uniview IPC3614LB-ADF28(40)K-H is a 4MP fixed dome network camera. It uses Smart IR for discreet night vision up to 30 m, powers over a single PoE cable, and carries an IP67 outdoor rating with a −30 °C to 60 °C working range. It is offered with two fixed lenses: 2.8 mm (ADF28K, wider view) or 4.0 mm (ADF40K, longer reach).

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Shops & storefrontsThe ceiling-mount dome watches the door and counter in sharp 4MP, and the built-in mic picks up counter audio. ADF28K covers the whole shop floor from a corner.

Home entryways & gatesSmart IR keeps watch at night without lighting up the scene — discreet black & white night vision up to 30 m.

Warehouse & site perimetersIP67 body and −30 to 60 °C rating survive rain, dust and heat. ADF40K watches long fence lines.

Residential compoundsUltra motion detection plus cross-line and intrusion detection (based on human body detection) raise alerts for people, not for stray animals or moving branches.

Small offices & receptionUltra 265 compression keeps recordings small, and a MicroSD slot (up to 512 GB) can keep local footage even without an NVR.

Retail aisles & parking areasOne PoE cable does power + video — no electrician needed at the mounting point, quick to install.

Not the right pick if you need…

Two-way talk — it has a mic but no speaker
Color night vision — infrared only, there is no visible warm-light illuminator
Wi-Fi — this is a wired RJ45 camera
Zoom — the lens is fixed (2.8 or 4.0 mm, chosen at purchase)
Alarm in/out wiring for sirens or sensors

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 4 MP, 1/3.0" CMOS sensor

4 MP (2560 × 1440)@25/20 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps; 720P (1280 × 720)@30/25 fps

Ultra 265, H.265, H.264, MJPEG

Smart IR, up to 30 m (98.4 ft.) IR distance

MicroSD, up to 512 GB

Supports PoE power supply

3-axis

Night Vision: Smart IR

IR on/off switching is Auto or Manual — set it per site, per customer.

IR MODE

Invisible infrared — discreet black & white night vision

Smart IR up to 30 m (98.4 ft.) at 850 nm, switchable Auto/Manual. The camera watches without lighting up the scene — nothing shows it is recording. This model has Smart IR only; there is no warm-light illuminator.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Switch the lens buttons above to compare.

Detectsomething is there

63 m206.7 ft

Observewhat is happening

25.2 m82.7 ft

Recognizesomeone you know

12.6 m41.3 ft

Identifya stranger's face

6.3 m20.7 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	AF28 · 101.5°	AF40 · 84.1°
5 m16 ft	12.2 m40.2 ft	9.0 m29.6 ft
10 m33 ft	24.5 m80.3 ft	18.0 m59.2 ft
15 m49 ft	36.7 m120 ft	27.1 m88.8 ft
20 m66 ft	49.0 m161 ft	36.1 m118 ft
30 m98 ft	73.4 m241 ft	54.1 m178 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the two models:AF28 = 2.8 mmAF40 = 4.0 mm

Camera

Max Resolution	4 MP
Sensor	1/3.0" CMOS
Min. Illumination	Color: 0.01 Lux (F2.0, AGC ON), 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
Adjustment Angle	Pan: 0° to 360°, Tilt: 0° to 80°, Rotate: 0° to 360°
S/N	> 52 dB
WDR	120 dB

Lens

Focal Length	AF28 · 2.8 mmAF40 · 4.0 mm
Iris Type	Fixed
Iris	F2.0
Field of View (H)	AF28 · 101.5°AF40 · 84.1°
Field of View (V)	AF28 · 55.6°AF40 · 45.1°
Field of View (D)	AF28 · 111.6°AF40 · 89.5°

DORI

DORI Distance (Detect)	AF28 · 63.0 m (206.7 ft.)AF40 · 90.0 m (295.3 ft.)
DORI Distance (Observe)	AF28 · 25.2 m (82.7 ft.)AF40 · 36.0 m (118.1 ft.)
DORI Distance (Recognize)	AF28 · 12.6 m (41.3 ft.)AF40 · 18.0 m (59.1 ft.)
DORI Distance (Identify)	AF28 · 6.3 m (20.7 ft.)AF40 · 9.0 m (29.5 ft.)

Illuminator

Supplemental Light	IR
Illumination Distance (IR)	30 m (98.4 ft.)
Wavelength	850 nm
IR On/Off Control	Auto/Manual

Video

Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 4 MP (2560×1440) max. 25 fps; 3 MP (2304×1296) max. 30 fps; 1080P (1920×1080) max. 30 fps; 720P (1280×720) max. 30 fps · Sub Stream: D1 (720×576) max. 30 fps; 640×360 max. 30 fps; 2CIF (704×288) max. 30 fps; CIF (352×288) max. 30 fps
Video Bit Rate	128 Kbps to 6144 Kbps
U-code	Support
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Support
Video Stream	Dual streams


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital defog

Events

Basic Detection	Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Cross line (based on human body detection), Intrusion (based on human body detection)
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	N/A
Suppression	Support
Sampling Rate	8 kHz

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)

Network

Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, QoS, SSL/TLS, SNMP
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host	Up to 32 users, 2 user levels: administrator and common user
Security	Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	EZStation, APP
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O	N/A
Alarm I/O	N/A
Serial Port	N/A
Built-in Mic	Support
Built-in Speaker	N/A
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A

Certification

EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
Safety	CE LVD (EN 62368-1); CB (IEC 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)
Protection	IP67 (IEC 60529)

General

Power	DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption	Max. 3.9 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Ø118 mm × 96 mm (Ø4.6" × 3.8") (Ø × H)
Weight	0.30 kg (0.66 lb.)
Material	Metal + Plastic
Working Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	N/A
Web Client Language	4 Languages: English, Russian, Spanish, Vietnamese
Configurable P/N	Support

Dimensions

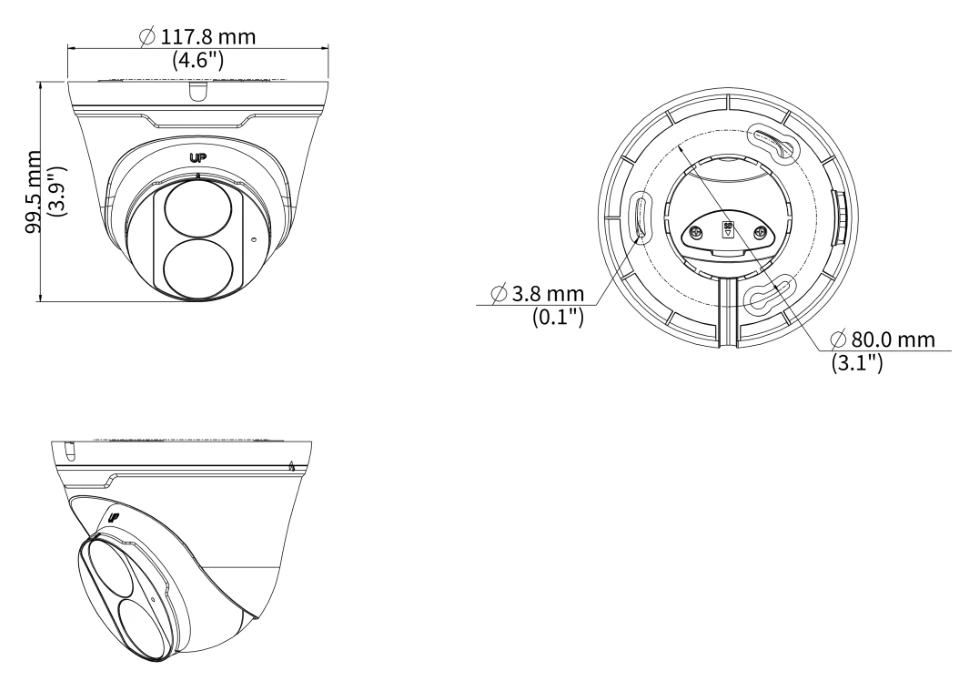

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	Ø118 mm × 96 mm (Ø4.6" × 3.8") (Ø × H)
Weight	0.30 kg (0.66 lb.)
Material	Metal + Plastic
Mount adjustment	Pan 0–360° · Tilt 0–80° · Rotate 0–360°

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-JB03-I-INJunction box for plastic turret camera (support wiring from behind)

TR-A01-INNPT 3/4" waterproof cable gland

TR-SE24-INDome pendant mounting pole 200mm

TR-SE24-A-INDome pendant mounting pole 500mm

TR-CM24-INDome pendant mounting bracket (indoor)

TR-JB07/WM03-G-IN-V2Wall mounting assembling bracket for 32 fix-dome & mini fix-dome & plastic turret camera

TR-WM03-D-IN-V2Wall mounting bracket for 32 fix-dome & mini fix-dome & plastic turret camera

TR-UC08-C-V2Bullet & dome corner mounting bracket

TR-UP06-C-IN-V2Pole mounting bracket for bullet junction box only

4MP Fixed Dome Camera FAQ — IPC3614LB-ADF28(40)K-H

What resolution does the IPC3614LB-ADF28(40)K-H record?

The main stream delivers 4 MP at 2560x1440 up to 25 fps, with 3 MP and 1080p modes at 30 fps when you need smoother motion or smaller files. The 1/3.0-inch CMOS plus 2D/3D noise reduction keeps night footage usable.

What is the difference between the 2.8 mm and 4.0 mm versions?

AF28 (2.8 mm) covers 101.5 degrees horizontally, detecting people at 63 m and identifying at 6.3 m. AF40 (4.0 mm) tightens the view to 84.1 degrees and pushes detection to 90 m, identification to 9 m — pick it for driveways, corridors and fence runs.

Does it keep recording if the network goes down?

Yes — a MicroSD slot provides edge storage inside the camera, so footage keeps writing locally through network cuts or NVR restarts. On unstable links between buildings or sites, that local copy is often the evidence that survives.

How do I power it — do I need an electrician at every point?

No. It is PoE powered, so the same network cable from your PoE switch carries power and video to each dome. You pull one Cat5e/Cat6 run per camera, and a UPS at the switch cabinet rides through power cuts for the whole system.

How does it handle night scenes and harsh light contrast?

Smart IR reaches 30 m at 850 nm with auto or manual control, recording at 0 lux in darkness. True 120 dB WDR balances bright gates against shaded interiors, HLC tames headlights, and digital defog clears haze — a solid mix for entrances.

Does it record audio and warn me about tampering?

Yes. The built-in microphone captures G.711 audio at 64 kbps with noise suppression, and audio detection alarms on sudden loud sounds. Tampering alarm fires if the lens is covered, and cross-line detection based on human bodies watches key boundaries.
