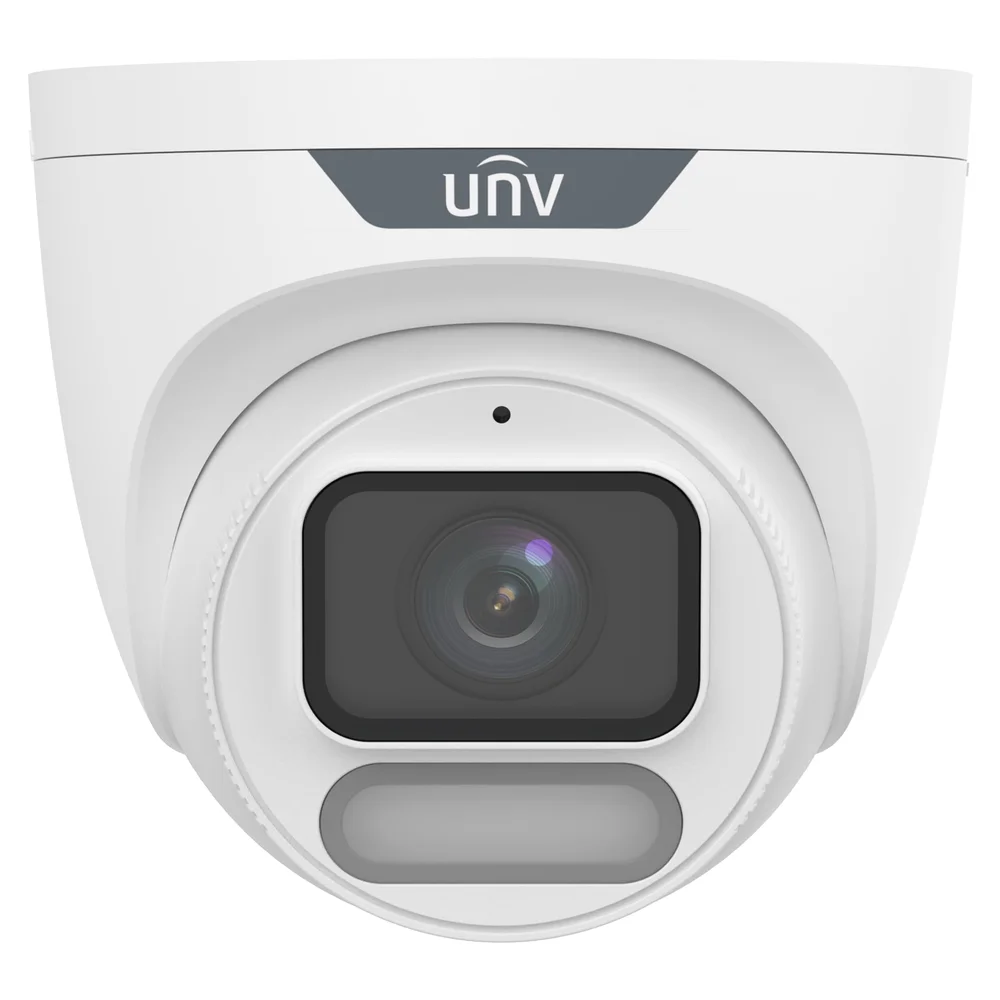

4MP ColorHunter with Wise-ISP Fixed Eyeball Network Camera IPC3624LE-ADF28(40)K-WP

4MP ColorHunter with Wise-ISP Fixed Eyeball Network Camera IPC3624LE-ADF28(40)K-WP — view 1

4MP ColorHunter with Wise-ISP Fixed Eyeball Network Camera IPC3624LE-ADF28(40)K-WP — view 2

4MP ColorHunter with Wise-ISP Fixed Eyeball Network Camera IPC3624LE-ADF28(40)K-WP — view 3

Uniview (UNV) · Eyeball4MP ColorHunter · Wise-ISP

4MP ColorHunter Eyeball · Wise-ISP

IPC3624LE-ADF28(40)K-WP

Name: Uniview IPC3624LE-ADF28(40)K-WP
Brand: Uniview
SKU: IPC3624LE-ADF28(40)K-WP

4MP fixed ColorHunter eyeball network camera with Wise-ISP — 30 m warm-light night vision, 120 dB true WDR, PoE single-cable install, built-in mic, IP67 outdoor body.

4 MP · 2688×1520@25fpsUltra 265 · low bandwidthColorHunter · Wise-ISP low-light colorPoE · 802.3afIP67 · outdoorMic · built-in audio

CHOOSE YOUR LENS — TWO MODELS ON THIS PAGE

ADF28K (2.8 mm, 124.3° view) covers a wide area near the camera — doorways, small rooms, shop counters. ADF40K (4.0 mm, 96.1° view) trades width for reach — corridors, driveways, longer rooms. Highlighted rows in the spec table below show every difference.

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCRoHSWEEEIP67ONVIFULNDAA

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

30 mWarm light distance

120 dBTrue WDR

IP67Outdoor rated

2.8 WPoE max power

The Uniview IPC3624LE-ADF28(40)K-WP is a 4MP fixed eyeball network camera with ColorHunter and Wise-ISP technology, deeply optimizing color, detail, and smear in extremely low-light scenes. A built-in warm-light illuminator reaches up to 30 m, 120 dB true WDR keeps images clear against strong backlight, a single PoE cable handles power and data, and a built-in mic can record audio to a MicroSD card (up to 512 GB). It is offered with two fixed lenses: 2.8 mm (ADF28K, wider view) or 4.0 mm (ADF40K, longer reach).

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Shops & storefrontsColorHunter with Wise-ISP keeps color and detail even in near-darkness, and the built-in mic records what is said at the counter. 120 dB WDR keeps faces visible against bright doorways or windows.

Narrow corridors & hallways9:16 corridor mode reshapes the image to fit narrow passages — office floors, hotel corridors, apartment hallways — without wasted wall-to-wall footage.

Home entryways & drivewaysThe warm-light illuminator (up to 30 m, Auto/Manual) keeps visitors visible in full color at night and tells intruders the area is watched.

Small offices & receptionA MicroSD card (up to 512 GB) keeps a local recording backup even if the NVR or network goes down, alongside built-in mic audio.

Residential compounds & parkingSmart Intrusion Prevention (Lite) — crossline and intrusion detection based on human body and vehicle detection, plus ultra motion detection — cuts down false alarms.

Outdoor & rooftop installsIP67 body and −30 to 60 °C rating handle rain, dust and heat; 3-axis pan/tilt/rotate adjustment makes ceiling or wall mounting easy to aim.

Not the right pick if you need…

Traditional infrared night vision — this model uses ColorHunter with a warm-light illuminator, not an IR array
Two-way talk — it has a mic but no speaker
Wi-Fi — this is a wired RJ45 camera
Zoom — the lens is fixed (2.8 or 4.0 mm, chosen at purchase)
Alarm in/out wiring for sirens or sensors

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 4 MP, 1/1.8" CMOS sensor and F1.0 large aperture lens

4 MP (2688 × 1520)@25/20 fps; 4 MP (2560 × 1440)@25/20 fps; 3 MP (2304 × 1296)@30/25 fps; 1080P (1920 × 1080)@30/25 fps

Ultra 265, H.265, H.264, MJPEG

Supports ColorHunter with Wise-ISP technology, deeply optimizing color, detail, and smear effects in extremely low-light scenes

120 dB true WDR technology enables clear image in strong light scene

Supports 9:16 corridor mode

Built-in mic

White light, up to 30 m (98.4 ft.) warm light distance

MicroSD, up to 512 GB

IP67 protection

Supports PoE power supply

3-axis

ColorHunter with Wise-ISP: built for near-darkness

Two technologies working together — full-color image processing plus a warm-light boost, switchable Auto/Manual.

COLORHUNTER + WISE-ISP

Full-color imaging engineered for near-darkness

Wise-ISP deeply optimizes color, detail, and smear in extremely low-light scenes, working with the F1.0 large-aperture lens and 1/1.8" sensor to keep footage usable when light is almost gone.

WARM LIGHT

Visible warm-white illumination, Auto or Manual

A warm-light illuminator reaches up to 30 m (98.4 ft.), switchable Auto/Manual, adding just enough visible light for full-color detail at night — with 120 dB true WDR balancing backlit scenes.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Switch the lens buttons above to compare.

Detectsomething is there

43.4 m142.4 ft

Observewhat is happening

17.4 m57.1 ft

Recognizesomeone you know

8.7 m28.5 ft

Identifya stranger's face

4.3 m14.1 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	K · 124.3°	K · 96.1°
5 m16 ft	18.9 m62.1 ft	11.1 m36.5 ft
10 m33 ft	37.9 m124 ft	22.3 m73.0 ft
15 m49 ft	56.8 m186 ft	33.4 m110 ft
20 m66 ft	75.7 m248 ft	44.5 m146 ft
30 m98 ft	114 m373 ft	66.8 m219 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the two models:ADF28K = 2.8 mmADF40K = 4.0 mm

Camera

Max Resolution	4 MP
Sensor	1/1.8" CMOS
Min. Illumination	Color: 0.0003 Lux (F1.0, AGC ON)
Shutter	Auto/Manual, 1 to 1/100000 s
Adjustment Angle	Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
S/N	> 52 dB
WDR	120 dB

Lens

Focal Length	ADF28K · 2.8 mmADF40K · 4.0 mm
Iris Type	Fixed
Iris	F1.0
Field of View (H)	ADF28K · 124.3°ADF40K · 96.1°
Field of View (V)	ADF28K · 61.4°ADF40K · 52.2°
Field of View (D)	ADF28K · 135°ADF40K · 113.5°

DORI

DORI Distance (Lens)	ADF28K · 2.8 mmADF40K · 4 mm
DORI Distance (Detect)	ADF28K · 43.4 m (142.4 ft.)ADF40K · 62.1 m (203.7 ft.)
DORI Distance (Observe)	ADF28K · 17.4 m (57.1 ft.)ADF40K · 24.8 m (81.4 ft.)
DORI Distance (Recognize)	ADF28K · 8.7 m (28.5 ft.)ADF40K · 12.4 m (40.7 ft.)
DORI Distance (Identify)	ADF28K · 4.3 m (14.1 ft.)ADF40K · 6.2 m (20.3 ft.)

Illuminator

Supplemental Light	Warm light
Light On/Off Control	Auto/Manual
Illumination Distance (Warm Light)	30 m (98.4 ft.)

Video

Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 4 MP (2688 × 1520), max. 25 fps; 4 MP (2560 × 1440), max. 25 fps; 3 MP (2304 × 1296), max. 30 fps; 1080P (1920 × 1080), max. 30 fps · Sub Stream: 720P (1280 × 720), max. 30 fps; D1 (720 × 576), max. 30 fps; 640 × 360, max. 30 fps
Video Bit Rate	128 Kbps to 6144 Kbps
U-code	Support
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Support
Video Stream	Dual streams


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Smart Illumination	Support
Digital Noise Reduction	2D/3D DNR
Flip	Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital defog

Intelligent

Smart Intrusion Prevention (Lite)

Intrusion, crossline detection (both detection are based on human body and vehicle detection)

Events

Basic Detection	Motion detection, Ultra motion detection (based on human body and vehicle detection), Tampering alarm, Audio detection
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	N/A
Suppression	Support
Sampling Rate	8 kHz

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)

Network

Protocols	IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host	Up to 32 users. 2 user levels: administrator and common user
Security	Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	EZStation, APP
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+; Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O	N/A
Alarm I/O	N/A
Serial Port	N/A
Built-in Mic	Support
Built-in Speaker	N/A
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A

Certification

EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
Safety	CE LVD (EN 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)
Protection	IP67 (IEC 60529)

General

Power	DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption	Max. 2.8 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Ø118 mm × 106 mm (Ø4.6" × 4.2") (Ø × H)
Weight	0.48 kg (1.06 lb.)
Material	Metal + Plastic
Working Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	Support
Web Client Language	13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian

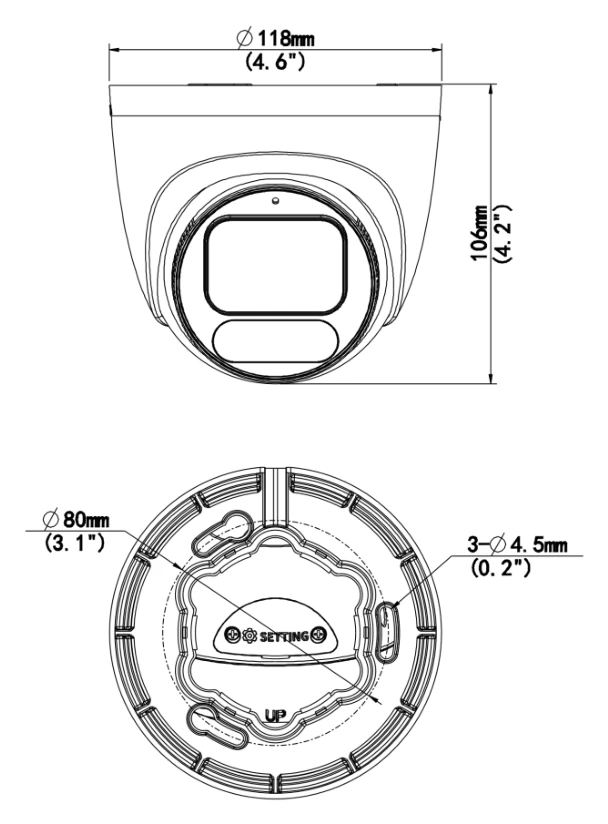

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	Ø118 mm × 106 mm (Ø4.6" × 4.2") (Ø × H)
Weight	0.48 kg (1.06 lb.)
Material	Metal + Plastic
Mount adjustment	Pan 0–360° · Tilt 0–75° · Rotate 0–360°

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-JB03-I-INJunction box for turret camera (wiring from behind)

TR-A01-INNPT 3/4" waterproof cable gland

TR-SE24-INDome pendant mounting pole, 200 mm

TR-SE24-A-INDome pendant mounting pole, 500 mm

TR-CM24-INDome pendant mounting bracket (indoor)

TR-JB07/WM03-G-IN-V2Wall mounting assembling bracket for 32-series fix-dome / mini fix-dome / plastic turret camera

TR-WM03-D-IN-V2Wall mounting bracket for 32-series fix-dome / mini fix-dome / plastic turret camera

TR-UC08-C-V2Bullet & dome corner mounting bracket

TR-UP06-C-IN-V2Pole mounting bracket for bullet junction box only

4MP Full Color Camera FAQ — IPC3624LE-ADF28(40)K-WP

How dark can it be and still get color video?

Color sensitivity is 0.0003 lux thanks to the F1.0 large-aperture lens and 1/1.8" CMOS sensor — well below typical street-lit levels. Wise-ISP optimizes color, detail and smear in near-darkness, and when even that runs out, the 30 m warm light switches in Auto or Manual.

What does the warm light add compared to plain IR cameras?

IR cameras record black-and-white at night, so clothing color, vehicle color and skin tone are lost. This model's warm white light keeps everything in color up to 30 m — evidence that identifies. It also acts as visible deterrence, showing the site is actively monitored.

How wide can one camera cover?

The 2.8 mm version sees a very wide 124.3° horizontally — one unit can watch a full forecourt or shop floor. The 4.0 mm version covers 96.1° and stretches DORI detection from 43.4 m to 62.1 m, with recognition at 12.4 m instead of 8.7 m.

What are the power, housing and audio specs?

PoE power over a single network cable, IP67 dust- and water-resistant housing for outdoor mounting, and a built-in microphone recording G.711U/G.711A at 64 Kbps with the video. Two-way talk is not supported, so plan external audio if you need voice callouts.

Does it filter out false alarms?

Yes. Smart Intrusion Prevention Lite runs intrusion and cross line detection classified by human body and vehicle, and ultra motion detection uses the same logic. Rain, insects and swaying branches get ignored; people and cars trigger. Tampering alarm and audio detection round out the set.

How much bandwidth does the 4MP stream use?

Main stream runs 4 MP (2688×1520) at up to 25 fps with bit rate adjustable between 128 Kbps and 6144 Kbps. Ultra 265 with U-code compresses hard, and dual streams let the recorder take full quality while phones pull a light sub stream over mobile data.
