IP Cameras › IPC3622LE-ADF28(40)K-WP

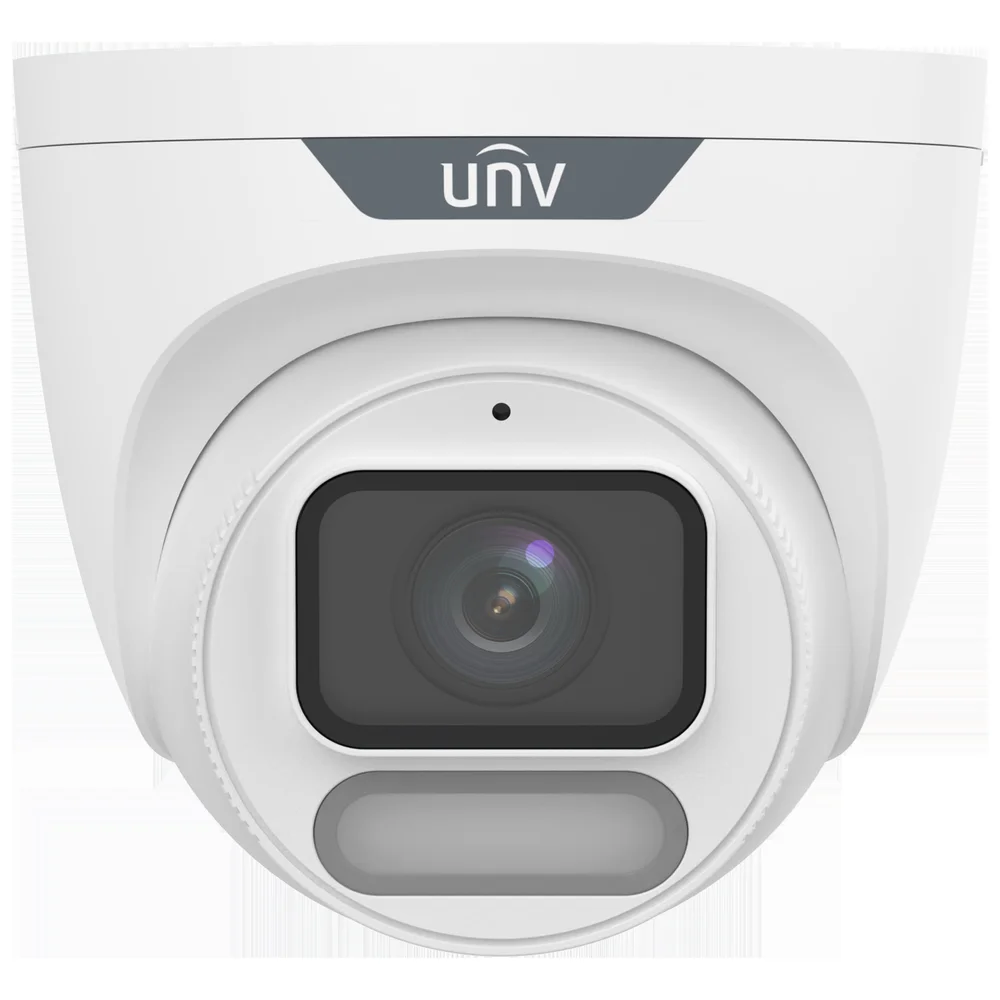

2MP ColorHunter Fixed Eyeball Network Camera IPC3622LE-ADF28(40)K-WP

2MP ColorHunter Fixed Eyeball Network Camera IPC3622LE-ADF28(40)K-WP — view 1

2MP ColorHunter Fixed Eyeball Network Camera IPC3622LE-ADF28(40)K-WP — view 2

2MP ColorHunter Fixed Eyeball Network Camera IPC3622LE-ADF28(40)K-WP — view 3

Uniview (UNV)ColorHunter Series · Eyeball

2MP ColorHunter Eyeball · Wise-ISP

IPC3622LE-ADF28(40)K-WP

Name: Uniview IPC3622LE-ADF28(40)K-WP
Brand: Uniview
SKU: IPC3622LE-ADF28(40)K-WP

2MP fixed eyeball network camera with ColorHunter and Wise-ISP — built-in warm-light color night vision up to 30 m, 120 dB true WDR, PoE single-cable install, built-in mic, IP67 outdoor body.

2 MP · 1080P@30fpsUltra 265 · low bandwidthColorHunter · Wise-ISP color night visionWarm Light · up to 30 mPoE · 802.3afIP67 · outdoor

CHOOSE YOUR LENS — TWO MODELS ON THIS PAGE

ADF28K (2.8 mm, 99° horizontal view) covers a wide area close to the camera — entrances, small rooms, shop counters. ADF40K (4.0 mm, 85.4° horizontal view) trades width for reach — corridors, driveways, longer yards. Highlighted rows in the spec table below show every difference.

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCUL/CULRoHSWEEEIP67ONVIFNDAA

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

30 mWarm-light distance

120 dBTrue WDR

IP67Outdoor rated

2.6 WPoE max power

The Uniview IPC3622LE-ADF28(40)K-WP is a 2MP ColorHunter fixed eyeball network camera built around Wise-ISP image processing. Instead of infrared, it uses a built-in warm-light illuminator (up to 30 m) so night footage stays in full color, adds 120 dB true WDR for strong-light scenes, and powers over a single PoE cable inside an IP67, −30 °C to 60 °C outdoor body. It is offered with two fixed lenses: 2.8 mm (ADF28K, wider view) or 4.0 mm (ADF40K, longer reach).

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Shops & storefrontsFull-color footage day and night thanks to ColorHunter + warm light, and the built-in mic records what is said at the counter.

Home gates & yardsThe warm light turns on at night — visitors are visible in color and intruders know they are seen.

Warehouse & site perimetersIP67 body and −30 to 60 °C rating survive rain, dust and heat. ADF40K watches longer fence lines.

Residential compoundsUltra motion detection and Smart Intrusion Prevention (Lite) raise alerts for people and vehicles, not stray animals or moving branches.

Small offices & receptionUltra 265 compression keeps recordings small, and a microSD slot (up to 512 GB) backs up footage on the camera itself.

Kiosks & fuel stationsOne PoE cable does power + video — no electrician needed on site, quick to install.

Not the right pick if you need…

Covert IR night vision — this model uses visible warm light, not infrared, so the illuminator is not hidden
Two-way talk — it has a mic but no speaker
Wi-Fi — this is a wired RJ45 camera
Zoom — the lens is fixed (2.8 or 4.0 mm, chosen at purchase)
Alarm in/out wiring for sirens or sensors

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 1080P, 1/2.7" CMOS sensor and F1.0 large aperture lens

1080P (1920 × 1080)@30/25 fps; 720P (1280 × 720)@30/25 fps

Ultra 265, H.265, H.264, MJPEG compression

Supports ColorHunter with Wise-ISP technology, deeply optimizing color, detail, and smear effects in extremely low-light scenes

120 dB true WDR technology enables clear image in strong light scene

Supports 9:16 corridor mode

Built-in mic

White light, up to 30 m (98.4 ft.) warm light distance

MicroSD, up to 512 GB

IP67 protection

Supports PoE power supply

3-axis adjustment

Color Night Vision: Warm Light + ColorHunter

Switchable Auto/Manual warm-light illumination, paired with Wise-ISP color processing — no infrared on this model.

WARM LIGHT + COLORHUNTER

Built-in warm white light — full-color night vision, no infrared

Warm white light up to 30 m (98.4 ft.), switchable Auto/Manual. Paired with ColorHunter and Wise-ISP image processing, the camera keeps faces, clothing and vehicle colors visible at night instead of switching to black-and-white — this model has no infrared illuminator.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Switch the lens buttons above to compare.

Detectsomething is there

45 m147.6 ft

Observewhat is happening

18 m59.1 ft

Recognizesomeone you know

9 m29.5 ft

Identifya stranger's face

4.5 m14.8 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	K · 99.0°	K · 85.4°
5 m16 ft	11.7 m38.4 ft	9.2 m30.3 ft
10 m33 ft	23.4 m76.8 ft	18.5 m60.5 ft
15 m49 ft	35.1 m115 ft	27.7 m90.8 ft
20 m66 ft	46.8 m154 ft	36.9 m121 ft
30 m98 ft	70.3 m230 ft	55.4 m182 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the two models:ADF28K = 2.8 mmADF40K = 4.0 mm

Camera

Max Resolution	2 MP
Sensor	1/2.7" CMOS
Min. Illumination	Color: 0.0003 Lux (F1.0, AGC ON)
Shutter	Auto/Manual, 1 to 1/100000 s
Adjustment Angle	Pan: 0° to 360°, Tilt: 0° to 75°, Rotate: 0° to 360°
S/N	> 52 dB
WDR	120 dB

Lens

Focal Length	ADF28K · 2.8 mmADF40K · 4.0 mm
Iris Type	Fixed
Iris	F1.0
Field of View (H)	ADF28K · 99.0°ADF40K · 85.4°
Field of View (V)	ADF28K · 53.0°ADF40K · 47.5°
Field of View (D)	ADF28K · 118.0°ADF40K · 98.5°
Lens Type	Fixed

DORI

DORI Distance (Detect)	ADF28K · 45.0 m (147.6 ft.)ADF40K · 64.3 m (211.0 ft.)
DORI Distance (Observe)	ADF28K · 18.0 m (59.1 ft.)ADF40K · 25.7 m (84.3 ft.)
DORI Distance (Recognize)	ADF28K · 9.0 m (29.5 ft.)ADF40K · 12.9 m (42.3 ft.)
DORI Distance (Identify)	ADF28K · 4.5 m (14.8 ft.)ADF40K · 6.4 m (21.0 ft.)

Illuminator

Supplemental Light	Warm light
Light On/Off Control	Auto/Manual
Illumination Distance (Warm Light)	30 m (98.4 ft.)

Video

Video Compression	Ultra 265, H.265, H.264, MJPEG
H.264 Code Profile	Baseline profile, Main profile, High profile
Frame Rate	Main Stream: 1080P (1920×1080) max. 30 fps; 720P (1280×720) max. 30 fps · Sub Stream: 720P (1280×720) max. 30 fps; D1 (720×576) max. 30 fps; 640×360 max. 30 fps; 2CIF (704×288) max. 30 fps; CIF (352×288) max. 30 fps
Video Bit Rate	128 Kbps to 6144 Kbps
U-code	Support
OSD	Up to 4 OSDs
Privacy Mask	Up to 4 areas
ROI	Support
Video Stream	Dual streams


Smart Illumination	Support
White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Flip	Normal, Flip vertical, Flip horizontal, 180°, 90° Clockwise, 90° Anti-clockwise
Dewarping	N/A
HLC	Support
BLC	Support
Defog	Digital defog

Intelligent

Smart Intrusion Prevention (Lite)

Intrusion, crossline detection (both detection are based on human body and vehicle detection)

Events

Basic Detection	Motion detection, Ultra motion detection (based on human body and vehicle detection), Tampering alarm, Audio detection
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	64 Kbps
Two-way Audio	N/A
Suppression	Support
Sampling Rate	8 kHz

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)

Network

Protocols	IPv4, IPv6, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS, RTMP, SSL/TLS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API, SDK
User/Host	Up to 32 users, 2 user levels: administrator and common user
Security	Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	EZStation, APP
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+; Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O	N/A
Alarm I/O	N/A
Serial Port	N/A
Built-in Mic	Support
Built-in Speaker	N/A
WIFI	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	N/A

Certification

EMC	CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B)
Protection	IP67 (IEC 60529)
Safety	CE LVD (EN 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU)

General

Power	DC 12 V±25%, PoE (IEEE 802.3af)
Power Consumption	Max. 2.6 W
Power Interface	Ø5.5 mm coaxial power plug
Dimensions	Ø118 mm × 106 mm (Ø4.6" × 4.2") (Ø × H)
Weight	0.47 kg (1.04 lb.)
Material	Metal + Plastic
Working Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	4 KV
Reset Button	Support
Web Client Language	13 Languages: English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese, Spanish, Spanish (Europe), Italian

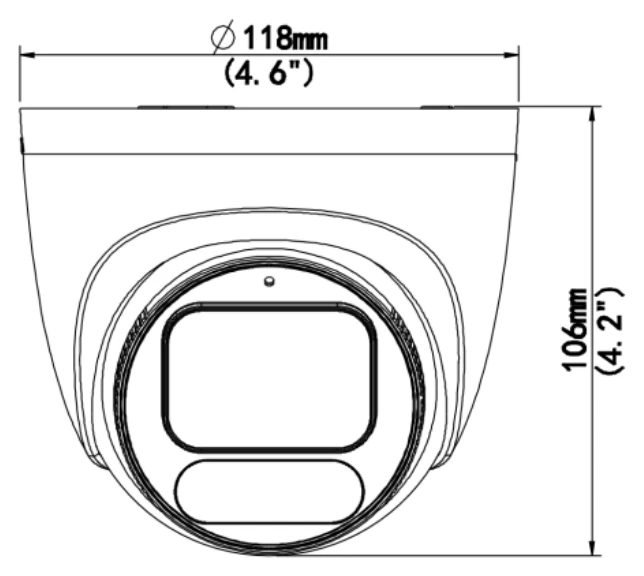

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	Ø118 mm × 106 mm (Ø4.6" × 4.2")
Weight	0.47 kg (1.04 lb.)
Material	Metal + Plastic
Mount adjustment	Pan 0–360° · Tilt 0–75° · Rotate 0–360°

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-JB03-I-INJunction box for turret camera (support wiring from behind)

TR-CM24-INDome pendant mounting bracket (indoor)

TR-SE24-A-INDome pendant mounting pole, 500 mm

TR-SE24-INDome pendant mounting pole, 200 mm

TR-A01-INNPT 3/4" waterproof cable gland

TR-JB07/WM03-G-IN-V2Wall mounting assembling bracket for fix-dome, mini fix-dome & plastic turret camera

TR-WM03-D-IN-V2Wall mounting bracket for fix-dome, mini fix-dome & plastic turret camera

TR-UC08-C-V2Bullet & dome corner mounting bracket

TR-UP06-C-IN-V2Pole mounting bracket for bullet junction box only

2MP Full Color Camera FAQ — IPC3622LE-ADF28(40)K-WP

Is 2MP still enough for a shop or small business?

For close-range scenes, yes. The main stream runs 1080P (1920×1080) at 30 fps, and the bit rate stays between 128 Kbps and 6144 Kbps — light on bandwidth and storage, which matters when the recorder link or mobile data is limited. DORI recognition is 9 m (2.8 mm) or 12.9 m (4.0 mm).

Does this model use infrared at night?

No — it is a full-color design with no IR. A warm white light reaching 30 m (Auto or Manual) plus an F1.0 lens and 0.0003 lux sensitivity keep the image in color all night. Wise-ISP processing cleans up color, detail and smear in near-darkness.

Can it detect people and vehicles separately?

Yes. Smart Intrusion Prevention Lite provides intrusion and cross line detection based on human body and vehicle detection, and ultra motion detection uses the same classification. Alarms fire on people or cars, not rain or moving branches, plus tampering and audio detection are included.

How is it powered and can it stay outdoors?

PoE carries power and video on one network cable, so each camera point needs a single run from the switch. The IP67-rated housing withstands dust and heavy rain, and the mount adjusts pan 0–360°, tilt 0–75°, rotation 0–360° for walls, eaves and poles.

Which lens should I take for my scene?

ADF28K (2.8 mm) covers 99.0° horizontally with DORI detection at 45 m — best for shop interiors, corridors and small yards. ADF40K (4.0 mm) covers 85.4° and detects to 64.3 m, recognizing at 12.9 m — the pick for slightly deeper scenes like driveways.
