4MP 5X Wise-ISP Tri-Guard Warm Light PTZ Camera IPC6314LWH-AX5C-VG2

4MP 5X Wise-ISP Tri-Guard Warm Light PTZ Camera IPC6314LWH-AX5C-VG2 — view 1

Uniview (UNV) · PTZ CameraTri-Guard · Warm Light PTZ

4MP 5X Wise-ISP Warm Light PTZ Camera

IPC6314LWH-AX5C-VG2

Name: IPC6314LWH-AX5C-VG2
Brand: Uniview
SKU: IPC6314LWH-AX5C-VG2

A compact 5× zoom PTZ that keeps color and detail after dark: Wise-ISP ColorHunter processing and a 40 m warm light hold onto real color at extremely low light, while human-only auto-tracking locks onto an intruder the moment it crosses a line.

2688×1520 · main stream @30fps5× · optical zoom, 2.7–13.5 mmAuto Tracking · human target only120 dB · true WDRIP66 · housing protectionPoE · IEEE 802.3at / DC 12V

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Compliance:ONVIF Profile SONVIF Profile GONVIF Profile T

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

4 MPMain sensor resolution

5×Optical zoom (2.7–13.5 mm)

40 mWarm light distance

120 dBTrue WDR, high-contrast scenes

The IPC6314LWH-AX5C-VG2 is a 4MP mini PTZ camera with a 1/1.8-inch CMOS sensor and a 5x optical zoom lens (2.7-13.5 mm, horizontal field of view 113.69° to 50.29°), built on Wise-ISP ColorHunter processing that optimizes color, detail and smear effects in extremely low light (0.0005 lux, F1.2, AGC on). It records a 2688×1520 main stream at up to 30 fps in Ultra 265 / H.265 / H.264 / MJPEG, applies 120 dB true WDR for high-contrast scenes, and runs smart intrusion prevention (cross-line and intrusion detection with false-alarm filtering) plus auto tracking limited to human targets. Power is DC 12 V or PoE (IEEE 802.3at), the built-in warm light reaches 40 m, storage is MicroSD up to 512 GB, and the housing is rated IP66.

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Perimeter & fence linesSmart intrusion prevention (cross-line and area-intrusion detection with false-alarm filtering) flags a crossing, and auto tracking — human targets only — zooms in and follows on its own.

Parking areas & side gates345° pan and -10° to 100° tilt with 1024 presets and 16 patrols (up to 64 presets each) let one PTZ cycle through several watch points instead of installing a fixed camera at each one.

Low-light approach roadsWise-ISP ColorHunter holds real color down to 0.0005 lux (F1.2, AGC on); once ambient light is gone, the 40 m warm light takes over for full-color capture instead of switching to black-and-white IR.

Backlit doorways & mixed-light scenes120 dB true WDR keeps a face visible against a bright sky, glass lobby door or headlight glare instead of silhouetting it.

Cable-limited retrofit sitesPoE (IEEE 802.3at) runs power and data over the same Ethernet cable, so a retrofit doesn't need a separate DC 12 V line pulled to the pole; a DC 12 V option is also available where PoE isn't run.

Outdoor pole & wall mountsIP66-rated housing plus matching pole, wall and junction-box brackets from the accessory list cover typical eaves, wall and pole placements.

Not the right pick if you need…

No IR illuminator on this model — only a 40 m warm light. For pure black-and-white night coverage well beyond 40 m, choose an IR-equipped PTZ instead.
Auto tracking is limited to human targets per the datasheet — it does not auto-track vehicles. Pick a model with person/vehicle classification if vehicle tracking matters.
IP66 protection (not IP67) with a plastic housing — fine for typical eaves/pole exposure, not for submersion-grade or extreme vandal-resistance requirements.
5x optical zoom (2.7–13.5 mm) tops out at a modest telephoto reach — for identify-grade recognition well past ~21 m, a longer-zoom PTZ is a better match.

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 4 MP, 1/1.8" CMOS sensor

Supports ColorHunter with Wise-ISP technology, deeply optimizing color, detail and smear effects in extremely low-light scenes

Ultra 265, H.265, H.264, MJPEG

2688 × 1520@30 fps in the main stream, 16:9 aspect ratio

Smart intrusion prevention, supports false alarm filtering, cross line detection, intrusion detection

120 dB true WDR meets the image requirements in high-contrast scenes

Built-in mic and speaker

40 m (131.2 ft.) warm light distance

MicroSD, up to 512 GB

IP66 protection

DC 12 V, PoE (IEEE 802.3at) power supply

Low-Light Color, Then Warm-Light Backup

Two complementary low-light tools built into the same lens.

WISE-ISP COLORHUNTER

0.0005 lux color capture

Wise-ISP processing optimizes color, detail and smear effects (F1.2, AGC on) before ambient light runs out.

40 M WARM LIGHT

Full-color night capture to 40 m

Auto/manual warm-light illuminator takes over once ambient light is gone, feeding the same smart-intrusion and auto-tracking pipeline.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can tell you at distance. Figures above are at full 5× telephoto (13.5 mm); wide-angle (2.7 mm) DORI values are listed in the DORI Distance rows of the spec table below.

Detectsomething is there

209.9 m688.7 ft

Observewhat is happening

84 m275.5 ft

Recognizesomeone you know

42 m137.7 ft

Identifybeyond doubt

21 m68.9 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	113.7° wide	50.3° tele
5 m16 ft	15.3 m50.2 ft	4.7 m15.4 ft
10 m33 ft	30.6 m100 ft	9.4 m30.8 ft
15 m49 ft	45.9 m151 ft	14.1 m46.2 ft
20 m66 ft	61.2 m201 ft	18.8 m61.6 ft
30 m98 ft	91.8 m301 ft	28.2 m92.4 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Camera

Sensor	1/1.8" CMOS
Min. Illumination	Color: 0.0005 Lux (F1.2, AGC ON)
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
WDR	120 dB
S/N	> 56 dB

Lens & Field of View

Focal Length	2.7 to 13.5 mm
Optical Zoom	5X
Field of View (H)	113.69° to 50.29°
Field of View (V)	59.46° to 28.45°
Field of View (D)	156.23° to 59.34°

DORI

DORI Distance (Lens)	2.7 to 13.5 mm
DORI Distance (Detect)	98.6 m to 209.9 m (323.3 ft. to 688.7 ft.)
DORI Distance (Observe)	39.4 m to 84.0 m (129.3 ft. to 275.5 ft.)
DORI Distance (Recognize)	19.7 m to 42.0 m (64.7 ft. to 137.7 ft.)
DORI Distance (Identify)	9.9 m to 21.0 m (32.3 ft. to 68.9 ft.)

Video

Privacy Mask	Up to 4 areas
Frame Rate-Main Stream	4 MP (2560 × 1440)@25 fps (Default); 4 MP (2688 × 1520), max. 30 fps; 4 MP (2560 × 1440), max. 30 fps
Video Compression	Ultra 265, H.265, H.264, MJPEG
Video Bit Rate	128 Kbps to 6144 Kbps
U-code	Support
ROI	Support
Video Stream	Triple streams
OSD	Up to 8 OSDs

Intelligent

Auto Tracking	Support, target filtering: human only
Smart Intrusion Prevention	Support false alarm filtering: cross line detection, intrusion detection (based on human body and vehicle detection)


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Flip	Normal, Flip vertical, Flip horizontal, 180°
HLC	Support
BLC	Support
Defog	Digital defog

Illuminator

Light On/Off Control	Auto/Manual
Illumination Distance (Warm Light)	40 m

Events

Basic Detection	Motion detection, Audio detection, Tampering alarm
Motion Detection	Support
Tampering Detection	Support
Audio Detection	Support
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication
UMD (Ultra Motion Detection)	Support

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	128 Kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	8 kHz, 16 kHz

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)

Network & Security

Protocols	TLS1.3, SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T), API
Security	Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and digest authentication for RTSP, Digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client	EZStation, EZLive, EZView
Web Browser	Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above

PTZ

Number of Presets	1024
Preset Patrol	16 patrols, up to 64 presets for each patrol
Patrol Stay Time	120 s to 1800 s
Home Position	Support
Number of Presets (IPC)	1024
Pan Range	0° to 345°
Tilt Range	-10° to 100°
Pan Speed	1°/s to 50°/s
Tilt Speed	1°/s to 40°/s
Number of Patrol	16

Interface

Audio I/O	1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Alarm I/O	1/1
Built-in Mic	Support
Built-in Speaker	Support
Network	1 × RJ45 10 M/100 M Base-TX Ethernet

Certification

EMC	CE-EMC (EN 55032; EN IEC 61000-3-2; EN 61000-3-3; EN 50130); FCC SDoC (47 CFR Part 15; Subpart B)
Safety	UL (UL 62368-1); CUL (CAN/CSA C22.2 No. 62368-1); CE-LVD (EN IEC 62368-1)
Environment	CE-ROHS (2011/65/EU;(EU)2015/863)
Protection	IP66 (IEC 60529)

General

Power	DC 12 V±25%, PoE (IEEE 802.3at)
Power Consumption	≤ 25.4 W
Working Environment	-30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-40 °C to 70 °C (-40 °F to 158 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	2 KV
Reset Button	Support
Material	Plastic
Heater	Support
Web Client Language	22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak

Live View

Maximum Bitstream	35
OSD Color	Support
OSD Character Number	40

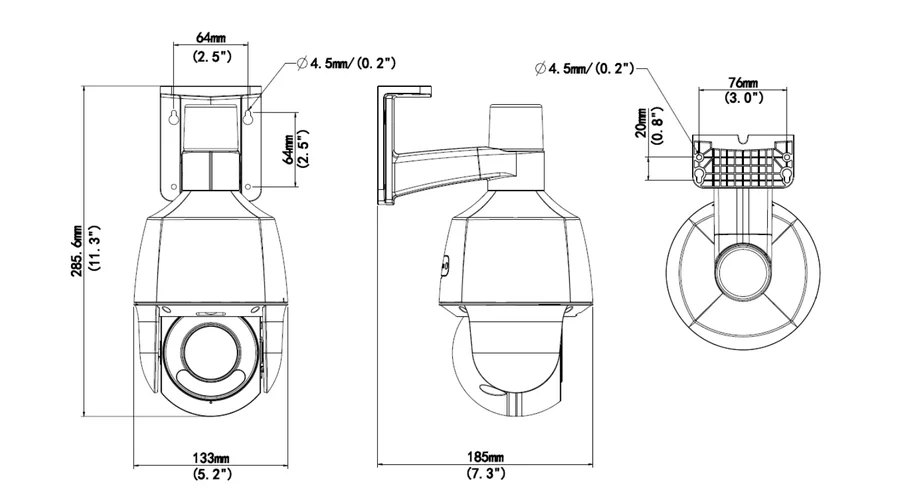

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	133 × 185 × 285.6 mm (5.2" × 7.3" × 11.3")
Power	DC 12 V±25%, PoE (IEEE 802.3at) · max. 25.4 W
Working Environment	-30 °C to 60 °C (-22 °F to 140 °F), ≤95% RH non-condensing
Protection	IP66 (IEC 60529)

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-JB07-D-INBullet junction box (support wiring from behind)

TR-CM06-DAlarm ball machine hoisting bracket

TR-A01-INNPT 3/4'' waterproof cable gland

TR-UP06-B-INBullet pole mounting bracket

TR-UP06-C-IN-V2Pole mounting bracket for bullet junction box only

TR-UC08-C-V2Bullet & dome corner mounting bracket

4MP PTZ Camera FAQ — IPC6314LWH-AX5C-VG2

How good is the color night vision on the IPC6314LWH-AX5C-VG2?

The 1/1.8-inch sensor with Wise-ISP holds color at 0.0005 lux (F1.2, AGC on) — deep into darkness. Once ambient light runs out, a warm-light illuminator keeps full-color footage out to 40 m (131 ft), so faces and clothing colors stay usable instead of dropping to black-and-white.

At what distance can it identify a person?

By DORI figures with the 2.7–13.5 mm 5x lens: detect at 98.6–209.9 m, observe at 39.4–84 m, recognize at 19.7–42 m and identify at 9.9–21 m. Zoomed in, that means confirming who someone is at about 21 m and spotting movement past 200 m.

Does it track intruders by itself?

Yes. Auto tracking locks onto human targets only, so the camera pans and zooms to follow a person on its own. Smart intrusion prevention runs cross-line and intrusion detection based on human and vehicle detection with false-alarm filtering, and Ultra Motion Detection (UMD) is supported as well.

How is it powered and installed outdoors?

It supports PoE, so a single network cable from a PoE switch or recorder carries both power and video — handy on poles and gates where mains sockets are scarce. The housing is IP66 rated for outdoor dust and rain, per the product listing.

What bandwidth should I plan per camera?

The main stream runs 4 MP (2688×1520 or 2560×1440) at up to 30 fps, with bit rate configurable from 128 Kbps to 6144 Kbps. Ultra 265 with U-code keeps typical scenes near the lower end, and triple streams let the NVR record full resolution while phones pull a lighter feed.
