IPC6315LFW-AX5C-VG1
A 5MP mini PTZ camera with 5× optical zoom, LightHunter low-light imaging and Smart IR plus warm-light illumination — auto tracking and smart intrusion prevention keep watch, day or night, in a compact IP66 housing.
Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port
Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
Need the PDF datasheet? Get it on WhatsApp →Sample quantities are welcome — testing one or two units first is the normal way to start.
The IPC6315LFW-AX5C-VG1 is a 5MP LightHunter mini PTZ camera (1/2.7" CMOS) with a 5× optical-zoom lens (2.7 to 13.5 mm, F1.6) covering a horizontal field of view from 106.91° to 33.55°, plus 120 dB WDR and Ultra 265/H.265/H.264/MJPEG compression. Auto tracking with human-only target filtering and smart intrusion prevention (cross line, intrusion, enter-area and leave-area detection with false-alarm filtering by human/vehicle classification) run on-device, backed by Smart IR up to 50 m and a 15 m warm light for color capture after dark. Built-in mic and speaker, MicroSD storage up to 512 GB, DC 12 V or PoE (IEEE 802.3at) power, and an IP66-rated housing complete the package.
Is this the right camera for you?
Plain-language guide for buyers and installers — based only on what this camera actually does.
- No IK-rated impact/vandal protection is listed in the datasheet (only IP66 weatherproofing) — for vandal-prone sites, choose an IK10-rated model instead.
- 5× optical zoom (2.7–13.5 mm) is a moderate range — if you need long-range telephoto coverage well beyond 100 m, a higher-zoom PTZ model is the better fit.
- This is a single-sensor 5MP PTZ, not a multi-sensor panoramic-linkage unit — if you need a 360° panorama plus a separate zoom channel in one housing, look at the panoramic-linkage PTZ series instead.
Worried about counterfeits? Order under your own company name.
For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.
Using your own freight forwarder? No problem.
For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.
Key Features
Complete list from the official datasheet.
Two Illuminators, One Job: IR + Warm Light
The illuminator switches automatically (or can be set manually) between IR and warm light depending on the scene.
850 nm infrared, up to 50 m (164.0 ft.) distance for monochrome night vision
Auto/manual light control, paired with Smart IR exposure compensation to avoid overexposing close subjects.
Up to 15 m (49.2 ft.) warm-light range for full-color night capture
Works with LightHunter low-light imaging (0.005 Lux color) to keep faces and plates in color after dark.
How far can it see? (DORI)
DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Values shown are at the 5× telephoto end of the zoom range; the datasheet also lists wide-end minimums.
How wide a view at each distance
Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.
| Distance | 106.9° wide | 33.5° tele |
|---|---|---|
| 5 m16 ft | 13.5 m44.3 ft | 3.0 m9.9 ft |
| 10 m33 ft | 27.0 m88.5 ft | 6.0 m19.8 ft |
| 15 m49 ft | 40.5 m133 ft | 9.0 m29.7 ft |
| 20 m66 ft | 54.0 m177 ft | 12.1 m39.6 ft |
| 30 m98 ft | 81.0 m266 ft | 18.1 m59.3 ft |
Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.
Full Specifications
Complete official specifications from the manufacturer's datasheet (technical values in English).
Camera
| Max Resolution | 5 MP |
| Sensor | 1/2.7" CMOS |
| Min. Illumination | Color: 0.005 Lux (F1.6, AGC ON), 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB |
| S/N | > 56 dB |
Lens
| Focal Length | 2.7 to 13.5 mm |
| Optical Zoom | 5X |
| Iris | F1.6 |
| Field of View (H) | 106.91° to 33.55° |
| Field of View (V) | 56.45° to 18.99° |
| Field of View (D) | 123.1° to 42.1° |
Video
| Privacy Mask | Up to 4 areas |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 5 MP (2880 × 1620), max. 30 fps · Sub Stream: 720P (1280 × 720), max. 30 fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| ROI | Support |
| Video Stream | Dual streams |
| OSD | Up to 4 OSDs |
Intelligent
| Auto Tracking | Support, target filtering: human only |
| Smart Intrusion Prevention | Cross line detection, intrusion detection (support false alarm filtering and the classification of human and vehicle) |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| HLC | Support |
| BLC | Support |
| Smart IR | Support |
| Defog | Digital defog |
Illuminator
| Light On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| Illumination Distance (IR) | 50 m (164.0 ft.) |
| Illumination Distance (Warm Light) | 15 m (49.2 ft.) |
Events
| Basic Detection | Motion detection, Tampering alarm, Audio detection |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication |
Audio
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 16 KHZ |
Storage
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
Network & Security
| Protocols | TLS1.3, SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), SDK, API |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | EZStation, UNV-Link, UNV-Link Pro |
| Web Browser | Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above |
PTZ
| Number of Presets | 1024 |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Patrol Stay Time | 120 s to 1800 s |
| Home Position | Support |
| Pan Range | 0° to 345° |
| Tilt Range | -10° to 100° |
| Pan Speed | 1°/s to 40°/s |
| Tilt Speed | 1°/s to 30°/s |
Interface
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm I/O | 1/1 |
| Built-in Mic | Support |
| Built-in Speaker | Support |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
Certification
| EMC | CE-EMC (EN 55032: 2015+A11: 2020+A1: 2020, EN 50130-4: 2011+A1: 2014, EN 61000-3-3: 2013+A1: 2019+A2: 2021, EN IEC 61000-3-2: 2019+A1: 2021) |
| Safety | CE LVD (EN 62368-1: 2020+A11: 2020) · UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-ROHS (2011/65/EU; (EU)2015/863) |
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
General
| Power Consumption | 18 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 2 KV |
| Reset Button | Support |
| Heater | Support |
| Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
| Configurable P/N | Support |
Dimensions

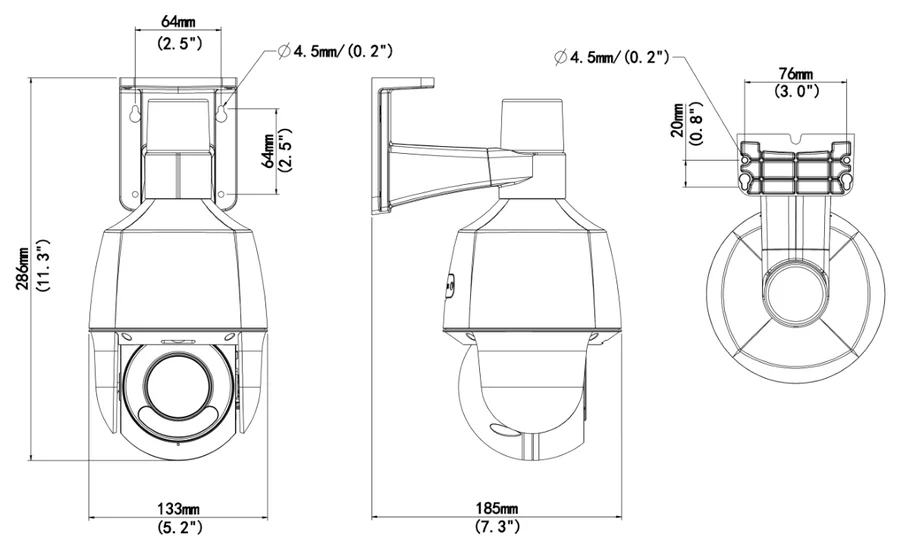

Engineering drawing reproduced 1:1 from the official datasheet.
| Dimensions | 133 mm × 185 mm × 286 mm (Φ5.2" × 7.3" × 11.3") (L × W × H) |
| Weight | 788 g (1.74 lb.) |
| Power | DC 12 V (±25%), PoE (IEEE 802.3at) |
| Working Environment | -30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤95% RH (non-condensing) |
| Protection | IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
Optional Mounting Accessories
Order together with the camera to save shipping.
