PTZ Cameras › IPC6424SR-X25-VF-B
Uniview (UNV) · PTZ CameraLightHunter · 25X Series
4MP 25X LightHunter PTZ · Auto-Tracking
IPC6424SR-X25-VF-B
A classic single-sensor network PTZ dome that puts a 25× optical zoom, LightHunter low-light imaging and smart perimeter analytics on one pole — built to watch a factory fence or park boundary around the clock.
2688×1520 · main stream @30fpsF1.5–F3.8 · iris rangeAuto Tracking · human / non-motor / vehicleIP67 · IK10 · vandal-resistant housing-40~70°C · wide working temperaturePoE+ / DC 12V · IEEE 802.3at powering
Get Best Price on WhatsApp
Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port
Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
Need the PDF datasheet? Get it on WhatsApp →In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port
Sample quantities are welcome — testing one or two units first is the normal way to start.
Compliance:ONVIF Profile SONVIF Profile GONVIF Profile TONVIF Profile M
Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.
The IPC6424SR-X25-VF-B is a 4 MP network PTZ dome camera built around a 1/2.8" CMOS sensor and a 25× optical zoom lens (4.8-120 mm, F1.5-F3.8, 16× digital zoom) for long-range detail on a single moving lens. LightHunter low-light processing holds color down to 0.003 Lux (F1.5, AGC on), backed by 120 dB WDR and a Smart IR illuminator reaching 100 m for full day/night coverage. Onboard analytics cover auto tracking with human/vehicle/non-motor classification, smart intrusion prevention (cross line, intrusion, enter/leave area with false-alarm filtering) and people-flow/crowd-density counting, all inside an IP67, IK10 vandal-resistant housing rated -40 °C to 70 °C.
Is this the right camera for you?
Plain-language guide for buyers and installers — based only on what this camera actually does.
Industrial park & factory perimeterSmart intrusion prevention covers cross-line, intrusion, enter-area and leave-area detection with false-alarm filtering and human / non-motor vehicle / vehicle classification — built to watch a fence line instead of flooding the guard room with false alerts.
Factory gate & yard entranceAuto tracking locks onto a person, non-motor vehicle or vehicle crossing the gate and follows it automatically, while the 25× optical zoom (4.8-120 mm) pulls in close enough to read faces or plates from the guard post without repositioning the camera.
Low-light yards & storage areasLightHunter processing holds a usable color image down to 0.003 Lux (F1.5, AGC on); once it is fully dark, Smart IR reaches 100 m so a wide unlit yard is not left blind between dusk and sunrise.
Harsh outdoor pole mountsIP67 sealing, IK10 vandal resistance and a -40 °C to 70 °C operating range let this dome sit on an exposed perimeter pole through heat, dust storms and freezing winters without a protective enclosure.
People-flow at plant gatesPeople counting supports flow statistics and crowd-density monitoring across multiple zones, useful for shift-change headcounts at a factory gate or occupancy checks in a logistics yard.
Simplified perimeter cablingPoE+ (IEEE 802.3at) or DC 12 V power plus a 2/1 alarm I/O let a pole run on a single cable and still trigger gate barriers or strobe lights when an intrusion event fires — no separate power drop needed at every post.
Not the right pick if you need…
- No built-in microphone or speaker — Built-in Mic and Built-in Speaker are both listed N/A. Two-way audio is supported, but only via an external mic/speaker wired to the 1-in/1-out audio I/O.
- No Wi-Fi — the datasheet lists WIFI as N/A. Network connection is wired only, via a single 10 M/100 M RJ45 port.
- Network interface is 10 M/100 M Fast Ethernet, not Gigabit — confirm bandwidth budget before running multiple high-bitrate streams over a shared switch uplink.
- This is a classic single-sensor PTZ, not a panoramic-linkage unit — if you need simultaneous 360° overview plus zoom detail from one pole, choose a panoramic-linkage PTZ instead.
Worried about counterfeits? Order under your own company name.
For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.
1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site
Using your own freight forwarder? No problem.
For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.
EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order
Note: manufacturer order registration (left) is available via the corporate purchase channel.
How to get a better price
Volume Discount50+ units of a single model
CONTACT USMix & Match DiscountMix any categories & models storewide in one order — no quantity limit
BETTERVerified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you
BESTAll discounts are quoted personally — message me on WhatsApp ↑
Key Features
Complete list from the official datasheet.
High-quality image with 4 MP, 1/2.8" CMOS sensor — 2688×1520 @30fps in the main stream
Ultra 265, H.265, H.264, MJPEG video compression
25× optical zoom (4.8-120 mm, F1.5-F3.8), 16× digital zoom
Smart intrusion prevention with false-alarm filtering: cross line, intrusion, enter area, leave area detection, including human / non-motor vehicle / vehicle classification
Automatic selection of best snapshots; supports face detection in masked areas
People counting: supports people flow counting and crowd density monitoring for different statistical scenarios
LightHunter technology ensures ultra-high image quality in low-illumination environments
Smart IR, up to 100 m (328 ft) IR distance
DC 12 V ±25%, PoE+ (IEEE 802.3at) powering; Alarm I/O: 2/1, Audio I/O: 1/1
IP67 ingress protection, IK10 vandal resistant
Two Strengths in One Dome: Long-Range Zoom + Smart Analytics
What actually makes this a perimeter camera, not just a zoom camera.
LONG-RANGE ZOOM
25× optical zoom (4.8-120 mm, F1.5-F3.8) plus 16× digital zoom pulls in distant detail without losing the wide view when zoomed back out.
undefined
SMART ANALYTICS
Auto tracking, smart intrusion prevention and people counting run on the camera itself, turning raw video into perimeter alerts instead of footage someone has to watch live.
undefined
How far can it see? (DORI)
DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Values shown are at full 25× telephoto (4.8-120 mm lens, 120 mm end); the wide end of the zoom gives shorter distances with a wider field of view.
Detectsomething is there
2475 m8120.1 ft
Observewhat is happening
990 m3248.0 ft
Recognizesomeone you know
495 m1624.0 ft
Identifybeyond doubt
247.5 m812.0 ft
How wide a view at each distance
Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.
| Distance | 52.2° wide | 2.7° tele |
|---|---|---|
| 5 m16 ft | 4.9 m16.1 ft | 0.2 m0.8 ft |
| 10 m33 ft | 9.8 m32.1 ft | 0.5 m1.6 ft |
| 15 m49 ft | 14.7 m48.2 ft | 0.7 m2.4 ft |
| 20 m66 ft | 19.6 m64.3 ft | 1.0 m3.1 ft |
| 30 m98 ft | 29.4 m96.4 ft | 1.4 m4.7 ft |
Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.
Full Specifications
Complete official specifications from the manufacturer's datasheet (technical values in English).
Single-channel PTZ — all values below apply to the one lens/sensor.
Camera
| Model | IPC6424SR-X25-VF-B |
| Sensor | 1/2.8" CMOS |
| Min. Illumination | Color: 0.003 Lux (F1.5, AGC ON), 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000 s |
| WDR | 120 dB |
| S/N | > 56 dB |
Lens
| Focal Length | 4.8 to 120 mm |
| Digital Zoom | 16X |
| Optical Zoom | 25X |
| Iris | F1.5 to F3.8 |
| Field of View (H) | 52.20° to 2.74° |
| Field of View (V) | 30.81° to 1.54° |
| Field of View (D) | 64.20° to 3.23° |
DORI
| DORI Distance (Lens) | 4.8 to 120 mm |
| DORI Distance (Detect) | 119.3 m to 2475.0 m (391.2 ft. to 8120.1 ft.) |
| DORI Distance (Observe) | 47.7 m to 990.0 m (156.5 ft. to 3248.0 ft.) |
| DORI Distance (Recognize) | 23.9 m to 495.0 m (78.2 ft. to 1624.0 ft.) |
| DORI Distance (Identify) | 11.9 m to 247.5 m (39.1 ft. to 812.0 ft.) |
Video
| Privacy Mask | 24 areas, up to 4 areas per scene |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream: 4 MP (2688×1520), max. 30 fps · Sub Stream: 1080P (1920×1080), max. 30 fps · Third Stream: D1 (720×576), max. 30 fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| ROI | Support |
| Video Stream | Triple streams |
| OSD | Up to 10 OSDs |
Intelligent
| Auto Tracking | Support, target filtering: human, non-motor vehicle and vehicle |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| People Counting | Support people flow counting and crowd density monitoring |
| Exception Detection | Object removed, Object Left Behind |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| HLC | Support |
| BLC | Support |
| Smart IR | Support |
| Defog | Digital defog |
| Heatwave Reduction | Support |
Events
| Basic Detection | Motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, Alarm input, Alarm output |
Audio
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 16KHZ |
Storage
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
Illuminator
| IR On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| Illumination Distance (IR) | 100 m (328.1 ft.) |
Network
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | EZStation, UNV-Link, UNV-Link Pro |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
PTZ
| Number of Presets | 1024 |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Route Patrol | 16 patrols, up to 32 actions for each patrol |
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol |
| Patrol Stay Time | 15 s to 1800 s |
| Preset Image Freeze | Support |
| Home Position | Support |
Interface
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm I/O | 2/1 |
| Serial Port | 1 × RS485 |
| Built-in Mic | N/A |
| Built-in Speaker | N/A |
| WIFI | N/A |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video Output | 1 BNC (for debugging) |
Certification
| EMC | CE-EMC (EN 55032: 2015+A1:2020, EN 61000-3-3: 2013+A1: 2019, EN IEC 61000-3-2: 2019+A1: 2021, EN 55035: 2017+A11:2020) · FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety | CE LVD (EN 62368-1:2014+A11:2017) · UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01) |
| Environment | CE-ROHS (2011/65/EU; (EU)2015/863) |
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) · IK10 (IEC 62262:2002) |
General
| Power | DC 12 V (±25%, 3 A), PoE+ (IEEE 802.3at) |
| Power Consumption | Max. 21 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | Ø162 mm × 293 mm (Ø6.4" × 11.5") (Ø × H) |
| Weight | 3.05 kg (6.72 lb.) |
| Working Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 6 KV |
| Reset Button | Support |
| Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |
| Configurable P/N | Support |
Dimensions

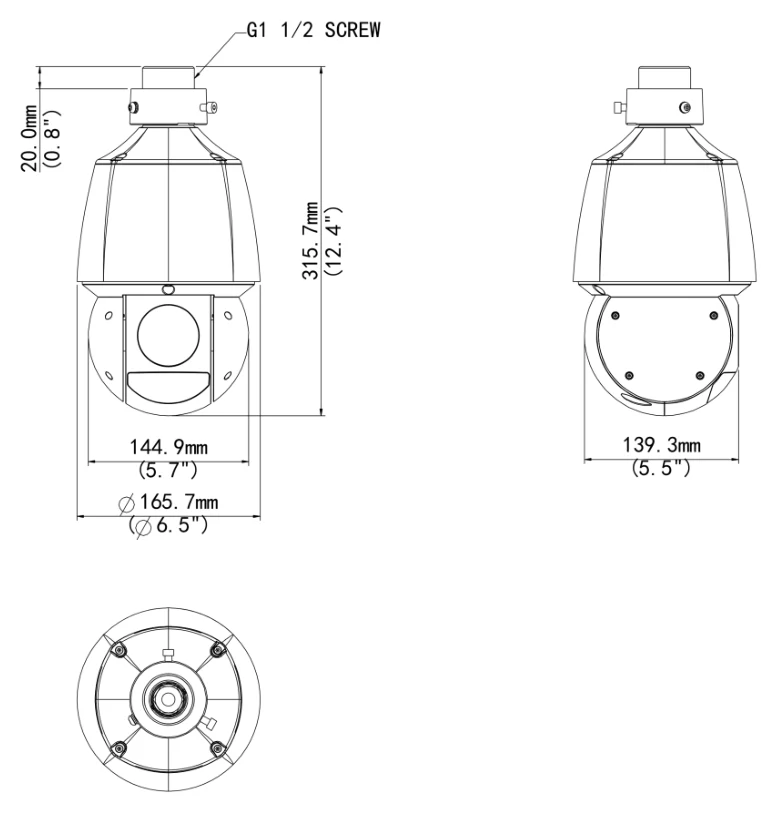

Engineering drawing reproduced 1:1 from the official datasheet.
unit: mm (in.)
| Dimensions (drawing) | Ø165.7 mm × 315.7 mm (Ø6.5" × 12.4") |
| Weight | 3.05 kg (6.72 lb.) |
| Power | DC 12 V (±25%, 3 A) · PoE+ (IEEE 802.3at) · max. 21 W |
| Working Environment | -40 °C to 70 °C (-40 °F to 158 °F), ≤95% RH non-condensing |
| Protection | IP67 · IK10 · 6 kV surge |
Optional Mounting Accessories
Order together with the camera to save shipping.
TR-UF45-A-INDome indoor ceiling mounting pedestal
TR-SE45-A-INDome ceiling mounting pole 500
TR-SE45-INDome ceiling mounting pole 200
TR-CE45-INDome indoor ceiling mounting bracket
TR-WE45-INDome wall mounting bracket
TR-WE45-A-INLong wall mounting bracket for dome
TR-WE45-B-INDome gooseneck bracket
TR-JB12-INDome junction box
TR-UP08-A-INDome pole mounting bracket
TR-UP08-B-IN / TR-UC08-A-IN / TR-UC08-B-INAluminium alloy pole & corner mounting brackets
4MP 25x PTZ Camera FAQ — IPC6424SR-X25-VF-B
How far can the IPC6424SR-X25-VF-B identify a person?
With the 4.8–120 mm lens (25x optical, 16x digital, F1.5–F3.8), DORI figures run: detect up to 2475 m, observe up to 990 m, recognize up to 495 m and identify up to 247.5 m at full zoom. One unit can watch a very long fence line or approach road.
What is its night vision like?
Per the listing it carries 100 m Smart IR for full darkness, and LightHunter color imaging holds to 0.003 lux (F1.5, AGC on) before IR is needed. Smart IR exposure control avoids overexposing close subjects; 120 dB WDR, digital defog and heatwave reduction keep the image usable.
Does it track people and vehicles automatically?
Yes. Auto tracking filters for humans, non-motor vehicles and vehicles, following the target as it moves through the scene. Smart intrusion prevention provides cross-line, intrusion, enter-area and leave-area detection with false-alarm filtering, and people flow counting plus crowd density monitoring are supported.
What streams does it output to the NVR?
Triple streams: 4 MP (2688×1520) at up to 30 fps on the main stream, 1080p on the sub stream and D1 on the third. Bit rate is adjustable from 128 Kbps to 16 Mbps across Ultra 265, H.265, H.264 and MJPEG, so you can balance image quality against disk and bandwidth.
Is the housing tough enough for exposed sites?
Per the listing the housing is rated IP67 against dust and water immersion and IK10 against impact — the common spec asked for on roadside poles, depots and coastal sites. It also has alarm input/output contacts, tampering alarm and two-way audio for on-site response.
