NVR508-16 / 32 / 64B
16 / 32 / 64-channel 2U rack-mount network video recorder — 8 SATA bays with RAID 1/5, records cameras up to 16MP, Ultra 265 compression, ONVIF certified for third-party IP cameras.
Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port
Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
How many terabytes for your channels and days? Use the storage calculator →
Need the PDF datasheet? Get it on WhatsApp →Sample quantities are welcome — testing one or two units first is the normal way to start.

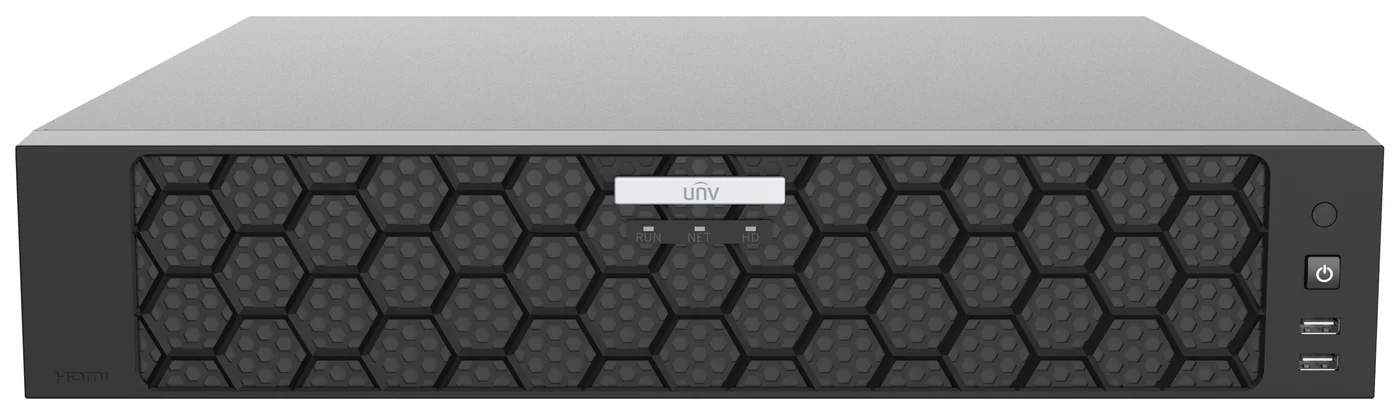

The Uniview NVR508-B Series is an 8-bay 2U rack-mount network video recorder offered in three sizes: NVR508-16B (16-ch), NVR508-32B (32-ch) and NVR508-64B (64-ch). All three record cameras up to 16MP with Ultra 265 / H.265 / H.264 compression, support RAID 1/5 across up to 8 SATA bays (24 TB each), and output VGA/HDMI independently, with the 64B model outputting both simultaneously by default. The recorder carries ONVIF certification and provides a 38-language local interface.
Is this the right recorder for you?
Plain-language guide for buyers and installers — based only on what this recorder actually does.
- PoE ports — cameras need a separate PoE switch (we bundle one at combo price)
- Hot-swap drive trays — the manual doesn't describe hot-swap bays; the 8 SATA drives mount inside the chassis
- A redundant/dual power supply — Power Supply is a single AC 100–240V input, not described as dual
- RAID 6 or RAID 10 — Disk Array Type supports only RAID 1 and RAID 5
- RS232 serial control — this series has no RS232 port (RS485 only)
Worried about counterfeits? Order under your own company name.
For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.
Using your own freight forwarder? No problem.
For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.
Key Features
Complete list from the official datasheet.
RAID-protected storage. Investigation-ready search.
Two real capabilities from the datasheet that matter on large sites: disk-failure protection and fast multi-channel search.
Protected against drive failure
8 SATA bays (up to 24 TB each) support RAID 1 and RAID 5 with N+1 hot spare — if one disk fails, recordings on the array keep working instead of disappearing with the drive.
Find the moment across 64 channels
Face, vehicle (LPR), human body and general VCA search plus Heat Map and People Counting turn hours of multi-channel footage into the exact clip you need.
Which size fits your project?
Bars show camera capacity per model. Click the model buttons above to switch — the spec table highlights every other difference.
Full Specifications
Complete official specifications from the manufacturer's datasheet (technical values in English).
Decoding
| Decoding Format | Ultra 265, H.265, H.264 |
| Decoding Capability | 16B · Ultra 265/H.265: 2×16MP@30, 2×12MP@30, 4×4K@30, 6×5MP@30, 8×4MP@30, 10×3MP@30, 16×1080P@30 | H.264: 2×16MP(4800×2688)@30, 2×12MP@30, 2×4K@30, 4×5MP@30, 6×4MP@30, 8×3MP@30, 14×1080P@30, 16×960P@3032B · Ultra 265/H.265: 2×16MP@30, 2×12MP@30, 4×4K@30, 6×5MP@30, 8×4MP@30, 10×3MP@30, 16×1080P@30, 32×960P@25 | H.264: 2×16MP(4800×2688)@30, 2×12MP@30, 2×4K@30, 4×5MP@30, 6×4MP@30, 8×3MP@30, 14×1080P@30, 28×960P@25, 30×720P@30, 32×D164B · Ultra 265/H.265: 2×16MP@30, 2×12MP@30, 4×4K@30, 6×5MP@30, 8×4MP@30, 10×3MP@30, 16×1080P@30, 32×960P@25, 36×720P@30, 64×D1 | H.264: 2×16MP(4800×2688)@30, 2×12MP@30, 2×4K@30, 4×5MP@30, 6×4MP@30, 8×3MP@30, 14×1080P@30, 28×960P@25, 30×720P@30, 64×D1 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length and 4096 pixels in width. For VGA/HDMI independent output, the VGA live video is output by default. To output the highest resolution video from the HDMI port, please clear the VGA video on the preview page. |
| Audio Compression | G.711A, G.711U |
Network
| Incoming Bandwidth | 320 Mbps |
| Outgoing Bandwidth | 160 Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, RTSP, 802.1x, IPv6, IPv4 |
| Browser (Plugin) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
Video/Audio Input
| IP Video Input | 16B · 16-ch32B · 32-ch64B · 64-ch |
| RCA Audio Input | 1-ch |
Video/Audio Output
| HDMI Output | 4K (3840×2160)/30 Hz, 1920×1080/60 Hz, 1920×1080/50 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz |
| VGA Output | 1920×1080/60 Hz, 1920×1080/50 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz |
| RCA Audio Output | 1-ch |
| Liveview Display | 16B · 1/4/6/8/9/1632B · 1/4/6/8/9/16/25/3664B · Simultaneous Output — VGA: 1/4/6/8/9/16/25/36/64, HDMI: 1/4/6/8/9/16/25/36/64; Independent Output — VGA: 1/4/6/8/9/16/25/32, HDMI: 1/4/6/8/9/16/25/32 |
| Corridor Mode Screen | 16B · 3/4/5/7/9/10/12/1632B · 3/4/5/7/9/10/12/16/3264B · 3/4/5/7/9/10/12/16/32 |
Two-way Audio
| Two-way Audio | 1-ch, RCA (Using the audio input and output) |
Snapshot
| FTP/Schedule/Event Snapshot | 4-ch snapshot (max. 8 MP (3840×2160) video resolution, with 1080P snapshot resolution) |
Recording
| Recording Resolution | 16 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080P / 960P / 720P / D1 / 2CIF / CIF |
| Synchronous Playback in Local | 16-ch |
Smart Function
| Smart by IPC | All channels (up to 8 images/s in total): Face Detection, Face Comparison, Vehicle Detection (LPR), Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring |
| VCA Search | Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map |
Alarm
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal |
GUI Language
| GUI Language | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
Hard Disk
| SATA | 8 SATA Interfaces |
| Capacity | Up to 24 TB for each HDD (the maximum HDD capacity varies with environment temperature and hard disk size; the environment temperature for use should not exceed 40 °C) |
| Disk Group | Support |
| Redundant Storage | Support |
| Disk Array Type | RAID 1, 5 |

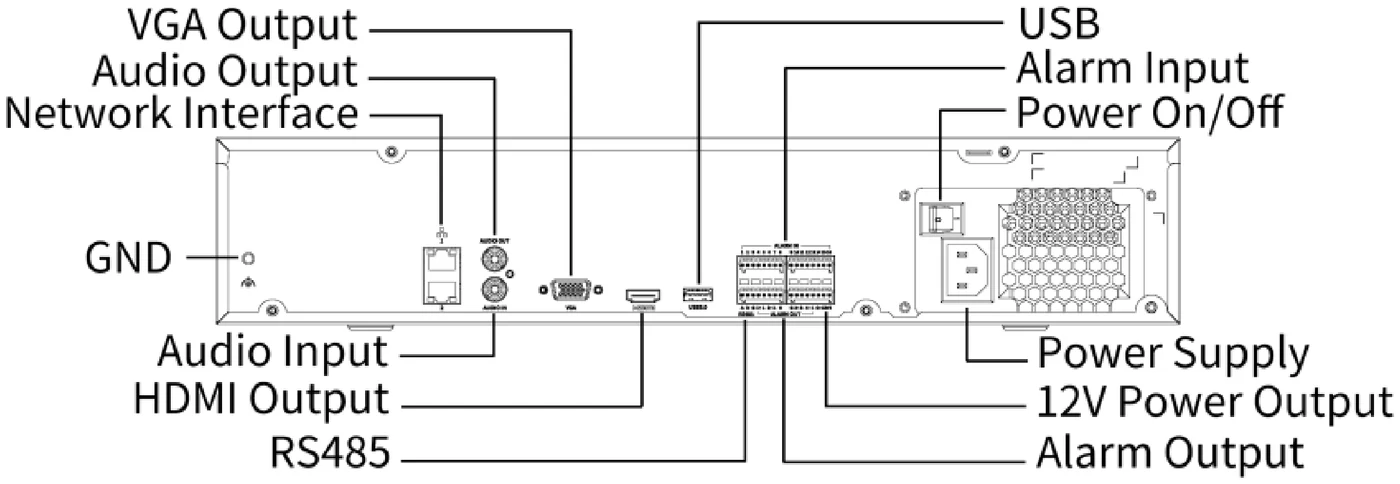

External Interface
| Network Interface | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interfaces |
| USB | Front panel: 2 × USB 2.0, Rear panel: 1 × USB 3.0 |
| RS485 | 1 |
| RS232 | N/A |
| Alarm In | 16-ch |
| Alarm Out | 4-ch |
| Power Supply | AC 100 to 240 V |
| Power Switch | Support |
Working Environment
| Working Temperature | -10 °C to 55 °C (14 °F to 131 °F) |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Power Consumption (without HDD) | ≤ 25 W |
Dimensions
| Weight (without HDD) | ≤ 5.5 kg (12.13 lb) |
| Dimensions | 16B · 442 mm × 431.4 mm × 88.6 mm (17.4" × 17.0" × 3.5")32B · 442 mm × 426 mm × 89 mm (17.4" × 16.8" × 3.5")64B · 442 mm × 426 mm × 89 mm (17.4" × 16.8" × 3.5") |
Certification
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC | Part15 Subpart B |
Dimensions

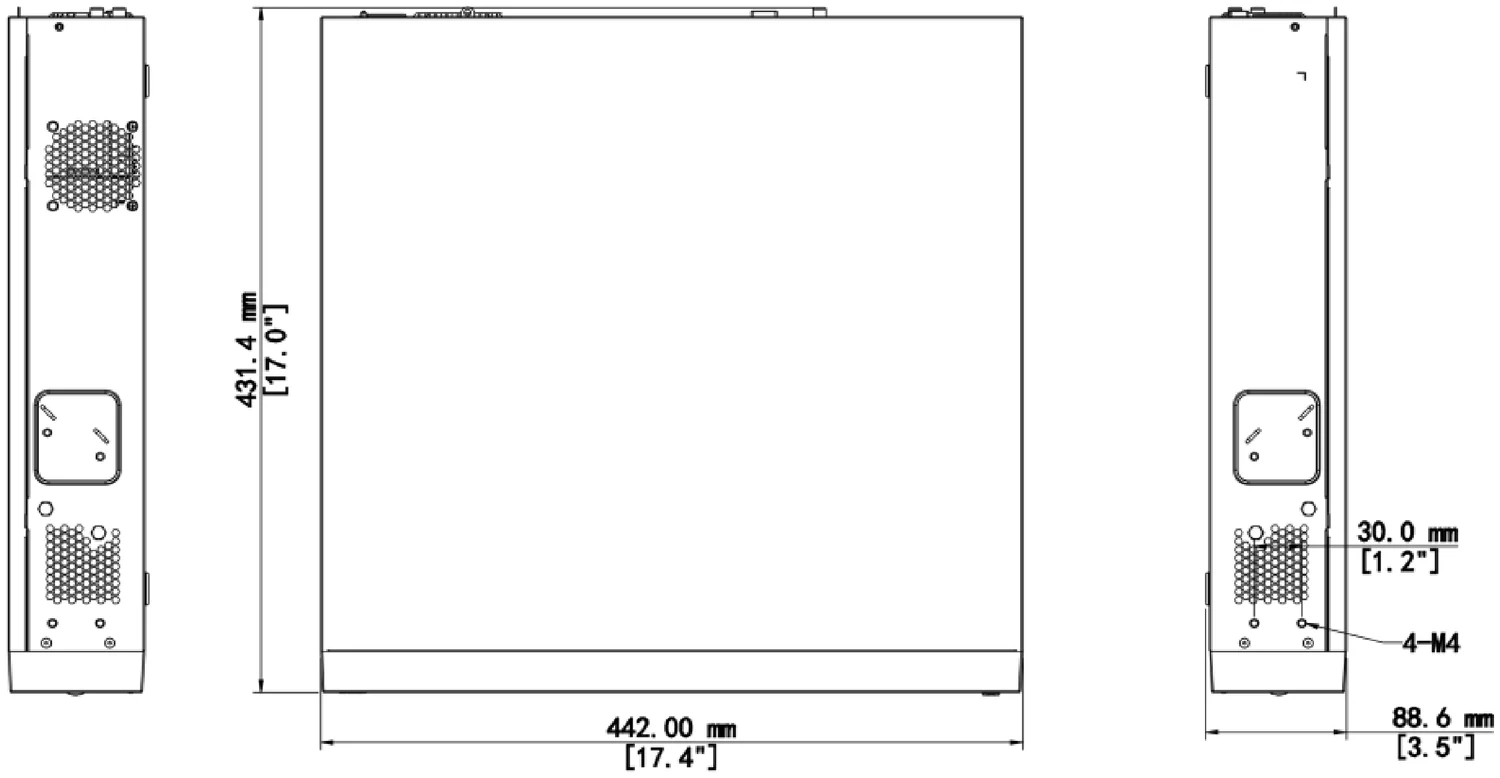

Engineering drawing reproduced 1:1 from the official datasheet.
| Dimensions (NVR508-16B) | 442 × 431.4 × 88.6 mm (17.4" × 17.0" × 3.5") |
| Dimensions (NVR508-32B / 64B) | 442 × 426 × 89 mm (17.4" × 16.8" × 3.5") |
| Weight (without HDD) | ≤ 5.5 kg (12.13 lb) |
| Power supply | AC 100 to 240 V |
| Consumption (without HDD) | ≤ 25 W |
Optional Mounting Accessories
Order together with the camera to save shipping.
16/32/64-Channel 8-HDD NVR FAQ — NVR508-B
How many IP cameras can I connect to the NVR508-B series?
Does the NVR508-B have built-in PoE ports?
How many hard drives fit, and what is the maximum capacity?
Does it work with third-party ONVIF cameras?
How much storage does H.265 save compared with H.264?
Can I monitor the system remotely?
