NVR / Recorders › NVR508-32E-R / 64E-R / 128E-R

32/64/128-Channel 8-HDD RAID Network Video Recorder NVR508-32E-R / NVR508-64E-R / NVR508-128E-R — view 1

32/64/128-Channel 8-HDD RAID Network Video Recorder NVR508-32E-R / NVR508-64E-R / NVR508-128E-R — view 2

32/64/128-Channel 8-HDD RAID Network Video Recorder NVR508-32E-R / NVR508-64E-R / NVR508-128E-R — view 3

32/64/128-Channel 8-HDD RAID Network Video Recorder NVR508-32E-R / NVR508-64E-R / NVR508-128E-R — view 4

Uniview (UNV)E-R Series · 8× SATA HDD RAID

8-HDD RAID Network Video Recorder · E-R Series

NVR508-32 / 64 / 128E-R

32 / 64 / 128-channel 2U rack-mount network video recorder — 8 hot-swap SATA bays with RAID 0/1/5/6/10, records cameras up to 32MP, Ultra 265 compression, optional redundant power supply.

32MP · max recordingRAID 0/1/5/6/10 · hot-swap 8-bay storageUltra 265 · low storage2× HDMI/VGA · independent output pairsRedundant PSU · optional38 languages · local interface

CHOOSE YOUR SIZE — THREE MODELS ON THIS PAGE

Rule of thumb: count your cameras across the whole site, then leave room to grow — a mid-size site runs happily on the 32E-R; pick the 64E-R or 128E-R for large multi-building deployments. Highlighted rows in the spec table below show every difference between the three.

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

How many terabytes for your channels and days? Use the storage calculator →

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCULRoHSWEEEONVIFNDAA

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

32/64/128Channel options

384 MbpsIncoming bandwidth

8× SATAHDD bays (RAID 0/1/5/6/10)

4KHDMI output

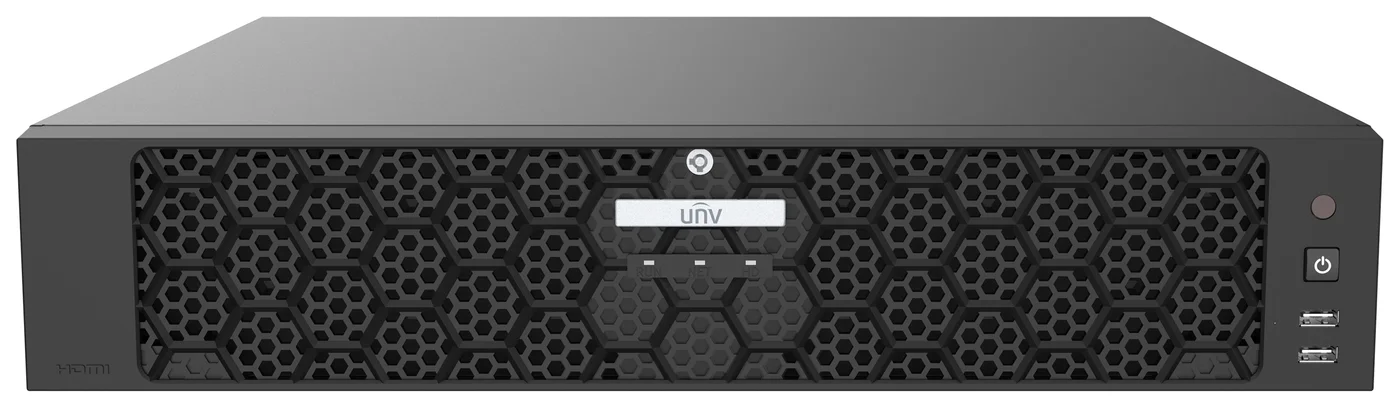

The Uniview NVR508-E-R Series is an 8-bay 2U rack-mount network video recorder offered in three sizes: NVR508-32E-R (32-ch), NVR508-64E-R (64-ch) and NVR508-128E-R (128-ch). All three record cameras up to 32MP with Ultra 265 / H.265 / H.264 compression, support hot-swappable SATA drives (up to 24 TB each) configurable as RAID 0, 1, 5, 6 or 10, and accept an optional second power supply for redundancy. The recorder outputs over 2 HDMI and 2 VGA ports, includes Smart features such as face, vehicle (LPR) and temperature detection, and provides a 38-language local interface.

Is this the right recorder for you?

Plain-language guide for buyers and installers — based only on what this recorder actually does.

Large multi-building sites128 channels and 8 hot-swap HDD bays cover a large campus from one recorder — fewer boxes to manage across buildings.

Growing deploymentsBuy channels ahead: the 64E-R/128E-R lets you add cameras later without swapping the recorder.

Mission-critical, zero-downtime storageHot-swap RAID 0/1/5/6/10 across the 8 bays plus N+1 hot spare and an optional second power supply — a failed disk or PSU doesn't take the recorder down.

Unreliable network linksANR technology keeps recording locally when the network drops, then backfills the gap once the connection is restored.

Investigation & retrievalFace, face comparison, vehicle (LPR), human body, heat-map and people-counting search narrow hours of footage across up to 128 channels down to the right clip.

Two independent display zonesHDMI1/VGA1 and HDMI2/VGA2 output independently — a control room can show a live wall on one screen pair and playback on the other.

Multi-language deployments38 GUI languages including Spanish (Latin America), Portuguese (Brazil) and French — your customer operates it in their own language.

Not the right pick if you need…

PoE ports — this recorder has no built-in PoE; cameras need a separate PoE switch
A redundant power supply included as standard — the manual lists it as an optional add-on module (PWR-DC12-350A-IN), not pre-installed
Full per-channel bandwidth headroom at 128 channels — 384 Mbps incoming bandwidth is shared across all channels, so plan the average bitrate per camera accordingly at the top model
A dedicated two-way audio port — two-way audio reuses the shared RCA audio input/output jacks, not a separate connector
More than one eSATA expansion port — only 1× eSATA is provided for external storage

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

Support Ultra 265 / H.265 / H.264 video formats

32 / 64 / 128-channel input (by model)

Support 2 HDMI and 2 VGA — VGA1/HDMI1 and VGA2/HDMI2 each output simultaneously, and the two pairs output independently of each other

Up to 32 Megapixels resolution recording

Support N+1 Hot spare

Support HDD hot swap with RAID 0, 1, 5, 6, 10 storage scheme configurable

Redundant power supply optional

ANR technology to enhance the storage reliability when the network is disconnected

Support cloud upgrade

Hot-swap RAID storage. Investigation-ready search.

The two capabilities that decide whether a large-scale recorder survives a hardware failure and finds the footage that matters.

HOT-SWAP RAID 0/1/5/6/10

Swap a failed disk without downtime

8 hot-swap SATA bays (up to 24 TB each) configurable as RAID 0, 1, 5, 6 or 10, plus N+1 hot spare — a failed drive is pulled and replaced while the array and the recorder keep running.

SMART SEARCH

Find the moment across 128 channels

Face detection, face comparison, vehicle (LPR), human body and general VCA search plus Heat Map and People Counting turn hours of multi-channel footage into the exact clip you need.

Which size fits your project?

Bars show camera capacity per model. Click the model buttons above to switch — the spec table highlights every other difference.

NVR508-32E-Rlive view split up to 32 · sync playback 16-ch

32cameras

NVR508-64E-Rlive view split up to 64 on HDMI1/VGA1 · sync playback 16-ch

64cameras

NVR508-128E-Rlive view split up to 64 on HDMI1/VGA1 · sync playback 16-ch

128cameras

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows differ between the three models:NVR508-32E-R · 32-chNVR508-64E-R · 64-chNVR508-128E-R · 128-ch

Decoding

Decoding Format	Ultra 265, H.265, H.264
Decoding Capability	32E-R · 2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 16 x 4MP@30, 32 x 1080P@3064E-R · 2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 16 x 4MP@30, 32 x 1080P@30, 54 x 960P@25, 64 x 720P@30128E-R · 2 x 32MP@30, 4 x 16MP@30, 5 x 12MP@30, 8 x 4K@30, 10 x 6MP@30, 12 x 5MP@30, 16 x 4MP@30, 20 x 3MP@30, 32 x 1080P@30, 54 x 960P@25, 64 x 720P@30, 128 x D1
Decoding Capability Description	The resolution of each channel cannot exceed 8192 pixels in length or width
Audio Compression	G.711A, G.711U

Network

Incoming Bandwidth	384 Mbps
Outgoing Bandwidth	384 Mbps
Remote Users	128
Protocols	TCP/IP, P2P, UPnP, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPv6, IPv4
Browser (Plugin)	IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+

Video / Audio I/O

RCA Audio Input	1-ch
HDMI Output	4K (3840×2160)/60 Hz, 4K (3840×2160)/30 Hz, 1920×1080/60 Hz, 1920×1080/50 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz
VGA Output	1920×1080/60 Hz, 1600×1200/60 Hz, 1280×1024/60 Hz, 1280×720/60 Hz, 1024×768/60 Hz
RCA Audio Output	2-ch
Liveview Display	32E-R · 1/4/6/8/9/16/25/3264E-R · HDMI1/VGA1: 1/4/6/8/9/16/25/36/64, HDMI2/VGA2: 1/4/6/8/9/16/25/36128E-R · HDMI1/VGA1: 1/4/6/8/9/16/25/36/64, HDMI2/VGA2: 1/4/6/8/9/16/25/36
Corridor Mode Screen	3/4/5/7/9/10/12/16/32
Two-way Audio	1-ch, RCA (using the audio input and output)

Recording

Snapshot	FTP/Schedule/Event snapshot — 16-ch snapshot (max. 8 MP (3840×2160) video resolution, with 1080P snapshot resolution)
Recording Resolution	32 MP / 16 MP / 12 MP / 8 MP / 6 MP / 5 MP / 4 MP / 3 MP / 1080P / 960P / 720P / D1 / 2CIF / CIF
Synchronous Playback in Local	16-ch

Smart Features

Smart by IPC	All channels (up to 16 images/s in total): Face Detection, Face Comparison, Vehicle Detection (LPR), Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring
VCA Search	Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map
Vehicle Picture Library	Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total

Alarm

General Alarm	Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection
Alert Alarm	IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal

Local Interface

GUI Language

38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian

Hard Disk

SATA	8 SATA Interfaces
Capacity	Up to 24 TB for each HDD (the maximum HDD capacity varies with environment temperature and hard disk size; environment temperature for use should not exceed 40°C)
Disk Group	Support
Disk Array Type	RAID 0, 1, 5, 6, 10
Hot Swap	Support

External Interface

Network Interface	2 × RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface
USB	Front panel: 2 × USB 2.0, Rear panel: 2 × USB 3.0
RS485	1
RS232	1
Alarm In	16-ch
Alarm Out	10-ch
eSATA	1
Power Output	12 V
Power Supply	AC 100 to 240 V

General

Working Temperature	-10 °C to 55 °C (14 °F to 131 °F)
Working Humidity	≤ 90% RH (non-condensing)
Power Consumption (without HDD)	≤ 35 W
Weight (without HDD)	≤ 6 kg (13.23 lb)
Dimensions	442 mm × 448 mm × 93 mm (17.4" × 17.6" × 3.7")

Certification

Certification	CE; FCC; UL; RoHS; WEEE
CE	EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035
FCC	Part15 Subpart B

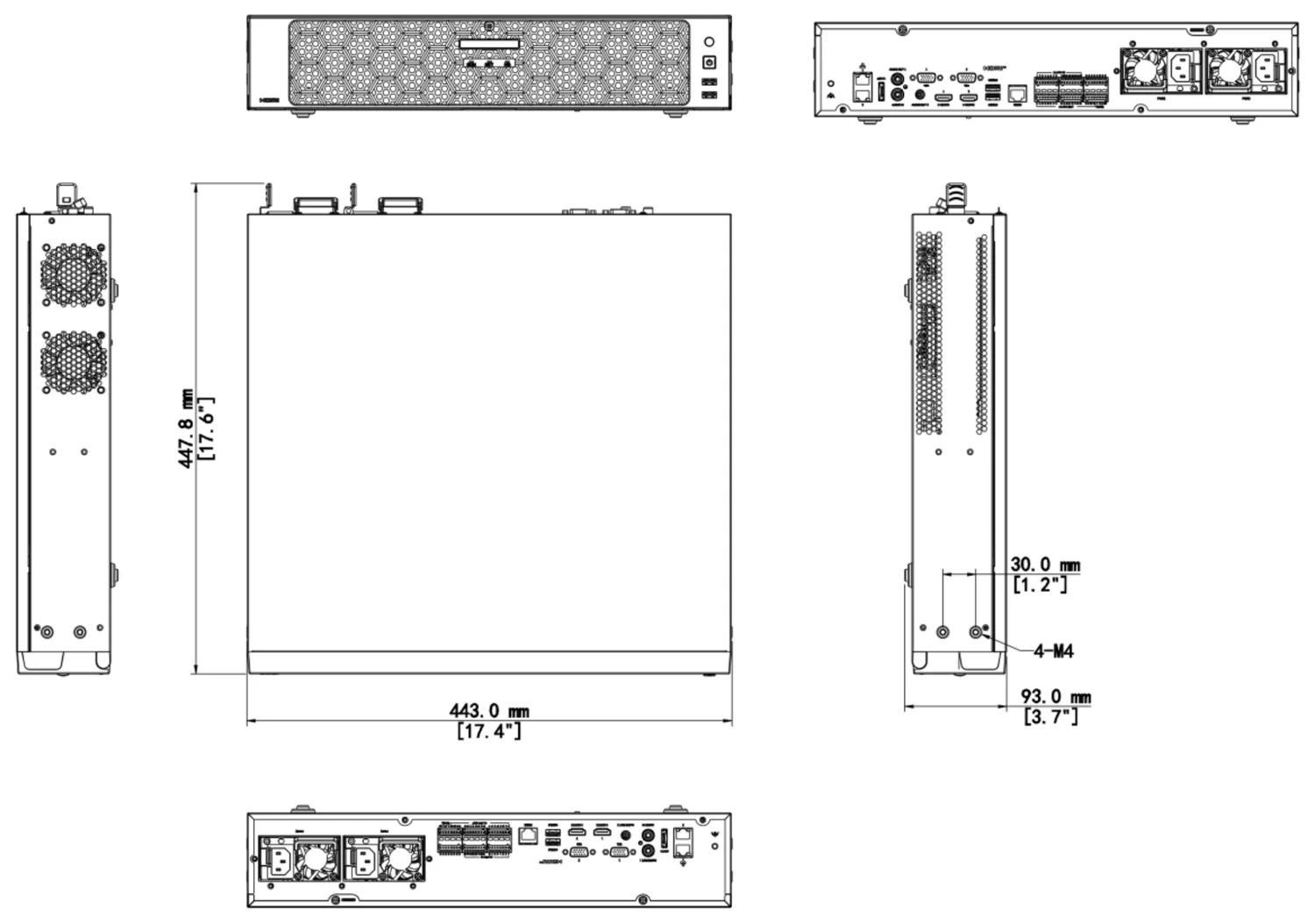

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	442 × 448 × 93 mm (17.4" × 17.6" × 3.7")
Weight (without HDD)	≤ 6 kg (13.23 lb)
Power supply	AC 100 to 240 V (redundant PSU optional)
Consumption (without HDD)	≤ 35 W

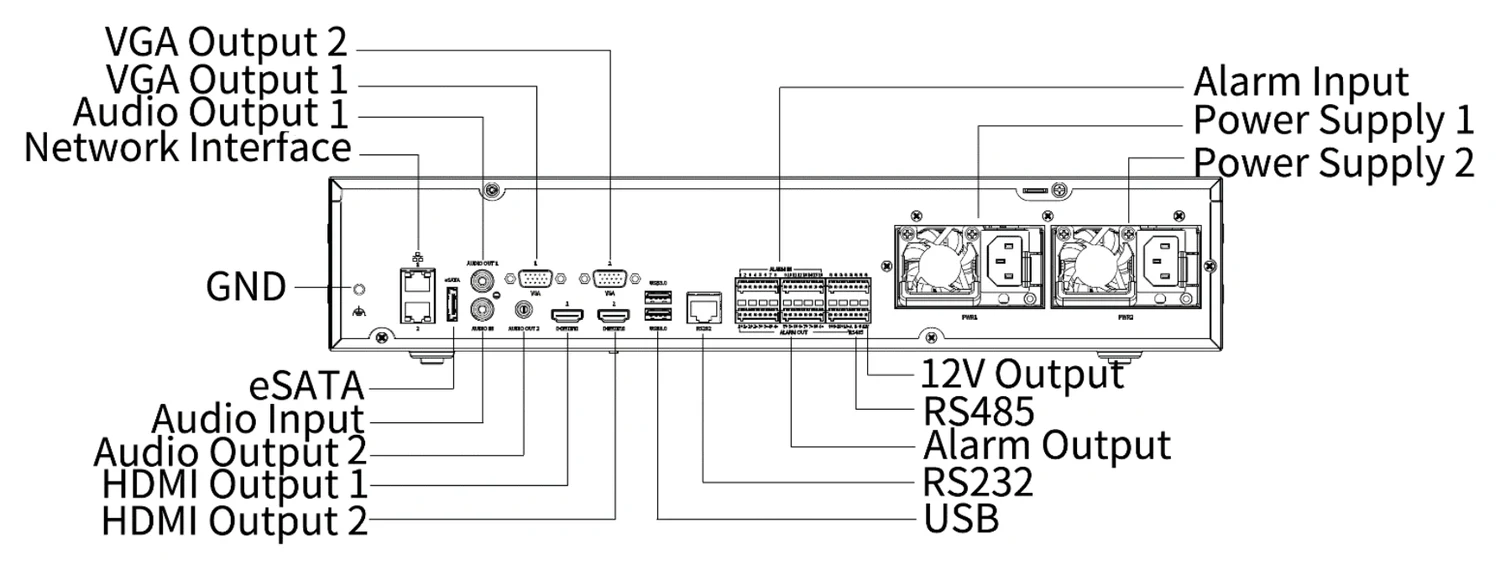

Rear panel — all interfaces

Optional Mounting Accessories

Order together with the camera to save shipping.

FL-2U4-HDD & 8-HDD 2U NVR rack mount

PWR-DC12-350A-IN350W power accessory module (for the optional redundant PSU slot)

32/64/128-Channel Hot-Swap RAID NVR FAQ — NVR508-E-R

How many IP cameras can the NVR508-E-R series record?

32, 64 or 128 IP cameras depending on the model, all with 384 Mbps incoming and 384 Mbps outgoing bandwidth. Recording resolution reaches 32 MP per channel, and decoding covers up to 8x 4K at 30 fps or 32x 1080P at 30 fps for live view and playback.

Can I replace a failed hard drive without stopping the recorder?

Yes. The 8 SATA bays are hot-swappable and support RAID 0, 1, 5, 6 and 10 with N+1 hot spare — you pull the failed drive and insert a new one while the array and the recordings keep working. Each bay accepts up to 24 TB, 192 TB total.

Does the NVR508-E-R have PoE ports for the cameras?

No PoE ports — this is a central rack recorder with two gigabit RJ45 interfaces, one eSATA port and a 12 V power output. Feed the cameras from PoE switches in the field and bring the streams back to the NVR over the network.

What smart search can I run across 128 channels?

The recorder receives AI metadata from the cameras (Smart by IPC, up to 16 images/s in total): face detection and comparison, vehicle detection with LPR and temperature detection. You then run face snapshot, vehicle, human body and general VCA searches, plus heat map and people counting, with up to 25,000 vehicle pictures stored.

Can I monitor the system remotely?

Yes. Up to 128 remote users can connect at the same time via P2P, HTTP/HTTPS, RTSP or DDNS, and outgoing bandwidth is 384 Mbps for remote streams. Supported browsers are Chrome 45+, Edge 79+, Firefox 52+ and IE10/11.
