NVR508-32 / 64E-IQ
32 / 64-channel network video recorder — eight SATA bays with RAID 0/1/5/6/10 for redundant storage, Ultra 265 compression, dual independent HDMI+VGA output, records cameras up to 32MP, with onboard Face Detection, Vehicle Detection (LPR) and AI smart search.
Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port
Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
How many terabytes for your channels and days? Use the storage calculator →
Need the PDF datasheet? Get it on WhatsApp →Sample quantities are welcome — testing one or two units first is the normal way to start.

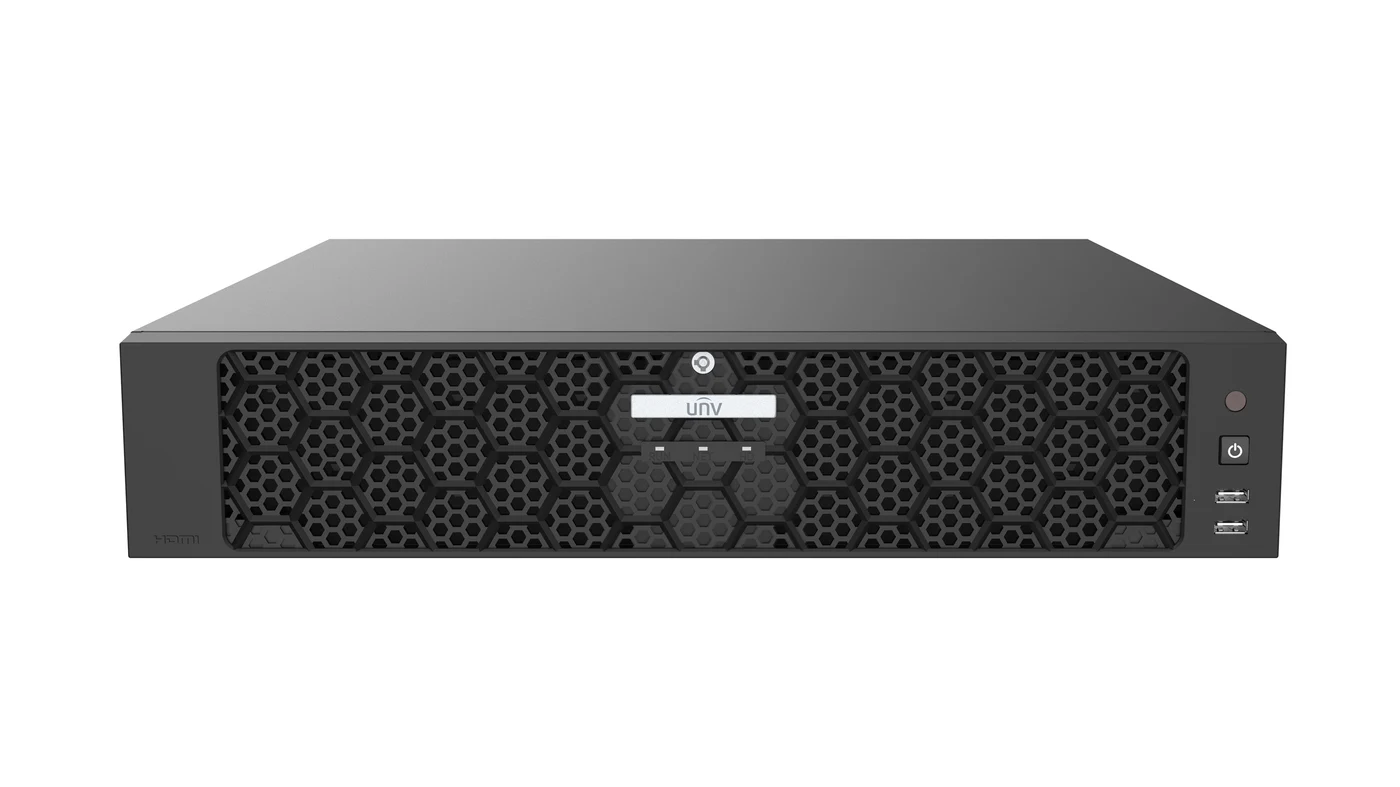

The Uniview NVR508-E-R-IQ Series is an 8-HDD network video recorder offered in two sizes: NVR508-32E-R-IQ (32-ch) and NVR508-64E-R-IQ (64-ch). Both record cameras up to 32MP with Ultra 265 / H.265 / H.264 compression, support RAID 0, 1, 5, 6 and 10 with Disk Group and Redundant Storage across eight independent SATA bays (up to 24 TB each), and include built-in Face Detection, Vehicle Detection (LPR), Temperature Detection and AcuSearch / AcuTrack smart search. Two independent HDMI+VGA output pairs support up to 4K/60Hz, and the local interface is available in 38 languages including Spanish (Latin America), Portuguese (Brazil) and French.
Is this the right recorder for you?
Plain-language guide for buyers and installers — based only on what this recorder actually does.
- PoE ports — cameras need a separate PoE switch (this recorder has no built-in PoE ports)
- A ninth hard disk or more — this series tops out at 8 SATA bays (up to 192 TB total with eight 24 TB drives)
- Three or more independent monitor feeds — this series provides two independent HDMI+VGA output pairs (4 physical ports, 2 independent video feeds)
- Low-voltage DC 12V power input — this unit runs on AC 100–240V only, no DC power-brick option
- Running Face Recognition/AcuSearch and SIP/UMD analytics at the same time — Smart by NVR Analyzer Mode runs one mixed mode at a time, not both simultaneously
Worried about counterfeits? Order under your own company name.
For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.
Using your own freight forwarder? No problem.
For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.
Key Features
Complete list from the official datasheet.
Eight bays, RAID protected. AI finds the moment.
Two real capabilities that define this series: RAID-protected multi-bay storage and onboard AI search.
Room to grow, protected against drive or unit failure
Eight independent, hot-swappable SATA bays each take a disk up to 24 TB — up to 192 TB in one recorder, with Disk Group and Redundant Storage supporting RAID 0, 1, 5, 6 or 10, plus N+1 Hot spare and an optional redundant power supply module, so a failed drive, a failed PSU — or a failed recorder — doesn't stop recording.
Find the moment, not the footage
Built-in Face Detection, Vehicle Detection (LPR) and Temperature Detection on the camera side (up to 16 images/s in total) feed AcuSearch, AcuTrack, Face Snapshot Search and Human Body Search on the recorder — narrow hours of footage down to the exact clip.
Which size fits your project?
Bars show camera capacity per model. Click the model buttons above to switch — the spec table highlights every other difference.
Full Specifications
Complete official specifications from the manufacturer's datasheet (technical values in English).
Decoding
| Decoding Format | Ultra 265, H.265, H.264 |
| Decoding Capability | 32E-R-IQ · Smart Off: 2x32MP@30, 4x16MP@30, 5x12MP@30, 8x4K@30, 10x6MP@30, 12x5MP@30, 16x4MP@30, 20x3MP@30, 32x1080P@30 | Smart On: 1x32MP@30, 3x16MP@30, 4x12MP@30, 6x4K@30, 8x6MP@30, 9x5MP@30, 12x4MP@30, 16x3MP@30, 24x1080P@30, 32x720P@3064E-R-IQ · Smart Off: 2x32MP@30, 4x16MP@30, 5x12MP@30, 8x4K@30, 10x6MP@30, 12x5MP@30, 16x4MP@30, 20x3MP@30, 32x1080P@30, 64x720P@30 | Smart On: 1x32MP@30, 3x16MP@30, 4x12MP@30, 6x4K@30, 8x6MP@30, 9x5MP@30, 12x4MP@30, 16x3MP@30, 24x1080P@30, 48x720P@30 |
| Decoding Capability Description | The resolution of each channel cannot exceed 8192 pixels in length or width |
| Audio Compression | G.711A, G.711U |
Network
| Incoming Bandwidth | 32E-R-IQ · Smart Off: 384 Mbps / Smart On: 200 Mbps64E-R-IQ · Smart Off: 512 Mbps / Smart On: 200 Mbps |
| Outgoing Bandwidth | 32E-R-IQ · Smart Off: 384 Mbps / Smart On: 200 Mbps64E-R-IQ · Smart Off: 512 Mbps / Smart On: 200 Mbps |
| Remote Users | 128 |
| Protocols | TCP/IP, P2P, NTP, DHCP, PPPoE, HTTP, HTTPS, DNS, DDNS, SNMP, SMTP, NFS, RTSP, 802.1x, IPv6, IPv4 |
| Browser (Plugin) | IE10, IE11, Chrome 45+, Edge 79+, Firefox 52+ |
Video/Audio Input
| IP Video Input | 32E-R-IQ · 32-ch64E-R-IQ · 64-ch |
| RCA Audio Input | 1-ch |
| Peripheral Input — POS | All channels |
Video/Audio Output
| HDMI Output | 4K (3840 × 2160)/60 Hz, 4K (3840 × 2160)/30 Hz, 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| VGA Output | 1920 × 1080/60 Hz, 1600 × 1200/60 Hz, 1280 × 1024/60 Hz, 1280 × 720/60 Hz, 1024 × 768/60 Hz |
| RCA Audio Output | 2-ch |
| Liveview Display | 32E-R-IQ · HDMI1 and VGA1: 1/4/6/8/9/16/25/32; HDMI2 and VGA2: 1/4/6/8/9/1664E-R-IQ · HDMI1 and VGA1: 1/4/6/8/9/16/25/36/64; HDMI2 and VGA2: 1/4/6/8/9/16 |
| Corridor Mode Screen | HDMI1 and VGA1: 3/4/5/7/9/10/12/16/32; HDMI2 and VGA2: 3/4/5/7/9/10/12/16 |
| Two-way Audio | 1-ch, RCA (Using the audio input and output) |
| Snapshot | FTP/Schedule/Event Snapshot; 16-ch snapshot (max. 8 MP (3840 × 2160) video resolution, with 1080P snapshot resolution) |
Recording
| Recording Resolution | 32 MP/16 MP/12 MP/8 MP/6 MP/5 MP/4 MP/3 MP/1080P/960P/720P/D1/2CIF/CIF |
Smart
| Smart by IPC | All channels (up to 16 images/s in total) Face Detection, Face Comparison, Vehicle Detection (LPR), Temperature Detection, SIP, UMD, Video Metadata, Traffic Monitoring |
| Smart by NVR | Face Detection, Face Comparison, Smart Intrusion Prevention (SIP), Ultra Motion Detection (UMD) |
| Smart by NVR Analyzer Mode | Mixed Mode (Face Recognition+AcuSearch), Mixed Mode (SIP+UMD), Modes cannot active simultaneously, only one mode can active at a time. |
| VCA Search | AcuSearch, AcuTrack, Face Snapshot Search, Face Comparison Search, Motor Vehicle Search, Non-Motor Vehicle Search, Human Body Search, General Search, People Counting Report, Heat Map |
| Acu Search Performance | All channels with UNV SIP/UMD Camera |
| Acu Track Performance | All channels with UNV SIP/UMD Camera |
| by NVR | Up to 16-ch with UNV Face Detection Camera, Up to 4-ch with normal camera (UNV and Third-part brand, 4-ch 2MP, 2-ch 4MP, 1-ch 4K) |
| Vehicle Picture Library | Up to 5 vehicle picture libraries, with up to 25,000 vehicle pictures in total |
| SIP by NVR with normal cameras | Up to 8-ch with normal camera (UNV and Third-part brand, 8-ch 2MP, 4-ch 4MP, 2-ch 4K) |
| UMD by NVR with normal cameras | Up to 16-ch with normal camera (UNV and Third-part brand, 16-ch 2MP, 8-ch 4MP, 4-ch 4K) |
| Capacity of Snapshot Records | 3 millions records for face snapshot, 2 millions records for vehicle snapshot, 2 millions records for SIP, 2 millions records for video Metadata |
Alarm
| General Alarm | Defocus Detection, Scene Change Detection, Object Left Behind, Object Removed, Auto Tracking, Motion Detection, Tampering, Human Body Detection, Video Loss, Alarm Input, Audio Detection |
| Alert Alarm | IP Conflict, Network Disconnected, Disk Offline, Disk Abnormal, Illegal Access, Hard Disk Space Low, Hard Disk Full, Recording/Snapshot Abnormal, Array Damaged, Array Degraded |
GUI Language
| GUI Language | 38 languages: Simplified Chinese, Traditional Chinese, English, Vietnamese, Thai, Turkish, Spanish (Latin America), Portuguese (Brazil), Spanish, Portuguese, French, German, Italian, Dutch, Polish, Czech, Hungarian, Slovak, Russian, Hebrew, Arabic, Ukrainian, Estonian, Bulgarian, Greek, Romanian, Danish, Swedish, Norwegian, Finnish, Croatian, Slovenia, Serbia, Korean, Japanese, Latvian, Lithuanian, Persian |
Hard Disk
| SATA | 8 SATA Interfaces |
| Capacity | Up to 24 TB for each HDD (The maximum HDD capacity varies with environment temperature and hard disk size, The environment temperature for use should not exceed 40°C.) |
| Disk Group | Support |
| Redundant Storage | Support |
| Disk Array Type | RAID 0, 1, 5, 6, 10 |
| Hot Swap | Support |
External Interface
| Network Interface | 2 RJ45 10 M/100 M/1000 M self-adaptive Ethernet Interface |
| USB | Front panel: 2 × USB2.0, Rear panel: 2 × USB3.0 |
| RS485 | 1 |
| RS232 | 1 |
| Alarm In | 16-ch |
| Alarm Out | 10-ch |
| eSATA | 1 |
| Power Output | 12 V |
| Power Supply | AC 100~240V |
| Redundant Power Supply | Support |
Working Environment
| Working Temperature | -10 °C to 50 °C (14 °F to 122 °F) |
| Working Humidity | ≤ 90% RH (non-condensing) |
| Power Consumption (without HDD) | ≤ 35 W |
Dimensions
| Weight (without HDD) | ≤ 6.5 Kg (14.3 lb) |
| Height | 2U |
| Dimensions | 443 mm × 448 mm × 93 mm (17.4" × 17.6" × 3.7") |
Certification
| Certification | CE; FCC; UL; RoHS; WEEE |
| CE | EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035 |
| FCC | Part15 Subpart B |
Dimensions

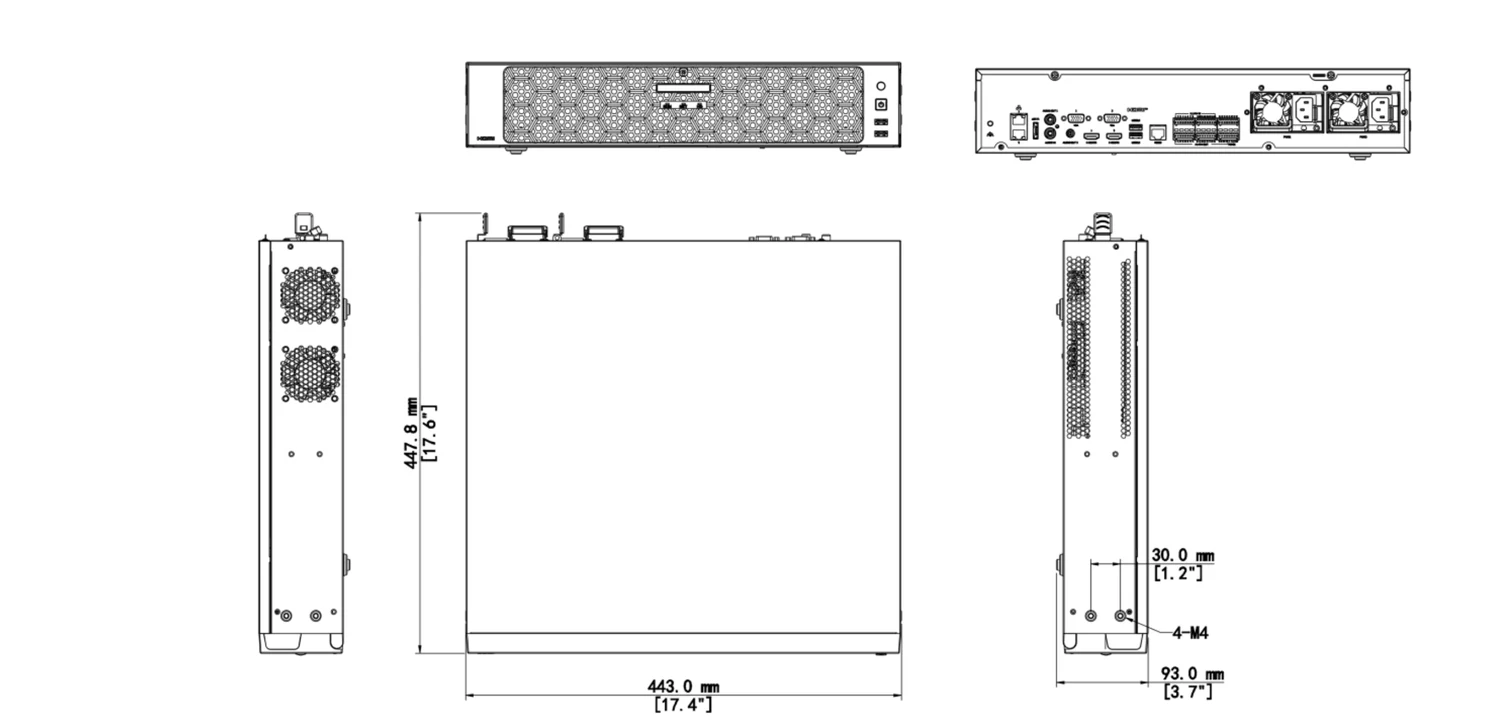

Engineering drawing reproduced 1:1 from the official datasheet.
| Dimensions | 443 mm × 448 mm × 93 mm (17.4" × 17.6" × 3.7") |
| Height | 2U |
| Weight (without HDD) | ≤ 6.5 kg (14.3 lb) |
| Power supply | AC 100 ~ 240 V |
| Consumption (without HDD) | ≤ 35 W |
Optional Mounting Accessories
Order together with the camera to save shipping.
32/64-Channel AI Hot-Swap NVR FAQ — NVR508-E-R-IQ
How many cameras does the NVR508-E-R-IQ take, and what changes with AI on?
Which AI features run on the recorder, and do third-party cameras work?
How is storage handled — can I swap disks while it runs?
Can it drive two monitors with different content?
Can I monitor the system remotely?
