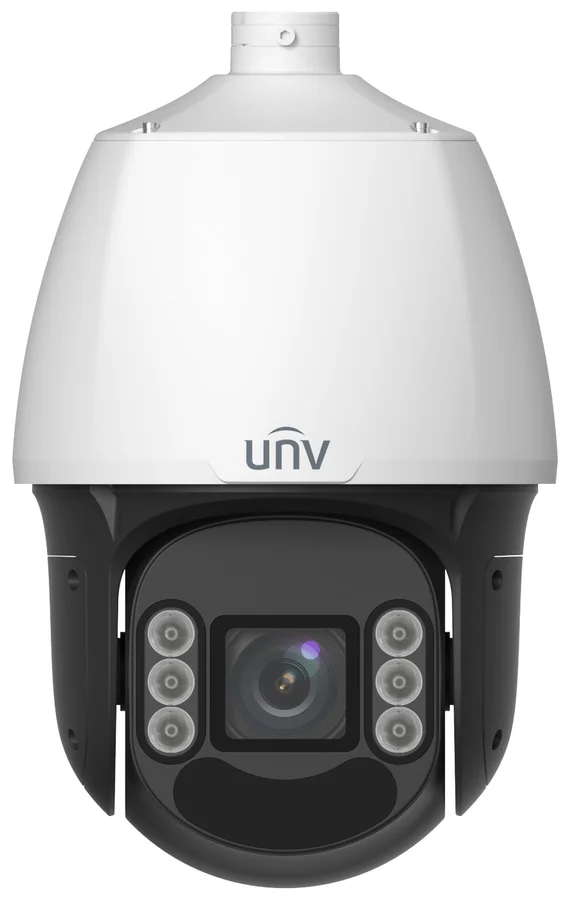

IPC6622SR-X25-VD2
A 25× optical-zoom PTZ dome that finds a target across a wide scene and zooms in for detail: smart intrusion prevention with human/vehicle classification, UNV Large Model auto-tracking through occlusion, and 200 m smart IR for reliable night operation.
Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port
Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
Need the PDF datasheet? Get it on WhatsApp →Sample quantities are welcome — testing one or two units first is the normal way to start.

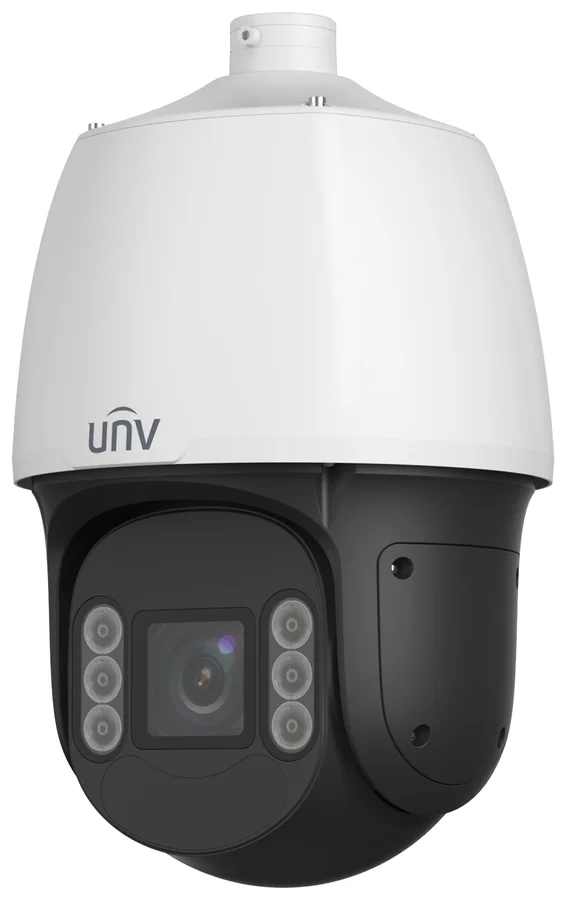

The IPC6622SR-X25-VD2 is a 2MP Lighthunter IR PTZ dome camera built around a 1/2.8-inch CMOS sensor and a 5-125 mm motorized lens with 25× optical / 8× digital zoom. Smart intrusion prevention covers cross-line, intrusion, enter-area and leave-area detection with human/non-motor-vehicle/motor-vehicle classification and false-alarm filtering, while UNV Large Model auto-tracking keeps following a target through occlusion, multi-target crossing or high-speed motion. 120 dB true WDR, heatwave reduction and adaptive defog keep the image usable in harsh outdoor light, and 200 m smart IR plus a 0.001 Lux color-sensitive sensor cover the night. The IP67/IK10 housing is rated -40 °C to 70 °C and takes DC 24 V, AC 24 V or PoE (IEEE 802.3at).
Is this the right camera for you?
Plain-language guide for buyers and installers — based only on what this camera actually does.
- No face-recognition database on this model — Intelligent functions cover smart intrusion prevention, people counting and auto-tracking, but not face-ID matching; choose a face-recognition PTZ if that's required.
- No panorama channel — this is a single 25× zoom dome, not a panoramic-linkage all-in-one; if you need a 360° overview plus zoom in one unit, choose a panoramic-linkage PTZ instead.
- Illuminator is IR-only (200 m) — there is no separate warm/white-light channel for full-color night capture; color at night relies solely on the 0.001 Lux ColorHunter sensor.
Worried about counterfeits? Order under your own company name.
For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.
Using your own freight forwarder? No problem.
For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.
Key Features
Complete list from the official datasheet.
Zoom & Low-Light: Two Capabilities, One Dome
The values below are drawn directly from the official datasheet.
25× optical / 8× digital zoom, 5-125 mm motorized lens
undefined
Color: 0.001 Lux (F1.6, AGC ON), 0 Lux with light — plus smart IR illumination up to 200 m
undefined
How far can it see? (DORI Standard)
DORI (EN 62676-4) is the industry standard for what a camera can do at distance. The datasheet gives DORI as a range across the 5-125 mm zoom; the bars below show the long-end (125 mm, full telephoto) values — the wide-angle end starts at 82.7 m Detect / 33.1 m Observe / 16.5 m Recognize / 8.3 m Identify.
How wide a view at each distance
Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.
| Distance | 56.8° wide | 3.0° tele |
|---|---|---|
| 5 m16 ft | 5.4 m17.7 ft | 0.3 m0.9 ft |
| 10 m33 ft | 10.8 m35.5 ft | 0.5 m1.7 ft |
| 15 m49 ft | 16.2 m53.2 ft | 0.8 m2.6 ft |
| 20 m66 ft | 21.6 m71.0 ft | 1.1 m3.5 ft |
| 30 m98 ft | 32.5 m106 ft | 1.6 m5.2 ft |
Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.
Full Specifications
Complete official specifications from the manufacturer's datasheet (technical values in English).
Camera
| Max Resolution | 2 MP |
| Sensor | 1/2.8" CMOS |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB |
| S/N | > 56 dB |
| Min. Illumination | Color: 0.001 Lux (F1.6, AGC ON), 0 Lux with Light |
Lens & Field of View
| Focal Length | 5 to 125 mm |
| Digital Zoom | 8X |
| Optical Zoom | 25X |
| Field of View (H) | 56.82° to 3.05° |
| Field of View (V) | 31.98° to 1.60° |
| Field of View (D) | 69.90° to 3.60° |
DORI
| DORI Distance (Detect) | 82.7 m to 1660.3 m (271.3 ft. to 5447.3 ft.) |
| DORI Distance (Observe) | 33.1 m to 664.1 m (108.5 ft. to 2178.9 ft.) |
| DORI Distance (Recognize) | 16.5 m to 332.1 m (54.3 ft. to 1089.5 ft.) |
| DORI Distance (Identify) | 8.3 m to 166.0 m (27.1 ft. to 544.7 ft.) |
Video
| Video Compression | H.265, H.264, MJPEG, Ultra 265 |
| Frame Rate | Main Stream Max: 1080P (1920×1080), 60 fps · Main Stream Default: 1080P (1920×1080), 25 fps · Sub Stream Max: 1080P (1920×1080), 60 fps · Third Stream Max: D1 (720×576), 60 fps · Fourth Stream Max: D1 (720×576), 60 fps · Fifth Stream Max: D1 (720×576), 60 fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| Privacy Mask | 24 areas, up to 8 areas per scene |
| ROI | Up to 8 areas |
| Video Stream | Five streams |
| OSD | Up to 10 OSDs |
| Frame Rate Recommendation | 1080P@60 fps + 1080P@60 fps + D1@60fps + D1@60fps + D1@60fps |
Intelligent
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| Auto Tracking | UNV Large Model |
| People Counting | Support people flow counting and crowd density detection |
| Exception Detection | Object removed, Object Left Behind |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance |
| BLC | Support |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| HLC | Support |
| Defog | Digital defog |
| Low Illumination Characteristics | ColorHunter with Wise-ISP |
| Heatwave Reduction | Support |
| Image Stabilization | DIS |
Events
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, Alarm input, Alarm output, HTTP authentication |
Audio
| Two-way Audio | Support |
| Suppression | Support |
| Audio Compression | G.711U, G.711A |
| Sampling Rate | 8 kHz, 16 kHz |
Storage
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | NAS (NFS) |
Illuminator
| IR On/Off Control | Auto/Manual |
| Illumination Distance (IR) | 200 m (656.2 ft.) |
Network
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Protocols | SSH, IGMP, RTP, RTMP, RTCP, IPv4, SSL/TLS, QoS, 802.1x, HTTPS, HTTP, UPnP, NTP, DDNS, DNS, RTSP, DHCP, UDP, TCP, ARP, ICMP, IPv6, SMTP, PPPoE, SNMP |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), SDK, API |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF, TLS 1.3 |
| Client | EZStation, UNV-Link, UNV-Link Pro |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+, Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
PTZ
| Number of Presets | 1024 |
| Patrol Stay Time | 15 s to 1800 s |
| Preset Image Freeze | Support |
| Home Position | Support |
| Pan Range | 360° (endless) |
| Tilt Range | -15° to 90° (auto flip) |
| Pan Speed | 0.1°/s to 288°/s |
| Tilt Speed | 0.1°/s to 288°/s |
Interface
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Alarm I/O | 2/1 |
| Serial Port | 1 × RS485 |
Certification
| Safety | UL (UL 62368-1) · CUL (CAN/CSA C22.2 No. 62368-1) · CE-LVD (EN IEC 62368-1) |
| EMC | CE-EMC (EN 55032; EN IEC 61000-3-2; EN 61000-3-3; EN 50130) · FCC SDoC (47 CFR Part 15; Subpart B) |
| Environment | CE-ROHS (2011/65/EU; (EU) 2015/863) · WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529) · IK10 (IEC62262; Anti-Vandalism Except for the Front Window) |
General
| Power Interface | Wires with cold-pressed terminal |
| Dimensions | Ø227 mm × 390 mm (Ø8.9" × 15.4") (Ø × H) |
| Storage Environment | -40 °C to 70 °C (-40 °F to 158 °F), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 6 KV |
| Reset Button | Support |
| Working Environment | -40 °C to 70 °C (-40 °F to 158 °F), Humidity: ≤ 95% RH (non-condensing) |
| Power | DC 24 V±25%, AC 24 V±25%, PoE (IEEE 802.3at) |
| Configurable P/N | Support |
| Live View | 3D Privacy Mask: Support |
| Compliance | NDAA Compliant: Support |

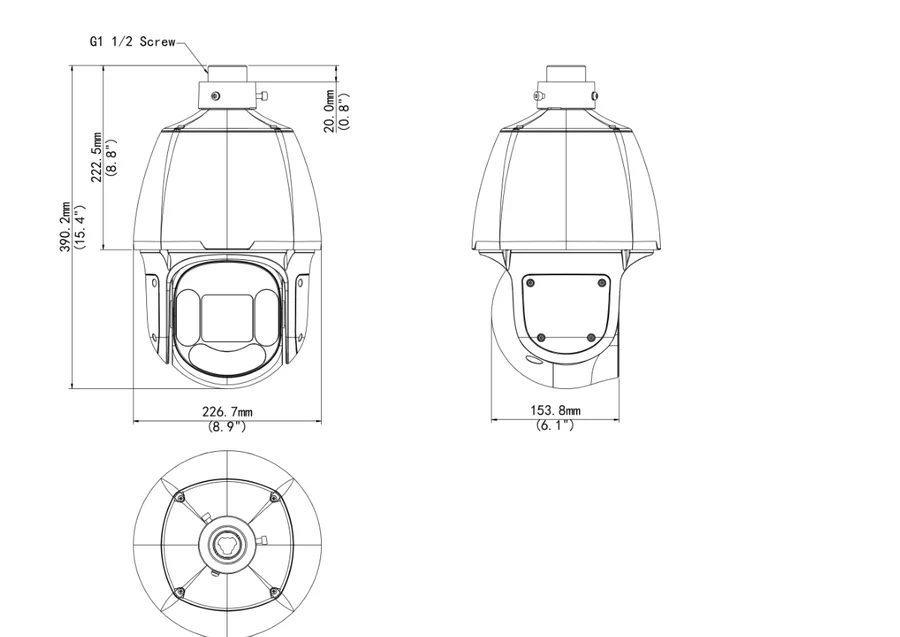

Dimensions
Engineering drawing reproduced 1:1 from the official datasheet.
| Dimensions | Φ227 mm × 390 mm (Φ8.9" × 15.4") (Φ × H) |
| Power | DC 24 V (±25%), AC 24 V (±25%), PoE (IEEE 802.3at) |
| Working Environment | -40 °C to 70 °C (-40 °F to 158 °F), ≤95% RH non-condensing |
| Protection | IP67 · IK10 (except front window) · 6 kV surge |
Optional Mounting Accessories
Order together with the camera to save shipping.
