PTZ Cameras › IPC6624SFW-X25-C-VH2
Uniview (UNV) · PTZ CameraStarlight · Dual-Light PTZ
4MP X25 Starlight Dual-Light PTZ Camera · AI Auto-Tracking
IPC6624SFW-X25-C-VH2
A single 4MP dome combines 25× optical zoom, dual IR + warm-light illumination out to 200 m, and UNV LM-Auto Tracking that keeps a lock on people and vehicles through occlusion, multi-target crossing or high-speed motion — day or night.
2688×1520 · main stream @60 fps25× · optical zoom, 8× digitalAuto-Track · UNV large-model AIIR 200 m · + warm light 100 mIP67 · IK10 · vandal-proof housingPoE · 802.3at, max. 21.7 W
Get Best Price on WhatsApp
Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port
Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
Need the PDF datasheet? Get it on WhatsApp →In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port
Sample quantities are welcome — testing one or two units first is the normal way to start.
Compliance:UL 62368-1CE-LVDFCC SDoC
Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.
The IPC6624SFW-X25-C-VH2 is a 4MP Starlight dual-light PTZ dome camera with a 25× optical zoom lens (4.8-120 mm, 8× digital zoom) and 120 dB WDR for high-contrast scenes. UNV LM-Auto Tracking uses UNV's large-model AI to identify and continuously track motor vehicles, non-motor vehicles and pedestrians through occlusion, multi-target crossing or high-speed motion, while Smart Intrusion Prevention (SIP) classifies and raises alarms on the same target types. Dual illumination balances 200 m IR for long-range detail with 100 m warm light for mid-range full-color imaging, and the IP67/IK10 housing operates from -40 °C to 70 °C.
Is this the right camera for you?
Plain-language guide for buyers and installers — based only on what this camera actually does.
Parking lots & road entrances25× optical zoom (4.8-120 mm) reads plates and faces at range, and UNV LM-Auto Tracking keeps a vehicle or pedestrian locked and centered even through multi-target crossing or high-speed motion.
Perimeter fence linesSmart Intrusion Prevention covers cross-line, enter-area, leave-area and intrusion detection, classifying motor vehicles, non-motor vehicles and pedestrians to filter out false alarms from blowing leaves or small animals.
Dusk-to-dawn full-color evidence100 m warm light keeps mid-range footage in full color for face and plate evidence, while 200 m IR takes over for long-range detail once it's fully dark — both switchable Auto or Manual.
Crowded public spacesPeople counting tracks flow and crowd density across the scene, and the 120 dB WDR keeps subjects visible against bright sky or glass backgrounds.
Harsh outdoor / high-heat sitesHeatwave reduction keeps images clear over hot asphalt or rooftops, and the IP67/IK10 housing runs from -40 °C to 70 °C with 6 kV surge protection — built for a pole nobody wants to service twice.
Watchlist / access checkpointsAutomatic best-snapshot selection with face-detection masked area, plus blocklist and allowlist comparison support, helps flag known individuals at a gate or checkpoint.
Not the right pick if you need…
- This is a single-sensor 25× PTZ dome, not a multi-sensor panoramic-linkage camera — if you need one unit to cover 360° and zoom at the same time, look at a panoramic-linkage PTZ instead.
- Network interface is 1× RJ45 10 M/100 M Base-TX (not Gigabit) — plan bandwidth carefully if the 4MP@60fps main stream runs alongside multiple sub-streams.
- 5.2 kg, Ø226 mm × 390 mm PT housing: needs the matching pole/wall/ceiling brackets and a rigid mounting point — not a light bullet-camera arm.
- There is no fixed wide-angle channel — field of view narrows to about 3° at full 25× telephoto, so continuous wide-area coverage still needs a second fixed camera.
Worried about counterfeits? Order under your own company name.
For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.
1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site
Using your own freight forwarder? No problem.
For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.
EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order
Note: manufacturer order registration (left) is available via the corporate purchase channel.
How to get a better price
Volume Discount50+ units of a single model
CONTACT USMix & Match DiscountMix any categories & models storewide in one order — no quantity limit
BETTERVerified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you
BESTAll discounts are quoted personally — message me on WhatsApp ↑
Key Features
Complete list from the official datasheet.
Wise-ISP image processing engine with intelligent noise reduction for stunning low-light image quality
Smart Intrusion Prevention (SIP): cross line detection, enter area, leave area and intrusion detection; detects and captures motor vehicles, non-motor vehicles and pedestrians, and raises alarms
UNV LM-Auto Tracking: accurately identifies and continuously tracks motor vehicles, non-motor vehicles and pedestrians — even through occlusion, multi-target crossing or high-speed motion — with real-time adaptive bounding boxes
People counting: people flow counting and crowd density monitoring for various scenarios
Automatic selection of best snapshots; supports face-detection masked area
Supports blocklist and allowlist comparison
Built-in high-power speaker supports audio-visual alarms, delivering enhanced deterrence and protection
120 dB true WDR meets image requirements in high-contrast scenes
Heatwave reduction effectively mitigates the heatwave effect in high-temperature outdoor environments and keeps images clear
Adaptive defog automatically adjusts the defog level according to fog and haze intensity
Dual-light illumination solution, balancing 200 m (656.2 ft) long-range detail and 100 m (328.1 ft) mid-to-short range full-color imaging
Adaptive highlight compensation (HLC) automatically adjusts image brightness at night when moving vehicles are detected on the road
Advanced H.265 and SVC video compression technologies for higher compression efficiency and flexible application
ROI (region of interest) ensures image quality in areas of interest with low bandwidth
Supports picture overlay and custom OSD with various custom effects (size, color, background, style)
Dual-Light Illumination: IR + Warm Light
Two illuminators cover different distances and purposes, switchable Auto or Manual.
IR ILLUMINATION
200 m infrared range for long-distance night detail
Takes over once light drops too low for full color, keeping the 25× telephoto view usable at range in total darkness.
WARM LIGHT
100 m full-color warm light for mid-range evidence capture
Keeps faces, plates and clothing colors visible at night — paired with adaptive highlight compensation (HLC) so oncoming headlights don't wash out the scene.
How far can it see? (DORI — EN 62676-4)
DORI distances at full 25× telephoto, from the official datasheet.
Detectsomething is there
2407.5 m7898.6 ft
Observewhat is happening
963 m3159.4 ft
Recognizesomeone you know
481.5 m3159.4 ft
Identifybeyond doubt
240.8 m789.9 ft
How wide a view at each distance
Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.
| Distance | 53.9° wide | 3.0° tele |
|---|---|---|
| 5 m16 ft | 5.1 m16.7 ft | 0.3 m0.9 ft |
| 10 m33 ft | 10.2 m33.4 ft | 0.5 m1.7 ft |
| 15 m49 ft | 15.3 m50.0 ft | 0.8 m2.6 ft |
| 20 m66 ft | 20.3 m66.7 ft | 1.0 m3.4 ft |
| 30 m98 ft | 30.5 m100 ft | 1.6 m5.2 ft |
Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.
Full Specifications
Complete official specifications from the manufacturer's datasheet (technical values in English).
Camera
| Max Resolution | 4 MP |
| Sensor | 1/2.8" CMOS |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB |
| S/N | > 56 dB |
| Case Type | PT |
Lens
| Focal Length | 4.8 to 120 mm |
| Optical Zoom | 25X |
| Digital Zoom | 8X |
| Iris | F1.65 to F3.8 |
| Field of View (H) | 53.90° to 3.00° |
| Field of View (V) | 31.92° to 1.69° |
| Field of View (D) | 63.60° to 3.69° |
Video
| Video Compression | H.265, H.264, MJPEG, Ultra 265 |
| Frame Rate | Main Stream Max: 4 MP (2688 × 1520), 60 fps · Main Stream Default: 4 MP (2560 × 1440), 25 fps · Sub Stream Max: 1080P (1920 × 1080), 60 fps · Third Stream Max: D1 (720 × 576), 60 fps · Fourth Stream Max: D1 (720 × 576), 60 fps · Fifth Stream Max: D1 (720 × 576), 60 fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| Privacy Mask | 24 areas, up to 8 areas per scene |
| ROI | Up to 8 areas |
| Video Stream | Five streams |
| OSD | Up to 10 OSDs |
| Frame Rate Recommendation | 2688 × 1520@60 fps + 1080P@60 fps + D1@30 fps · 2688 × 1520@60 fps + 720P@60 fps + D1@60 fps + D1@60 fps + D1@60 fps · 2560 × 1440@30 fps + 1080P@60 fps + D1@60 fps · 1080P@60 fps + 1080P@60 fps + D1@60fps + D1@60fps + D1@60fps |
Events
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, Alarm input, Alarm output, HTTP authentication |
Audio
| Two-way Audio | Support |
| Suppression | Support |
| Audio Compression | G.711U, G.711A |
| Sampling Rate | 8 kHz, 16 kHz |
Storage
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | NAS (NFS) |
Network
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Protocols | IGMP, SMTP, IPv6, ARP, TCP, UDP, ICMP, DHCP, RTSP, DNS, DDNS, NTP, UPnP, HTTP, SNMP, 802.1x, QoS, SSL/TLS, SSH, IPv4, RTP, RTCP, RTMP, HTTPS, PPPoE |
| Compatible Integration | SDK, API, ONVIF (Profile S, Profile G, Profile T, Profile M) |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF, TLS 1.3 |
| Client | EZStation, UNV-Link, UNV-Link Pro |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+. Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
PTZ
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Patrol Stay Time | 15 s to 1800 s |
| Preset Image Freeze | Support |
| Tilt Range | -15° to 90° (auto flip) |
| Home Position | Support |
| Pan Speed | 0.1°/s to 288°/s |
| Pan Range | 360° (endless) |
| Tilt Speed | 0.1°/s to 288°/s |
| Number of Presets | 1024 |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance |
| BLC | Support |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| HLC | Support |
| Defog | Digital defog |
| Low Illumination Characteristics | ColorHunter with wise-ISP |
| Image Stabilization | EIS (Gyroscope) |
Interface
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Alarm I/O | 2/1 |
| Built-in Speaker | Support |
| Serial Port | 1 × RS485 |
Intelligent
| People Counting | Support people flow counting and crowd density detection |
| Exception Detection | Object removed, Object Left Behind |
| Auto Tracking | UNV Large Model |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
Illuminator
| Illumination Distance (Warm Light) | 100 m (328.1 ft.) |
| Illumination Distance (IR) | 200 m (656.2 ft.) |
Certification
| Safety | UL (UL 62368-1), CUL (CAN/CSA C22.2 No. 62368-1), CE-LVD (EN IEC 62368-1) |
| EMC | CE-EMC (EN 55032; EN IEC 61000-3-2; EN 61000-3-3; EN 50130), FCC SDoC (47 CFR Part 15; Subpart B) |
| Environment | CE-ROHS (2011/65/EU; (EU) 2015/863), WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529); IK10 (IEC62262; Anti-Vandalism Except for the Front Window) |
General
| Power Interface | Wires with cold-pressed terminal |
| Dimensions | Ø226 mm × 390 mm (Ø8.9" × 15.4") (Ø × H) |
| Weight | 5.2 kg (11.46 lb.) |
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 6 KV |
| Reset Button | Support |
| Working Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤ 95% RH (non-condensing) |
| Power | DC 24 V±25%, AC 24 V±25%, PoE (IEEE 802.3at) |
| Power Consumption | Max. 21.7 W |
| LED Indicator | 1, red/blue |
| Configurable P/N | Support |
| Live View 3D Privacy Mask | Support |
| Compliance (NDAA) | Support |

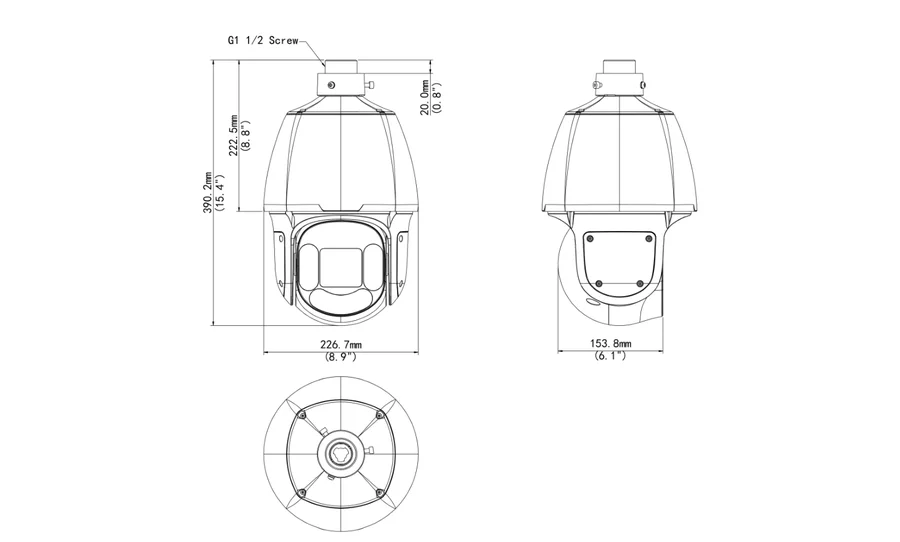

Dimensions
Engineering drawing reproduced 1:1 from the official datasheet.
unit: mm (in.)
| Dimensions | Ø226 mm × 390 mm (Ø8.9" × 15.4") (Ø × H) |
| Weight | 5.2 kg (11.46 lb.) |
| Power | DC 24 V (±25%) / AC 24 V (±25%) / PoE (IEEE 802.3at) |
| Working Environment | -40 °C to 70 °C (-40 °F to 158 °F), ≤95% RH non-condensing |
| Protection | IP67 · IK10 (except front window) · 6 kV surge |
Optional Mounting Accessories
Order together with the camera to save shipping.
TR-UF45-A-INDome Indoor Ceiling Mounting Pedestal
TR-SE45-A-INDome Ceiling Mounting Pole 500
TR-SE45-INDome Ceiling Mounting Pole 200
TR-CE45-INDome Indoor Ceiling Mounting Bracket
TR-WE45-INDome Wall Mounting Bracket
TR-WE45-A-INLong Wall Mounting Bracket for Dome
TR-JB12-INDome Junction Box
TR-WE45-B-INDome Gooseneck Bracket
TR-UP08-A-INDome Pole Mounting Bracket
TR-UP08-B-INAluminium Alloy Pole Mounting Bracket
TR-UC08-A-INDome Corner Mounting Bracket
TR-UC08-B-INAluminium Alloy Corner Mounting Bracket
4MP 25x Dual-Light PTZ FAQ — IPC6624SFW-X25-C-VH2
What does dual-light mean on the IPC6624SFW-X25-C-VH2?
It combines two illuminators: 200 m infrared for long-distance night detail once light drops too low for color, and 100 m warm white light that keeps faces, plates and clothing colors visible at mid range. Adaptive HLC works alongside so oncoming headlights do not wash out the scene.
What resolution and frame rate does it record?
The main stream reaches 4 MP (2688 × 1520) at 60 fps, with 25 fps as default, across five simultaneous streams — for example 2688 × 1520@60 plus 1080p@60 plus D1 sub-streams. Bit rate is adjustable from 128 Kbps to 16 Mbps using Ultra 265, H.265, H.264 or MJPEG.
Does it integrate with third-party recorders over ONVIF?
Yes. ONVIF Profile S, G, T and M are supported along with RTSP, SNMP, 802.1x and QoS, so it fits into third-party NVR/VMS systems and corporate networks. Uniview EZStation, UNV-Link and UNV-Link Pro are available for the software side, plus API/SDK for integrators.
How many presets and patrols can I program?
You get 1024 presets, 16 preset patrols with up to 64 presets each, and stay times from 15 to 1800 seconds per point, with preset image freeze and home position. Pan is 360° endless at up to 288°/s, tilt -15° to 90° with auto flip — enough to script a full site tour.
Can it store video on the camera itself?
Yes, edge storage on microSD cards up to 512 GB plus NAS (NFS) network storage. Local recording keeps critical footage on the camera when the link to the NVR drops, which matters on remote poles served by wireless or long cable runs. Up to 32 users on three levels can retrieve it.
Is the housing vandal-resistant and weatherproof?
The camera is rated IP67 against dust and water immersion and IK10 against impact, so it tolerates storms, dust and tampering attempts on public streets. Imaging support includes 120 dB WDR and a 1 to 1/100000 s shutter, keeping fast vehicles and high-contrast gate scenes sharp.
