IPC6624SFW-X33-C-VH2
A 4MP PTZ dome camera built for long-range patrol: 33× optical zoom reaches out to 3172.5 m on the DORI detect scale, dual-light illumination (200 m IR + 100 m warm light) keeps footage usable after dark, and UNV Large Model auto-tracking locks onto people and vehicles automatically.
Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port
Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
Need the PDF datasheet? Get it on WhatsApp →Sample quantities are welcome — testing one or two units first is the normal way to start.
The IPC6624SFW-X33-C-VH2 is a 4MP starlight PTZ dome camera (1/2.8" CMOS) with a 33× optical zoom lens (4.5–148.5 mm, 8× digital) and DORI detection reaching 3172.5 m at full telephoto. Dual-light illumination combines 200 m infrared with 100 m warm light for full-color night capture, and 120 dB true WDR plus heat-haze reduction and adaptive defog keep images usable in harsh conditions. UNV Large Model auto-tracking follows people, motor and non-motor vehicles through occlusion and multi-target crossing, backed by smart intrusion prevention (cross line / enter / leave / intrusion) with classification, people counting and crowd-density monitoring. The housing is rated IP67 / IK10, -40 °C to 70 °C, and can be powered by DC 24 V, AC 24 V or PoE (IEEE 802.3at).
Is this the right camera for you?
Plain-language guide for buyers and installers — based only on what this camera actually does.
- Single lens only — there is no wide-angle/panorama channel on this camera. If you need simultaneous full-scene overview plus zoom detail from one unit, choose a panoramic-linkage PTZ instead.
- Max. power consumption is 20.88 W — above the 15.4 W ceiling of standard 802.3af PoE. Confirm your PoE switch or injector supports 802.3at (up to 30 W) before relying on PoE alone, or use the DC/AC 24 V option.
- 5.26 kg on a Ø227 mm base still needs one of the listed dome mounting brackets (pole / wall / ceiling / gooseneck / junction box) — it is not designed for a light fixed-camera arm.
Worried about counterfeits? Order under your own company name.
For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.
Using your own freight forwarder? No problem.
For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.
Key Features
Complete list from the official datasheet.
Dual-Light Illumination: Infrared + Warm Light
Two illumination modes on one PTZ, selected automatically or manually to match the scene.
200 m infrared reach for long-range monitoring after dark
Auto or manual control, paired with 120 dB WDR, heatwave reduction and adaptive defog to keep long-range imagery usable after dark.
100 m full-color warm light for close-in identification, with adaptive highlight compensation
Adaptive highlight compensation (HLC) automatically balances brightness when vehicles are detected at night, keeping close-range faces and plates in full color.
How far can it see? (DORI, full 33× zoom)
DORI (EN 62676-4) is the industry standard for what a camera can do at distance. This is a single-lens 33× PTZ camera — the bars above show DORI distances at full telephoto zoom, from the official datasheet.
How wide a view at each distance
Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.
| Distance | 53.6° wide | 2.7° tele |
|---|---|---|
| 5 m16 ft | 5.1 m16.6 ft | 0.2 m0.8 ft |
| 10 m33 ft | 10.1 m33.2 ft | 0.5 m1.5 ft |
| 15 m49 ft | 15.2 m49.7 ft | 0.7 m2.3 ft |
| 20 m66 ft | 20.2 m66.3 ft | 0.9 m3.1 ft |
| 30 m98 ft | 30.3 m99.5 ft | 1.4 m4.6 ft |
Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.
Full Specifications
Complete official specifications from the manufacturer's datasheet (technical values in English).
Camera
| Max Resolution | 4 MP |
| Sensor | 1/2.8" CMOS |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB |
| S/N | > 56 dB |
| Case Type | PT |
Lens & Field of View
| Focal Length | 4.5 to 148.5 mm |
| Digital Zoom | 8X |
| Optical Zoom | 33X |
| Iris | F1.5 to F4.0 |
| Field of View (H) | 53.61° to 2.68° |
| Field of View (V) | 31.73° to 1.50° |
| Field of View (D) | 63.26° to 3.30° |
DORI
| DORI Distance (Detect) | 105.8 m to 3172.5 m (346.9 ft. to 10408.5 ft.) |
| DORI Distance (Observe) | 42.3 m to 1269.0 m (138.8 ft. to 4163.4 ft.) |
| DORI Distance (Recognize) | 21.2 m to 634.5 m (69.4 ft. to 2081.7 ft.) |
| DORI Distance (Identify) | 10.6 m to 317.3 m (34.8 ft. to 1041.0 ft.) |
Illuminator
| Illumination Distance (IR) | 200 m (656.2 ft.) |
| Illumination Distance (Warm Light) | 100 m (328.1 ft.) |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2, Area white balance |
| BLC | Support |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| HLC | Support |
| Defog | Digital defog |
| Low Illumination Characteristics | ColorHunter with wise-ISP |
| Image Stabilization | EIS (Gyroscope) |
Video
| Video Compression | H.265, H.264, MJPEG, Ultra 265 |
| Frame Rate | Main Stream Max: 4 MP (2688×1520), 60 fps · Main Stream Default: 4 MP (2560×1440), 25 fps · Sub Stream Max: 1080P (1920×1080), 60 fps · Third Stream Max: D1 (720×576), 60 fps · Fourth Stream Max: D1 (720×576), 60 fps · Fifth Stream Max: D1 (720×576), 60 fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| Privacy Mask | 24 areas, up to 8 areas per scene |
| ROI | Up to 8 areas |
| Video Stream | Five streams |
| OSD | Up to 10 OSDs |
Events
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, Alarm input, Alarm output, HTTP authentication |
Audio
| Two-way Audio | Support |
| Suppression | Support |
| Audio Compression | G.711U, G.711A |
| Sampling Rate | 8 kHz, 16 kHz |
Storage
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | NAS (NFS) |
Network
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Protocols | SSH, IGMP, RTP, RTMP, RTCP, IPv4, SSL/TLS, QoS, 802.1x, HTTPS, HTTP, UPnP, NTP, DDNS, DNS, RTSP, DHCP, UDP, TCP, ARP, ICMP, IPv6, SMTP, PPPoE, SNMP |
| Compatible Integration | SDK, API, ONVIF (Profile S, Profile G, Profile T, Profile M) |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF, TLS 1.3 |
| Client | EZStation, UNV-Link, UNV-Link Pro |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+; Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
PTZ
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Patrol Stay Time | 15 s to 1800 s |
| Preset Image Freeze | Support |
| Tilt Range | -15° to 90° (auto flip) |
| Home Position | Support |
| Pan Speed | 0.1°/s to 288°/s |
| Pan Range | 360° (endless) |
| Tilt Speed | 0.1°/s to 288°/s |
| Number of Presets | 1024 |
Interface
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Alarm I/O | 2/1 |
| Built-in Speaker | Support |
| Serial Port | 1 × RS485 |
Intelligent
| People Counting | Support people flow counting and crowd density detection |
| Exception Detection | Object removed, Object Left Behind |
| Auto Tracking | UNV Large Model |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
Certification
| Safety | UL (UL 62368-1); CUL (CAN/CSA C22.2 No. 62368-1); CE-LVD (EN IEC 62368-1) |
| EMC | CE-EMC (EN 55032; EN IEC 61000-3-2; EN 61000-3-3; EN 50130); FCC SDoC (47 CFR Part 15; Subpart B) |
| Environment | CE-ROHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529); IK10 (IEC 62262; Anti-Vandalism Except for the Front Window) |
General
| Power Interface | Wires with cold-pressed terminal |
| Dimensions | Ø227 mm × 390 mm (Ø8.9" × 15.4") (Ø × H) |
| Weight | 5.26 kg (11.59 lb.) |
| Storage Environment | -40 °C to 70 °C (-40 °F to 158 °F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 6 KV |
| Reset Button | Support |
| Working Environment | -40 °C to 70 °C (-40 °F to 158 °F), Humidity: ≤95% RH (non-condensing) |
| Power | DC 24 V±25%, AC 24 V±25%, PoE (IEEE 802.3at) |
| Power Consumption | Max. 20.88 W |
| LED Indicator | 1, red/blue |
| Configurable P/N | Support |
| Live View | 3D Privacy Mask: Support |
| Compliance | NDAA Compliant: Support |
Dimensions

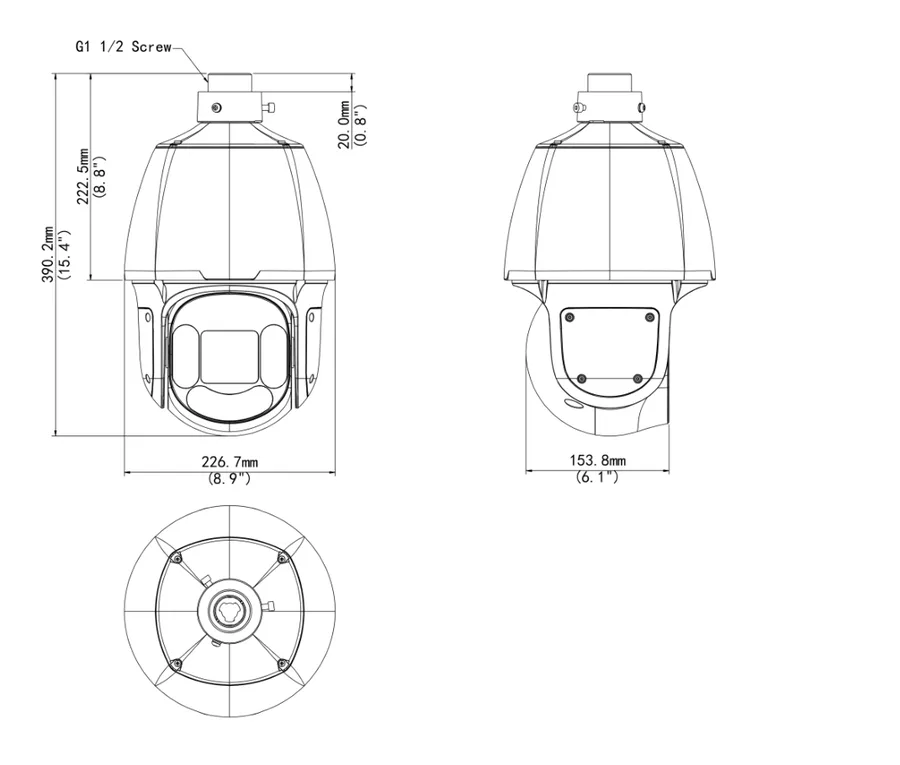

Engineering drawing reproduced 1:1 from the official datasheet.
| Dimensions | Ø227 mm × 390 mm (Ø8.9" × 15.4") (Ø × H) |
| Weight | 5.26 kg (11.59 lb.) |
| Power | DC 24 V ±25% / AC 24 V ±25% / PoE (IEEE 802.3at) · max. 20.88 W |
| Working Environment | -40 °C to 70 °C (-40 °F to 158 °F), ≤95% RH non-condensing |
| Protection | IP67 · IK10 (except front window) · 6 kV surge |
Optional Mounting Accessories
Order together with the camera to save shipping.
4MP 33x Dual-Light PoE PTZ FAQ — IPC6624SFW-X33-C-VH2
Can I power the IPC6624SFW-X33-C-VH2 over the network cable?
What night vision does the dual-light setup give me?
How far does the 33x zoom actually reach?
Does the image shake on tall poles in the wind?
What recording resolution and streams do I get?
How rugged is the housing for street deployment?
