PTZ Cameras › IPC6628SFW-X25E-C-VH2
Uniview (UNV) · PTZ CameraStarlight · Dual-Light PTZ
8MP X25 Starlight Dual-Light PTZ · UNV Auto Tracking
IPC6628SFW-X25E-C-VH2
One 25× PTZ dome that reads a scene at long range and stays useful after dark: UNV Large Model auto tracking locks onto people and vehicles through occlusion and fast motion, while dual-light illumination pairs 200 m infrared with 100 m warm light for full-color detail.
3840×2160 · main stream @30fpsIR 200 m + Warm 100 m · dual-light illuminationUNV Auto Tracking · through occlusionFace DB · 16 libs · 100k facesIP67 · IK10 · vandal-proof housing-40~70°C · wide-temperature housing
Get Best Price on WhatsApp
Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port
Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
Need the PDF datasheet? Get it on WhatsApp →In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port
Sample quantities are welcome — testing one or two units first is the normal way to start.
Compliance:ONVIF Profile SONVIF Profile GONVIF Profile M
Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.
The IPC6628SFW-X25E-C-VH2 is an 8MP X25 starlight dual-light intelligent network PTZ camera built around a 1/1.8-inch CMOS sensor with 25× optical zoom (6-150 mm) and 120 dB true WDR for high-contrast scenes. UNV Large Model auto tracking accurately identifies and continuously follows motor vehicles, non-motor vehicles and pedestrians even through occlusion, multi-target crossing or high-speed motion, backed by smart intrusion prevention, people counting and front-end face recognition with up to 16 libraries and 100,000 faces. Dual-light illumination balances 200 m infrared for long-range detail with 100 m warm light for mid-range full-color imaging, and the IP67 / IK10 housing runs from -40 °C to 70 °C.
Is this the right camera for you?
Plain-language guide for buyers and installers — based only on what this camera actually does.
Perimeter with auto-trackingSmart intrusion prevention (cross line, enter/leave area, intrusion) classifies motor vehicles, non-motor vehicles and pedestrians; once flagged, UNV Large Model auto tracking locks on and keeps following the target through occlusion, multi-target crossing or high-speed motion.
Road intersections25× optical zoom (6-150 mm) reaches across a wide intersection while adaptive HLC automatically tames headlight glare at night when a moving vehicle is detected — keeping plates and faces readable instead of blown out.
Parking lots & crowd flowPeople counting supports flow statistics and crowd-density monitoring across the scene, while automatic best-snapshot selection with face-detection masked areas keeps captures usable for later review.
Night, long rangeDual-light illumination pairs 200 m infrared for long-range monochrome detail with a 100 m warm light for mid-range full-color capture, and Wise-ISP ColorHunter processing keeps low-light images usable rather than noisy.
High-contrast & hazy scenes120 dB true WDR handles bright sky against dark shadow without losing either end, heatwave reduction keeps summer asphalt from shimmering the image, and adaptive defog adjusts automatically to fog or haze intensity.
Harsh outdoor mountsIP67 sealing, IK10 vandal resistance (except front window), -40 °C to 70 °C operation and 6 kV surge protection are built for a pole nobody wants to climb twice; a built-in high-power speaker adds audio-visual alarms for extra deterrence.
Not the right pick if you need…
- Min. illumination is marked "TBD" in the official datasheet — if a formal RFP needs a confirmed low-light lux figure, request lab-verified data from your supplier before ordering.
- This is a single-lens 25× PTZ, not a panoramic unit — it has no simultaneous 360° overview channel; pair it with a separate panoramic camera if full-scene coverage is required.
- Network interface is 1 × RJ45 10 M/100 M Base-TX, not Gigabit — plan bandwidth for the five simultaneous streams (up to 8 MP main stream) accordingly.
- 5.48 kg on a Ø226.7 mm × 390.2 mm dome housing: use one of the listed Uniview dome brackets rated for this weight — it is not designed for a lightweight camera arm.
Worried about counterfeits? Order under your own company name.
For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.
1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site
Using your own freight forwarder? No problem.
For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.
EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order
Note: manufacturer order registration (left) is available via the corporate purchase channel.
How to get a better price
Volume Discount50+ units of a single model
CONTACT USMix & Match DiscountMix any categories & models storewide in one order — no quantity limit
BETTERVerified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you
BESTAll discounts are quoted personally — message me on WhatsApp ↑
Key Features
Complete list from the official datasheet.
Wise-ISP image processing engine with intelligent noise reduction for stunning visual effects in low-light conditions
Smart intrusion prevention (SIP): cross line detection, enter area, leave area and intrusion detection; detects and alarms motor vehicles, non-motor vehicles and pedestrians
UNV Large Model auto tracking: accurately identifies and continuously tracks motor vehicles, non-motor vehicles and pedestrians — even through occlusion, multi-target crossing or high-speed motion — with real-time adaptive bounding boxes
People counting supports people-flow counting and crowd-density monitoring, applicable to various scenarios
Automatic selection of best snapshots; supports face-detection masked area
Front-end face recognition with blocklist and allowlist comparison — up to 16 face libraries, up to 100,000 faces
Built-in high-power speaker supports audio-visual alarms for enhanced deterrence and protection
120 dB true WDR meets image requirements in high-contrast scenes
Heatwave reduction effectively mitigates the heatwave effect in high-temperature outdoor environments and keeps images clear
Adaptive defog automatically adjusts the defog level according to fog and haze intensity
Dual-light illumination solution balancing 200 m long-range detail with 100 m mid-to-short-range full-color imaging
Adaptive highlight compensation (HLC) automatically adjusts image brightness at night when moving vehicles are detected on the road
Advanced H.265 and SVC video compression technologies for higher compression efficiency and flexible application
ROI (region of interest) ensures image quality in areas of interest under low bandwidth
Supports picture overlay and custom OSD with various custom effects (size, color, background, style)
Dual-Light Illumination: 200 m IR + 100 m Warm Light
Two independent light sources on one camera, controlled automatically or manually.
IR CHANNEL
200 m (656.2 ft.) infrared reach
Long-range monochrome detail after dark, with auto/manual IR on-off control.
WARM LIGHT CHANNEL
100 m (328.1 ft.) warm light reach
Mid-to-short-range full-color imaging — keeps face and plate colors readable up close.
How far can it see? (DORI)
DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Values shown are at full 25× telephoto, per the official datasheet's DORI range.
Detectsomething is there
3116.3 m10223.9 ft
Observewhat is happening
1246.5 m4089.6 ft
Recognizesomeone you know
623.3 m2044.8 ft
Identifybeyond doubt
311.6 m1022.4 ft
How wide a view at each distance
Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.
| Distance | 56.5° wide | 2.9° tele |
|---|---|---|
| 5 m16 ft | 5.4 m17.6 ft | 0.3 m0.8 ft |
| 10 m33 ft | 10.7 m35.3 ft | 0.5 m1.7 ft |
| 15 m49 ft | 16.1 m52.9 ft | 0.8 m2.5 ft |
| 20 m66 ft | 21.5 m70.5 ft | 1.0 m3.4 ft |
| 30 m98 ft | 32.2 m106 ft | 1.5 m5.0 ft |
Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.
Full Specifications
Complete official specifications from the manufacturer's datasheet (technical values in English).
Camera
| Max Resolution | 8 MP |
| Sensor | 1/1.8" CMOS |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB |
| S/N | > 56 dB |
| Min. Illumination | TBD (not disclosed in official datasheet) |
Lens & Field of View
| Focal Length | 6 to 150 mm |
| Optical Zoom | 25X |
| Digital Zoom | 8X |
| Iris | F1.5 to F3.4 |
| Field of View (H) | 56.51° to 2.93° |
| Field of View (V) | 33.64° to 1.65° |
| Field of View (D) | 69.50° to 3.45° |
Illuminator
| Illumination Distance (IR) | 200 m (656.2 ft.) |
| Illumination Distance (Warm Light) | 100 m (328.1 ft.) |
| IR On/Off Control | Auto/Manual |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| BLC | Support |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| HLC | Support |
| Defog | Digital defog |
| Low Illumination Characteristics | ColorHunter with Wise-ISP |
| Image Stabilization | EIS (Gyroscope) |
Video
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate | Main Stream Max: 8 MP (3840×2160), 30 fps Main Stream Default: 8 MP (3840×2160), 25 fps Sub Stream Max: 1080P (1920×1080), 30 fps Third Stream Max: D1 (720×576), 30 fps Fourth Stream Max: D1 (720×576), 30 fps Fifth Stream Max: D1 (720×576), 30 fps |
| Frame Rate Recommendation | 3840×2160@30fps + 1080P@30fps + D1@30fps + D1@30fps + D1@30fps 3072×2048@30fps + 1080P@30fps + D1@30fps + D1@30fps + D1@30fps 2688×1520@30fps + 1080P@30fps + D1@30fps + D1@30fps + D1@30fps 2560×1440@30fps + 1080P@30fps + D1@30fps + D1@30fps + D1@30fps 1080P@30fps + 1080P@30fps + D1@30fps + D1@30fps + D1@30fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| Privacy Mask | 24 areas, up to 8 areas per scene |
| ROI | Up to 8 areas |
| Video Stream | Five streams |
| OSD | Up to 10 OSDs |
Audio
| Two-way Audio | Support |
| Suppression | Support |
| Audio Compression | G.711U, G.711A |
| Sampling Rate | 8 kHz, 16 kHz |
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p]; 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
Storage
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | NAS (NFS) |
PTZ
| Pan Range | 360° (endless) |
| Tilt Range | -15° to 90° (auto flip) |
| Pan Speed | 0.1°/s to 288°/s |
| Tilt Speed | 0.1°/s to 288°/s |
| Number of Presets | 1024 |
| Patrol Stay Time | 15 s to 1800 s |
| Preset Image Freeze | Support |
| Home Position | Support |
Intelligent
| People Counting | Support people flow counting and crowd density detection |
| Exception Detection | Object removed, Object Left Behind |
| Auto Tracking | UNV Large Model |
| Recognition | Face Recognition: max support 16 face libraries, max supports 100,000 faces in face library |
Events
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication, Alarm input |
Network & Security
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Protocols | IGMP, SMTP, IPv6, ICMP, ARP, TCP, UDP, DHCP, DNS, RTSP, DDNS, NTP, UPnP, HTTP, 802.1x, QoS, SSL/TLS, SNMP, SSH, IPv4, RTP, RTMP, RTCP, HTTPS, PPPoE |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile M), SDK, API |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF, TLS 1.3 |
| Client | EZStation, UNV-Link, UNV-Link Pro |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+; Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
Interface
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Alarm I/O | 2/1 |
| Serial Port | 1 × RS485 |
| [object Object] | Wires with cold-pressed terminal |
Certification
| Safety | UL (UL 62368-1); CUL (CAN/CSA C22.2 No. 62368-1); CE-LVD (EN IEC 62368-1) |
| EMC | CE-EMC (EN 55032; EN IEC 61000-3-2; EN 61000-3-3; EN 50130); FCC SDoC (47 CFR Part 15; Subpart B) |
| Environment | CE-ROHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529); IK10 (IEC62262; Anti-Vandalism Except for the Front Window) |
| Compliance | NDAA Compliant: Support |
General
| Power Consumption | Max. 20.88 W |
| Surge Protection | 6 KV |
| Reset Button | Support |
| LED Indicator | 1, red/blue |
| Configurable P/N | Support |
| Storage Environment | -40 °C to 70 °C (-40 °F to 158 °F), Humidity: ≤95% RH (non-condensing) |
| Web Client Language | 22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak |

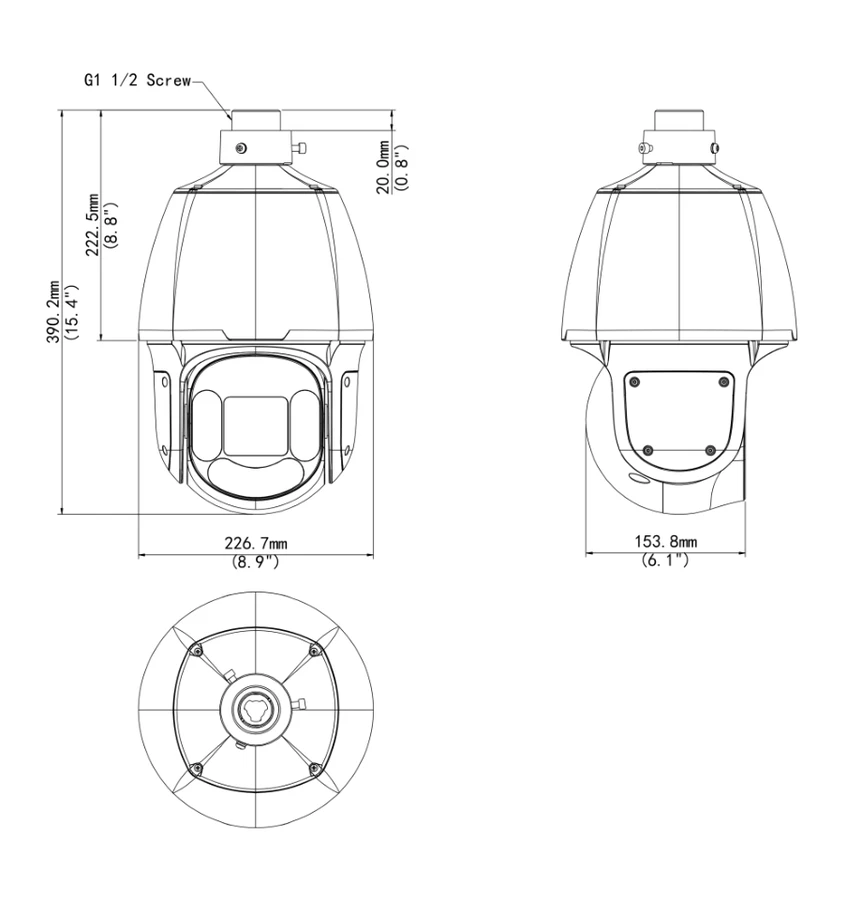

Dimensions
Engineering drawing reproduced 1:1 from the official datasheet.
unit: mm (in.)
| Dimensions | Ø226.7 mm × 390.2 mm (Ø8.9" × 15.4") (Ø × H) |
| Weight | 5.48 kg (12.08 lb.) |
| Power | DC 24 V±25%, AC 24 V±25%, PoE (IEEE 802.3at) · max. 20.88 W |
| Working Environment | -40 °C to 70 °C (-40 °F to 158 °F), ≤95% RH non-condensing |
| Protection | IP67 (IEC 60529) · IK10 (IEC 62262, except front window) · 6 kV surge |
Optional Mounting Accessories
Order together with the camera to save shipping.
TR-UF45-A-INDome indoor ceiling mounting pedestal
TR-SE45-A-INDome ceiling mounting pole 500
TR-SE45-INDome ceiling mounting pole 200
TR-CE45-INDome indoor ceiling mounting bracket
TR-WE45-INDome wall mounting bracket
TR-WE45-A-INLong wall mounting bracket for dome
TR-JB12-INDome junction box
TR-WE45-B-INDome gooseneck bracket
TR-UP08-A-INDome pole mounting bracket
TR-UP08-B-INAluminium alloy pole mounting bracket
TR-UC08-A-INDome corner mounting bracket
TR-UC08-B-INAluminium alloy corner mounting bracket
8MP 4K Dual-Light PTZ FAQ — IPC6628SFW-X25E-C-VH2
What resolution does the IPC6628SFW-X25E-C-VH2 record?
The main stream records true 4K — 8 MP at 3840 × 2160, up to 30 fps with 25 fps default — on a 1/1.8-inch CMOS sensor. Five simultaneous streams follow recommended splits like 4K@30 + 1080p@30 + three D1@30, and bit rate adjusts from 128 Kbps to 16 Mbps.
How does the dual-light night vision work?
Infrared reaches 200 m for long-range monochrome detail after dark, with auto or manual on/off control, while the 100 m warm light keeps mid-to-short-range footage in full color — faces and plate colors stay readable near the camera. ColorHunter with Wise-ISP supports low-light color imaging.
What zoom and coverage does it give from one pole?
The 6–150 mm lens provides 25x optical zoom plus 8x digital, with F1.5–F3.4 iris. Pan is 360° endless and tilt runs -15° to 90° with auto flip, both at 0.1–288°/s — so the camera sweeps a full circle and zooms from a 56.51° wide view down to 2.93°.
Does the 4K image stay stable at long zoom on a windy pole?
Gyroscope-based EIS compensates pole sway and vibration, which matters at 25x telephoto where small movements blur the frame. Supporting features — 2D/3D noise reduction, digital defog, HLC, BLC and 120 dB WDR — keep the 8 MP image usable in wind, haze and harsh backlight.
Can it record to a memory card on the camera?
Yes, edge storage supports microSD cards up to 512 GB, and NAS (NFS) network storage is available as well. Two-way audio with one input (1 kΩ, 2.5 V p-p) and one output (600 Ω, 2.5 V p-p) lets you add a mic and speaker for live talk-down at the gate.
Is the housing ready for harsh outdoor sites?
The camera carries IP67 dust and water protection with an IK10 impact rating, so it suits exposed poles at ports, borders, stadiums and city intersections where weather and vandalism both threaten. UNV auto tracking keeps following targets while WDR handles headlights and floodlights.
