PTZ Cameras › IPC68188EFW-X25-F40G-VH
Uniview (UNV) · Panoramic PTZLightHunter · Dual-Lens PTZ
8MP+8MP Dual-Lens PTZ · 25× Optical Zoom
IPC68188EFW-X25-F40G-VH
One housing, two channels: a fixed 8MP panorama channel keeps watch on the wider scene while the 8MP 25× optical-zoom PTZ detail channel locks onto distant subjects — with metadata analyse, smart intrusion prevention and people counting running on a single IP.
3840×2160 · main stream @30fps1/1.2" CMOS · detail channel sensorGyro Stabilized · steady zoom imageMetadata Analyse · body/face/vehicle captureIP66 · IK10 · vandal-proof housing-40~70°C · wide operating range
One unit, two channels
Both channels stream simultaneously from a single IP address — the spec table below shows Panorama and Detail values side by side.
Get Best Price on WhatsApp
Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port
Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
Need the PDF datasheet? Get it on WhatsApp →In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port
Sample quantities are welcome — testing one or two units first is the normal way to start.
Compliance:ONVIF Profile SONVIF Profile GONVIF Profile T
Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.
The IPC68188EFW-X25-F40G-VH is a dual-lens Panorama+PTZ network camera that pairs a fixed 8MP panorama channel (1/1.8" CMOS, 4 mm lens) with an 8MP 25× optical-zoom PTZ detail channel (1/1.2" CMOS, 10-250 mm, P-iris) in one housing under a single IP with triple-stream output. Metadata analyse captures human body, face, motor and non-motor vehicle attributes, smart intrusion prevention filters false alarms by target classification, and multi-zone people counting reports flow and crowd density on the detail channel. Gyroscopic stabilization and heat-haze reduction keep the long zoom steady, IR reaches 250 m on the detail channel (plus 30 m warm light on the panorama channel), and the IP66/IK10 housing runs on AC/DC 24 V across -40 °C to 70 °C.
Is this the right camera for you?
Plain-language guide for buyers and installers — based only on what this camera actually does.
Overview + zoom in one shotThe fixed 8MP panorama channel keeps the whole scene in view while the 8MP 25× optical-zoom detail channel closes in on a target — parking lots, yards and wide approaches covered by one pole.
Perimeter with target classificationCross line, intrusion, enter-area and leave-area detection run with false-alarm filtering by classification (human, motor vehicle, non-motor vehicle) — fewer nuisance alerts at fence lines and gates.
Crowd flow & density monitoringThe detail channel's multi-zone people counting reports flow and crowd density — useful at entrances, plazas and transit points where the panorama channel alone can't quantify how busy a scene is.
Low-light, full-color at nightLightHunter sensors hold color down to 0.0005 lux; once it's truly dark, 250 m IR on the detail channel and 30 m warm light on the panorama channel take over — the warm light also keeps evidence shots in full color.
Harsh outdoor mounting pointsIP66 sealing, IK10 vandal resistance, -40 °C to 70 °C operation and 6 kV surge protection are built for poles that see storms, dust and freezing winters without a service visit.
Attribute capture for investigationsMetadata analyse captures human body, face, motor and non-motor vehicle attributes with best-snapshot selection, plus two-way audio and an audio-visual alarm (strobe + voice) for on-site deterrence.
Not the right pick if you need…
- No PoE on this class of machine — it needs a dedicated AC 24 V or DC 24 V supply (±25%, max. 63 W). Plan power cabling and a suitable outdoor PSU at the pole before ordering.
- 10.08 kg and Φ270×497 mm: this is a heavy-duty dome unit that needs the matching pole/ceiling/wall/pendant brackets listed below and a rigid pole — not a light camera arm.
- No built-in mic or speaker — the audio I/O ports connect external devices. If you need out-of-the-box two-way audio, plan for an external mic/speaker or choose a different model.
- The panorama channel is a fixed 4 mm lens with no optical zoom, and the datasheet does not list a panoramic field-of-view or stitching angle — don't assume 360° coverage from this channel alone.
Worried about counterfeits? Order under your own company name.
For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.
1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site
Using your own freight forwarder? No problem.
For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.
EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order
Note: manufacturer order registration (left) is available via the corporate purchase channel.
How to get a better price
Volume Discount50+ units of a single model
CONTACT USMix & Match DiscountMix any categories & models storewide in one order — no quantity limit
BETTERVerified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you
BESTAll discounts are quoted personally — message me on WhatsApp ↑
Key Features
Complete list from the official datasheet.
Dual-channel with one IP, provides overall view and detailed view at the same time
Supports dual-lens video spliced in one channel, which can obtain a wider monitoring range
Ultra 265, H.265, H.264, MJPEG
Gyroscope stabilization for stable picture
25X optical zoom of PTZ channel allows for closer viewing of subjects
Smart intrusion prevention, supports false alarm filtering, including cross line, intrusion, enter area, leave area detection
Automatic selection of best snapshots, supports face detection masked area
Supports front-end, supports blocklist and allowlist comparison
People counting, supports people flow counting and crowd density monitoring, suitable for different statistical scenarios
LightHunter technology ensures ultra-high image quality in low illumination environment
IR and warm light illumination to deal with different scenes and achieve full-color illumination
AC 24 V±25%, DC 24 V±25% power supply
One Body, Two Channels: Panorama + Detail PTZ
Both channels stream simultaneously from a single IP address.
PANORAMA CHANNEL
Fixed 8MP panorama channel keeps the wider scene in view — feeds smart intrusion prevention across the whole frame
undefined
DETAIL CHANNEL
8MP 25× zoom PTZ channel with metadata analyse, smart intrusion prevention and multi-zone people counting
undefined
Full Specifications
Complete official specifications from the manufacturer's datasheet (technical values in English).
Highlighted rows are channel-specific:PANORAMA = 8MP fixed channelDETAIL = 8MP 25× PTZ channel
Camera
| Max Resolution | 8 MP (both channels) |
| Sensor | PANORAMA · 1/1.8" CMOSDETAIL · 1/1.2" CMOS |
| Min. Illumination | PANORAMA · Color: 0.0005 Lux (F1.6, AGC ON), 0 lux with IR/Warm lightDETAIL · Color: 0.0005 Lux (F1.6, AGC ON), 0 lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB |
| S/N | > 56 dB |
Lens
| Focal Length | PANORAMA · 4 mm (fixed)DETAIL · 10 to 250 mm |
| Digital Zoom | PANORAMA · N/ADETAIL · 16× |
| Optical Zoom | PANORAMA · N/ADETAIL · 25× |
| Iris Type | PANORAMA · FixedDETAIL · P-iris |
Illuminator
| IR Distance | PANORAMA · N/ADETAIL · 250 m (820.2 ft.) |
| Warm Light Distance | PANORAMA · 30 m (98.4 ft.)DETAIL · N/A |
| Light Control | Auto/Manual |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| HLC | Support |
| BLC | Support |
| Smart IR | PANORAMA · N/ADETAIL · Support |
| Defog | PANORAMA · Digital defogDETAIL · Optical defog |
| Heatwave Reduction | PANORAMA · N/ADETAIL · Support |
Events
| Basic Detection | Motion detection, Audio detection, Tampering alarm |
| General Function | PANORAMA · Watermark, IP address filtering, Alarm input, Alarm output, Access policy, ARP protection, RTSP authentication, User authenticationDETAIL · Watermark, IP address filtering, Access policy, Alarm output, Alarm input, User authentication, RTSP authentication, ARP protection |
Video
| Privacy Mask | 24 areas, up to 8 areas per scene |
| Frame Rate-Main Stream | 8 MP (3840×2160), max. 30 fps; 6 MP (3072×2048), max. 30 fps; 4 MP (2688×1520), max. 30 fps; 4 MP (2560×1440), max. 30 fps; 1080P (1920×1080), max. 30 fps; 720P (1280×720), max. 30 fps; D1 (720×576), max. 30 fps; 640×360, max. 30 fps; 2CIF (704×288), max. 30 fps; CIF (352×288), max. 30 fps |
| Frame Rate-Sub Stream | 1080P (1920×1080), max. 30 fps; 720P (1280×720), max. 30 fps; D1 (720×576), max. 30 fps; 640×360, max. 30 fps; 2CIF (704×288), max. 30 fps; CIF (352×288), max. 30 fps |
| Frame Rate-Third Stream | D1 (720×576), max. 30 fps; 640×360, max. 30 fps; 2CIF (704×288), max. 30 fps; CIF (352×288), max. 30 fps |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Frame Rate Recommendation | 3840×2160@30fps + 1080P@30fps + D1@30fps; 3072×2048@30fps + 1080P@30fps + D1@30fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| ROI | Support |
| Video Stream | Triple streams |
| OSD | Up to 10 OSDs |
Audio
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 8 kHz, 16 kHz |
Storage
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
Intelligent
| Metadata Analyse | Support human body, human face, motor vehicle and non-motor vehicle image capture and attribute collection |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| People Counting | PANORAMA · N/ADETAIL · Support people flow counting and crowd density monitoring |
PTZ
| Number of Presets | PANORAMA · N/ADETAIL · 1024 |
| Preset Patrol | PANORAMA · N/ADETAIL · 16 patrols, up to 64 presets for each patrol |
| Preset Image Freeze | PANORAMA · N/ADETAIL · Support |
| Patrol Stay Time | 15 s to 1800 s |
| Home Position | PANORAMA · N/ADETAIL · Support |
| Pan Range | 360° |
| Tilt Range | -15° to 90° |
| Pan Speed | 0.1°/s to 180°/s |
| Tilt Speed | 0.1°/s to 180°/s |
Network & Security
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | PANORAMA · ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDKDETAIL · ONVIF (Profile S, Profile G, Profile T), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | EZStation, UNV-Link, UNV-Link Pro |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
| Web Client Language | 22 Languages |
Interface
| WIFI | N/A |
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Alarm I/O | 7/2 |
| Serial Port | 1 × RS485 |
| Built-in Mic | N/A |
| Built-in Speaker | N/A |
| Network | 1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet + 1 × 100 M/1000 M SFP |
| [object Object] | Wires with cold-pressed terminal |
General
| Power | DC 24 V (±25%), AC 24 V (±25%) |
| Power Consumption | Max. 63 W |
| Dimensions | Φ270 mm × 497 mm (Φ10.6" × 19.6") (Φ × H) |
| Weight | 10.08 kg (22.2 lb.) |
| Working Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -40 ℃ to 70 ℃ (-40 ℉ to 158 ℉), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 6 KV |
| Reset Button | Support |
Certification
| EMC | CE-EMC (EN 55032: 2015+A1: 2020, EN 61000-3-3: 2013+A1: 2019, EN IEC 61000-3-2: 2019+A1: 2021, EN 55035: 2017+A11: 2020); FCC (FCC CFR 47 part15 B, ANSI C63.4-2014) |
| Safety | CE LVD (EN 62368-1:2014+A11:2017); UL (UL 62368-1, 2nd Ed.) |
| Environment | CE-RoHS (2011/65/EU; (EU) 2015/863) |
| Protection | IP66 (IEC 60529: 1989+AMD1: 1999+AMD2: 2013); IK10 (IEC 62262, Anti-Vandalism Except for the Front Window) |

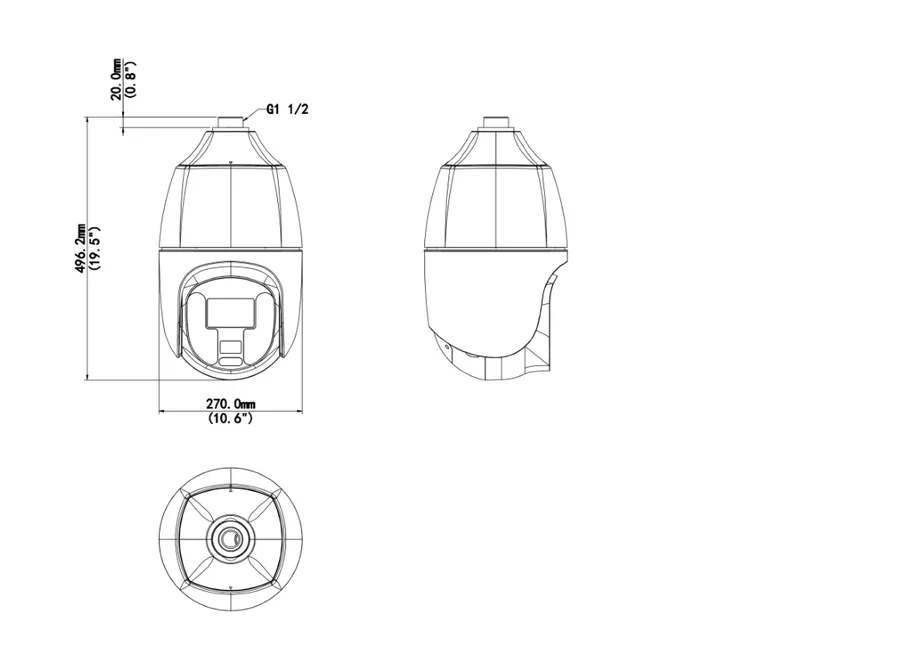

Dimensions
Engineering drawing reproduced 1:1 from the official datasheet.
unit: mm (in.)
| Dimensions | Φ270 mm × 497 mm (Φ10.6" × 19.6") (Φ × H) |
| Weight | 10.08 kg (22.2 lb.) |
| Power | AC 24 V (±25%) / DC 24 V (±25%) |
| Power Consumption | Max. 63 W |
| Working Environment | -40 °C to 70 °C (-40 °F to 158 °F), ≤95% RH non-condensing |
| Protection | IP66 · IK10 (except front window) · 6 kV surge |
Optional Mounting Accessories
Order together with the camera to save shipping.
TR-UF45-A-INDome indoor ceiling mounting pedestal
TR-SE45-A-INDome ceiling mounting pole 500
TR-UC08-B-INAluminium alloy corner mounting bracket
TR-UC08-A-INDome corner mounting bracket
TR-UP08-B-INAluminium alloy pole mounting bracket
TR-UP08-A-INDome pole mounting bracket
TR-WE45-B-INDome gooseneck bracket
TR-JB12-INDome junction box
TR-WE45-A-INLong wall mounting bracket for dome
TR-CE45-INDome indoor ceiling mounting bracket
TR-SE45-INDome ceiling mounting pole 200
Dual-Lens Panorama + PTZ Camera FAQ — IPC68188EFW-X25-F40G-VH
How do the two lenses of the IPC68188EFW work together?
The panorama channel uses a fixed 4 mm lens on an 8MP 1/1.8-inch sensor to hold the whole scene, while the detail channel pairs an 8MP 1/1.2-inch sensor with a 10–250 mm, 25x optical zoom and P-iris to pull close-ups. One mount point replaces two separate cameras.
What is the night vision setup on each channel?
The detail channel carries IR reaching 250 m (820 ft) with Smart IR, while the panorama channel uses a 30 m warm light so the near field stays in color. Both sensors reach 0.0005 lux (F1.6, AGC on) and 0 lux with the illuminators, with 120 dB WDR.
Can it capture vehicle and person attributes for search?
Yes. Metadata analysis captures human body, human face, motor vehicle and non-motor vehicle images with attribute collection. Smart intrusion prevention adds cross-line, intrusion and enter/leave-area detection with false alarm filtering, and the detail channel supports people flow counting and crowd density monitoring.
What resolution and bandwidth should I plan for?
Both channels record up to 8MP (3840x2160) at 30 fps on the main stream, with 1080p/720p sub and D1 third streams. Bit rate is adjustable from 128 Kbps to 16 Mbps, and Ultra 265 with U-code keeps 4K storage and bandwidth manageable.
Does it store video locally, and is the housing outdoor-rated?
Edge storage takes a MicroSD card up to 512 GB with ANR refill after network drops, plus NAS (NFS). Per the product data the housing is IP66 and IK10 rated and works from -40 to 70 °C; the detail channel adds optical defog and heatwave reduction for long-range clarity.
