PTZ Cameras › IPC6824EL-X42-W-VH1

4MP 42X LightHunter Laser Wiper PTZ Camera IPC6824EL-X42-W-VH1

4MP 42X LightHunter Laser Wiper PTZ Camera IPC6824EL-X42-W-VH1 — view 1

4MP 42X LightHunter Laser Wiper PTZ Camera IPC6824EL-X42-W-VH1 — view 2

4MP 42X LightHunter Laser Wiper PTZ Camera IPC6824EL-X42-W-VH1 — view 3

Uniview (UNV) · Laser PTZLightHunter · Laser PTZ

4MP 42X LightHunter Laser Wiper Network PTZ Camera

IPC6824EL-X42-W-VH1

Name: IPC6824EL-X42-W-VH1
Brand: Uniview
SKU: IPC6824EL-X42-W-VH1

A classic laser PTZ dome camera: 4MP resolution with 42× optical zoom, an 850nm laser illuminator reaching 500 m, and LightHunter low-light processing that keeps color images usable long after dusk.

2688×1520 · main stream @60fps42× Optical Zoom · 6.0–252 mmAuto Tracking · human/vehicle/non-motorLaser IR · 850 nm, up to 500 mIP67 · IK10 · anti-vandal, outdoor-40~70°C · with wiper & heater

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Compliance:ONVIF Profile SONVIF Profile GONVIF Profile TONVIF Profile M

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

4 MPResolution @60fps

42×Optical zoom (16× digital)

500 mLaser IR distance (850 nm)

IP67·IK10Wide-temp outdoor housing

The IPC6824EL-X42-W-VH1 is a 4MP network PTZ camera (2688×1520 @60fps) built around a 1/1.8" CMOS sensor and a 6.0–252 mm, 42× optical zoom lens (16× digital), giving a horizontal field of view from 59.47° down to 2.20°. An 850nm laser illuminator reaches up to 500 m — with range scaling to the current zoom level — while LightHunter low-light processing keeps color visible at 0.0003 Lux. Auto tracking classifies human, vehicle and non-motor-vehicle targets with handover across smart intrusion detection (cross line / intrusion / enter area / leave area), and people-flow counting with crowd density detection runs alongside it. Gyroscope-based EIS keeps the long zoom steady, a wiper clears the front window, and the IP67 / IK10 housing runs from -40 °C to 70 °C on AC 24 V, DC 24 V or PoE (IEEE 802.3bt).

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Open perimeters & long approaches42× optical zoom plus an 850nm laser illuminator reaching 500 m at full telephoto — the DORI Identify distance runs up to about 333 m, useful for border fences, large yards or airport approach roads.

Roads & mixed trafficAuto tracking classifies human, vehicle and non-motor-vehicle targets; smart intrusion prevention (cross line, area entry/exit) filters false alarms by the same classification.

Low-light & night sitesLightHunter processing holds color down to 0.0003 Lux (F1.2, AGC on); when it gets fully dark, the 850nm laser illuminator brings the scene to 0 Lux equivalent instead of switching to grainy IR-only video.

Harsh weather & exposed polesA wiper keeps the front window clear in rain and dust, gyroscope EIS steadies the image at full 42× zoom on a swaying pole, and the IP67/IK10 housing runs -40 °C to 70 °C with a built-in heater.

Plazas & entry pointsPeople-flow counting and crowd-density detection run alongside pan/tilt patrol, useful for gate counts or crowd-load monitoring at entrances, stadiums or transit hubs.

Flexible power sitesPowered by AC 24 V, DC 24 V or PoE (IEEE 802.3bt), so the same unit fits a site with an existing PoE switch or one wired for AC/DC power — max. consumption 67 W.

Not the right pick if you need…

Not a panoramic-linkage camera — this is a classic single-sensor 42× PTZ. If you need a fixed 360° overview channel plus a zoomed detail channel in one housing, look at a panoramic-linkage model instead.
The 500 m laser figure is the maximum at full telephoto — laser reach is proportional to optical zoom, so it is noticeably shorter at wide-angle settings.
Audio I/O is 1 input / 1 output only, with no built-in speaker or microphone listed on the datasheet — plan an external mic/speaker if two-way audio is required at the pole.
6.9 kg and Ø226.7 mm: this dome needs the dedicated Uniview bracket family (pole / wall / ceiling / corner / gooseneck) and a rigid mounting point, not a lightweight universal arm.

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

4 MP (2688×1520) @60fps main stream with 42× optical zoom

Smart intrusion prevention with false-alarm filtering: cross line, intrusion, enter area, leave area detection

Automatic selection of best snapshots; face detection with masked-area support, blocklist and allowlist comparison

People counting: people-flow counting and crowd-density monitoring

Multi-target detection: human body, motor vehicle and non-motor vehicle image capture and attribute collection, with data-visualization management for further analysis

Optical defog and self-adaptive defog support

LightHunter technology ensures ultra-high image quality in low-illumination environments

Laser illumination: 500 m (1640 ft.) distance, proportional to the camera module's optical zoom

Gyroscope stabilization for a steady picture; wiper support; AC 24 V / DC 24 V / PoE power options

Laser Illumination + Long-Range Zoom

The two capabilities that define this camera's reach, from the official datasheet.

LASER ILLUMINATOR

850nm laser, up to 500 m — auto/manual control, distance proportional to optical zoom

42× OPTICAL ZOOM

6.0–252 mm lens (16× digital zoom on top) with DORI Identify distance up to ≈333 m at full telephoto

How far can it see? (DORI standard)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Figures shown are at full 42× telephoto zoom (the lens's narrowest field of view and longest range); at wide angle these distances are shorter.

Detectsomething is there

3330.6 m10927.2 ft

Observewhat is happening

1332.2 m4370.9 ft

Recognizesomeone you know

666.1 m2185.4 ft

Identifybeyond doubt

333.1 m1092.9 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	59.5° wide	2.2° tele
5 m16 ft	5.7 m18.7 ft	0.2 m0.6 ft
10 m33 ft	11.4 m37.5 ft	0.4 m1.3 ft
15 m49 ft	17.1 m56.2 ft	0.6 m1.9 ft
20 m66 ft	22.8 m75.0 ft	0.8 m2.5 ft
30 m98 ft	34.3 m112 ft	1.2 m3.8 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Camera

Sensor	1/1.8" CMOS
Min. Illumination	Color: 0.0003 Lux (F1.2, AGC ON), 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
WDR	120 dB
S/N	> 56 dB

Lens

Focal Length	6.0–252.0 mm
Digital Zoom	16×
Optical Zoom	42×
Iris	F1.2 to F4.6
Field of View (H)	59.47° to 2.20°
Field of View (V)	35.62° to 1.24°
Field of View (D)	73.15° to 2.60°

DORI (Full Zoom Range)

DORI Distance (Detect)	107.2 m to 3330.6 m (351.7 ft. to 10927.2 ft.)
DORI Distance (Observe)	42.9 m to 1332.2 m (140.7 ft. to 4370.9 ft.)
DORI Distance (Recognize)	21.4 m to 666.1 m (70.4 ft. to 2185.4 ft.)
DORI Distance (Identify)	10.7 m to 333.1 m (35.1 ft. to 1092.9 ft.)

Video

Privacy Mask	24 areas, up to 8 areas per scene
Video Compression	Ultra 265, H.265, H.264, MJPEG
Main Stream	4 MP (2688×1520), max. 60 fps
Sub Stream	1080P (1920×1080), max. 60 fps
Third Stream	D1 (720×576), max. 60 fps
Video Bit Rate	128 Kbps to 16 Mbps
U-code	Support
ROI	Support
Video Stream	Triple streams
OSD	Up to 10 OSDs

Intelligent

Auto Tracking	Support, target filtering: human, non-motor vehicle and vehicle
Multi-target Detection	Support
Smart Intrusion Prevention	Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
People Counting	Support people flow counting and crowd density detection
Exception Detection	Object removed, Object Left Behind


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Flip	Normal, Flip vertical, Flip horizontal, 180°
HLC	Support
BLC	Support
Defog	Digital defog, Optical defog
EIS	Support
Image Stabilization	EIS (Gyroscope)

Events

Basic Detection	Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, Alarm input, Alarm output

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	128 Kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	16 kHz

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)

Illuminator

IR On/Off Control	Auto/Manual
Wavelength	850 nm
Illuminator	Laser light, laser distance 500 m (1640 ft.), proportional to optical zoom

Network

Protocols	SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Security	Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, TLS 1.3, WSSE and Digest Authentication for ONVIF
Client	EZStation, UNV-Link, UNV-Link Pro
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+; Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

PTZ

Number of Presets	1024
Preset Patrol	16 patrols, up to 64 presets for each patrol
Route Patrol	16 patrols, up to 32 actions for each patrol
Recorded Patrol	16 patrols, up to 128 actions for each patrol
Patrol Stay Time	15 s to 1800 s
Preset Image Freeze	Support
Home Position	Support
Pan Range	360° (endless)
Tilt Range	-15° to 90° (auto flip)
Pan Speed	0.1°/s to 180°/s
Tilt Speed	0.1°/s to 180°/s

Interface

Audio I/O	1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p]; 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Alarm I/O	7/2
Serial Port	1 × RS485
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	1 BNC (for debugging)

Certification

EMC	CE-EMC (EN 55032: 2015+A11: 2020; EN IEC 61000-3-2: 2019; EN 61000-3-3: 2013+A: 2019; EN 55035: 2017+A11: 2020)
Safety	CE LVD (EN IEC 62368-1: 2020+A11: 2020)
Environment	CE-ROHS (2011/65/EU; (EU)2015/863)
Protection	IP67 (IEC 60529: 1989+AMD1: 1999+AMD2: 2013); IK10 (IEC62262; Anti-Vandalism Except for the Front Window)

General

Power	AC 24 V±25%, DC 24 V±25%, PoE (IEEE 802.3bt)
Power Consumption	Max. 67 W
Power Interface	Wires with cold-pressed terminal
Dimensions	Ø226.7 mm × 440.3 mm (Ø8.93" × 17.33") (Ø × H)
Weight	6.9 kg (15.21 lb.)
Working Environment	-40 °C to 70 °C (-40 °F to 158 °F), Humidity: ≤95% RH (non-condensing)
Storage Environment	-40 °C to 70 °C (-40 °F to 158 °F), Humidity: ≤95% RH (non-condensing)
Surge Protection	6 kV
Reset Button	Support
Heater	Support
Configurable P/N	Support

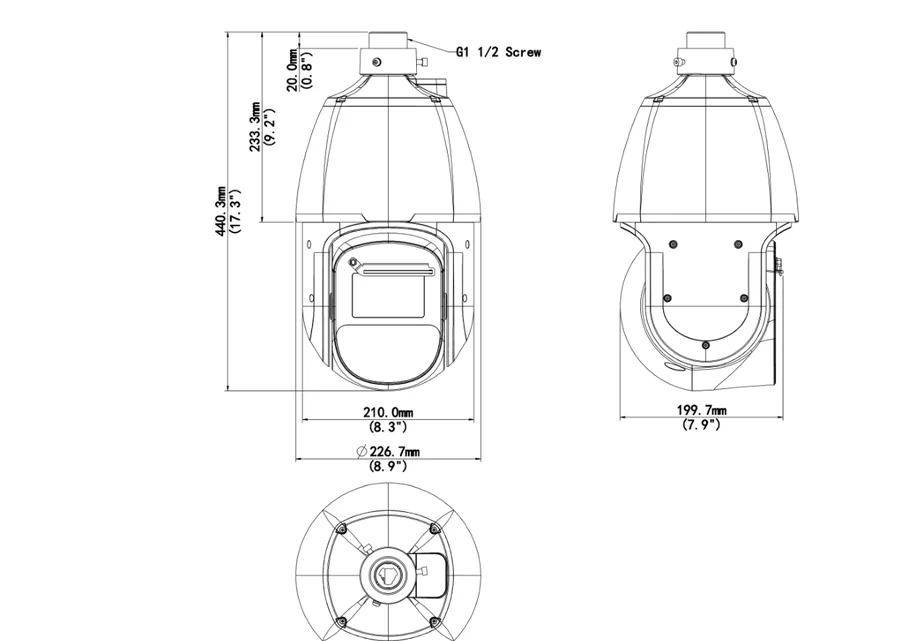

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	Ø226.7 mm × 440.3 mm (Ø8.93" × 17.33") (Ø × H)
Weight	6.9 kg (15.21 lb.)
Power	AC 24 V±25%, DC 24 V±25%, PoE (IEEE 802.3bt) · max. 67 W
Working Environment	-40 °C to 70 °C (-40 °F to 158 °F), ≤95% RH non-condensing
Protection	IP67 · IK10 (except front window) · 6 kV surge
Wiper	[object Object]

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-UF45-A-INDome indoor ceiling mounting pedestal

TR-SE45-A-INDome ceiling mounting pole 500

TR-UC08-B-INAluminium alloy corner mounting bracket

TR-UC08-A-INDome corner mounting bracket

TR-UP08-B-INAluminium alloy pole mounting bracket

TR-UP08-A-INDome pole mounting bracket

TR-WE45-B-INDome gooseneck bracket

TR-JB12-INDome junction box

TR-CE45-INDome indoor ceiling mounting bracket

TR-WE45-A-INLong wall mounting bracket for dome

TR-SE45-INDome ceiling mounting pole 200

4MP 42x Laser PTZ Camera FAQ — IPC6824EL-X42-W-VH1

How far can the IPC6824EL-X42-W-VH1 see at night?

Per the product data the laser IR reaches 500 m at 850 nm, and the LightHunter 1/1.8-inch sensor works down to 0.0003 lux in color (F1.2, AGC on), 0 lux with IR. That combination covers fence lines and approach roads that have no lighting at all.

What detection range does the 42x zoom give?

The 6–252 mm lens gives 42x optical plus 16x digital zoom. DORI figures at full telephoto: detect 3330.6 m, observe 1332.2 m, recognize 666.1 m and identify 333.1 m. At the wide end the 59.47° horizontal field of view keeps the whole perimeter in frame.

Can it track intruders on its own?

Yes. Auto tracking filters targets by human, vehicle and non-motor vehicle, and multi-target detection is supported. Smart intrusion prevention runs cross-line, intrusion and enter/leave-area rules with false alarm filtering, plus people flow counting and crowd density detection for busier sites.

How does it stay clear in rain, dust and wind?

A built-in wiper clears the front glass, and per the product data the housing is IP67/IK10 rated for -40 to 70 °C service. Gyroscope EIS damps pole sway at long zoom, while both optical and digital defog cut through haze and dust.

What frame rate does it record for fast-moving targets?

The main stream runs 4MP (2688x1520) at up to 60 fps, with 1080p sub and D1 third streams also at 60 fps. Bit rate spans 128 Kbps to 16 Mbps with Ultra 265 and U-code compression, so highway or gate traffic stays sharp without flooding the network.
