IPC6828EL-X42-W-VH1
A classic 8MP PTZ dome camera built for long-range patrol: 42× optical zoom (6.0-252mm) reaches deep into the scene, LightHunter low-light technology keeps color detail after dark, and auto tracking locks onto people and vehicles automatically — with a wiper and -40 to 70 °C housing for outdoor poles.
Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port
Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
Need the PDF datasheet? Get it on WhatsApp →Sample quantities are welcome — testing one or two units first is the normal way to start.
The IPC6828EL-X42-W-VH1 is an 8MP (3840×2160) PTZ dome camera with a 42× optical zoom lens (6.0-252mm, 16× digital zoom) and LightHunter low-light imaging (0.0005 Lux color, 0 Lux with IR). Auto tracking classifies and follows human, non-motor and motor-vehicle targets; smart intrusion prevention covers cross-line, intrusion, area-enter and area-leave detection with false-alarm classification filtering, and people-flow counting with crowd-density monitoring runs alongside. Pan is continuous 360° endless rotation, tilt runs -15° to 90° with auto flip, and the unit stores 1024 presets with 16 preset/route/recorded patrols. IR illumination reaches 500 m at 850 nm, gyroscope stabilization (EIS) steadies the image, and a wiper plus heater support the IP67 housing across a -40 °C to 70 °C working range.
Is this the right camera for you?
Plain-language guide for buyers and installers — based only on what this camera actually does.
- No PoE listed on the datasheet — power is AC 24 V±25%, DC 24 V±25% or PoE (IEEE 802.3bt). If you plan a PoE-only run, confirm 802.3bt (PoE++) switch/injector support and max. 67 W budget before ordering.
- 6.9 kg, Ø226.7 mm × 440.3 mm: this is a full-size PTZ dome, not a light mini-PTZ — plan a mounting bracket and pole rated for the weight (bracket options listed below).
- The datasheet lists IR illumination only (850 nm, 500 m) — no separate laser or warm-light distance figure is given, despite the product name. If a confirmed laser-illuminator distance is required for your spec sheet, check with us before quoting.
Worried about counterfeits? Order under your own company name.
For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.
Using your own freight forwarder? No problem.
For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.
Key Features
Complete list from the official datasheet.
How far can it see? (DORI Distance)
DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Values shown are at full 42× telephoto zoom, from the official datasheet.
How wide a view at each distance
Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.
| Distance | 58.0° wide | 2.1° tele |
|---|---|---|
| 5 m16 ft | 5.5 m18.2 ft | 0.2 m0.6 ft |
| 10 m33 ft | 11.1 m36.3 ft | 0.4 m1.2 ft |
| 15 m49 ft | 16.6 m54.5 ft | 0.6 m1.8 ft |
| 20 m66 ft | 22.2 m72.7 ft | 0.8 m2.5 ft |
| 30 m98 ft | 33.2 m109 ft | 1.1 m3.7 ft |
Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.
Full Specifications
Complete official specifications from the manufacturer's datasheet (technical values in English).
Camera
| Sensor | 1/1.8" CMOS |
| Min. Illumination | Color: 0.0005 Lux (F1.2, AGC ON), 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 to 1/100000 s |
| WDR | 120 dB |
| S/N | > 56 dB |
Lens
| Focal Length | 6.0~252 mm |
| Digital Zoom | 16× |
| Optical Zoom | 42× |
| Iris | F1.2 to F4.6 |
| Field of View (H) | 57.96° to 2.15° |
| Field of View (V) | 34.61° to 1.21° |
| Field of View (D) | 71.30° to 2.54° |
DORI
| DORI Distance (Detect) | 107.2 m to 3330.6 m (351.7 ft. to 10927.2 ft.) |
| DORI Distance (Observe) | 42.9 m to 1332.2 m (140.7 ft. to 4370.9 ft.) |
| DORI Distance (Recognize) | 21.4 m to 666.1 m (70.4 ft. to 2185.4 ft.) |
| DORI Distance (Identify) | 10.7 m to 333.1 m (35.1 ft. to 1092.9 ft.) |
Video
| Privacy Mask | 24 areas, up to 8 areas per scene |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Main Stream | 8 MP (3840×2160), max. 30 fps |
| Sub Stream | 1080P (1920×1080), max. 30 fps |
| Third Stream | D1 (720×576), max. 30 fps |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| ROI | Support |
| Video Stream | Triple streams |
| OSD | Up to 10 OSDs |
Intelligent
| Auto Tracking | Support, target filtering: human, non-motor vehicle and vehicle |
| Multi-target Detection | Support |
| Smart Intrusion Prevention | Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle) |
| People Counting | Support people flow counting and crowd density monitoring |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| HLC | Support |
| BLC | Support |
| Defog | Digital defog, Optical defog |
| EIS | Support |
| Image Stabilization | EIS (Gyroscope) |
Events
| Basic Detection | Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, Alarm input, Alarm output |
Audio
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 128 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 16 kHz |
Storage
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
Illuminator
| IR On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
| Illumination Distance (IR) | 500 m |
Network
| Protocols | SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, TLS 1.3, WSSE and Digest Authentication for ONVIF |
| Client | EZStation, UNV-Link, UNV-Link Pro |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+; Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+ |
PTZ
| Number of Presets | 1024 |
| Preset Patrol | 16 patrols, up to 64 presets for each patrol |
| Route Patrol | 16 patrols, up to 32 actions for each patrol |
| Recorded Patrol | 16 patrols, up to 128 actions for each patrol |
| Patrol Stay Time | 15 s to 1800 s |
| Preset Image Freeze | Support |
| Home Position | Support |
| Pan Range | 360° (endless) |
| Tilt Range | -15° to 90° (auto flip) |
| Pan Speed | 0.1°/s to 180°/s |
| Tilt Speed | 0.1°/s to 180°/s |
Interface
| Audio I/O | 1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p] |
| Alarm I/O | 7/2 |
| Serial Port | 1 × RS485 |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video Output | 1 BNC (for debugging) |
Certification
| EMC | CE-EMC (EN 55032: 2015+A11: 2020; EN IEC 61000-3-2: 2019; EN 61000-3-3: 2013+A: 2019; EN 55035: 2017+A11: 2020) |
| Safety | CE LVD (EN IEC 62368-1: 2020+A11: 2020) |
| Environment | CE-ROHS (2011/65/EU; (EU) 2015/863) |
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013) |
General
| Power | AC 24 V±25%, DC 24 V±25%, PoE (IEEE 802.3bt) |
| Power Consumption | Max. 67 W |
| Power Interface | Wires with cold-pressed terminal |
| Dimensions | Ø226.7 mm × 440.3 mm (Ø8.93" × 17.33") (Ø × H) |
| Weight | 6.9 kg (15.21 lb.) |
| Working Environment | -40 °C to 70 °C (-40 °F to 158 °F), Humidity: ≤95% RH (non-condensing) |
| Storage Environment | -40 °C to 70 °C (-40 °F to 158 °F), Humidity: ≤95% RH (non-condensing) |
| Surge Protection | 6 KV |
| Reset Button | Support |
| Heater | Support |
| Configurable P/N | Support |

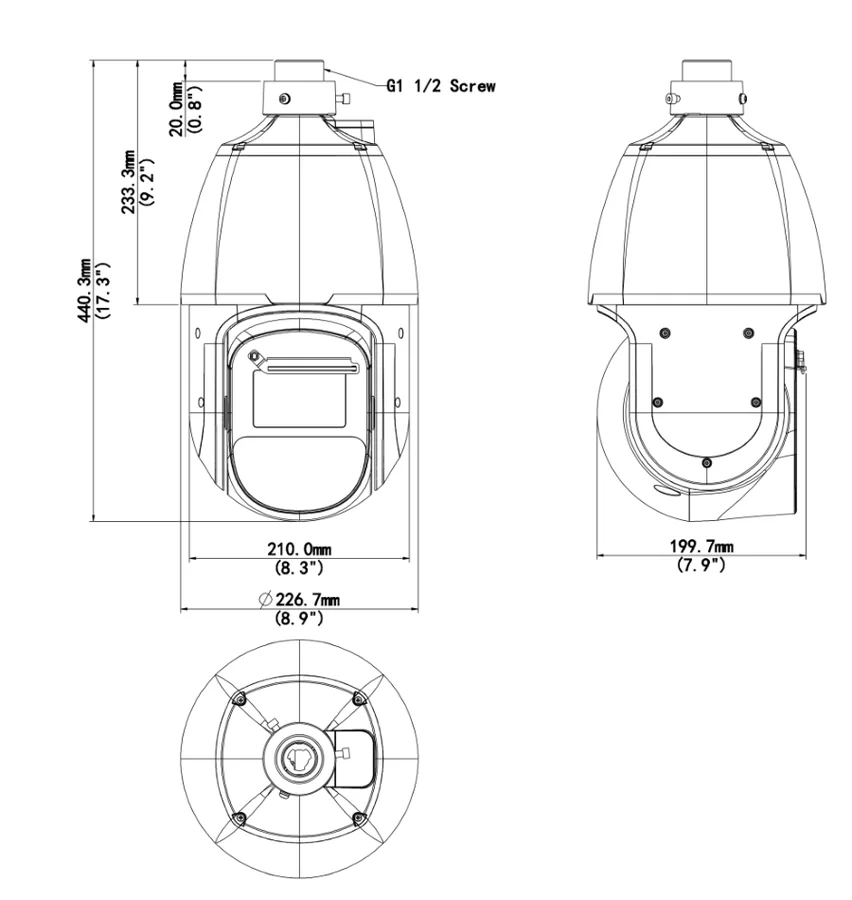

Dimensions
Engineering drawing reproduced 1:1 from the official datasheet.
| Dimensions | Ø226.7 mm × 440.3 mm (Ø8.93" × 17.33") (Ø × H) |
| Weight | 6.9 kg (15.21 lb.) |
| Power | AC 24 V±25%, DC 24 V±25%, PoE (IEEE 802.3bt) |
| Power Consumption | Max. 67 W |
| Working Environment | -40 °C to 70 °C (-40 °F to 158 °F), ≤95% RH non-condensing |
| Protection | IP67 · 6 kV surge protection |
| Wiper | [object Object] |
| Heater | [object Object] |
Optional Mounting Accessories
Order together with the camera to save shipping.
8MP 42x PTZ Camera FAQ — IPC6828EL-X42-W-VH1
How far can the IPC6828EL see at night?
What do 8MP and 42x zoom give me in practice?
Does it follow moving targets automatically?
Will the image shake on a tall pole in wind?
What operating conditions is it rated for?
