4MP 40× LightHunter IR PTZ Camera, SFP Fiber Uplink IPC6854ER-X40G-VF

4MP 40× LightHunter IR PTZ Camera, SFP Fiber Uplink IPC6854ER-X40G-VF — view 1

4MP 40× LightHunter IR PTZ Camera, SFP Fiber Uplink IPC6854ER-X40G-VF — view 2

4MP 40× LightHunter IR PTZ Camera, SFP Fiber Uplink IPC6854ER-X40G-VF — view 3

Uniview (UNV) · PTZ CameraLightHunter · 40× IR PTZ

4MP 40× LightHunter IR PTZ · SFP Fiber Uplink

IPC6854ER-X40G-VF

Name: IPC6854ER-X40G-VF
Brand: Uniview
SKU: IPC6854ER-X40G-VF

A 40× zoom PTZ built for the horizon: LightHunter low-light imaging, 250 m Smart IR, and a built-in SFP fiber port for reaching remote border and outdoor poles alongside standard RJ45.

2688×1520 · main stream @30fps40× / 16× · optical / digital zoom5.7-228 mm · motorized zoom lens250 m · Smart IR distanceSFP + RJ45 · fiber or copper uplinkIP66 · -40 to 70°C housing

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Compliance:ONVIF Profile SONVIF Profile GONVIF Profile TONVIF Profile M

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

4 MPResolution (2688×1520)

40×Optical zoom (16× digital)

250 mSmart IR distance

-40~70°CWide-temp housing with heater

The IPC6854ER-X40G-VF is a 4MP 40× optical-zoom PTZ dome camera built on Uniview's LightHunter low-light technology, pairing a 1/1.8" CMOS sensor (2688×1520 @30fps) with a 5.7-228 mm motorized lens that sweeps from a 59.5° wide overview down to a 2.2° telephoto pinpoint. Smart IR reaches 250 m, EIS gyroscopic stabilization keeps the long zoom steady, and a built-in SFP optical port runs alongside the RJ45 port so the unit can be linked over fiber where copper cable runs fall short. Housed to IP66 with a -40°C to 70°C rating, a heater and 6 kV surge protection, it also carries smart intrusion prevention (cross line / area entry-leave with human, non-motor and motor vehicle classification) and people-flow / crowd-density counting.

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Border lines & remote perimetersSmart intrusion prevention with cross-line and area entry/leave detection, plus human / non-motor / motor-vehicle classification, watches a long straight boundary while the 40× zoom reaches out to 3330.6 m for Detect-level DORI at full telephoto.

Fiber-linked watchtowers & remote polesA built-in SFP optical port runs alongside the standard RJ45 port, so the camera can be linked back to the control room over fiber on remote poles and towers where a copper Ethernet run is impractical.

Dusk-to-dawn low-light monitoringLightHunter processing keeps color detail down to 0.0005 Lux (F1.2, AGC ON), and Smart IR extends visibility to 250 m once it turns fully dark — useful for wide, unlit rural stretches.

Harsh, unmanned outdoor sitesIP66 sealing, a -40°C to 70°C working range, a built-in heater and 6 kV surge protection are built for the pole nobody visits often — desert heat, winter cold or lightning-prone terrain.

High masts & swaying towersEIS gyroscopic image stabilization keeps the 40× telephoto image steady even when the mounting mast sways in the wind, so long-range detail stays usable instead of blurring out.

Long rural roads & checkpointsPeople counting with flow statistics and crowd-density monitoring, plus a 360° endless pan and 0.1°/s to 180°/s speed, cover long visibility stretches from a single mounting point.

Not the right pick if you need…

No PoE on this unit — it needs a dedicated AC 24 V or DC 24 V supply (max. 61 W). Plan power cabling before ordering.
No built-in microphone or speaker — the audio I/O is line-level (1 in / 1 out) only, so two-way audio needs your own external mic and speaker equipment.
No Wi-Fi (N/A in the datasheet) — connect via wired RJ45 or the SFP fiber port only.
Protection is rated IP66 only in this datasheet — no IK-series impact/vandal rating is listed, so it is not documented as vandal-resistant.

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High-quality image with a 4 MP, 1/1.8" CMOS sensor; 2688×1520 @30fps in the main stream

Ultra 265, H.265, H.264, MJPEG video compression

40× optical zoom (5.7-228 mm), plus 16× digital zoom

Smart intrusion prevention with false-alarm filtering: cross line, intrusion, enter area, leave area detection

Automatic selection of best snapshots; supports face-detection masked area

People counting: people-flow counting and crowd-density monitoring, suitable for different statistical scenarios

LightHunter technology ensures ultra-high image quality in low-illumination environments

Smart IR, up to 250 m (820.2 ft.) IR distance

Supports an SFP optical interface, with serial connection of optical and electrical interfaces

Power input: AC 24 V±25%, DC 24 V±25%

Alarm I/O: 7/2, audio I/O: 1/1

One Lens, Two Extremes: Wide Overview to 40× Telephoto

The 5.7-228 mm motorized lens covers both ends of the job from a single mount.

WIDE END · 5.7 mm

59.5° horizontal field of view for full-scene overview

Detect-level DORI at this end is 107.2 m — a wide, steady overview of the whole area from one pole.

TELE END · 228 mm (40×)

2.2° telephoto pinpoint for long-range identification

Detect-level DORI at full telephoto reaches 3330.6 m (10927.2 ft.) — the reach that makes 40× worth choosing.

How far can it see? (DORI)

DORI is the industry standard for what a camera can do at distance. Values shown are at full 40× telephoto (5.7-228 mm lens, tele end); the wide end (5.7 mm) gives shorter distances — see the lens card above.

Detectsomething is there

3330.6 m10927.2 ft

Observewhat is happening

1332.2 m4370.9 ft

Recognizesomeone you know

666.1 m2185.4 ft

Identifybeyond doubt

333.1 m1092.9 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	59.5° wide	2.2° tele
5 m16 ft	5.7 m18.8 ft	0.2 m0.6 ft
10 m33 ft	11.4 m37.5 ft	0.4 m1.3 ft
15 m49 ft	17.1 m56.3 ft	0.6 m1.9 ft
20 m66 ft	22.9 m75.0 ft	0.8 m2.5 ft
30 m98 ft	34.3 m113 ft	1.2 m3.8 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Camera

Sensor	1/1.8" CMOS
Min. Illumination	Color: 0.0005 Lux (F1.2, AGC ON), 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
WDR	120 dB
S/N	> 56 dB

Lens & Field of View

Focal Length	5.7 to 228 mm
Optical Zoom	40×
Digital Zoom	16×
Iris	F1.2 to F4.6
Field of View (H)	59.5° to 2.2°
Field of View (V)	35.6° to 1.2°
Field of View (D)	73.15° to 2.60°

Illuminator

Illumination Distance (IR)	250 m (820.2 ft.)
IR On/Off Control	Auto/Manual
Wavelength	850 nm


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Flip	Normal, Flip vertical, Flip horizontal, 180°
HLC	Support
BLC	Support
Smart IR	Support
Defog	Digital defog, Optical defog
EIS	Support
Heatwave Reduction	Support

Video

Video Compression	Ultra 265, H.265, H.264, MJPEG
Frame Rate	Main Stream: 4 MP (2688×1520), max. 30fps · Sub Stream: 1080P (1920×1080), max. 30fps · Third Stream: D1 (720×576), max. 30fps
Video Bit Rate	128 Kbps to 16 Mbps
U-code	Support
ROI	Support
Video Stream	Triple streams
Privacy Mask	24 areas, up to 4 areas per scene
OSD	Up to 10 OSDs

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	128 Kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	16 kHz

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)

Intelligent

Exception Detection	Object removed, Object left behind
Smart Intrusion Prevention	Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and classification of human, non-motor vehicle and vehicle)
People Counting	Support people flow counting and crowd density monitoring

PTZ

Route Patrol	16 patrols, up to 32 actions for each patrol
Recorded Patrol	16 patrols, up to 128 actions for each patrol
Number of Presets	1024
Preset Image Freeze	Support
Preset Patrol	16 patrols, up to 64 presets for each patrol
Patrol Stay Time	15 s to 1800 s
Home Position	Support
Pan Range	360° (endless)
Pan Speed	0.1°/s to 180°/s
Tilt Range	-15° to 90° (auto reverse)
Tilt Speed	0.1°/s to 180°/s

Events

Basic Detection	Motion detection, tampering alarm, audio detection, object removed, object left behind
General Function	Watermark, IP address filtering, access policy, ARP protection, RTSP authentication, user authentication, alarm input, alarm output

Network & Security

User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Protocols	SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
Security	TLS 1.3, password protection, strong password, HTTPS encryption, export operation logs, basic and digest authentication for RTSP, digest authentication for HTTP, TLS 1.2, WSSE and digest authentication for ONVIF
Client	EZStation, UNV-Link, UNV-Link Pro
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ · Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Interface

Audio I/O	1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p] · 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
WIFI	N/A
Alarm I/O	7/2
Serial Port	1 × RS485
Built-in Mic	N/A
Built-in Speaker	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet + 1 × 100 M/1000 M Base-FX SFP
Video Output	1 BNC (for debugging)

Certification

EMC	CE-EMC (EN 55032:2015+A11:2020; EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019; EN 55035:2017+A11:2020)
Safety	CE LVD (EN 62368-1:2014+A11:2017) · UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment	CE-RoHS (2011/65/EU; (EU)2015/863)
Protection	IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)

General

Power Interface	Wires with cold-pressed terminal
Surge Protection	6 kV
Reset Button	Support
Web Client Language	22 languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
Heater	Support
Configurable P/N	Support

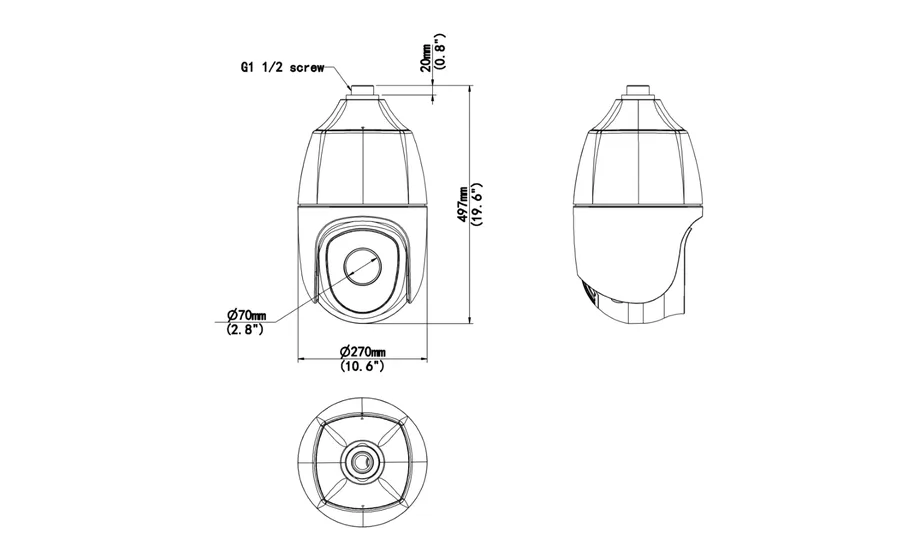

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	Ø270 mm × 497 mm (Ø10.6" × 19.6") (Ø × H)
Weight	9.5 kg (20.9 lb.)
Power	AC 24 V±25%, DC 24 V±25% · max. 61 W
Working Environment	-40 °C to 70 °C (-40 °F to 158 °F), ≤95% RH non-condensing
Protection	IP66 (IEC 60529) · 6 kV surge

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-UF45-A-INDome indoor ceiling mounting pedestal

TR-SE45-A-INDome ceiling mounting pole 500

TR-SE45-INDome ceiling mounting pole 200

TR-CE45-INDome indoor ceiling mounting bracket

TR-WE45-A-INLong wall mounting bracket for dome

TR-WE45-B-INDome gooseneck bracket

TR-JB12-INDome junction box

TR-UP08-A-INDome pole mounting bracket

TR-UP08-B-INAluminium alloy pole mounting bracket

TR-UC08-A-INDome corner mounting bracket

TR-UC08-B-INAluminium alloy corner mounting bracket

4MP 40x Fiber PTZ Camera FAQ — IPC6854ER-X40G-VF

What does the SFP fiber uplink on the X40G give me?

The SFP slot accepts a fiber module so the camera connects to the network over optical fiber instead of copper — the practical choice when the PTZ sits on a far perimeter pole, a port breakwater or a mine boundary well away from the nearest switch cabinet.

How far can it see, wide and at full zoom?

At the 59.5° wide end DORI Detect is 107.2 m for full-scene overview; at 2.2° full telephoto (40x, 5.7–228 mm) detection reaches 3330.6 m (10,927 ft). Smart IR at 250 m and 0.0005 lux LightHunter sensitivity carry that reach into the night.

Can it patrol checkpoints automatically overnight?

Yes. Route patrol supports 16 patrols with up to 32 actions each, and recorded patrol stores 16 patrols with up to 128 actions, replaying an operator's joystick sweep exactly. Smart intrusion prevention with false alarm filtering and people counting run during the patrols.

How does it handle heat shimmer and pole vibration at 40x?

Heatwave reduction cuts the shimmer that hot ground creates at long telephoto, and EIS steadies the frame against wind and traffic vibration. Optical plus digital defog, HLC, BLC and 120 dB WDR keep distant targets readable through haze and glare.

What storage and climate ratings does it have?

Edge storage takes a MicroSD card up to 512 GB with ANR refill after network drops, plus NAS (NFS). Per the product data the housing is IP66 rated and operates from -40 to 70 °C. The main stream records 4MP (2688x1520) at up to 30 fps with Ultra 265.
