PTZ Cameras › IPC6852ER-X45-VF

2MP 45X LightHunter IR PTZ Camera IPC6852ER-X45-VF

2MP 45X LightHunter IR PTZ Camera IPC6852ER-X45-VF — view 1

2MP 45X LightHunter IR PTZ Camera IPC6852ER-X45-VF — view 2

Uniview (UNV) · PTZ CameraLightHunter Series

2MP 45X LightHunter IR PTZ Camera

IPC6852ER-X45-VF

Name: IPC6852ER-X45-VF
Brand: Uniview
SKU: IPC6852ER-X45-VF

A 45× optical zoom PTZ dome camera that reaches far and still sees clearly in the dark: LightHunter low-light technology keeps color at 0.0005 lux, Smart IR reaches 250 m when it's fully dark, and smart intrusion detection with human/vehicle classification and people counting run on the same unit.

1920×1080 · main stream @30fps45× / 16× · optical / digital zoomSmart IR · up to 250 mSmart Intrusion · cross line / enter / leavePeople Counting · flow + crowd densityAC/DC/PoE++ · 24V / 24V / 802.3bt power

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Compliance:ONVIF Profile SONVIF Profile GONVIF Profile TONVIF Profile M

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

2 MP1080P main stream, 1/1.8" CMOS

45×Optical zoom (16× digital)

250 mSmart IR distance

IP66Ingress protection

The IPC6852ER-X45-VF is a 2MP (1920×1080 @30fps) PTZ dome camera built around a 1/1.8" CMOS sensor and a 5.7–256.5 mm 45× optical zoom lens (16× digital), giving a DORI Detect range from 88.4 m at the wide end up to 3980.2 m at full telephoto. LightHunter low-light processing keeps color video down to 0.0005 lux, and Smart IR extends visibility to 250 m once it's fully dark. On the analytics side it runs smart intrusion prevention (cross line, intrusion, enter/leave area) with false-alarm filtering and human/non-motor/motor vehicle classification, plus people counting with crowd density monitoring. The housing is rated IP66 and works from -40 °C to 70 °C, and it accepts AC 24 V, DC 24 V or PoE++ (IEEE 802.3bt) power.

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Long straight roads & fence linesWith DORI Detect reaching 3980.2 m at full 45× telephoto, one pole can watch a long stretch of road, pipeline or border fence that would otherwise need several fixed cameras.

Perimeter & entrance pointsSmart intrusion prevention (cross line, intrusion, enter/leave area) filters false alarms and classifies human, non-motor and motor-vehicle targets, while people counting adds crowd-density monitoring at gates.

Low-light streets & yardsLightHunter processing keeps color video usable down to 0.0005 lux, and once it's fully dark Smart IR takes over out to 250 m — useful where street lighting is patchy or absent.

Scheduled patrol coverage360° endless pan with 1024 presets and 16 recorded/route patrols lets one head sweep multiple points on a schedule instead of staring at a single fixed frame.

Harsh outdoor climatesIP66 sealing, -40 °C to 70 °C operation, a 6 kV surge rating and built-in heater support cover sites that swing between extreme cold and heat.

Sites with mixed power infrastructureAccepts AC 24 V, DC 24 V or PoE++ (IEEE 802.3bt) — useful for poles or rooftops where a dedicated PoE switch isn't already run.

Not the right pick if you need…

No built-in microphone, no built-in speaker and no onboard WiFi (all N/A per datasheet) — plan an external audio device and a wired network drop if you need two-way audio or wireless connectivity.
This is a classic single-lens 45× PTZ, not a panoramic-linkage unit — it has no second wide-angle channel and no auto-tracking hand-off between channels. If you need one head to auto-follow a target across a whole scene, look at a panoramic-linkage PTZ instead.
10.3 kg and Ø270×497 mm: this needs one of the dedicated dome mounting brackets (pole, wall, ceiling or corner) listed below — not a light camera arm.

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High-quality 1080P image, 1/1.8" CMOS sensor; 1920×1080 @30fps in the main stream

Ultra 265, H.265, H.264, MJPEG video compression

45× optical zoom

Smart intrusion prevention with false-alarm filtering, including cross line, intrusion, enter area and leave area detection

Automatic selection of best snapshots

Supports face detection with masked-area function

People counting: supports people flow counting and crowd density monitoring for different statistical scenarios

LightHunter technology ensures ultra-high image quality in low-illumination environments

Smart IR, up to 250 m (820.2 ft.) IR distance

AC 24 V±25%, DC 24 V±25%, PoE++ (IEEE 802.3bt) power supply

Alarm I/O: 7/2, audio I/O: 1/1

IP66 ingress protection

How far can it see? (DORI)

DORI distances at full 45× telephoto, from the official datasheet.

Detectsomething is there

3980.2 m13058.3 ft

Observewhat is happening

1592.1 m5223.3 ft

Recognizesomeone you know

796 m2611.7 ft

Identifybeyond doubt

398 m1305.8 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	59.5° wide	2.2° tele
5 m16 ft	5.7 m18.8 ft	0.2 m0.6 ft
10 m33 ft	11.4 m37.5 ft	0.4 m1.3 ft
15 m49 ft	17.1 m56.3 ft	0.6 m1.9 ft
20 m66 ft	22.9 m75.0 ft	0.8 m2.5 ft
30 m98 ft	34.3 m113 ft	1.2 m3.8 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Camera

Sensor	1/1.8" CMOS
Min. Illumination	Color: 0.0005 Lux (F1.2, AGC ON), 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
WDR	120 dB
S/N	> 52 dB

Lens & Field of View

Focal Length	5.7 to 256.5 mm
Optical Zoom	45X
Digital Zoom	16X
Iris	F1.2 to F4.6
Field of View (H)	59.5° to 2.2°
Field of View (V)	35.6° to 1.2°
Field of View (D)	73.19° to 2.60°

DORI

DORI Distance (Lens)	5.7 to 256.5 mm
DORI Distance (Detect)	88.4 m to 3980.2 m (290.2 ft. to 13058.3 ft.)
DORI Distance (Observe)	35.4 m to 1592.1 m (116.1 ft. to 5223.3 ft.)
DORI Distance (Recognize)	17.7 m to 796.0 m (58.0 ft. to 2611.7 ft.)
DORI Distance (Identify)	8.8 m to 398.0 m (28.9 ft. to 1305.8 ft.)

Video

Video Compression	Ultra 265, H.265, H.264, MJPEG
Frame Rate	Main Stream: 1080P (1920×1080), max. 30 fps · Sub Stream: 1080P (1920×1080), max. 30 fps · Third Stream: D1 (720×576), max. 30 fps
Video Bit Rate	128 Kbps to 16 Mbps
U-code	Support
ROI	Support
Video Stream	Triple streams
Privacy Mask	24 areas, up to 4 areas per scene
OSD	Up to 10 OSDs

Events

Basic Detection	Motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, Alarm input, Alarm output

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	128 Kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	16 KHz

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)

Network

User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Protocols	SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
Security	TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	EZStation, UNV-Link, UNV-Link Pro
Web Browser	Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Intelligent

Exception Detection	Object removed, Object Left Behind
Smart Intrusion Prevention	Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
People Counting	Support people flow counting and crowd density monitoring

PTZ

Route Patrol	16 patrols, up to 32 actions for each patrol
Recorded Patrol	16 patrols, up to 128 actions for each patrol
Number of Presets	1024
Preset Image Freeze	Support
Preset Patrol	16 patrols, up to 64 presets for each patrol
Patrol Stay Time	15 s to 1800 s
Home Position	Support
Pan Range	360° (endless)
Pan Speed	0.1°/s to 180°/s
Tilt Range	-15° to 90° (auto reverse)
Tilt Speed	0.1°/s to 180°/s


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Flip	Normal, Flip vertical, Flip horizontal, 180°
HLC	Support
BLC	Support
Smart IR	Support
Defog	Digital defog, Optical defog
EIS	Support
Heatwave Reduction	Support
Image Stabilization	EIS (Gyroscope)

Interface

Audio I/O	1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Alarm I/O	7/2
Serial Port	1 × RS485
Network	1 × RJ45 10 M/100 M Base-TX Ethernet

Illuminator

Illumination Distance (IR)	250 m (820.2 ft.)
IR On/Off Control	Auto/Manual
Wavelength	850 nm

Certification

EMC	CE-EMC (EN 55032:2015+A11:2020; EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019; EN 55035:2017+A11:2020); FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety	CE LVD (EN 62368-1:2014+A11:2017); UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment	CE-ROHS (2011/65/EU; (EU)2015/863)
Protection	IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)

General

Power	AC 24 V±25%, DC 24 V±25%, PoE++ (IEEE 802.3bt)
Power Consumption	Max. 61 W
Power Interface	Wires with cold-pressed terminal
Dimensions	Ø270 mm × 497 mm (Ø10.6" × 19.6") (Ø×H)
Weight	10.3 kg (22.66 lb.)
Working Environment	-40 °C to 70 °C (-40 °F to 158 °F), Humidity: ≤95% RH (non-condensing)
Storage Environment	-40 °C to 70 °C (-40 °F to 158 °F), Humidity: ≤95% RH (non-condensing)
Surge Protection	6 kV
Reset Button	Support
Web Client Language	22 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak
Heater	Support

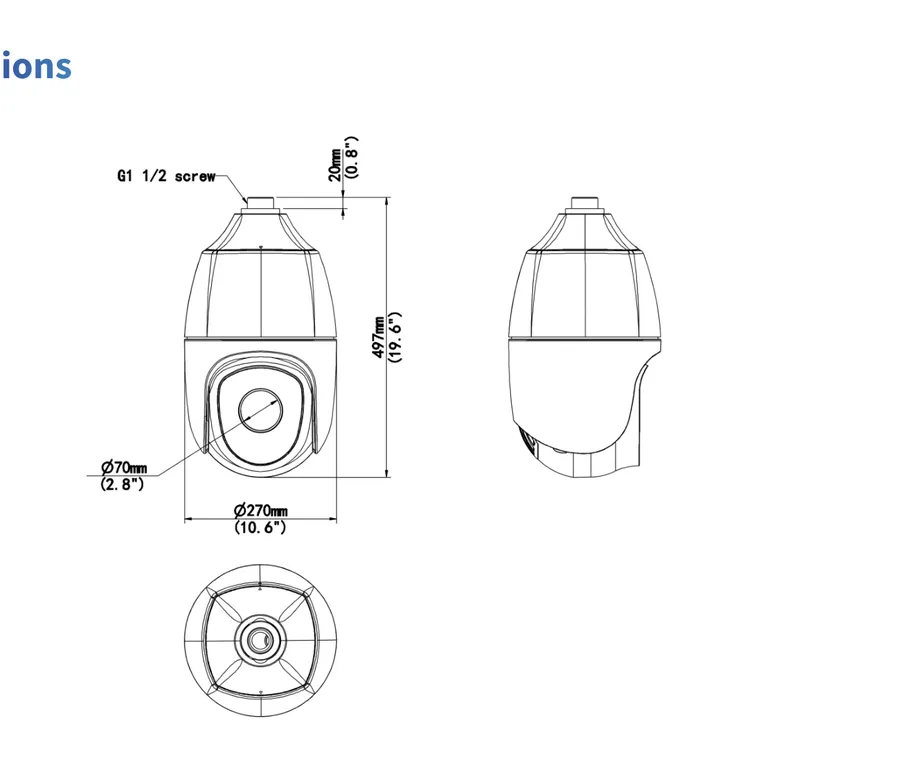

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	Ø270 mm × 497 mm (Ø10.6" × 19.6") (Ø×H)
Weight	10.3 kg (22.66 lb.)
Power	AC 24 V (±25%) / DC 24 V (±25%) / PoE++ (IEEE 802.3bt) · max. 61 W
Working Environment	-40 °C to 70 °C (-40 °F to 158 °F), ≤95% RH non-condensing
Protection	IP66 (IEC 60529) · 6 kV surge

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-SE45-INDome ceiling mounting pole 200

TR-CE45-INDome indoor ceiling mounting bracket

TR-WE45-A-INLong wall mounting bracket for dome

TR-WE45-B-INDome gooseneck bracket

TR-JB12-INDome junction box

TR-UP08-A-INDome pole mounting bracket

TR-UP08-B-INAluminium alloy pole mounting bracket

TR-UC08-A-INDome corner mounting bracket

TR-UC08-B-INAluminium alloy corner mounting bracket

TR-UF45-A-INDome indoor ceiling mounting pedestal

TR-SE45-A-INDome ceiling mounting pole 500

2MP 45x PTZ Camera FAQ — IPC6852ER-X45-VF

Can I power the IPC6852ER over the network cable?

Yes — the product data lists PoE++ support, so a PoE++ switch port or injector can run this PTZ over the same cable that carries video. Standard 802.3af/at ports on ordinary cctv poe switches are usually too weak for PTZ domes, so confirm your switch supplies PoE++ class power.

How far can it identify a vehicle plate area or a person?

The 45x lens (5.7–256.5 mm) posts the longest DORI reach in this series: detect 3980.2 m, observe 1592.1 m, recognize 796 m and identify 398 m at full telephoto. LightHunter sensitivity of 0.0005 lux keeps those distances usable after sunset.

What is the night vision distance?

Per the product data, Smart IR reaches 250 m (820 ft), adjusting intensity so nearby subjects are not overexposed. The 1/1.8-inch sensor sees 0.0005 lux in color and 0 lux with IR active, and 120 dB WDR balances bright gate lights against dark yards.

Does it integrate with ONVIF NVRs and patrol on schedule?

Yes. ONVIF Profile S, G, T and M plus API/SDK cover third-party NVR and VMS integration, with EZStation, UNV-Link and UNV-Link Pro clients. Route patrol supports 16 patrols with up to 32 actions each, so the dome can sweep fixed checkpoints all night unattended.

What analytics and storage does it carry onboard?

Smart intrusion prevention runs cross-line, intrusion and enter/leave-area detection with false alarm filtering, plus people flow counting and crowd density monitoring. A MicroSD slot takes up to 512 GB with ANR refill after outages, and NAS (NFS) is supported. Two-way audio handles remote warnings.
