4MP 40X LightHunter IR Network PTZ Camera IPC6854ER-X40-VF

4MP 40X LightHunter IR Network PTZ Camera IPC6854ER-X40-VF — view 1

4MP 40X LightHunter IR Network PTZ Camera IPC6854ER-X40-VF — view 2

4MP 40X LightHunter IR Network PTZ Camera IPC6854ER-X40-VF — view 3

Uniview (UNV) · PTZ CameraLightHunter · 40X PTZ

4MP 40× LightHunter PTZ · Smart IR 250 m

IPC6854ER-X40-VF

Name: IPC6854ER-X40-VF
Brand: Uniview
SKU: IPC6854ER-X40-VF

A 4MP LightHunter network PTZ camera built for wide-area sites: 40× optical zoom reaches out to distant detail, Smart IR carries 250 m into total darkness, and smart intrusion prevention with person/vehicle classification watches the perimeter around the clock.

2688×1520 · main stream @30fps40× / 16× · optical / digital zoomIP66 · outdoor housing ratingPoE++ · or AC/DC 24 V power-40~70°C · wide operating range1024 · presets · 16 patrols

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Compliance:ONVIF Profile SONVIF Profile GONVIF Profile TONVIF Profile M

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

4 MPMain stream (2688×1520)

40×Optical zoom (16× digital)

250 mSmart IR distance

120 dBWDR

The IPC6854ER-X40-VF is a 4MP 40× optical-zoom LightHunter network PTZ camera built around a 1/1.8-inch CMOS sensor (2688×1520 @30fps main stream, Ultra265/H.265/H.264/MJPEG, triple streams). LightHunter low-light processing keeps color detail in near-darkness, and when it gets fully dark, Smart IR carries up to 250 m. Smart intrusion prevention (cross line, intrusion, enter/leave area) filters false alarms with person / non-motor / motor-vehicle classification, while people counting adds flow statistics and crowd-density monitoring for multiple scene types. The unit runs on AC 24 V, DC 24 V or PoE++ (IEEE 802.3bt), housed to IP66 and rated -40 °C to 70 °C.

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Port terminals & container yards40× optical zoom (5.7-228 mm) reaches across a wide yard from a single pole — DORI Detect runs out to 3330.6 m on the datasheet, and 360° endless pan sweeps the full berth without a mechanical stop.

Airport perimeter fencing & apronSmart intrusion prevention (cross line, intrusion, enter/leave area) filters false alarms with person / non-motor / motor-vehicle classification along the fence line; heat-haze reduction keeps the image steady over sun-baked apron tarmac.

Border posts & coastline patrolLong DORI reach (Detect 3330.6 m, Identify 333.1 m) covers open ground between checkpoints, and a -40 °C to 70 °C rating plus IP66 sealing means the same unit keeps working from desert heat to arctic cold.

Highway interchanges & toll plazasPan speed up to 180°/s keeps fast-moving vehicles in frame across multiple lanes, while mixed-traffic classification tells cars, motorbikes and pedestrians apart for cleaner alarms at busy interchanges.

Large plazas & transit hubsPeople counting adds flow statistics and crowd-density monitoring for multiple statistical scenarios, and 1024 presets across 16 patrols (up to 128 actions each) automate a fixed sweep across gates, platforms and queues.

Extreme-climate remote sitesPoE++ (802.3bt) or AC/DC 24 V power flexibility simplifies cabling at remote poles, and heater support keeps the unit running across the full -40 °C to 70 °C rated range.

Not the right pick if you need…

Ethernet is 10M/100M Base-TX only, not Gigabit — plan bit rate and cable runs accordingly if streaming multiple high-resolution channels over a long distance.
Housing is rated IP66 with no IK impact rating stated — for street-level sites with high vandalism risk, pair it with a protective enclosure or choose an IK10-rated model instead.
No built-in microphone or speaker (both listed N/A) and no wiper — bring your own audio device for two-way audio, and expect standing water on the lens dome during heavy rain since there's no powered wiper.
9.69 kg on a Ø270 mm × 497 mm body — needs the dedicated pole / wall / ceiling brackets listed below, not a light camera arm.

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High-quality image with 4 MP, 1/1.8" CMOS sensor; 2688×1520 @30fps main stream

Ultra265, H.265, H.264, MJPEG triple-stream video compression

40× optical zoom, 5.7-228 mm motorized lens with 16× digital zoom

Smart intrusion prevention with false-alarm filtering — cross line, intrusion, enter area, leave area detection with human / non-motor / motor-vehicle classification

Automatic selection of best snapshots; face detection with masked-area support

People counting — flow counting and crowd-density monitoring for multiple statistical scenarios

LightHunter technology ensures ultra-high image quality in low illumination environments

Smart IR up to 250 m; AC 24 V / DC 24 V / PoE++ (IEEE 802.3bt) power; alarm I/O 7/2, audio I/O 1/1

40× Zoom Meets Smart Detection

Two strengths built into one PTZ camera.

OPTICAL ZOOM

40× optical zoom, 5.7-228 mm lens

Plus 16× digital zoom reaches distant detail — DORI Detect runs to 3330.6 m on the datasheet.

SMART DETECTION

Classification-filtered intrusion prevention

Cross line, intrusion and area detection with person/vehicle classification, plus people counting with crowd-density monitoring.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance. The datasheet gives DORI as a range across the 5.7-228 mm zoom; the bars below show the long end (228 mm, full telephoto) — the wide-angle end starts at 107.2 m Detect / 42.9 m Observe / 21.4 m Recognize / 10.7 m Identify.

Detectsomething is there

3330.6 m10927.2 ft

Observewhat is happening

1332.2 m4370.9 ft

Recognizesomeone you know

666.1 m2185.4 ft

Identifybeyond doubt

333.1 m1092.9 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	59.5° wide	2.2° tele
5 m16 ft	5.7 m18.7 ft	0.2 m0.6 ft
10 m33 ft	11.4 m37.5 ft	0.4 m1.3 ft
15 m49 ft	17.1 m56.2 ft	0.6 m1.9 ft
20 m66 ft	22.8 m75.0 ft	0.8 m2.5 ft
30 m98 ft	34.3 m112 ft	1.2 m3.8 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Camera

Sensor	1/1.8" CMOS
Min. Illumination	Color: 0.0005 Lux (F1.2, AGC ON), 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
WDR	120 dB
S/N	> 56 dB

Lens & Field of View

Focal Length	5.7 to 228 mm
Optical Zoom	40×
Digital Zoom	16×
Iris	F1.2 to F4.6
Field of View (H)	59.47° to 2.20°
Field of View (V)	35.62° to 1.24°
Field of View (D)	73.12° to 2.60°

Illuminator

Illumination Distance (IR)	250 m
IR On/Off Control	Auto/Manual
Wavelength	850 nm


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Flip	Normal, Flip vertical, Flip horizontal, 180°
HLC	Support
BLC	Support
Smart IR	Support
Defog	Digital defog, Optical defog
EIS	Support
Heatwave Reduction	Support
Image Stabilization	EIS (Gyroscope)

Video

Video Compression	Ultra 265, H.265, H.264, MJPEG
Main Stream	4 MP (2688×1520), max. 30 fps
Sub Stream	1080P (1920×1080), max. 30 fps
Third Stream	D1 (720×576), max. 30 fps
Video Bit Rate	128 Kbps to 16 Mbps
U-code	Support
ROI	Support
Video Stream	Triple streams
Privacy Mask	24 areas, up to 4 areas per scene
OSD	Up to 10 OSDs

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	128 Kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	16 KHz

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)

Network

User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Protocols	SSH, IGMP, RTP, RTCP, SMTP, IPv4, IPv6, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTSP, RTMP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, SSL/TLS
Compatible Integration	ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
Security	TLS 1.3, Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	EZStation, UNV-Link, UNV-Link Pro
Web Browser	Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+; Plug-in free live view: Chrome 57+, Firefox 58+, Edge 16+

Intelligent

Exception Detection	Object removed, Object Left Behind
Smart Intrusion Prevention	Cross line detection, intrusion detection, enter area detection, leave area detection (support false alarm filtering and the classification of human, non-motor vehicle and vehicle)
People Counting	Support people flow counting and crowd density monitoring

PTZ

Route Patrol	16 patrols, up to 32 actions for each patrol
Recorded Patrol	16 patrols, up to 128 actions for each patrol
Number of Presets	1024
Preset Image Freeze	Support
Preset Patrol	16 patrols, up to 64 presets for each patrol
Patrol Stay Time	15 s to 1800 s
Home Position	Support
Pan Range	360° (endless)
Pan Speed	0.1°/s to 180°/s
Tilt Range	-15° to 90° (auto reverse)
Tilt Speed	0.1°/s to 180°/s

Events

Basic Detection	Motion detection, Tampering alarm, Audio detection, Object removed, Object Left Behind
General Function	Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, Alarm input, Alarm output

Interface

Audio I/O	1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
WIFI	N/A
Alarm I/O	7/2
Serial Port	1 × RS485
Built-in Mic	N/A
Built-in Speaker	N/A
Network	1 × RJ45 10 M/100 M Base-TX Ethernet
Video Output	1 BNC (for debugging)

Certification

EMC	CE-EMC (EN 55032:2015+A11:2020; EN IEC 61000-3-2:2019; EN 61000-3-3:2013+A1:2019; EN 55035:2017+A11:2020)
Safety	CE LVD (EN 62368-1:2014+A11:2017); UL (UL 62368-1, 2nd Ed., Issue Date: 2014-12-01)
Environment	CE-ROHS (2011/65/EU; (EU)2015/863)
Protection	IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)

General

Power Consumption	Max. 61 W
Storage Environment	-40 °C to 70 °C (-40 °F to 158 °F), Humidity: ≤ 95% RH (non-condensing)
Surge Protection	6 KV
Reset Button	Support
Web Client Language	22 languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese, Arabic, Slovak

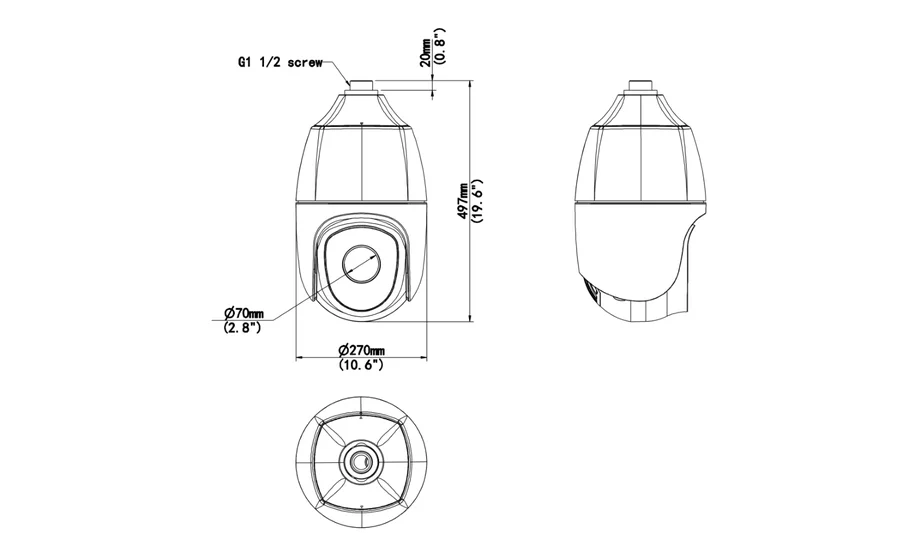

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	Ø270 mm × 497 mm (Ø10.6" × 19.6") (Ø × H)
Weight	9.69 kg (21.36 lb.)
Power	AC 24 V (±25%) / DC 24 V (±25%) / PoE++ (IEEE 802.3bt) · max. 61 W
Working Environment	-40 °C to 70 °C (-40 °F to 158 °F), ≤95% RH non-condensing
Protection	IP66 · 6 kV surge
Heater	[object Object]

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-UF45-A-INDome Indoor Ceiling Mounting Pedestal

TR-SE45-A-INDome Ceiling Mounting Pole 500

TR-SE45-INDome Ceiling Mounting Pole 200

TR-CE45-INDome Indoor Ceiling Mounting Bracket

TR-WE45-A-INLong Wall Mounting Bracket for Dome

TR-WE45-B-INDome Gooseneck Bracket

TR-JB12-INDome Junction Box

TR-UP08-A-INDome Pole Mounting Bracket

TR-UP08-B-INAluminium Alloy Pole Mounting Bracket

TR-UC08-A-INDome Corner Mounting Bracket

TR-UC08-B-INAluminium Alloy Corner Mounting Bracket

4MP 40x PTZ Camera FAQ — IPC6854ER-X40-VF

How do I power the IPC6854ER-X40-VF on a pole?

The product data lists PoE++ support, so one network cable can carry both power and video from a PoE++ capable switch port or injector. That avoids running separate mains power up the pole — check that your poe switch for ip cameras actually offers PoE++ class ports for PTZ loads.

What zoom and detection distance does it reach?

The 5.7–228 mm lens gives 40x optical plus 16x digital zoom, and DORI Detect runs to 3330.6 m per the datasheet. The wide end starts at a 59.47° horizontal field of view, so one camera pans from full-yard overview to a distant fence corner.

What is its night vision range?

IR illumination at 850 nm reaches 250 m with Smart IR and auto/manual control. The LightHunter 1/1.8-inch sensor works at 0.0005 lux in color (F1.2, AGC on) and 0 lux with IR, while 120 dB WDR and HLC handle gate lighting and vehicle headlamps.

Can it tell people from vehicles to cut false alarms?

Yes. Cross-line, intrusion and area detection run with person/vehicle classification, so wandering animals and moving branches are filtered out. People flow counting with crowd-density monitoring is included, and gyroscope EIS plus heatwave reduction keep long-range detection stable in heat shimmer.

What about storage and harsh-climate operation?

A MicroSD card up to 512 GB records at the edge with ANR refill after network drops, plus NAS (NFS) support. Per the product data it is IP66 rated for -40 to 70 °C, and the main stream delivers 4MP (2688x1520) at up to 30 fps with Ultra 265.
