8MP 41X LightHunter Network Positioning System PTZ IPC7628EL-L-X41-VH1

8MP 41X LightHunter Network Positioning System PTZ IPC7628EL-L-X41-VH1 — view 1

8MP 41X LightHunter Network Positioning System PTZ IPC7628EL-L-X41-VH1 — view 2

Uniview (UNV) · PTZ CameraLightHunter · Positioning System

8MP 41X LightHunter · Network Positioning System

IPC7628EL-L-X41-VH1

Name: IPC7628EL-L-X41-VH1
Brand: Uniview
SKU: IPC7628EL-L-X41-VH1

An 8MP intelligent network positioning system built for long-range work: 41× optical zoom reaches out for detail, Smart IR carries the view to 1000 m in the dark, and a wide-temperature metal housing keeps it running through rain, heat and freezing cold.

3840×2160 · main stream @30fps41× · optical, 16× digital1000 m · Smart IR distance120 dB · WDRIP66 · housing protection-40~70°C · wide temperature range

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Compliance:ONVIF Profile SONVIF Profile GONVIF Profile TONVIF Profile M

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

8 MPMax resolution, 3840×2160 main stream

41×Optical zoom, 6-246 mm

1000 mSmart IR distance

-40~70°CWide-temperature metal housing

The IPC7628EL-L-X41-VH1 is an 8MP intelligent network positioning system PTZ camera with a 41× optical zoom lens (6-246 mm, F1.2(W)-F4.6(T)) and a 3840×2160 main stream at up to 30 fps, plus 1080P sub stream and D1 third stream. LightHunter low-light processing keeps color images usable down to 0.0002 Lux, Smart IR extends night viewing up to 1000 m, and onboard analytics cover smart intrusion prevention (cross line, intrusion, enter/leave area) with human/vehicle classification and false-alarm filtering, plus people counting and crowd-density monitoring. Housed in a metal enclosure rated IP66 and -40 °C to 70 °C with a rain-sensing auto wiper and 6 kV surge protection, it is built for long-range perimeter and area monitoring in harsh outdoor conditions.

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Long-range perimeter & border lines41× optical zoom (6-246 mm) reaches out where a fixed lens can't, and DORI Detect distance runs up to 4829.4 m at full telephoto — smart intrusion prevention with cross-line, area entry/exit detection and person/vehicle classification watches the line.

Industrial sites & extreme climatesA metal housing rated -40 °C to 70 °C and IP66, with 6 kV surge protection and a rain-sensing auto wiper, keeps working through desert heat, arctic cold and driving rain without a heated enclosure.

Road intersections & mixed trafficSmart intrusion prevention classifies motor vehicles, non-motor vehicles and pedestrians with false-alarm filtering, while 120 dB WDR and BLC/HLC handle strong backlight from headlights and low sun.

Public squares & crowd monitoringPeople-flow counting and crowd-density monitoring run alongside the 41× zoom, so operators can watch overall occupancy and still zoom in on a specific person or incident.

Night operation, long distanceLightHunter processing keeps color images usable to 0.0002 Lux, and once it gets fully dark, Smart IR takes over out to 1000 m — with 0 Lux color-to-IR (ICR) switching so the view never drops out.

Rainy & coastal climatesA rain-sensing auto wiper clears the lens window automatically in downpours, and the IP66-rated metal housing resists dust and driving rain without needing a separate hood.

Not the right pick if you need…

No PoE on this class of machine — it needs dedicated DC±48 V±25%, DC 24 V±15% (DC 20 V to DC 60 V), or AC 24 V±25% power (max. 114 W). Plan power cabling and a suitable outdoor PSU before ordering.
15.42 kg: a heavy-duty unit that ships with a dedicated explosion-proof pan-tilt wall bracket (TR-WM08-B) and needs a rigid wall or pole — not a light camera arm.
A single fixed-zoom PTZ channel with no separate wide-angle overview channel — if you need simultaneous 360° overview plus zoomed detail from one unit, a panoramic-linkage model is a better fit.

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

3840 × 2160 @30 fps main stream

Triple streams

41X optical zoom

Smart intrusion prevention with false-alarm filtering: cross line, intrusion, enter area, leave area detection

Automatic selection of best snapshots; supports face detection masked area

People counting: people flow counting and crowd density monitoring

Optical defog, self-adaptive defog

LightHunter technology ensures ultra-high image quality in low-illumination environments

Smart IR, up to 1000 m (3281 ft) IR distance

Rain-sensing auto wiper

Power supply: DC±48 V±25%, DC 24 V±15% (DC 20 V to DC 60 V), AC 24 V±25%

Alarm I/O: 7/2, audio I/O: 1/1

Two Operating Modes: Daylight Zoom, Night IR

From daytime telephoto detail to full-darkness IR coverage, from the official datasheet.

NIGHT · SMART IR

Smart IR reaches up to 1000 m in total darkness, with 0 Lux color-to-IR (ICR) switching and a rain-sensing wiper to keep the lens window clear.

undefined

DAY · 41× ZOOM

41× optical zoom (6-246 mm) with 120 dB WDR and LightHunter low-light processing keep color detail sharp from wide angle to full telephoto.

undefined

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Bars below show the full-telephoto (41×) maximum; the datasheet's wide-angle minimums are listed in the specification table below.

Detectsomething is there

4829.4 m15844.5 ft

Observewhat is happening

1931.8 m6337.8 ft

Recognizesomeone you know

965.9 m3169.0 ft

Identifybeyond doubt

482.9 m1584.4 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	58.0°	2.1°
5 m16 ft	5.5 m18.2 ft	0.2 m0.6 ft
10 m33 ft	11.1 m36.3 ft	0.4 m1.2 ft
15 m49 ft	16.6 m54.5 ft	0.6 m1.8 ft
20 m66 ft	22.2 m72.7 ft	0.8 m2.5 ft
30 m98 ft	33.2 m109 ft	1.1 m3.7 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Camera

Max Resolution	8 MP
Sensor	1/1.8" CMOS
Min. Illumination	Color: 0.0002 Lux (F1.2, AGC ON), 0 Lux with IR
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s
WDR	120 dB
S/N	> 56 dB

Lens & Field of View

Focal Length	6~246 mm
Digital Zoom	16X
Optical Zoom	41X
Iris	F1.2(W)~F4.6(T)
Field of View (H)	57.96° (W) to 2.15° (T)
Field of View (V)	34.61° (W) to 1.21° (T)
Field of View (D)	75.3° (W) to 2.6° (T)

DORI

DORI Distance (Detect)	155.5 m to 4829.4 m (510.2 ft. to 15844.5 ft.)
DORI Distance (Observe)	62.2 m to 1931.8 m (204.0 ft. to 6337.8 ft.)
DORI Distance (Recognize)	31.1 m to 965.9 m (102.0 ft. to 3169.0 ft.)
DORI Distance (Identify)	15.5 m to 482.9 m (51.0 ft. to 1584.4 ft.)

Video

Privacy Mask	24 areas, up to 8 areas per scene
Video Compression	Ultra 265, H.265, H.264, MJPEG
Frame Rate	Main Stream: 8 MP (3840×2160), max. 30 fps; Sub Stream: 1080P (1920×1080), max. 30 fps; Third Stream: D1 (720×576), max. 30 fps
Frame Rate Recommendation	8 MP@30 fps + 1080P@30 fps + D1@30 fps
Video Bit Rate	128 Kbps to 16384 Kbps
U-code	Support
ROI	Support
Video Stream	Triple streams
OSD	Up to 10 OSDs

Intelligent

Multi-target Detection	Support
Smart Intrusion Prevention	Cross line detection, intrusion detection, enter area detection, leave area detection (supports false alarm filtering and the classification of human, non-motor vehicle and vehicle)
People Counting	Support people flow counting and crowd density monitoring


White Balance	Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2
Digital Noise Reduction	2D/3D DNR
Flip	Normal, Flip vertical, Flip horizontal, 180°
HLC	Support
BLC	Support
Defog	Support

Events

Basic Detection	Motion detection, Ultra motion detection, Tampering alarm, Audio detection, Voltage detection, Object removed, Object Left Behind
General Function	Watermark, IP address filtering, Alarm input, Alarm output, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication

Audio

Audio Compression	G.711U, G.711A
Audio Bitrate	128 Kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	16 KHZ

Storage

Edge Storage	MicroSD, up to 512 GB
Network Storage	ANR, NAS (NFS)

Illuminator

IR On/Off Control	Auto/Manual
Wavelength	850 nm
Illumination Distance (VF laser)	1000 m (3280.8 ft.)

Network & Security

Protocols	IPv4, IGMP, ICMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, DNS, DDNS, NTP, FTP, UPnP, HTTP, HTTPS, 802.1x, SNMP, QoS, RTMP, SSL/TLS, IPv6
Compatible Integration	ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK
User/Host	Up to 32 users. 3 user levels: administrator, common user and operator
Security	Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF
Client	EZStation, UNV-Link, UNV-Link Pro
Web Browser	Plug-in required live view: IE 10 and above, Chrome 45 and above, Firefox 52 and above, Edge 79 and above

PTZ

Number of Presets	1024
Preset Patrol	16 patrols, up to 64 presets for each patrol
Route Patrol	16 patrols, up to 32 actions for each patrol
Recorded Patrol	Support
Patrol Stay Time	15 s to 1800 s
Preset Image Freeze	Support
Home Position	Support
Number of Presets (IPC)	1024
Pan Range	360° (endless)
Tilt Range	45° to -90°
Pan Speed	0.1°/s to 140°/s
Tilt Speed	0.1°/s to 50°/s
3D Positioning	Support
Number of Patrol	16
Snow Removal Mode	Support
Patrol Recording	Support

Interface

Audio I/O	1 Input: impedance 1 kΩ, amplitude 2.5 V [p-p], 1 Output: impedance 600 Ω, amplitude 2.5 V [p-p]
Alarm I/O	7/2
Serial Port	1 × RS485
Network	1 × RJ45 10 M/100 M/1000 M Base-TX Ethernet + 1 × 100 M/1000 M SFP
Video Output	1 BNC (for debugging)

Certification

EMC	CE-EMC (EN 55032:2015, EN 50130-4:2011+A1:2014, EN 61000-3-2:2014, EN 61000-3-3:2013); FCC (FCC CFR 47 part15 B, ANSI C63.4-2014)
Safety	CE LVD (EN IEC 62368-1:2020+A11:2020); UL (UL 62368-1, 3rd Ed., 2021-10-22)
Environment	CE-ROHS (2011/65/EU; (EU)2015/863)
Protection	IP66 (IEC 60529:1989+AMD1:1999+AMD2:2013)

General

Power	DC±48 V±25%, DC 24 V±15% (DC 20 V to DC 60 V), AC 24 V±25%
Power Consumption	Max. 114 W
Power Interface	Wires with cold-pressed terminal
Dimensions	366 mm × 283 mm × 509 mm (14.4" × 11.1" × 20.0") (L × W × H)
Weight	15.42 kg (34 lb.)
Working Environment	-40℃ ~ 70℃ (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Storage Environment	-40℃ ~ 70℃ (-40°F ~ 158°F), Humidity: ≤95% RH (non-condensing)
Surge Protection	6 KV
Reset Button	Support
RTC	Support
Material	Metal

Live View

Maximum Bitstream	35
Maximum Bandwidth	50 Mbps
Plugin Free	Support
OSD Font	Vector
OSD Color	Support
OSD Character Number	40
3D Privacy Mask	Support

Compliance & Configuration

NDAA Compliant	N/A
Configurable P/N	Support

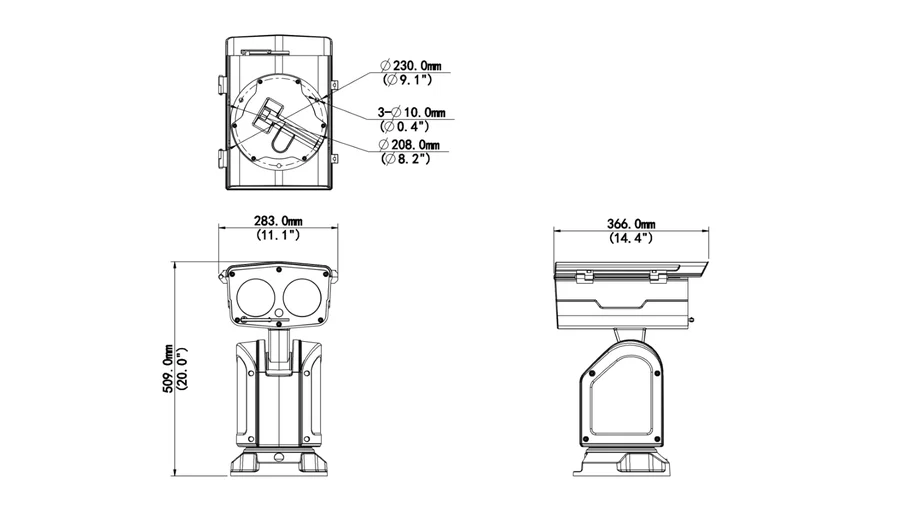

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	366 mm × 283 mm × 509 mm (14.4" × 11.1" × 20.0") (L × W × H)
Weight	15.42 kg (34 lb.)
Power	DC±48 V±25%, DC 24 V±15% (DC 20 V to DC 60 V), AC 24 V±25% · max. 114 W
Working Environment	-40 °C to 70 °C (-40 °F to 158 °F), ≤95% RH non-condensing
Protection	IP66 (IEC 60529) · 6 kV surge
Wiper	[object Object]

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-WM08-BWall mounting bracket for explosion-proof pan-tilt

Long-Range PTZ Camera FAQ — IPC7628EL-L-X41-VH1

How far can the IPC7628EL-L-X41-VH1 actually see?

DORI figures at full 41x zoom: detect a target at up to 4,829 m, observe at 1,931 m, recognize at 965 m and identify at 482 m. Smart IR reaches 1,000 m, so the camera keeps working at night on borders, ports and large perimeters.

What zoom and lens does it have?

A 6–246 mm motorized lens with 41x optical zoom plus 16x digital, aperture F1.2 at wide end. Field of view runs from 57.96° wide down to 2.15° at full telephoto, so one positioning system covers a wide scene and still pulls in detail kilometres away.

Is it usable at night without street lighting?

Yes. The 1/1.8-inch sensor works in colour down to 0.0002 lux, and Smart IR illuminates up to 1,000 m in total darkness. 120 dB WDR handles headlights and gate lighting, and defog plus 2D/3D noise reduction keep the long-range image clean.

Can it record without an NVR?

It takes a MicroSD card up to 512 GB for edge recording and supports NAS (NFS) network storage. ANR automatically backfills recording gaps after a network outage — useful on long wireless links to remote perimeter and border sites.

What analytics does it run on the edge?

Cross line, intrusion, enter and leave area detection with false alarm filtering, multi-target detection, plus people flow counting and crowd density monitoring. Basic events include motion, ultra motion, tampering, audio detection and object removed or left behind — all inside the camera.

Will it survive heat, dust and storms?

The housing is rated IP66 against dust and driving rain and operates from -40 to 70 °C, so desert, coastal and highland sites are covered. Ultra 265/H.265 compression at 128 Kbps–16 Mbps keeps bandwidth low on radio links.
