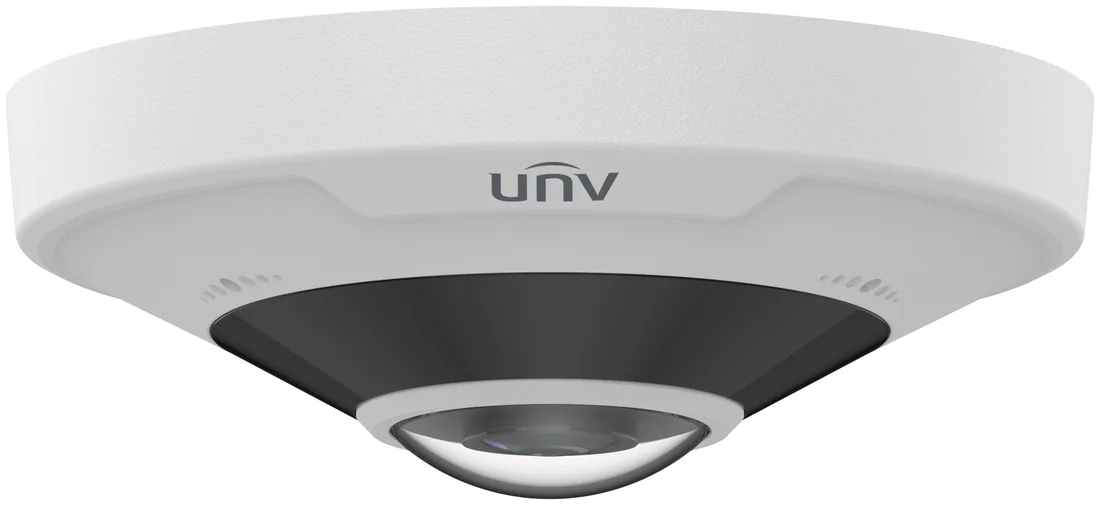

IPC86CEB-AF18KC-I0
12MP fisheye fixed dome network camera — single 1.8 mm lens, 180° hemispherical view, switchable Fisheye / Panorama / PTZ decoding, IK10 vandal-resistant, IP67 outdoor body.
Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port
Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA
Need the PDF datasheet? Get it on WhatsApp →Sample quantities are welcome — testing one or two units first is the normal way to start.
The Uniview IPC86CEB-AF18KC-I0 is a 12MP fisheye fixed dome network camera built around a single 1.8 mm lens that captures one 180° hemispherical image in every frame — the lens itself has no separate horizontal/vertical field of view, since a fisheye sees a full circle rather than a rectangle. Multiple decoding modes let that same recording be viewed as a raw Fisheye view, a dewarped Panorama view, or a virtual PTZ view with no moving parts, switchable in the camera's own stream settings or in EZStation/APP client software. It adds embedded 360° infrared fill light up to 15 m, heatmap people-counting analytics, IK10 vandal-resistant and IP67 outdoor housing, and records locally to MicroSD up to 512 GB.
Is this the right camera for you?
Plain-language guide for buyers and installers — based only on what this camera actually does.
- Long-range identification — fixed 1.8 mm lens, DORI Identify range is only 4.4 m (14.4 ft.)
- Wi-Fi — wired RJ45 camera only
- Full-color night vision — supplemental light is IR only (850 nm); no warm/white light
- MicroSD cards larger than 512 GB — edge storage capped at 512 GB
Worried about counterfeits? Order under your own company name.
For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.
Using your own freight forwarder? No problem.
For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.
Key Features
Complete list from the official datasheet.
One Lens, Three Ways to Watch
A fisheye lens has no separate horizontal/vertical field of view — it captures one 180° circular image that decoding then reshapes into the view you need.
The full picture, one raw frame
12 MP (4000×3000)@20 fps circular fisheye image — nothing cropped, nothing corrected. Best for reviewing the whole scene at a glance before zooming into any part of it.
Straightened out, wall-to-wall
Dewarped into 4000×3000@20 fps or 3000×2000 / 3000×1500 @20-25 fps horizontal or vertical panorama — the curved fisheye image is corrected into a normal-looking wide scene for ceiling, table or wall mounts.
Virtual pan-tilt-zoom, no motor
1920×1080@20/25 fps — software crops and follows a subject inside the fisheye image like a real PTZ camera, with fisheye+3/4/8PTZ multi-window layouts and zero moving parts to wear out.
How far can it see? (DORI)
DORI (EN 62676-4) is the industry standard for what a camera can do at distance.
How wide a view at each distance
Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.
| Distance | 180.0° |
|---|---|
| 5 m16 ft | 163312393531953696 m535801833195374976 ft |
| 10 m33 ft | 326624787063907392 m1071603666390749952 ft |
| 15 m49 ft | 489937180595861120 m1607405499586125056 ft |
| 20 m66 ft | 653249574127814784 m2143207332781499904 ft |
| 30 m98 ft | 979874361191722240 m3214810999172250112 ft |
Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.
Full Specifications
Complete official specifications from the manufacturer's datasheet (technical values in English).
Camera
| Max Resolution | 12 MP |
| Sensor | 1/1.7" CMOS |
| Min. Illumination | Color: 0.03 Lux (F2.0, AGC ON), 0 Lux with IR |
| Day/Night | IR-cut filter with auto switch (ICR) |
| Shutter | Auto/Manual, 1 ~ 1/100000 s |
| S/N | > 52 dB |
| WDR | DWDR |
Lens
| Focal Length | 1.8 mm |
| Iris Type | Fixed |
| Field of View (H) | 180° |
| Field of View (V) | 180° |
| Field of View (D) | 180° |
| Iris | F2.0 |
| Lens Type | Fixed |
DORI
| DORI Distance (Lens) | 1.8 mm |
| DORI Distance (Detect) | 43.8 m (143.7 ft.) |
| DORI Distance (Observe) | 17.5 m (57.4 ft.) |
| DORI Distance (Recognize) | 8.8 m (28.9 ft.) |
| DORI Distance (Identify) | 4.4 m (14.4 ft.) |
Illuminator
| Illumination Distance (IR) | 15 m (49.3 ft.) |
| Supplemental Light | IR |
| IR On/Off Control | Auto/Manual |
| Wavelength | 850 nm |
Video
| Main Stream | Fisheye View: 12 MP (4000×3000)@20 fps; 3000×3000@20 fps; 2560×2560@25 fps Panorama View: 12 MP (4000×3000)@20 fps; 3000×2000@20/25 fps; 3000×1500@20/25 fps PTZ View: 1920×1080@20/25 fps |
| Sub Stream | Fisheye View: 2000×1500@20 fps; 2000×2000@25 fps |
| Video Compression | Ultra 265, H.265, H.264, MJPEG |
| Third Stream | Fisheye View: D1 (720×576)@20/25 fps; CIF (352×288)@20/25 fps |
| H.264 Code Profile | Baseline profile, Main profile, High profile |
| Video Bit Rate | 128 Kbps to 16 Mbps |
| U-code | Support |
| OSD | Up to 8 OSDs |
| Privacy Mask | Up to 4 areas |
| ROI | Support |
| Video Stream | Triple streams |
Live View Display
| Hardware Decoding | Ceiling mount: fisheye view, fisheye + 4PTZ, horizontal panorama view, vertical panorama view Table mount: fisheye view, fisheye + 4PTZ, horizontal panorama view, vertical panorama view Wall mount: fisheye view, fisheye + 4PTZ, panorama view |
| Software Decoding | Ceiling / Table mount: fisheye view, 360° panorama + 1PTZ, 180° panorama view, fisheye + 3PTZ, fisheye + 4PTZ, fisheye + 8PTZ, 360° panorama + 6PTZ Wall mount: fisheye view, 180° panorama view, 180° panorama view + 3PTZ, 180° panorama view + 4PTZ, 180° panorama view + 8PTZ |
| White Balance | Auto, Outdoor, Fine tune, Sodium lamp, Locked, Auto2 |
| Digital Noise Reduction | 2D/3D DNR |
| Smart IR | Support |
| Flip | Normal, Flip vertical, Flip horizontal, 180° |
| Dewarping | N/A |
| HLC | N/A |
| BLC | Support |
| Defog | Digital defog |
Intelligent
| Smart Intrusion Prevention | Cross line detection, intrusion detection |
| Statistical Analysis | Heat map (Working with management platform) |
Events
| Basic Detection | Motion detection, Tampering alarm, Audio detection |
| General Function | Watermark, IP address filtering, Access policy, ARP protection, RTSP authentication, User authentication, HTTP authentication |
Audio
| Audio Compression | G.711U, G.711A |
| Audio Bitrate | 64 Kbps |
| Two-way Audio | Support |
| Suppression | Support |
| Sampling Rate | 8 kHz |
Storage
| Edge Storage | MicroSD, up to 512 GB |
| Network Storage | ANR, NAS (NFS) |
Network
| Protocols | IPv4, IPv6, IGMP, ARP, TCP, UDP, DHCP, PPPoE, RTP, RTSP, RTCP, RTMP, DNS, DDNS, NTP, FTP, HTTP, HTTPS, SMTP, 802.1x, SNMP, QoS |
| Compatible Integration | ONVIF (Profile S, Profile G, Profile T, Profile M), API, SDK |
| User/Host | Up to 32 users. 3 user levels: administrator, common user and operator |
| Security | Password Protection, Strong Password, HTTPS Encryption, Export Operation Logs, Basic and Digest Authentication for RTSP, Digest Authentication for HTTP, TLS 1.2, WSSE and Digest Authentication for ONVIF |
| Client | EZStation, APP |
| Web Browser | Plug-in required live view: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ |
Interface
| Audio I/O | 1 Input: impedance 35 kΩ, amplitude 2 V [p-p], 1 Output: impedance 600 Ω, amplitude 2 V [p-p] |
| Alarm I/O | 2/1 |
| Serial Port | 1 × RS485 |
| Built-in Mic | Built-in dual-mic |
| Built-in Speaker | Support |
| WIFI | N/A |
| Network | 1 × RJ45 10 M/100 M Base-TX Ethernet |
| Video Output | 1 BNC, impedance 75 Ω, amplitude 1 V [p-p] |
Certification
| EMC | CE-EMC (EN 55032, EN 61000-3-3, EN IEC 61000-3-2, EN 55035); FCC (FCC 47 CFR part15 B) |
| Safety | CE LVD (EN 62368-1); CB (IEC 62368-1); UL/CUL (UL 62368-1, CAN/CSA C22.2 No. 62368-1) |
| Environment | CE-RoHS (2011/65/EU; (EU)2015/863); WEEE (2012/19/EU) |
| Protection | IP67 (IEC 60529:1989+AMD1:1999+AMD2:2013); IK10 (IEC 62262:2002) |
General
| Power | DC 12 V±25%, PoE (IEEE 802.3af) |
| Power Consumption | Max. 12.0 W |
| Power Interface | Ø5.5 mm coaxial power plug |
| Dimensions | Ø149 mm × 55 mm (Ø5.9" × 2.2") (Ø × H) |
| Weight | 0.524 kg (1.16 lb.) |
| Material | Metal + Plastic |
| Working Environment | -30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing) |
| Storage Environment | -30 °C to 60 °C (-22 °F to 140 °F), Humidity: ≤ 95% RH (non-condensing) |
| Surge Protection | 4 KV |
| Reset Button | Support |
| Web Client Language | 20 Languages: Traditional Chinese, English, Simplified Chinese, Polish, German, Russian, French, Korean, Dutch, Czech, Portuguese (Europe), Portuguese (Brazil), Japanese, Thai, Turkish, Spanish (Latin America), Spanish (Europe), Hungarian, Italian, Vietnamese |

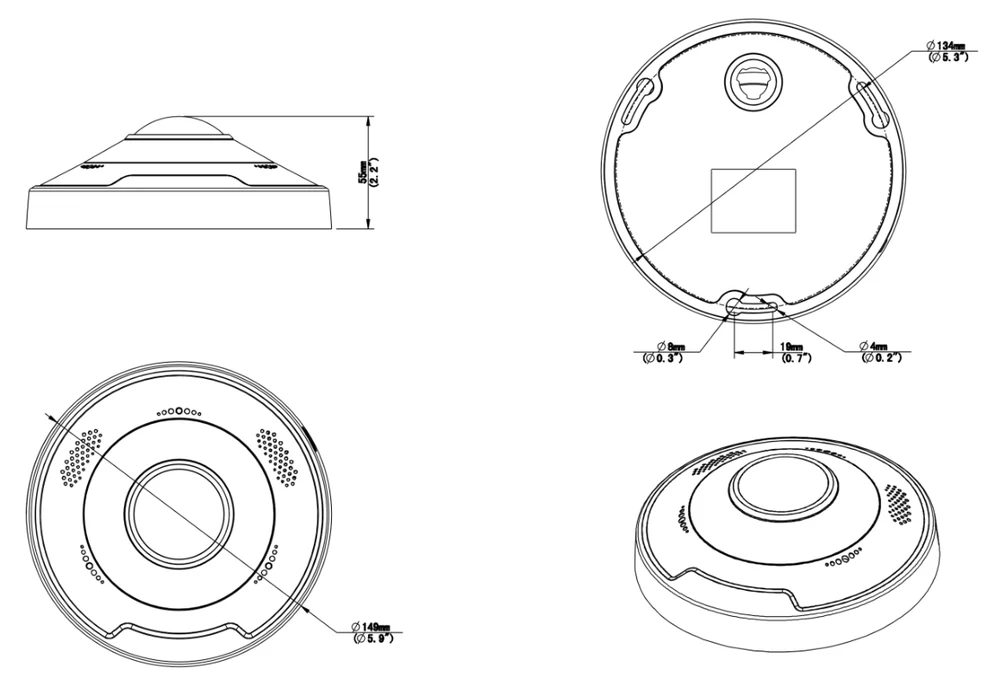

Dimensions
Engineering drawing reproduced 1:1 from the official datasheet.
| Dimensions | Ø149 × 55 mm (Ø5.9" × 2.2") (Ø × H) |
| Weight | 0.524 kg (1.16 lb.) |
| Material | Metal + Plastic |
Optional Mounting Accessories
Order together with the camera to save shipping.
