PTZ Cameras › IPC98344ER-GX42-E8-W-VH3

32MP+4MP Tiangong Pro Panoramic-Linkage PTZ, 42× Auto-Tracking IPC98344ER-GX42-E8-W-VH3

32MP+4MP Tiangong Pro Panoramic-Linkage PTZ, 42× Auto-Tracking IPC98344ER-GX42-E8-W-VH3 — view 1

32MP+4MP Tiangong Pro Panoramic-Linkage PTZ, 42× Auto-Tracking IPC98344ER-GX42-E8-W-VH3 — view 2

Uniview (UNV) · Panoramic PTZTiangong Pro · Panoramic Linkage

32MP+4MP Tiangong Pro Panoramic-Linkage PTZ · 42× Auto-Tracking

IPC98344ER-GX42-E8-W-VH3

Name: IPC98344ER-GX42-E8-W-VH3
Brand: Uniview
SKU: IPC98344ER-GX42-E8-W-VH3

One unit watches everything and zooms into anything: an 8-sensor 32MP panorama covers 360° with no blind spot, while the 42× detail PTZ automatically locks onto and tracks people and vehicles — day, night, rain or heat shimmer.

11520×2700 · panorama @30fps2688×1520 · detail @60fpsAuto-Track · with handoverFace DB · 16 libs · 100k facesIP67 · IK10 · vandal-proof housing-40~70°C · with wiper & heater logic

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Compliance:ONVIF Profile SONVIF Profile GONVIF Profile T

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

32 MPPanorama (8-sensor stitching)

42×Optical zoom, detail channel

500 mSmart IR illumination distance

±0.04°Encoder precision, smooth PT

The IPC98344ER-GX42-E8-W-VH3 is a panoramic-linkage PTZ camera combining an 8-sensor stitched 32MP panorama channel (11520×2700 @30fps, 360° horizontal, 110° vertical) with a 4MP 42× optical-zoom detail channel (2688×1520 @60fps) in one housing with single-IP dual-stream output. Select a target in the panoramic view and the detail channel links, zooms and auto-tracks it — with handover tracking, classification filtering (person / motor / non-motor), face detection with up to 16 databases and 100,000 faces, and people counting. A ±0.04° high-precision encoder, gyroscopic stabilization, heat-haze reduction, wiper, IR 500 m, optical + digital dehazing, and an IP67 / IK10 housing rated -40 °C to 70 °C complete the package.

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

City squares & plazasOne pole, whole square: the 16MP panorama covers 360° with a 110° vertical field — no blind spot even at a 6 m mounting height — while multi-zone people counting and crowd-density detection watch the flow.

Perimeter with auto-trackingPerimeter intrusion on both channels with person/vehicle classification; when something crosses the line, the 42× detail channel locks on and tracks it automatically — and hands over tracking beyond the panorama's edge.

Road intersectionsMixed-traffic detection classifies cars, two-wheelers and pedestrians; adaptive glare suppression tames headlights at night and heat-haze reduction and optical dehazing keep summer asphalt and morning fog from smearing the image.

Stadiums & scenic areasDraw a box anywhere in the panorama and the detail channel zooms there instantly; gyroscopic stabilization keeps the long-zoom image steady on a swaying pole in the wind.

Night, long rangeStarlight sensors (0.0003 lux panorama / 0.0005 lux detail) keep color late into the night; in full darkness the 500 m smart IR takes over — far enough to follow a vehicle along the whole approach road.

Harsh outdoor mountsIP67 sealing, IK10 vandal resistance, -40 °C to 70 °C operation, 6 kV surge protection, a wiper for rain and a snow-removal mode — built for the pole nobody wants to climb twice.

Not the right pick if you need…

No PoE on this class of machine — it needs a dedicated DC 24 V or DC 36 V supply (max. 124 W). Plan power cabling and a suitable outdoor PSU at the pole before ordering.
13.5 kg and Φ380 mm: this is a heavy-duty unit that needs the dedicated Tiangong brackets (pole / pendant / wall) and a rigid pole — not a light camera arm.
The panorama channel has no WDR and no zoom — harsh backlight scenes and distant detail are the detail channel's job. If all you need is simple zoom patrol, a classic single-lens PTZ costs far less.

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

8-sensor stitched 360° panorama with dynamic seam adjustment — 32 MP (11520×2700) @30fps; flexible 180°/270°/360° coverage

4 MP 42× optical-zoom detail channel (2688×1520 @60fps) with Wise-ISP ultra-low-light processing

Panoramic-detail linkage: box-select or click a target in the panorama, the detail channel zooms, centers and auto-tracks — with handover tracking and one-click calibration

Tracking-based snapshot with structured attribute extraction; face detection with face-body association, 16 databases / 100,000 faces on-device

Perimeter intrusion (4 modes) with person / motor / non-motor classification on the detail channel; people counting and crowd density on both channels

±0.04° encoder with automatic deviation correction; pan 300°/s, tilt 180°/s, 1024 presets, 16 patrols

Gyroscopic image stabilization, heat-haze reduction, adaptive glare suppression, optical + digital dehazing

Integrated audio-visual alarm: strobe + customizable voice messages, two built-in speakers, two-way audio

One Body, Two Channels: Panorama + Detail PTZ

Both channels stream simultaneously from a single IP address.

PANORAMA CHANNEL

32MP 8-sensor stitching watches 360° at once — intrusion detection and people counting across the whole scene

undefined

DETAIL CHANNEL

42× zoom auto-tracking with classification filtering, face recognition (16 libs / 100k) and tracking snapshots

undefined

How far can it see? (DORI — Optical Channel)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance. Panorama bars show the fixed 360° channel; Detail bars show the 42× channel at full telephoto.

Detectsomething is there

31 m101.8 ft

Observewhat is happening

12.4 m40.7 ft

Recognizesomeone you know

6.2 m20.4 ft

Identifybeyond doubt

3.1 m10.2 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	MAL · 59.5°	2.2°
5 m16 ft	5.7 m18.7 ft	0.2 m0.6 ft
10 m33 ft	11.4 m37.5 ft	0.4 m1.3 ft
15 m49 ft	17.1 m56.2 ft	0.6 m1.9 ft
20 m66 ft	22.8 m75.0 ft	0.8 m2.5 ft
30 m98 ft	34.3 m112 ft	1.2 m3.8 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Highlighted rows are channel-specific:PANORAMA = 16MP 360° channelDETAIL = 4MP 42× PTZ channel

Camera

Sensor	1/1.8" high-sensitivity CMOS (both channels)
Max Resolution	OPTICAL · 32 MP (11520×2700)THERMAL · 4 MP (2688×1520)
Min. Illumination	OPTICAL · Color: 0.0003 Lux (F1.0, AGC ON)THERMAL · Color: 0.0005 Lux (F1.2, AGC ON); IR: 0.0003 Lux
Shutter	Auto/Manual, 1 to 1/100000 s
WDR	OPTICAL · —THERMAL · 120 dB
S/N	> 56 dB

Lens & Field of View

Focal Length	OPTICAL · 2 mm (fixed)THERMAL · 6.0–252.0 mm
Optical / Digital Zoom	OPTICAL · — / —THERMAL · 42× / 8×
Field of View (H)	OPTICAL · 360°THERMAL · 59.47°(W) – 2.20°(T)
Field of View (V)	OPTICAL · 110°THERMAL · 35.62°(W) – 1.24°(T)

Illuminator

IR Distance	OPTICAL · —THERMAL · 500 m (1640.4 ft.)
Light Control	OPTICAL · —THERMAL · Auto / Manual


White Balance	Auto, Auto2, Sodium lamp, Area WB, Outdoor, Locked, Fine tune
Defog	OPTICAL · —THERMAL · Optical defog, Digital defog
Flip	OPTICAL · —THERMAL · Normal / Flip vertical / 180° / Flip horizontal
HLC / BLC	Support
Heat-Haze Reduction	OPTICAL · —THERMAL · Support

Video

Main Stream	OPTICAL · 32 MP (11520×2700) @30fpsTHERMAL · 4 MP (2688×1520) @60fps
Video Compression	Ultra 265, H.265, H.264, MJPEG · U-code
Video Bit Rate	128 Kbps to 16 Mbps
Streams	Triple streams per channel · single-IP dual-channel output
Privacy Mask	OPTICAL · 8 areas (black/mosaic)THERMAL · 24 areas, up to 8 per scene
Sub Stream	OPTICAL · 3072×676 @30fpsTHERMAL · 1080P / 720P / D1 / 640×360, max. 60fps
Third Stream	OPTICAL · 2048×450 @30fpsTHERMAL · 720×576 / 704×288 / 640×360 / 352×288, max. 60fps
ROI	Up to 8 areas
OSD	Up to 10 OSDs
Plugin-Free Live View	Support
Max Live Bandwidth	50 Mbps · up to 20 bitstreams
3D Privacy Mask	OPTICAL · —THERMAL · Support

Audio

Audio I/O	2 in / 2 out · built-in two speakers
Two-way Audio	Support · G.711A/U · noise suppression
Sampling Rate	8 kHz / 16 kHz
Audio Bitrate	128 Kbps

Intelligent

Panoramic-Detail Linkage	Box-select in panorama → detail channel zooms, centers & tracks · one-click calibration · handover tracking
Auto Tracking	OPTICAL · —THERMAL · Person / motor / non-motor classification · auto return after set duration
Smart Intrusion Prevention	Cross line, intrusion, enter/leave area · false-alarm filtering with classification
People Counting	Flow statistics & crowd density · multi-zone
Face	OPTICAL · —THERMAL · Detection + capture + attributes · face-body association · 16 libraries / 100,000 faces on-device
Image Aids	Gyroscopic stabilization · heat-haze reduction · adaptive glare suppression · optical + digital dehazing
Audio-Visual Alarm	Linked strobe + customizable voice messages

PTZ

Pan / Tilt Range	OPTICAL · —THERMAL · 0°–360° / -15°–90°
Pan / Tilt Speed	OPTICAL · —THERMAL · 0.1–300°/s / 0.1–180°/s
Presets & Patrols	OPTICAL · —THERMAL · 1024 presets · 16 patrols × 64 presets
Positioning	OPTICAL · —THERMAL · ±0.04° encoder · 3D positioning · home position · preset image freeze · snow-removal mode

Events

Basic Detection	OPTICAL · Motion, ultra motion, tampering alarm, audio detectionTHERMAL · Motion, ultra motion, tampering, audio, object removed, object left behind
General Function	Watermark, IP address filtering, alarm input/output, access policy, ARP protection, RTSP/HTTP authentication, user authentication

Network & Security

Protocols	IPv4/v6, TCP/UDP, RTSP/RTMP, HTTP/HTTPS, DHCP, PPPoE, NTP, UPnP, 802.1x, SNMP, QoS, SSL/TLS, FTP, SMTP, DNS/DDNS
Integration	ONVIF (Profile S/G/T/M) · API · SDK · EZStation, UNV-Link, UNV-Link Pro
Security	TLS 1.3/1.2 · HTTPS · strong password · RTSP/HTTP digest auth · log export · up to 32 users
Storage	MicroSD up to 512 GB · ANR · NAS (NFS)
Users	Up to 32 users · administrator + common levels
Web Browser	Plug-in: IE 10+, Chrome 45+, Firefox 52+, Edge 79+ · Plug-in free: Chrome 57+, Firefox 58+, Edge 16+
Web Client Languages	22 languages

Interface

Alarm I/O	7 in / 3 out
Audio I/O	2 in (1 kΩ) / 2 out (600 Ω)
Serial	1 × RS485
Network	1 × RJ45 10/100/1000M Base-TX + 1 × 100M/1000M SFP
[object Object]	Wires with cold-pressed terminal

Certification

EMC	CE EMC (EN 55032; EN 50130-4; EN IEC 61000-3-2/-3-3) · FCC SDoC (47 CFR Part 15 B)
Safety	UL 62368-1 · CAN/CSA C22.2 No.62368-1 · CE-LVD (EN IEC 62368-1)
Environment	CE-RoHS · WEEE
Protection	IP67 (IEC 60529) · IK10 (IEC 62262, except front window)

Dimensions

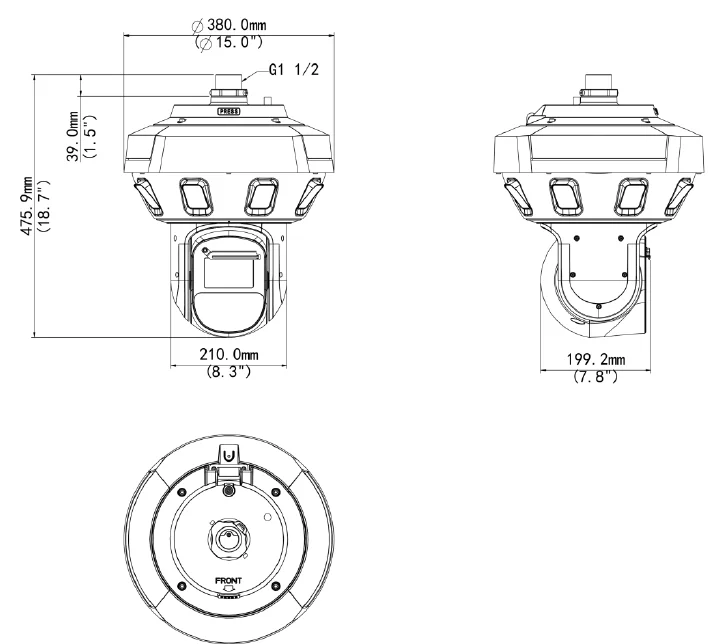

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	Φ380 mm × 475.9 mm (Φ15.0" × 18.7")
Weight	13.5 kg (27.6 lb.)
Power	DC 24 V (±25%) / DC 36 V (±25%) · max. 124 W
Working Environment	-40 °C to 70 °C (-40 °F to 158 °F), ≤95% RH non-condensing
Protection	IP67 · IK10 (except front window) · 6 kV surge
Wiper	[object Object]

Optional Mounting Accessories

Order together with the camera to save shipping.

TR-UP08M-A-INTiangong integrated-machine pole mounting bracket

TR-CE45-S-INTiangong integrated-machine pendant mounting bracket

TR-WE45-S-INTiangong integrated-machine wall mount bracket

32MP 360° Panoramic PTZ FAQ — IPC98344ER-GX42-E8-W-VH3

What resolution is the 360° panorama?

Eight 1/1.8-inch high-sensitivity sensors stitch a 32MP image of 11520×2700 at 30 fps covering 360° horizontally and 110° vertically. That pixel density lets operators zoom digitally inside the panorama itself while the separate detail channel handles optical zoom.

How far can the detail channel see at night?

The 4MP detail channel has a 6–252 mm 42x optical zoom with 8x digital and IR illumination to 500 m, running at up to 60 fps. Minimum illumination is 0.0003 lux under IR, so long perimeters stay covered in total darkness.

How does target tracking work across 360°?

Box-select a target in the panorama and the detail channel zooms, centres and tracks it, with one-click calibration and handover tracking between targets. Auto tracking classifies person, motor and non-motor vehicles and returns to position after a set duration.

Can it match faces without a server?

Yes — face detection, capture and attribute analysis with face-body association run on the camera, and up to 16 face libraries holding 100,000 faces are stored on-device, so watchlist matching happens at the edge even on sites with no server room.

We have dust and heat haze — will image quality hold?

The detail channel combines optical plus digital dehazing with heat-haze reduction, gyroscopic stabilization and adaptive glare suppression — important at 42x zoom where atmospheric shimmer is magnified. White balance modes include sodium lamp and area WB for mixed lighting.

What conditions is it built for?

IP67 and IK10 rated, operating from -40 to 70 °C, with strobe and customizable voice alarm through two built-in speakers, 2 audio inputs and outputs, 50 Mbps max live bandwidth and up to 20 concurrent bitstreams from a single IP address.
