IP Cameras › Uho-C1-M3F2

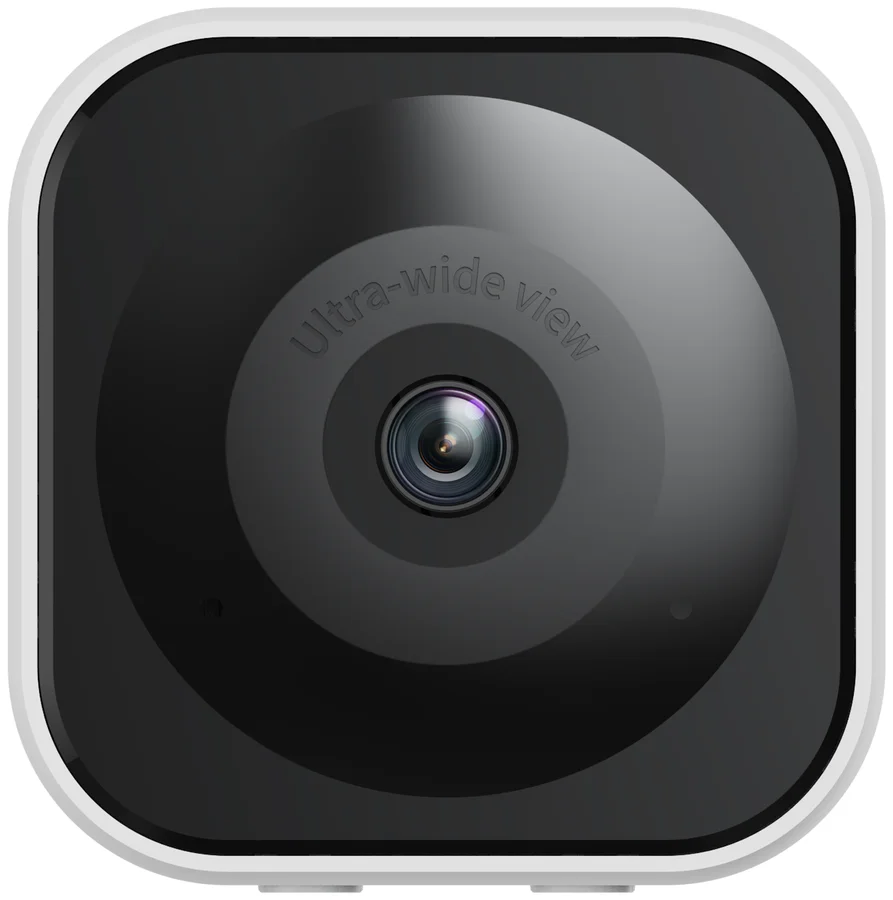

3MP Wi-Fi Cube Camera Uho-C1-M3F2 — view 1

3MP Wi-Fi Cube Camera Uho-C1-M3F2 — view 2

UniarchWi-Fi Cube Camera

3MP Wi-Fi Cube Camera

Uho-C1-M3F2

Name: Uniarch Uho-C1-M3F2
Brand: Uniarch
SKU: Uho-C1-M3F2

3MP fixed-lens Wi-Fi cube camera for indoor use — magnetic base mounts anywhere in seconds, no network cable, no PoE. Built-in mic & speaker for two-way audio, human/pet detection, Smart IR night vision to 10m.

3 MP · 2304×1296@15fpsWi-Fi · 2.4GHz built-in antennaHuman/Pet Detect · ultra motion detectionTwo-Way Audio · mic + speakerMagnetic Base · mount anywhere, no toolsUSB-C · 5V/1A powered

Get Best Price on WhatsApp

Lead time · In stock: at your forwarder’s China warehouse 3 days after payment · Not in stock: 7–15 working days · Then air 5–10 days / sea 25–45 days to your port

Terms · Sample orders welcome · Quotation / PI fixes models, prices, Incoterms (typically FOB Shenzhen), lead time and T/T payment · Defective units: free spare units agreed per order (quantity depends on order size) and written into the quotation · Warranty: up to 5 years on Zhongxin Shutong industrial switches, manufacturer warranty on other brands · Full terms, warranty & RMA

Need the PDF datasheet? Get it on WhatsApp →

In-stock models: 3 days to your forwarder's warehouse in China after payment · Out-of-stock: 7–15 working days · then air 5–10 days or sea 25–45 days to your port

Sample quantities are welcome — testing one or two units first is the normal way to start.

Certified:CEFCCRoHSWEEE

Corporate orders are registered with the manufacturer under your company name — genuine supply you can verify at the source.

10 mIR night vision

Wi-Fi2.4GHz built-in antenna

2-WayAudio, mic + speaker

2.2 WMax power

The Uniarch Uho-C1-M3F2 is a 3MP Wi-Fi cube camera built for indoor monitoring where a clean, cable-free setup matters. Its magnetic base sticks to almost any surface for instant repositioning, and it powers from any 5V/1A USB-C source while connecting over built-in 2.4GHz Wi-Fi. It combines human and pet detection, Smart IR night vision to 10m, and built-in mic-and-speaker two-way audio in a compact 60×60×60mm body.

Is this the right camera for you?

Plain-language guide for buyers and installers — based only on what this camera actually does.

Nurseries & kids' roomsBuilt-in mic and speaker let you listen in and talk back from the app — check in and soothe from another room.

Pets home alonePet detection tells animals apart from other motion, so you get relevant alerts instead of every shadow on the wall.

Apartments, offices, rentalsMagnetic base sticks to a shelf, fridge, or metal bracket — no drilling, no network cable, just Wi-Fi and a USB-C power source.

Quick repositioningMove it from the hallway to the living room in seconds — the magnetic base detaches and re-sticks without tools or marks.

Checking in at nightSmart IR night vision to 10m keeps a room visible after dark, switching automatically between color and infrared.

Local backup you controlMicroSD edge storage up to 512GB keeps footage on the camera itself — no monthly cloud subscription required to have a recording.

Not the right pick if you need…

PoE power — this camera has no PoE port, it needs a USB-C 5V/1A power source
Wired network connection — this is Wi-Fi only, there is no RJ45 Ethernet port
Outdoor or wet-location mounting — this camera has no IP rating, it's designed for indoor use only
Full-color night vision — this is IR-only, night video is black & white, not color
Zoom or a longer reach — the lens is a fixed super-wide-angle only, made for covering a whole room up close, not for zooming in on something far away

Worried about counterfeits? Order under your own company name.

For corporate buyers: we support submitting the purchase order to Uniview under your company's real name — your company appears on the official order, so the origin of the goods can be verified directly with the manufacturer. Just provide your company name and pay by corporate bank transfer. Models carrying the anti-counterfeit label can also be self-verified on Uniview's official Anti-Counterfeiting Query page — enter the unit's SN plus the scratch-off code.

1 · Company name2 · Corporate bank payment3 · Order registered in your name4 · Verify SN on Uniview's site

Using your own freight forwarder? No problem.

For small and mid-size orders, we deliver directly to your designated forwarder's warehouse in China (EXW / FOB Guangzhou). From hand-over onward, international shipping and destination-side arrangements are handled by your forwarder — the way you already work.

EXW / FOB GuangzhouDelivery to your forwarder's warehouseNo minimum order

Note: manufacturer order registration (left) is available via the corporate purchase channel.

How to get a better price

Volume Discount50+ units of a single model

Mix & Match DiscountMix any categories & models storewide in one order — no quantity limit

BETTER

Verified Project PriceDistributor, integrator or end user with a real project? Send the BOQ — project pricing plus free system design. Partner projects are protected: we never quote your end customer behind you

BEST

All discounts are quoted personally — message me on WhatsApp ↑

Key Features

Complete list from the official datasheet.

High quality image with 3MP, 1/3.0" CMOS sensor

Built-in Mic & Speaker, support two-way audio, offer better interaction

Smart IR, up to 10 m (32.8 ft.) IR distance

Supports 512 GB Micro SD card

Support Wi-Fi for stable wireless connection

Magnetic base for easy installation and flexible positioning

Support human detection, pet detection

Night vision: infrared only

Switchable Auto/Manual IR — set it per site.

IR MODE

Invisible infrared — discreet black & white night vision

Smart IR up to 10 m (32.8 ft.) at 850 nm. The camera watches without lighting up the room — nothing shows it is recording. This model has a single IR illuminator only, no warm-light module.

How far can it see? (DORI)

DORI (EN 62676-4) is the industry standard for what a camera can do at distance.

Detectsomething is there

38.6 m126.5 ft

Observewhat is happening

15.4 m50.6 ft

Recognizesomeone you know

7.7 m25.3 ft

Identifya stranger's face

3.9 m12.7 ft

How wide a view at each distance

Scene width covered at typical mounting distances — the number you need to work out how many cameras a wall, yard or aisle takes.

Distance	120.1°
5 m16 ft	17.4 m56.9 ft
10 m33 ft	34.7 m114 ft
15 m49 ft	52.1 m171 ft
20 m66 ft	69.4 m228 ft
30 m98 ft	104 m342 ft

Calculated from the horizontal field of view in the specifications below: width = 2 × distance × tan(FOV ÷ 2). Lens distortion and mounting angle are not included.

Full Specifications

Complete official specifications from the manufacturer's datasheet (technical values in English).

Camera

Max Resolution	3 MP
Sensor	1/3.0" CMOS
Min. Illumination	Colour: 0.003 lux (F2.0, AGC ON), 0 lux with IR on
Day/Night	IR-cut filter with auto switch (ICR)
Shutter	Auto/Manual, 1 to 1/100000 s

Lens

Iris Type	Fixed
Iris	F2.0
Field of View (H)	120.1°
Field of View (V)	65.9°
Field of View (D)	141.6°
Lens Type	Fixed

DORI

DORI Distance (Lens)	2.1 mm
DORI Distance (Detect)	38.6 m (126.5 ft.)
DORI Distance (Observe)	15.4 m (50.6 ft.)
DORI Distance (Recognize)	7.7 m (25.3 ft.)
DORI Distance (Identify)	3.9 m (12.7 ft.)

Illuminator

Supplemental Light	IR
Illumination Distance (IR)	10 m (32.8 ft.)
Wavelength	850 nm
IR On/Off Control	Auto/Manual

Video

Video Compression	H.265, H.264
Frame Rate	Main Stream: 2304×1296@15fps; Sub Stream: 640×360@15fps
U-code	Support
OSD	Up to 1 OSD
ROI	N/A
Video Stream	Dual streams


Smart IR	Support
Flip	Normal, Flip vertical, Flip horizontal, 180°

Events

Basic Detection

Ultra motion detection (human/ pet detection)

Audio

Audio Compression	G.711U
Audio Bitrate	64 Kbps
Two-way Audio	Support
Suppression	Support
Sampling Rate	8 kHz

Interface

Video Output	N/A
Built-in Mic	Support
Built-in Speaker	Support
WIFI	Support
Network	N/A

Storage

Edge Storage

MicroSD, up to 512 GB

Network

Wi-Fi	2.4G Wi-Fi (IEEE802.11b/g/n), built-in antenna
Compatible Integration	API
Client	APP

Wi-Fi

Wireless Standards	IEEE802.11b/g/n
Frequency Range	2.4 GHz to 2.4835 GHz
Channel Bandwidth	20 MHz Support
Modulation Mode	802.11b: CCK, QPSK, BPSK; 802.11g/n: OFDM/HT
Wi-Fi Security	64/128-bit WEP, WPA-PSK/WPA2-PSK
Transmit Power	802.11b: 17±1.5 dBm@11 Mbps; 802.11g: 14±1.5 dBm@54 Mbps; 802.11n: 12.5±1.5 dBm@72.2 Mbps
Receive Sensitivity	802.11b: -90 dBm@11 Mbps (Typical); 802.11g: -75 dBm@54 Mbps (Typical); 802.11n: -74 dBm@72.2 Mbps (Typical)
Transmission Rate	802.11b: 11 Mbps; 802.11g: 54 Mbps; 802.11n: up to 72.2 Mbps

Certification

EMC	CE-EMC (EN 55032, EN 61000-3-2, EN IEC 61000-3-3, EN 50130); FCC (SDoC 47 CFR Part 15, Subpart B)
RF	FCC ID (FCC CFR 47 part15, Subpart C); CE RED (EN 301 489-1, EN 301 489-17, EN 300 328, EN IEC 62311)
Safety	CE LVD (EN IEC 62368-1)
Environment	CE-RoHS (2011/65/EU; (EU) 2015/863); WEEE (2012/19/EU)

General

Material	Plastic
Power	DC 5 V/1 A, USB typeA-C interface
Power Consumption	Max. 2.2 W
Dimensions	Φ60 mm × 60 mm × 60 mm (Φ2.4" × 2.4" × 2.4")
Weight	0.09 kg (0.2 lb.)
Working Environment	-10 °C to 50 °C (14 °F to 122 °F), Humidity: ≤ 95% RH (non-condensing)
Storage Environment	-10 °C to 50 °C (14 °F to 122 °F), Humidity: ≤ 95% RH (non-condensing)
Reset Button	Support
LED Indicator	1, red/blue

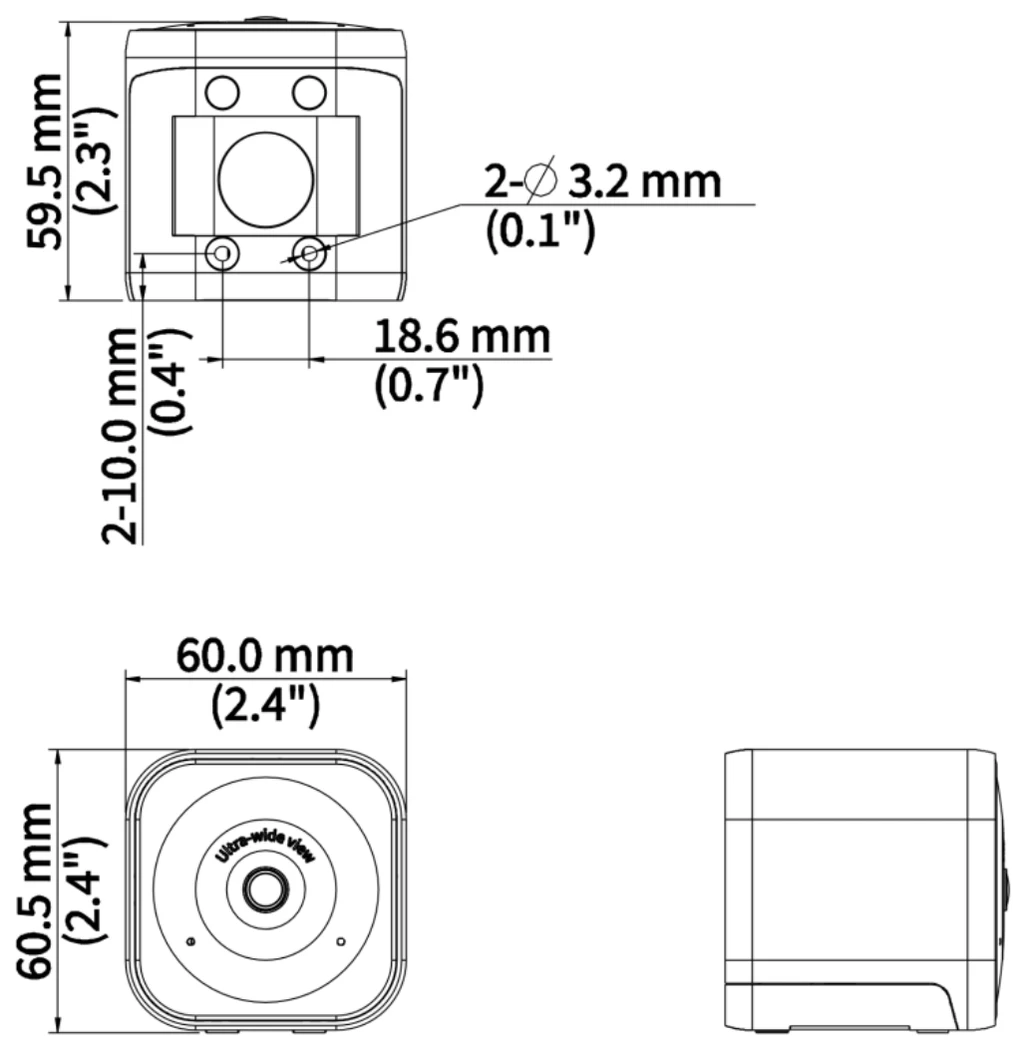

Dimensions

Engineering drawing reproduced 1:1 from the official datasheet.

unit: mm (in.)

Dimensions	Φ60 mm × 60 mm × 60 mm (Φ2.4" × 2.4" × 2.4")
Weight	0.09 kg (0.2 lb.)
Material	Plastic

3MP Wi-Fi Cube Camera FAQ — Uho-C1-M3F2

How is it mounted — do I need to drill or run cables?

No drilling and no network cabling. The cube has a magnetic base, so it sits on a shelf or snaps onto any metal surface, and it joins your 2.4 GHz Wi-Fi (IEEE 802.11b/g/n) through its built-in antenna. Reposition it in seconds when the shop layout changes.

How much of a room does one camera cover?

The 2.1 mm lens gives a 120.1° horizontal and 141.6° diagonal field of view, so one unit placed in a corner sees nearly the whole room. Resolution is 3 MP (2304×1296) at 15 fps, with DORI detection at 38.6 m and identification at 3.9 m.

Can it tell people from pets?

Yes. Ultra motion detection classifies events as human or pet, so you are not flooded with alerts every time a cat crosses the room. Management runs through the APP client, and an API is available if you need to integrate it into your own platform.

Does it have a speaker for two-way conversation?

Yes — both a microphone and a speaker are built in, with two-way audio in G.711U at 64 Kbps, 8 kHz sampling and echo suppression. You can check on family, staff or a back room and speak directly through the camera from wherever you are.

Does it see in the dark, and where does it record?

Smart IR reaches 10 m at 850 nm — enough for a typical room — with automatic IR-cut switching and 0.003 lux color sensitivity. Recording goes to a MicroSD card up to 512 GB inside the camera; H.265 compression on the dual streams keeps file sizes down.
